Ridetech TQ Series CoilOver Shock 3.6in Travel 2.5in Coil Triple Adjustable Eye/Eye Mounting
Ridetech TQ Series CoilOver Shock 3.6in Travel 2.5in Coil Triple Adjustable Eye/Eye Mounting
A$1,957.13
Last Available from MFR.
LAST ONE AVAILABLE from the manufacturer's distribution centre. Once sold, this item may not be immediately available again. The dispatch timeframe shown is an estimate based on historical orders for this part and is dependent on the manufacturer releasing the final available unit.
We accept
Description

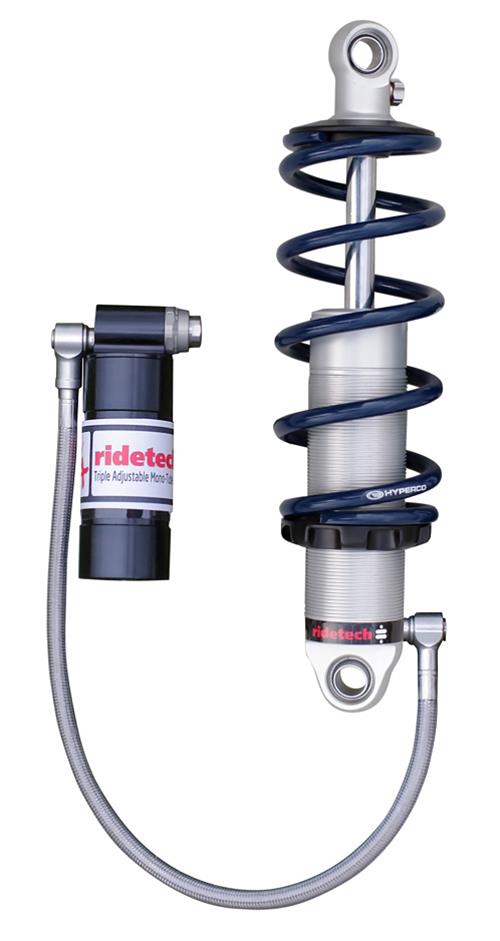

Track quality—RideTech TQ coilover shocks offer a performance level for competition. TQ coilovers feature a single rebound adjustment and a dual stage—high speed and low speed—compression adjustment. RideTech also designed these monotube aluminum shocks with a remote reservoir that is connected with a 30 in. braided line for easy installation in a variety of applications. These supreme shocks are surrounded by powdercoated high-tensile premium steel CNC cold-wound springs that offer less weight, more resistance to bowing, and increased travel. There's ride quality, handling quality, and now track quality from RideTech—the TQ series of coilover shocks for winning performance on road courses, race tracks, and extreme environments.
Other premium features:
* Impact-forged aluminum body
* Anodized finished
* CNC-machined billet hardware
* Larger piston
* Double sealed rod guide
* 5/8 in. chrome shock shaft
Product Overview
TQ Coil-Over shock with 3.6" stroke and 1.7" eye mount, universal. Includes 1 triple adjustable shock, spring mounts, delrin spring washers and bearing spacers (1/2" and 5/8"). 9.4" x 13" with a 11.25"-11.5" ride height.
Product Details
| Description: | Ridetech TQ Series CoilOver Shock 3.6in Travel 2.5in Coil Triple Adjustable Eye/Eye Mounting |
|---|---|
| Part Number: | rid24339901 |
| Pricing Group: | TQ Coil-Over Shock |
| Prop 65 Chemicals: | chromium,nickel,nickel_acetate,nickel_compounds,toluene |
| Proposition 65 Warning: | Y |
Application Summary
UNIVERSAL
Part Type
Suspension Shock Absorber
Specifications
- Product Attributes - Brand
- RideTech
- Product Attributes - Manufacturer's Part Number
- 24339901
- Product Attributes - Part Type
- Coilover Shocks and Struts
- Product Attributes - Product Line
- RideTech TQ Coilover Shocks
- Product Attributes - UPC
- 840123509635
- Product Attributes - Coilover Shock Type
- Triple-adjustable
- Product Attributes - Shock Body Material
- Aluminum
- Product Attributes - Shock Body Finish
- Silver
- Product Attributes - Adjustable Valving
- Yes
- Product Attributes - Number of Valving Selections
- 72
- Product Attributes - Extended Length (in.)
- 9.40
- Product Attributes - Collapsed Length (in.)
- 13.00
- Product Attributes - Threaded Adjustment Range
- 3.500 in.
- Product Attributes - Upper Mount
- Eyelet
- Product Attributes - Lower Mount
- Eyelet
- Product Attributes - Internal Design
- Monotube
- Product Attributes - Gas Charged
- Yes
- Product Attributes - Body Diameter (in.)
- 2.000
- Product Attributes - Bushing Material
- Spherical bearing/PTFE
- Product Attributes - Coilover Springs Included
- No
- Product Attributes - Recommended Spring Diameter (in.)
- 2.50 in.
- Product Attributes - Recommended Minimum Spring Length (in.)
- 8.00 in.
- Product Attributes - Recommended Maximum Spring Length (in.)
- 8.00 in.
- Product Attributes - Adjustable Mounting Bracket Included
- No
- Product Attributes - Hardware Included
- Yes
- Product Attributes - Quantity
- Sold individually.
Reference Information
| Brand Name/s | Ridetech |
|---|---|
| StreetFX SKU | rid24339901 |
| SFX Item ID | 4134816 |
| Supplier Item Code | 4134816 |
| Manufacturer SKU | 24339901 |
| Manufacturer UPC | 840123509635 |
| Alternative References | ART-24339901, RDT24339901, 3.6in, 2.5in |
Compatibility
UNIVERSAL
