Ridetech 65-79 Ford F-100 2WD Front IFS Suspension System - Pin Spindle
Ridetech 65-79 Ford F-100 2WD Front IFS Suspension System - Pin Spindle
A$13,231.05
LAST ONE! Est Ship 3-5 days.
LAST ONE! This is the last unit at our distribution centre. Contact us if you need more. The ETA is the approximate time required to prepare your order for dispatch.
We accept
Description
Ridetech 1965-79 F-100/F-150 IFS suspension systems are bolt-in and super stout. Significantly more rigid and stronger than the original front suspension, kits are available with Ridetech tall pin or hub spindles, and each kit is designed so you can install it yourself with hand tools and a little elbow grease.
Features, notes, and specs:
* Replaces bulky, heavy, poor handling twin I-beam suspension with a substantial H-style design

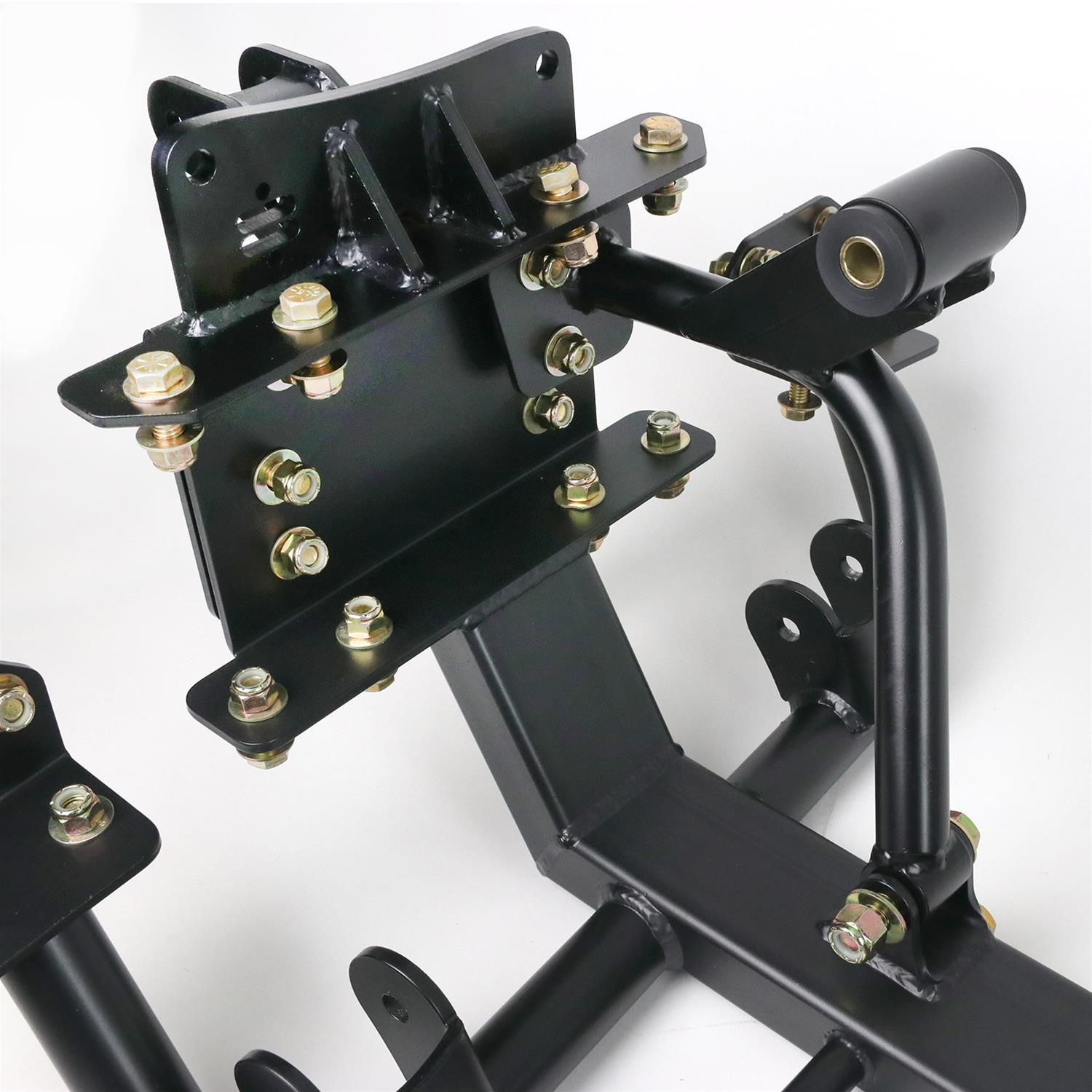

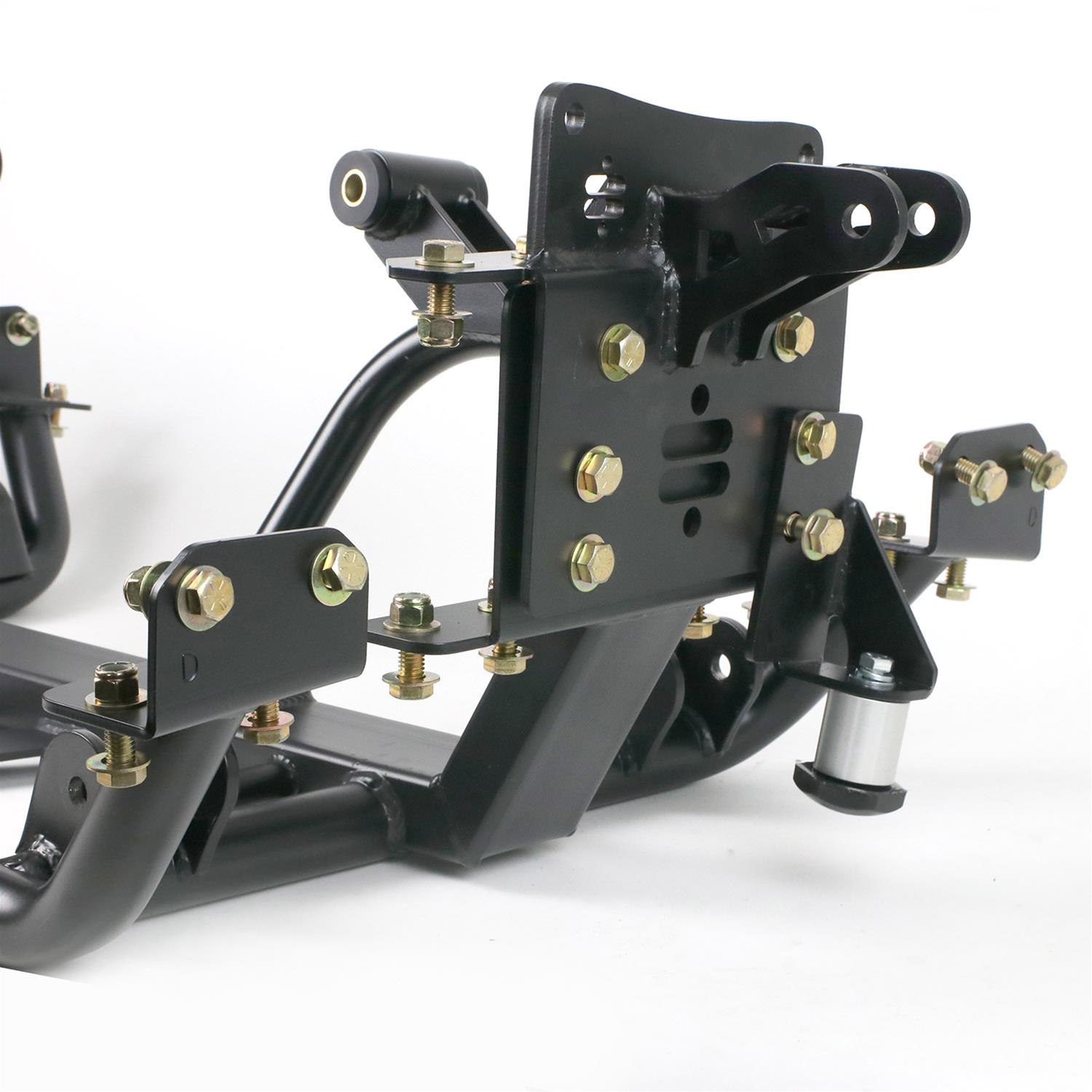

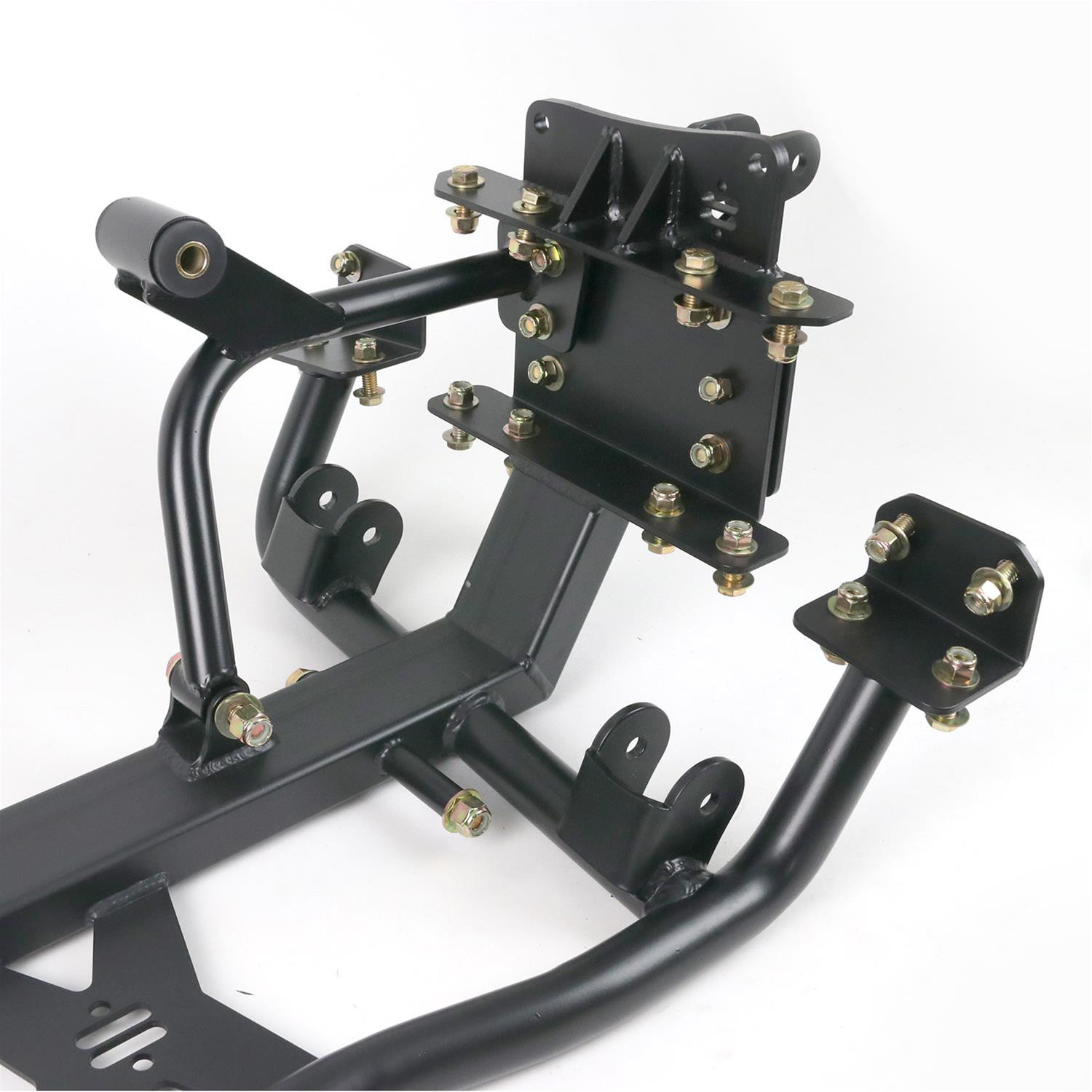

* Bolt-in cradle is super strong and strengthens the front of the truck while providing structural mounts for front control arms
* Superb suspension geometry
* Control arms are assembled with ball joints and Delrin® bushings for smooth, squeak-free, long-lasting performance

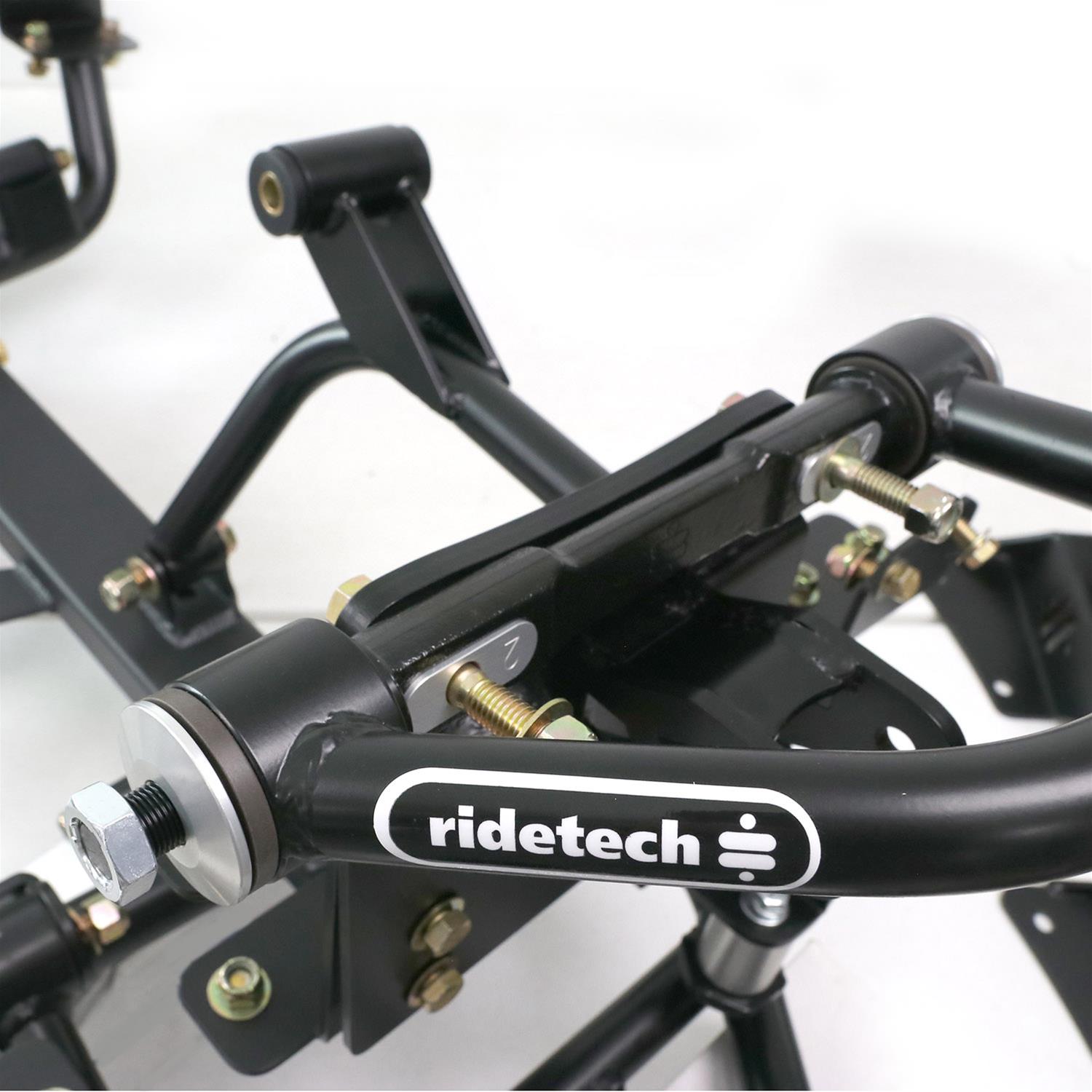

* Upper control arm cross shaft allows for easy alignment and use of caster slugs
* Adjustable steering stop on lower control arm
* Increased camber gain with tall spindle, 5 to 8 degrees of caster for improved high-speed stability
* Motor mount "loops" connect cradle to frame rails to reinforce frame
* Front sway bar measures 1.5 in. x .250 in. wall and provides confident cornering and smooth ride
* Adjustable bump stops
* Rack and pinion steering conversion with 15.5 in. center-to-center bushing mounts for 79 to 93 Mustang-style steering rack
* Billet adjustable tie rods
* Bump steer has been virtually eliminated
* High-quality satin black powdercoat finish
* Entire system saves approximately 130 lbs. from front of the truck
Product Overview

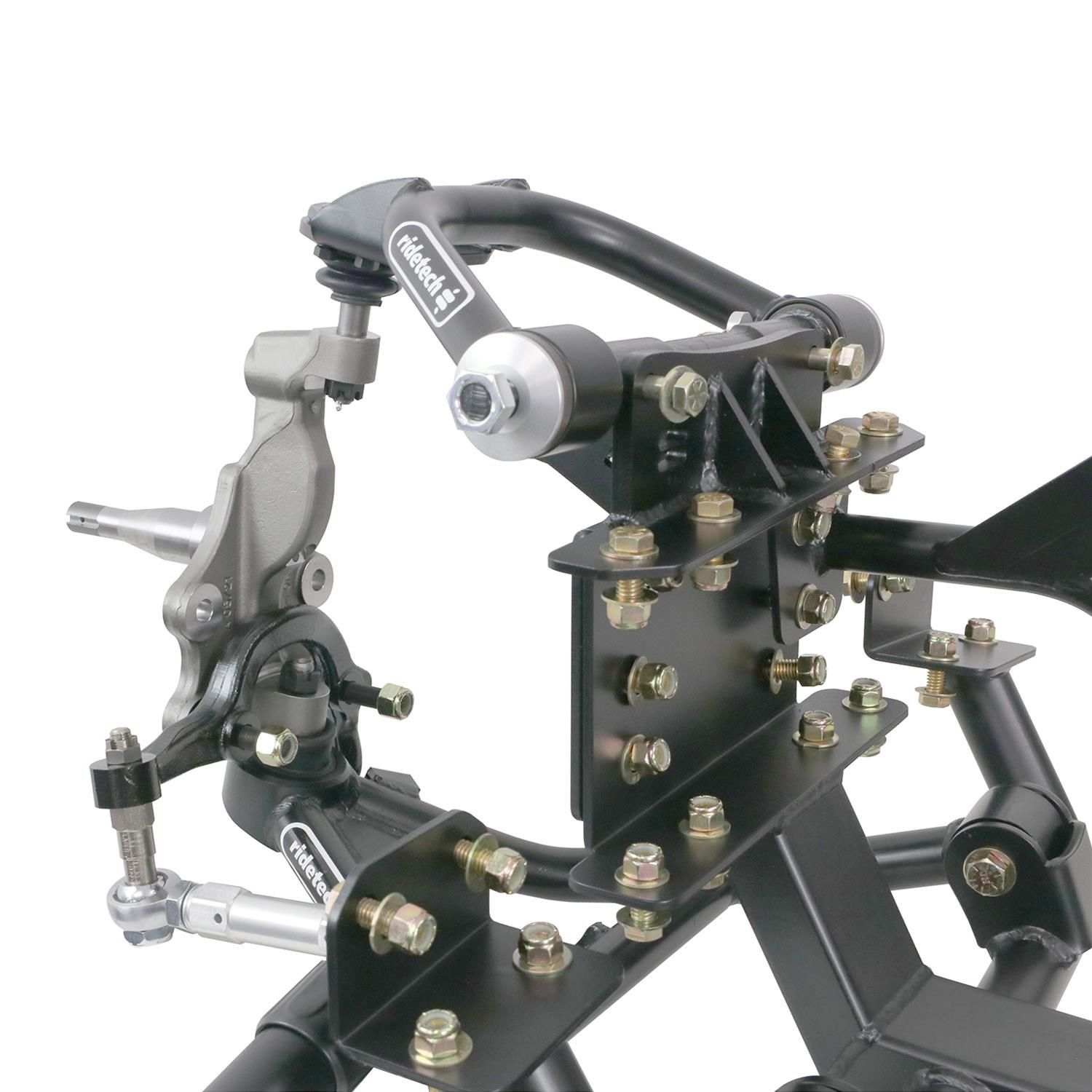

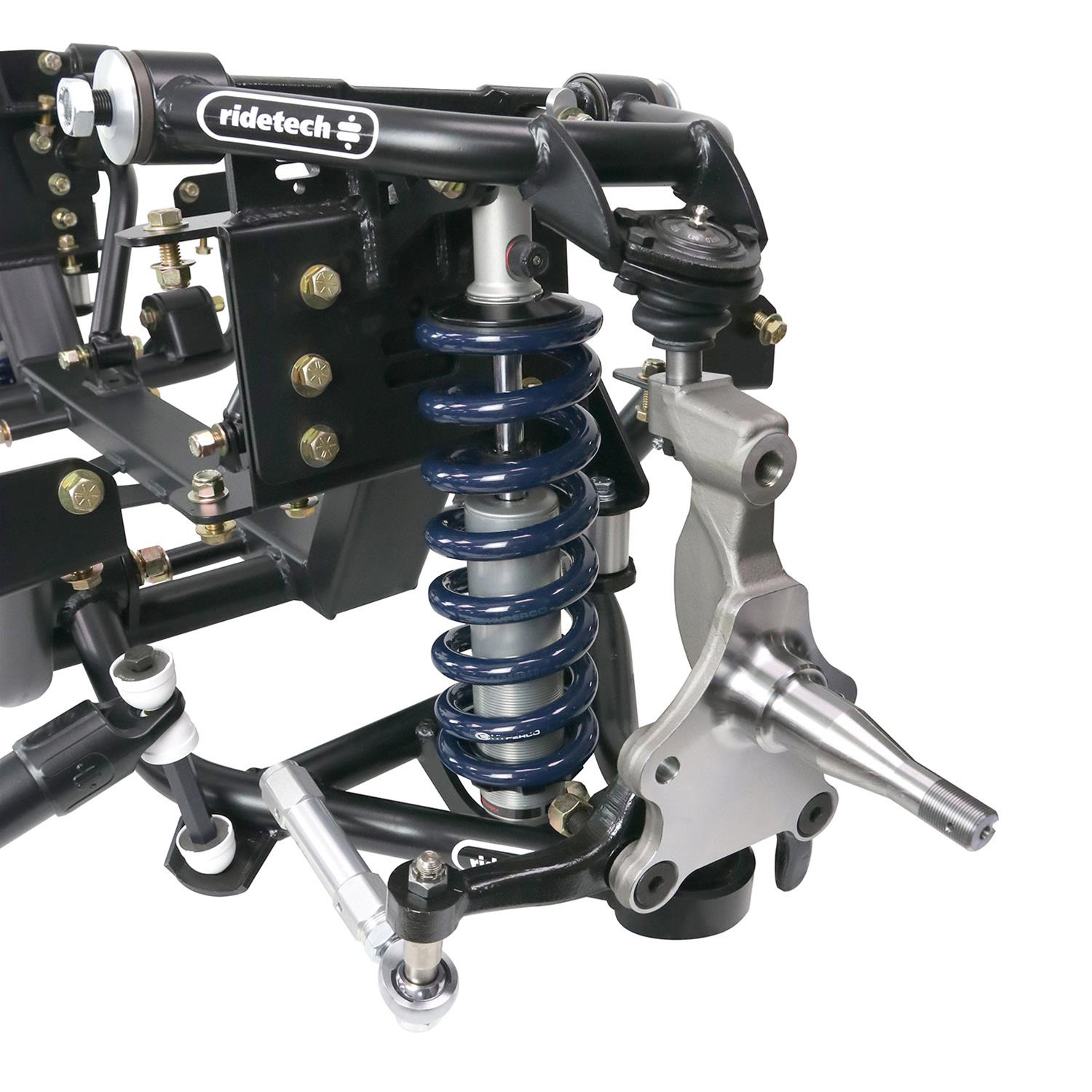

Front suspension system for 1965-1979 F-100, 2WD. Includes, cross member, frame brackets, upper and lower arms, spindles, tie rods and sway bar. For use with Shockwaves or Coil-Overs and 79-93 Mustang rack and pinion, sold separately.
Product Details
| Description: | Ridetech 65-79 Ford F-100 2WD Front IFS Suspension System - Pin Spindle |
|---|---|
| Part Number: | rid12312799 |
| Prop 65 Chemicals: | chromium,nickel,nickel_acetate,nickel_compounds |
| Proposition 65 Warning: | Y |
Kit Options
This item is available as a full kit.
Select a kit option in the following table if you are looking for this item in a bundle form with all associated components.
Kit option/s:
| Thumb | SKU | Kit Title |
|---|---|---|
 |
rid12330201 | Ridetech 73-79 Ford F-100 2WD HQ Coilover System w/ Pin Spindle (1x rid85000000, 1x rid12312799, 1x rid12313510, 1x rid12316510, 1x rid12337199) |
 |
rid12320298 | Ridetech 65-72 Ford F-100 2WD Complete Air Suspension System w/ Pin Spindle (1x rid21150801, 1x rid12312799, 1x rid12327199, 1x rid12313001) |
|
rid12320201 | RideTech Suspension Lowering Systems for 1965-1972 F-100 - 12320201 Coil-Over System, Complete Kit, Front, Rear, Ford, Kit |
|
rid12330298 | RideTech 1973-79 Ford Air Suspension Systems for 1973-1979 F-100, 1975-1979 F-150 - 12330298 Springs, Complete System, Lowered, ShockWave, Ford, Kit |
Application Summary
1965-1979 F-100
Part Type
Suspension Lowering Kit
Specifications
- Product Attributes - Brand
- Ridetech
- Product Attributes - Manufacturer's Part Number
- 12312799
- Product Attributes - Part Type
- Front Suspension Packages
- Product Attributes - Product Line
- Ridetech 1965-79 F-100/F-150 IFS Suspension Systems
- Product Attributes - UPC
- 840123517050
- Product Attributes - Crossmember Included
- Yes
- Product Attributes - Crossmember Material
- Steel
- Product Attributes - Crossmember Color
- Black powdercoated
- Product Attributes - Welding Required
- No
- Product Attributes - Front Spindles Included
- Yes
- Product Attributes - Spindle Type
- 2 in. drop
- Product Attributes - Spindle Material
- Steel
- Product Attributes - Spindle Color
- Natural
- Product Attributes - Upper Control Arms Included
- Yes
- Product Attributes - Lower Control Arms Included
- Yes
- Product Attributes - Control Arm Style
- Tubular
- Product Attributes - Control Arm Material
- Steel
- Product Attributes - Control Arm Color
- Black
- Product Attributes - Upper Ball Joints Included
- Yes
- Product Attributes - Lower Ball Joints Included
- Yes
- Product Attributes - Rack and Pinion Included
- No
- Product Attributes - Shocks Included
- No
- Product Attributes - Coilover Springs Included
- No
- Product Attributes - Disc Brake Kit Included
- No
- Product Attributes - Front Rotor Included
- No
- Product Attributes - Front Caliper Included
- No
- Product Attributes - Brake Pads Included
- No
- Product Attributes - Sway Bar Included
- Yes
- Product Attributes - Sway Bar Diameter (in.)
- 1.500 in.
- Product Attributes - Sway Bar Diameter (mm)
- 38.00 mm
- Product Attributes - Center Link Included
- No
- Product Attributes - King Pins Included
- No
- Product Attributes - King Pin Bearings Included
- No
- Product Attributes - Pitman Arm Included
- No
- Product Attributes - Idler Arm Included
- No
- Product Attributes - Tie Rod Sleeves Included
- Yes
- Product Attributes - Inner Tie Rod Ends Included
- Yes
- Product Attributes - Outer Tie Rod Ends Included
- Yes
- Product Attributes - Quantity
- Sold as a kit.
Reference Information
| Brand Name/s | Ridetech |
|---|---|
| StreetFX SKU | rid12312799 |
| SFX Item ID | 4135594 |
| Supplier Item Code | 4135594 |
| Manufacturer SKU | 12312799 |
| Manufacturer UPC | 840123517050 |
| Alternative References | ART12312799, RDT12312799, F-100, 2WD |
Compatibility
1965-1979 F-100
