Description

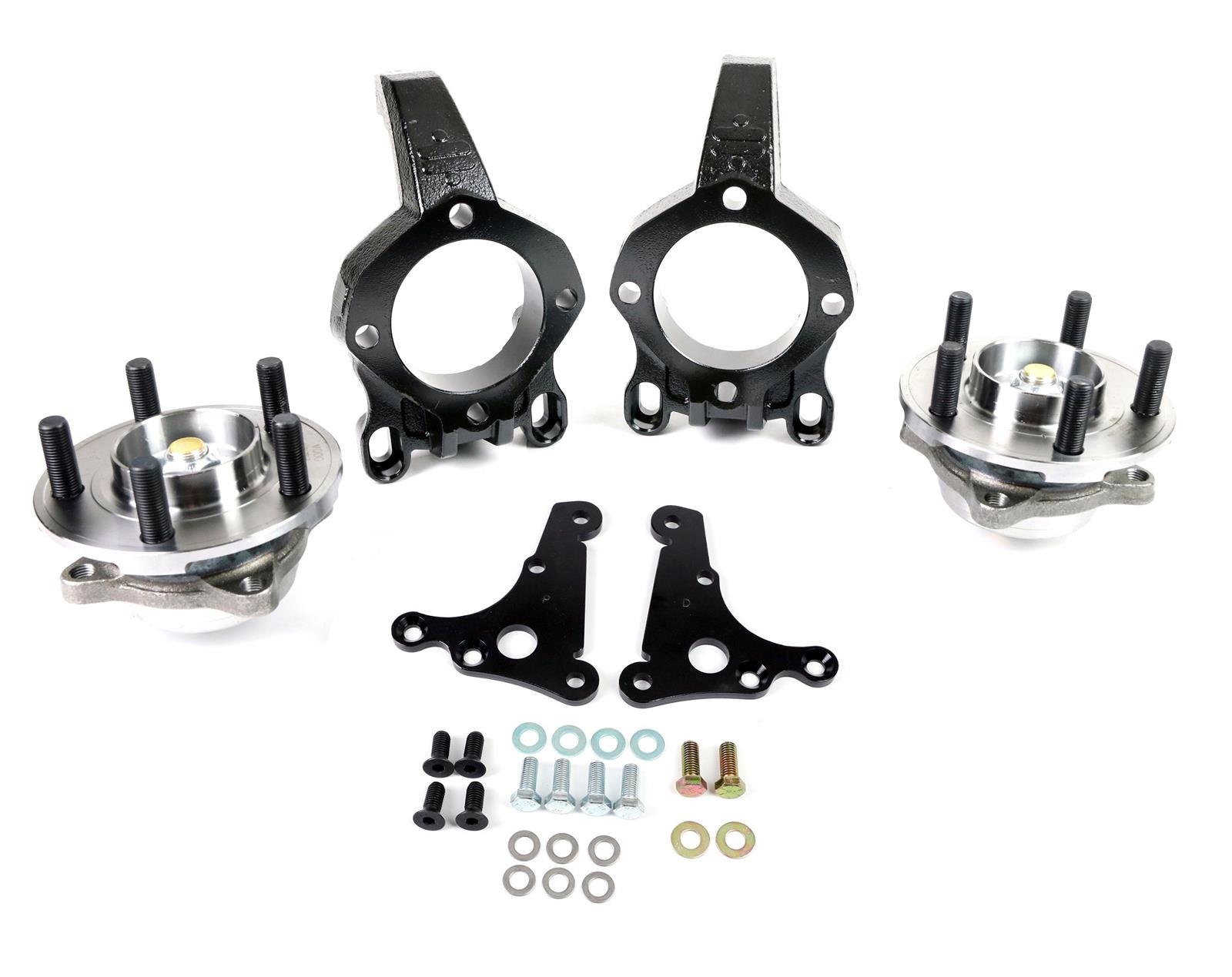

RideTech 1961-65 Falcon TruTurn front suspension systems will bring your classic into the 21st century.

Designed to give your Falcon excellent handling along with a lifetime of enjoyment, the TruTurn System features optimized ball joint angles and the elimination of rubber bushings, ridding the system of bushing deflection and providing free suspension movement through the entire range of travel. The geometry has also been optimized for excellent handling, drivability, and minimal bump steer.

RideTech Falcon front suspension systems are available with pin spindles or hub spindles that offer the same geometry improvements as the pin style, but add the performance and simplicity of late model Mustang hubs and brakes. Choose the ideal kit for your Ford Falcon.

Additional notes:

* Bump steer reduced to less than 1/16 in.
* Complete steering upgrade includes: draglink, pitman arm, idler arm, and idler arm mount
* Zero to over 7 degrees of caster possible
* Hub spindle kit includes MuscleBar sway bar
* Can be used with RideTech's coilovers or Shockwaves

Kit Options

This item is available as a full kit.
Select a kit option in the following table if you are looking for this item in a bundle form with all associated components.

Kit option/s:

Thumb	SKU	Kit Title
	rid12280205	Ridetech 61-65 Ford Falcon HQ Coilover System w/ Hub Spindle & Double Adj. Bars (1x rid12287197, 1x rid12289598, 1x rid85000000, 1x rid12283510, 1x rid12286510, 1x rid12289100)
	rid12280294	Ridetech 61-65 Ford Falcon Air Suspension System w/ Hub Spindle & Double Adj. Bars (1x rid12287197, 1x rid12289598, 1x rid21150701, 1x rid12283001, 1x rid12289100)

Data: v4.2 - Upd: 2026-10-16 21:17:19

Specifications

Product Attributes - Brand

RideTech

Product Attributes - Manufacturer's Part Number

12289598

Product Attributes - Part Type

Front Suspension Packages

Product Attributes - Product Line

RideTech 1961-65 Falcon TruTurn Front Suspension Systems

Product Attributes - UPC

840123517814

Product Attributes - Wheel Bolt Pattern

5 x 4 1/2 in.

Product Attributes - Crossmember Included

No

Product Attributes - Welding Required

No

Product Attributes - Front Spindles Included

Yes

Product Attributes - Spindle Type

2 in. drop

Product Attributes - Spindle Material

Steel

Product Attributes - Spindle Finish

Natural

Product Attributes - Upper Control Arms Included

Yes

Product Attributes - Lower Control Arms Included

Yes

Product Attributes - Control Arm Style

Tubular

Product Attributes - Control Arm Material

Steel

Product Attributes - Control Arm Color

Black

Product Attributes - Upper Ball Joints Included

Yes

Product Attributes - Lower Ball Joints Included

Yes

Product Attributes - Rack and Pinion Included

No

Product Attributes - Shocks Included

No

Product Attributes - Coilover Springs Included

No

Product Attributes - Disc Brake Kit Included

No

Product Attributes - Front Rotor Included

No

Product Attributes - Front Caliper Included

No

Product Attributes - Brake Pads Included

No

Product Attributes - Sway Bar Included

Yes

Product Attributes - Sway Bar Diameter (in.)

1.125 in.

Product Attributes - Sway Bar Diameter (mm)

28.58 mm

Product Attributes - Center Link Included

No

Product Attributes - King Pins Included

No

Product Attributes - King Pin Bearings Included

No

Product Attributes - Pitman Arm Included

Yes

Product Attributes - Idler Arm Included

Yes

Product Attributes - Tie Rod Sleeves Included

Yes

Product Attributes - Inner Tie Rod Ends Included

Yes

Product Attributes - Outer Tie Rod Ends Included

Yes

Product Attributes - Quantity

Sold as a kit.
