Description

RideTech 1964-66 Mustang air suspension systems are the perfect choice to deliver modern ride quality and handling to your classic muscle car, while providing an ultra-low show stance. (To complete this air suspension system, a RideTech compressor system is required/recommended.)


RideTech 1964-66 Mustang air suspension systems include:

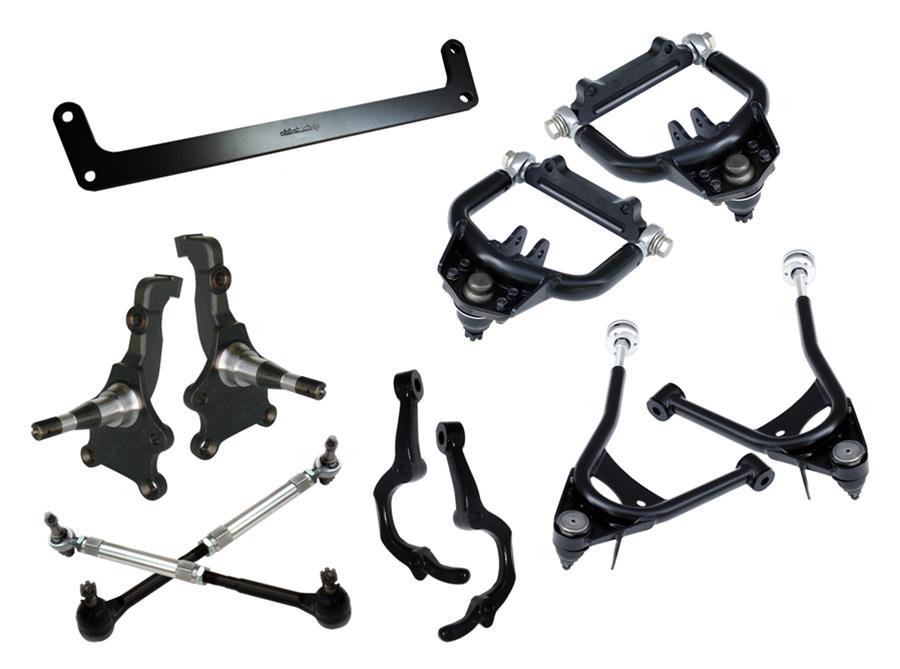

* Upper StrongArms: feature corrected ball joint angles for the tall spindles (the upper ball joint has been moved back to allow for additional caster setting, which improves high-speed stability and steering feel). Billet cross shafts are included, with a lowered mounting point to increase camber gain and correct suspension geometry; they house a stout double sheer lower shock mount
* Lower StrongArms: feature a unique design that combines the control and strut rod into a stronger, more appealing one-piece design. (Additional caster is designed into the arms, and includes a robust bearing in aluminum housing at the front mount to replace the soft factory rubber units)
* TruTurn System: includes tall spindles, which induce more negative camber gain to maximize tire contact patch during cornering (also includes steering arms, center link adapter, tie rods and adjusters—to virtually eliminate bump steer, correct Ackerman angle, and allow for wider tires). This spindle is designed for use with 1967-69 Camaro brake systems (compatible with OEM manual steering, and with the Borgenson power steering conversion box).
* HQ Series Shockwaves: utilize an impact forged aluminum body and monotube design to deliver excellent ride quality and handling (they also allow fine-tuning of the ride quality and handling; the rebound knob is located at the top of the shock for underhood access).
* Front MuscleBar: helps reduce body roll and includes the PosiLink end links that provide immediate engagement between the chassis and control arms
* Bolt-on 4-link: installation does not require any major modifications to the floor pan, and requires only minimal welding to the axle tube; also works with minitubs. The R-joint rod ends combine the best qualities of low-friction movement, lateral stability, full-range articulation, and quiet operation into one special bearing that is as home on the street as it is on the racetrack.

Product Overview

HQ Air Suspension System for 1964-1966 Mustang. Includes front and rear HQ Shockwaves, Front TruTurn System, Bolt-On 4-Link with double adj. bars and front sway bar.

Product Details

Description:	HQ Air Suspension System for 1964-1966 Mustang.
Prop 65 Chemicals:	chromium,nickel,nickel_compounds
Proposition 65 Warning:	Y

This is a group bundle consisting of:

Image	Qty	SKU	MFR SKU	UPC	Description
	1x	rid12099100	12099100	840123502537	Ridetech 64-66 Ford Mustang MuscleBar with PosiLinks Front
	1x	rid21150701	21150701	840123509345	Ridetech HQ Series Rear ShockWaves 5in Travel 4in dia Rolling Sleeve .625 Bearing/.625 Bearing
	1x	rid12093001	12093001	840123507617	Ridetech 64-66 Ford Mustang Front HQ Series Shockwaves use with TruTurn and StrongArms
	1x	rid12087197	12087197	840123507549	Ridetech 64-70 Ford Mustang Bolt-On 4 Link System Double Adjustable
	1x	rid12099599	12099599	840123507754	Ridetech 64-66 Ford Mustang TruTurn Suspension Package

Bundled group items may ship from multiple locations and could have slightly longer transit times if parts are sourced from different warehouses.

Images in this listing may include individual and/or group shots of the products included in the bundle. Please refer to the table to see a breakdown of what is included. Click on a SKU to see individual item details.

For details on the individual components in this bundle, click here.

Data: v4.2 - Upd: 2026-10-14 20:54:41

Specifications

Product Attributes - Brand

RideTech

Product Attributes - Manufacturer's Part Number

12090297

Product Attributes - Part Type

Suspension Kits, Air Springs

Product Attributes - Product Line

RideTech 1964-66 Mustang Air Suspension Systems

Product Attributes - UPC

840123517609

Product Attributes - Air Spring Suspension Kit Type

ShockWave

Product Attributes - Air Springs Included

Yes

Product Attributes - Air Bar System Type

4-link suspension

Product Attributes - Air Compressor Included

No

Product Attributes - Air Line Included

No

Product Attributes - Frame Brackets Included

Yes

Product Attributes - Gauges Included

No

Product Attributes - Leveling Switch Included

No

Product Attributes - Links Included

Yes

Product Attributes - Shocks Included

Yes

Product Attributes - Welding Required

No

Product Attributes - Mounting Hardware Included

Yes

Product Attributes - Quantity

Sold as a kit.
