RideTech Complete Coilover Suspension Systems for 2007-2016 SIERRA 1500, SILVERADO 1500 - 11700203 Handling System, HQ Coil-Over Lowering System, 4 in Front, 6 in Rear, Adjustable, 4WD, Chevy, Kit
RideTech Complete Coilover Suspension Systems for 2007-2016 SIERRA 1500, SILVERADO 1500 - 11700203 Handling System, HQ Coil-Over Lowering System, 4 in Front, 6 in Rear, Adjustable, 4WD, Chevy, Kit
A$18,066.21
BACKORDER
This item will be special ordered in for you. Contact us prior to purchase if you require an ETA.
We accept
Description

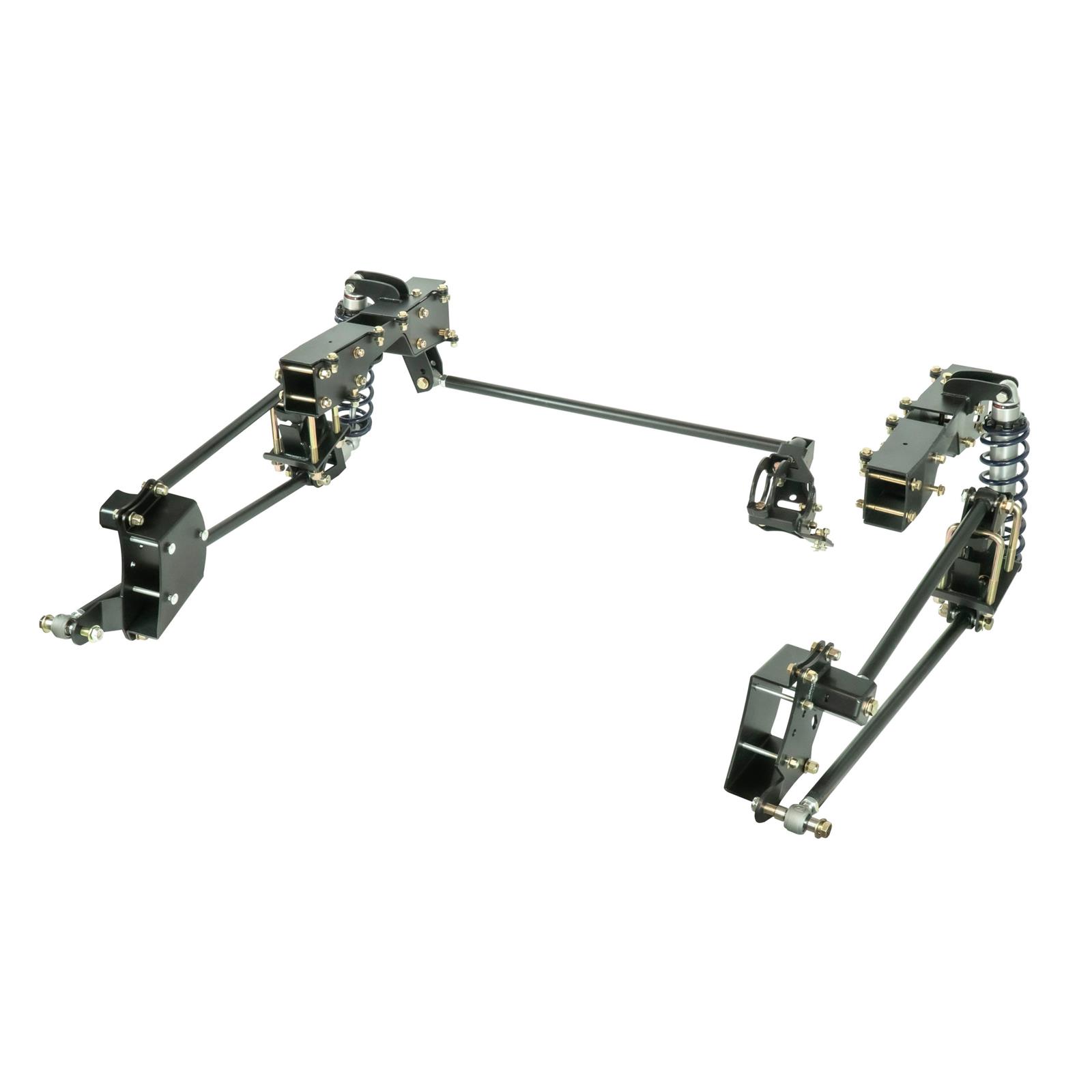

RideTech complete coilover suspension systems are designed to lower your vehicle and improve handling and ride quality. The complete system includes front and rear HQ Series rebound adjustable coilovers, front tubular upper control arms, bolt-on 4-link with C-notch and drop spindles. When you talk about Ridetech, you're talking about world-class hot rodders that are problem solvers and innovators! Select the complete coilover suspension system designed for your vehicles application needs.
Features and benefits include:
* Offers a ride height that is approximately 4 in. lower than stock in the front and 6 inches in the rear
* HQ Series adjustable coilovers utilize an impact forged aluminum body and monotube design to deliver excellent ride quality and handling—allows fine-tuning of ride quality and handling (rebound knob is located at the top of the shock for under hood access)

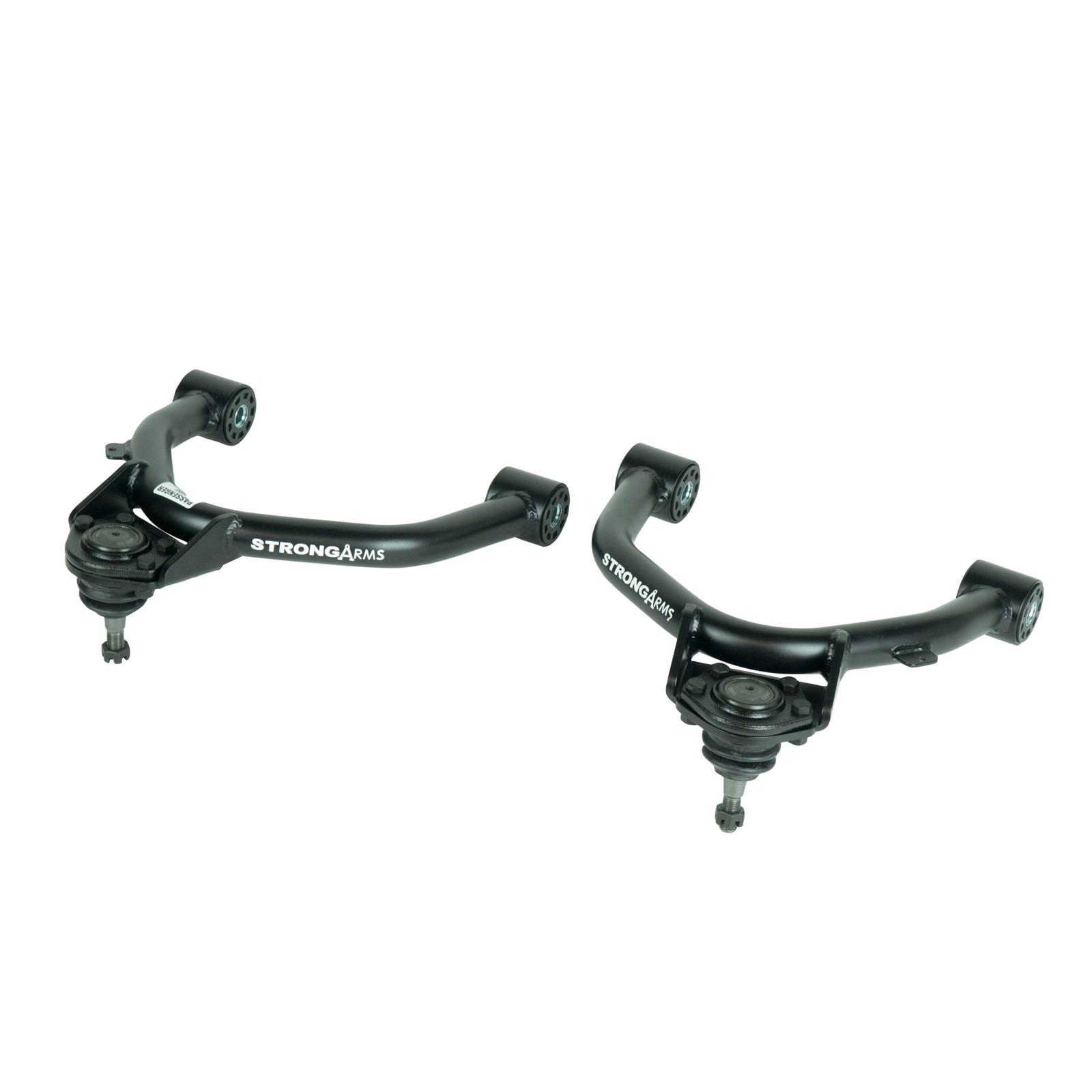

* Upper Strongarm tubular control arms feature corrected ball joint angles for the lowered ride height--the altered length creates more camber adjustment
* Injection-molded Delrin® bushings with PTFE material reduce deflection and stiction
* Drop Spindles are used to all the use of a longer stroke shock and improve suspension geometry and bump steer

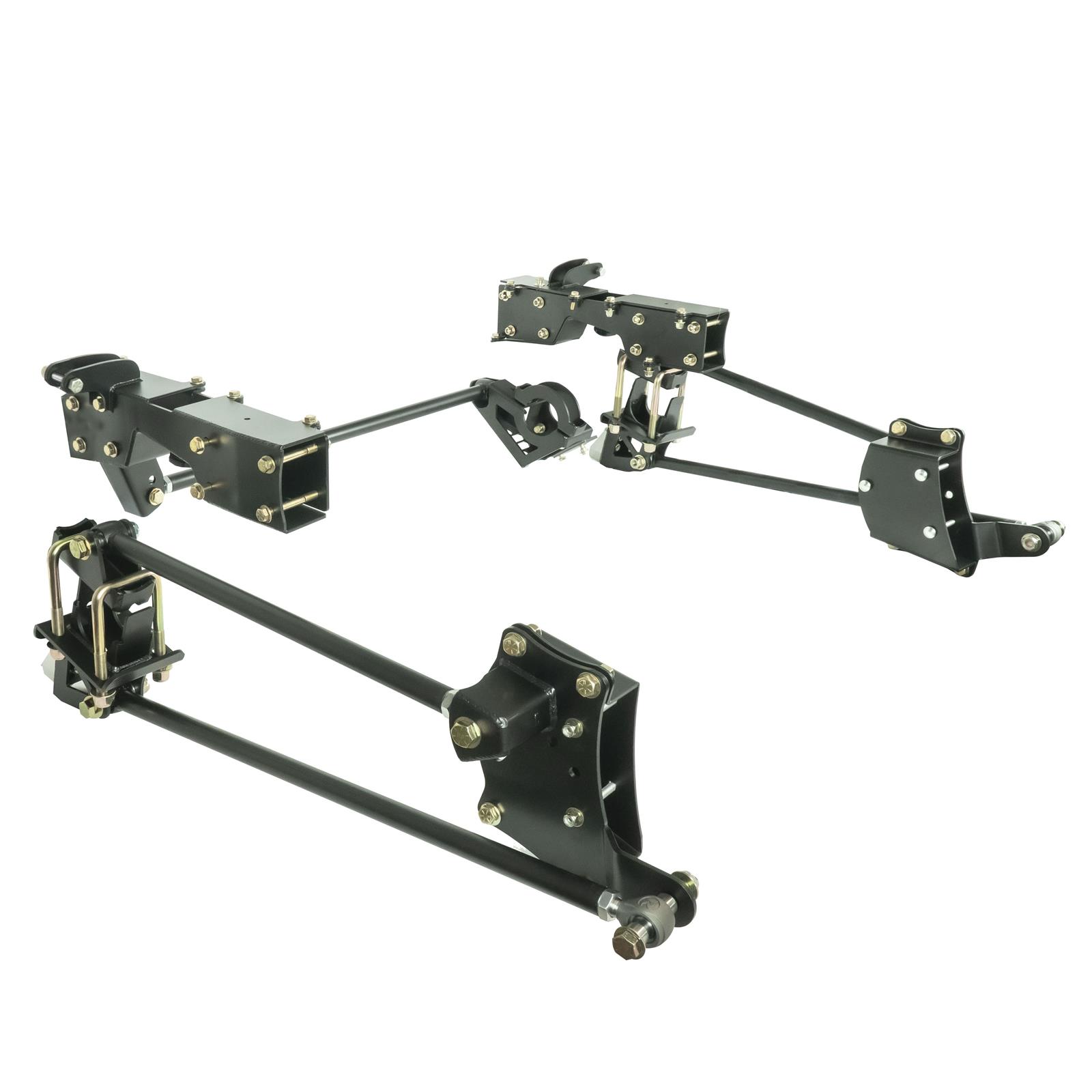

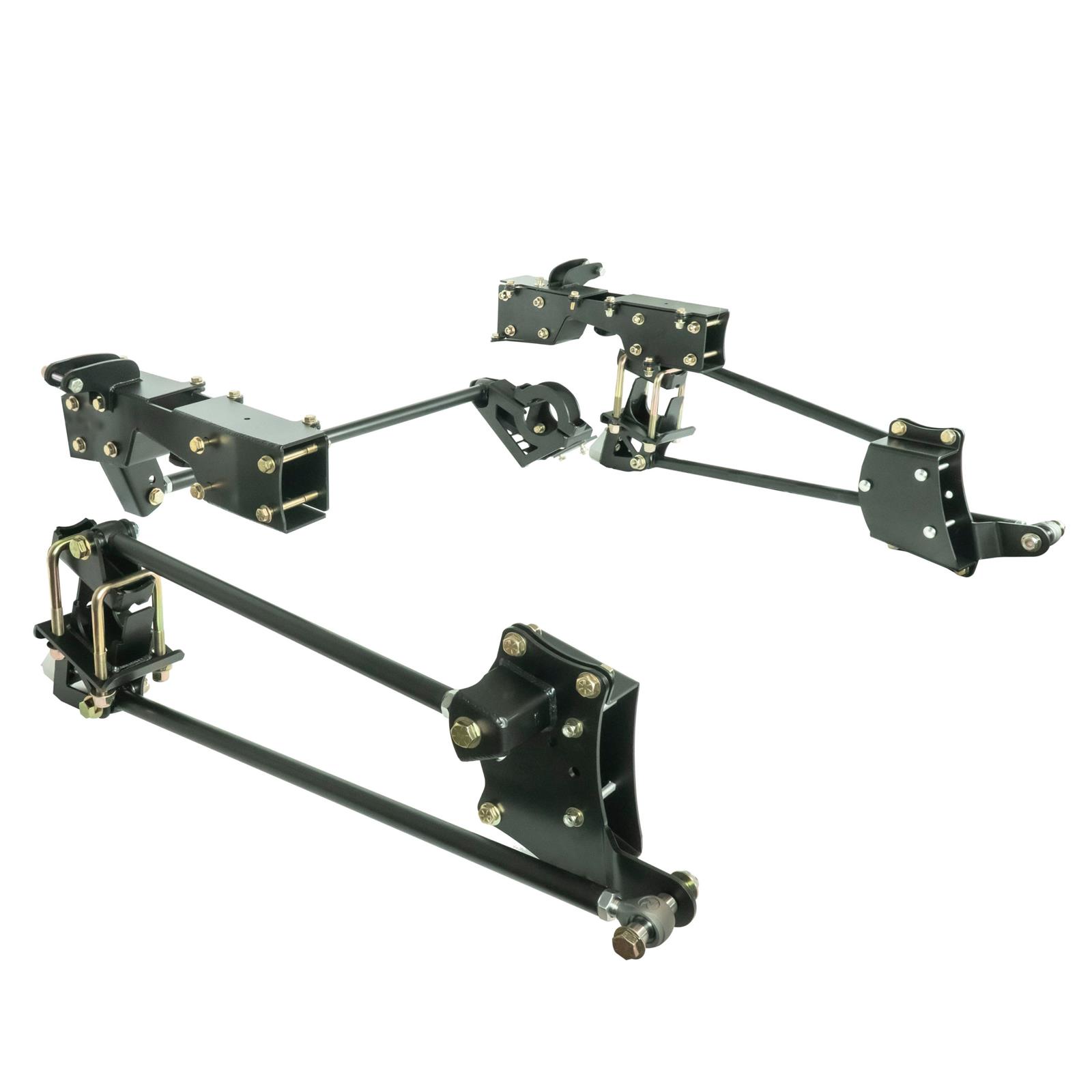

* Bolt-on 4-link greatly improves traction, handling, and ride quality
* Installation does not require any welding or major modifications to the bed floor

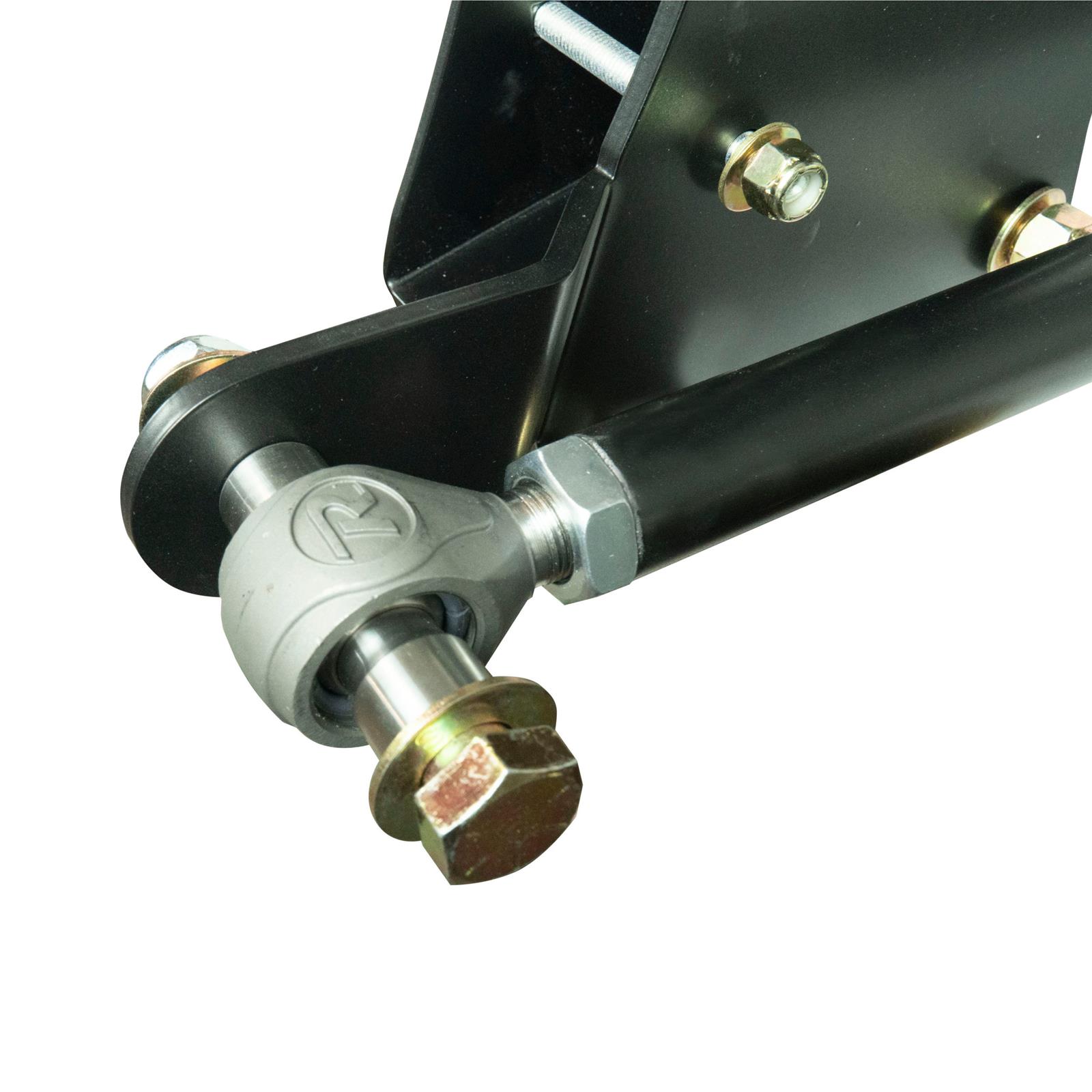

* Includes patent-pending R-joint rod ends to eliminate binding and noise
* Optimized anti-squat, roll center and pinion angle migration for dramatic improvements in handling and traction
* Bolt-on C-notch reinforces OEM frame rails and features integrated suspension mounts
* Designed for simple installation with minimal OEM rivet removal
* Compatible with most all cab size and bed length configurations
Part Type
Suspension Handling Packages
Specifications
- Product Attributes - Brand
- RideTech
- Product Attributes - Manufacturer's Part Number
- 11700203
- Product Attributes - Part Type
- Suspension Handling Packages
- Product Attributes - Product Line
- RideTech Complete Coilover Suspension Systems
- Product Attributes - UPC
- 840123517456
- Product Attributes - Front Coil Springs Included
- Yes
- Product Attributes - Rear Coil Springs Included
- Yes
- Product Attributes - Rear Leaf Springs Included
- No
- Product Attributes - Front Shocks/Struts Included
- Yes
- Product Attributes - Front Shock Type
- Single adjustable monotube coilover
- Product Attributes - Rear Shocks/Struts Included
- Yes
- Product Attributes - Rear Shock Type
- Single adjustable monotube coilover
- Product Attributes - Front Sway Bar Included
- No
- Product Attributes - Rear Sway Bar Included
- No
- Product Attributes - Tie Rod Sleeves Included
- No
- Product Attributes - End Link Bushings Included
- No
- Product Attributes - Rear Leaf Spring Bushings Included
- No
- Product Attributes - Sway Bar Bushings Included
- No
- Product Attributes - Upper Trailing Arms Included
- Yes
- Product Attributes - Lower Trailing Arms Included
- Yes
- Product Attributes - Trailing Arm Mount Braces Included
- Yes
- Product Attributes - Panhard Bar Included
- Yes
- Product Attributes - Torque Arm Included
- No
- Product Attributes - Upper Control Arms Included
- Yes
- Product Attributes - Lower Control Arms Included
- No
- Product Attributes - Control Arm Style
- Tubular
- Product Attributes - Control Arm Material
- Steel
- Product Attributes - Control Arm Color
- Black
- Product Attributes - Front Strut Tower Bar Included
- No
- Product Attributes - K-Member Included
- No
- Product Attributes - K-Member Support Brace Included
- No
- Product Attributes - Rear Strut Tower Bar Included
- No
- Product Attributes - Subframe Connectors Included
- No
- Product Attributes - Chassis Stiffener Included
- No
- Product Attributes - Calipers Included
- No
- Product Attributes - Rotors Included
- No
- Product Attributes - Brake Pads Included
- No
- Product Attributes - Brake Lines Included
- No
- Product Attributes - Wheel Studs Included
- No
- Product Attributes - Center Link Included
- No
- Product Attributes - Spindles Included
- Yes
- Product Attributes - Inner Tie Rod Ends Included
- No
- Product Attributes - Outer Tie Rod Ends Included
- No
- Product Attributes - Mounting Hardware Included
- Yes
- Product Attributes - Quantity
- Sold as a kit.
- Product Attributes - Notes
- Fits model with OE cast steel control arms.
Reference Information
| Brand Name/s | Ridetech |
|---|---|
| StreetFX SKU | rid11700203 |
| SFX Item ID | 4945832 |
| Supplier Item Code | 4945832 |
| Manufacturer SKU | 11700203 |
| Manufacturer UPC | 840123517456 |
| Alternative References | ART-11700203, RDT11700203, 4WD |
