Ridetech 90-96 Chevrolet Corvette StreetGrip Suspension System (1x rid11569500, 1x rid11560110, 1x rid11569120, 1x rid11569122)

SKU: RID11565010

Suspension Handling Packages

RID HQ Shocks...

Ridetech

Ridetech 90-96 Chevrolet Corvette StreetGrip Suspension System (1x rid11569500, 1x rid11560110, 1x rid11569120, 1x rid11569122)

SKU: RID11565010

Suspension Handling Packages

RID HQ Shocks...

Special Order. Contact for ETA. This item is out of stock in our warehouse and partner distribution centres. In some cases, this may be due to not having live inventory feeds available for all suppliers. Please contact us before ordering if you need to meet a specific deadline.

We accept

Description

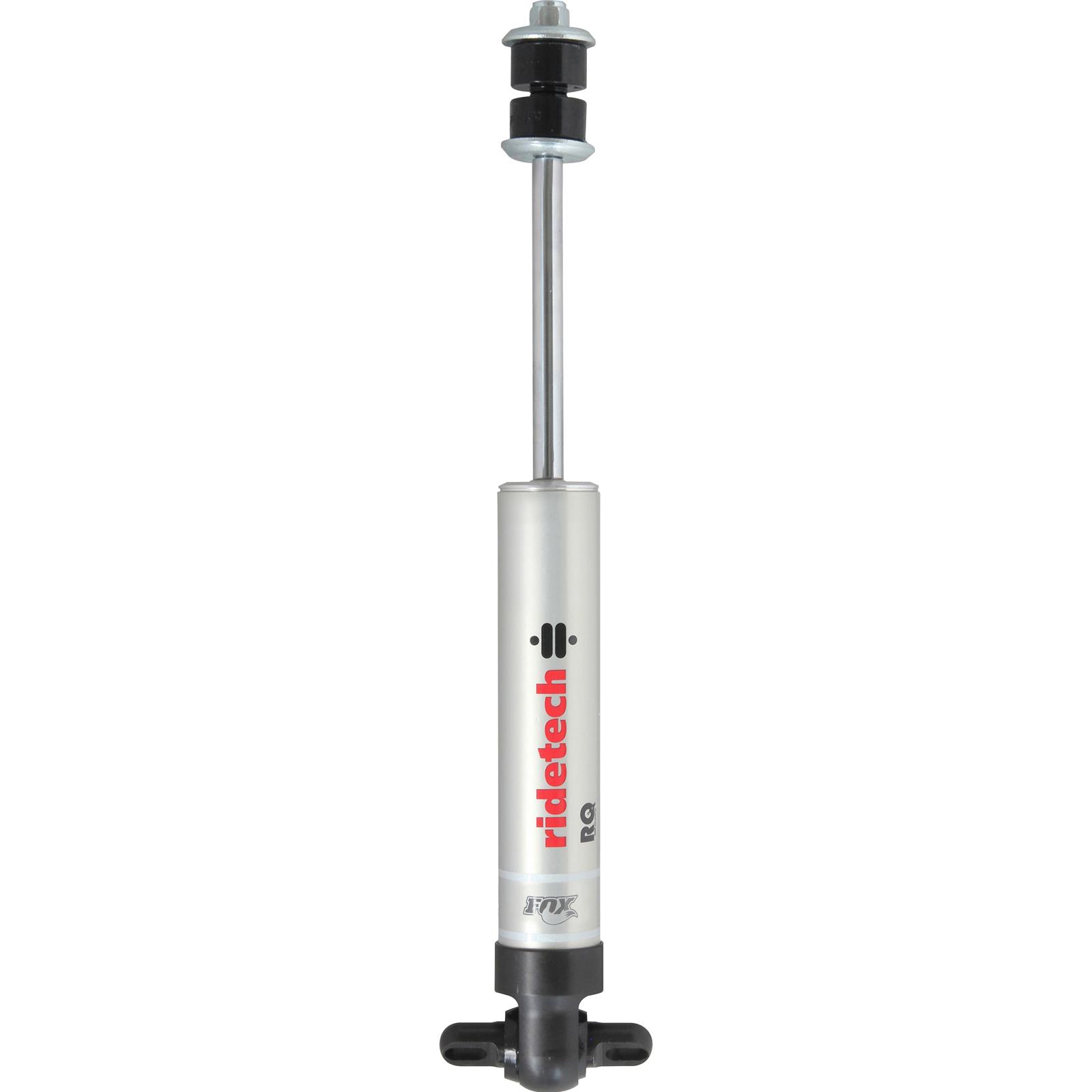

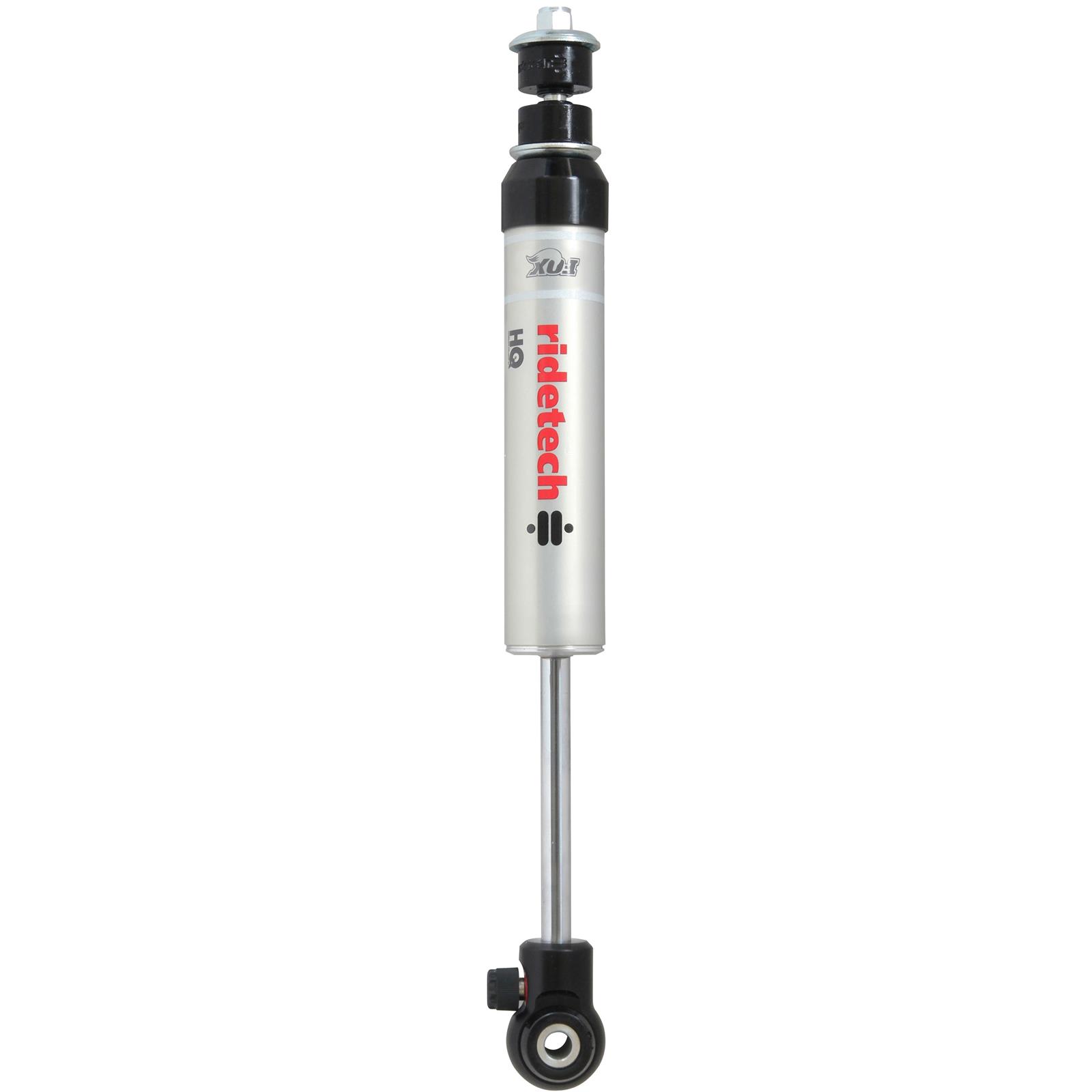

Update your 1988-96 C4 Corvette with a Ridetech StreetGrip suspension system. The 100 percent bolt-on kits feature adjustable monotube shock absorbers, heavy-duty sway bars, and self-lubricating Delrin control arm bushings. Ridetech's excellent HQ Series shocks are custom-valved to complement your Corvette's factory springs for modern handling and ride quality. With impact-forged aluminum bodies and heavy-duty steel shafts, the shocks carry a 1,000,001-mile warranty. You can fine-tune performance by way of precision rebound adjusting knobs.

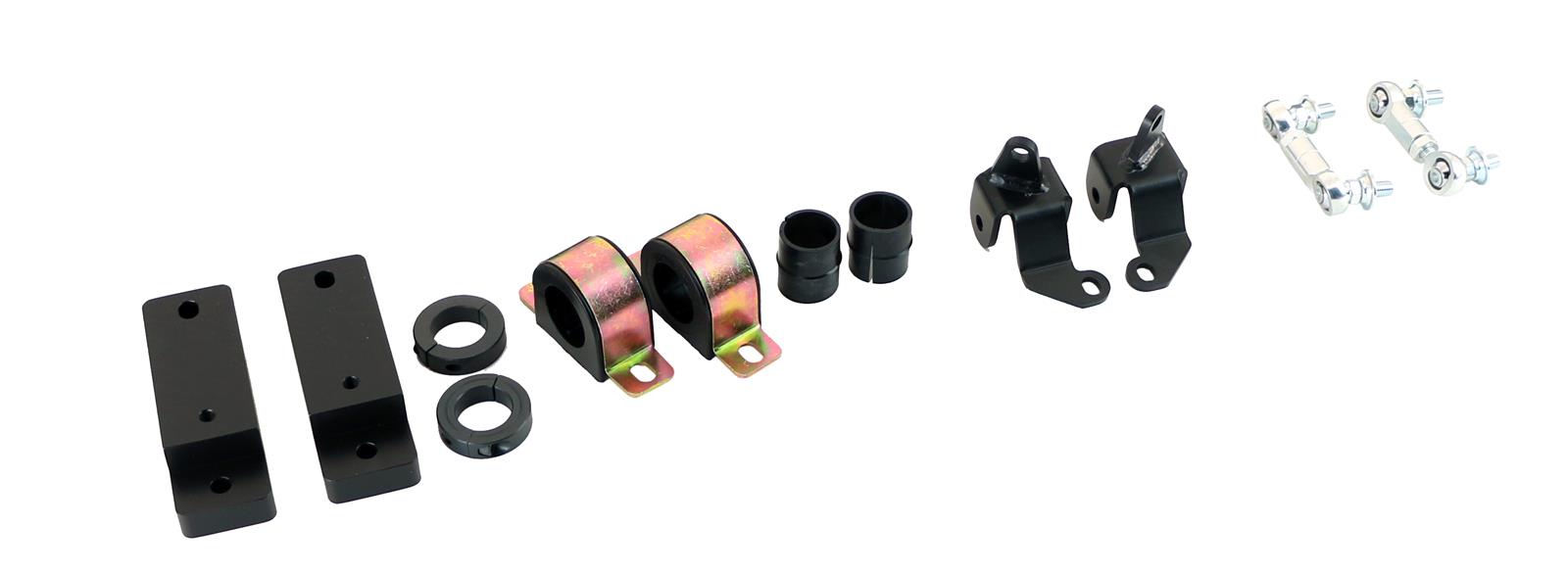

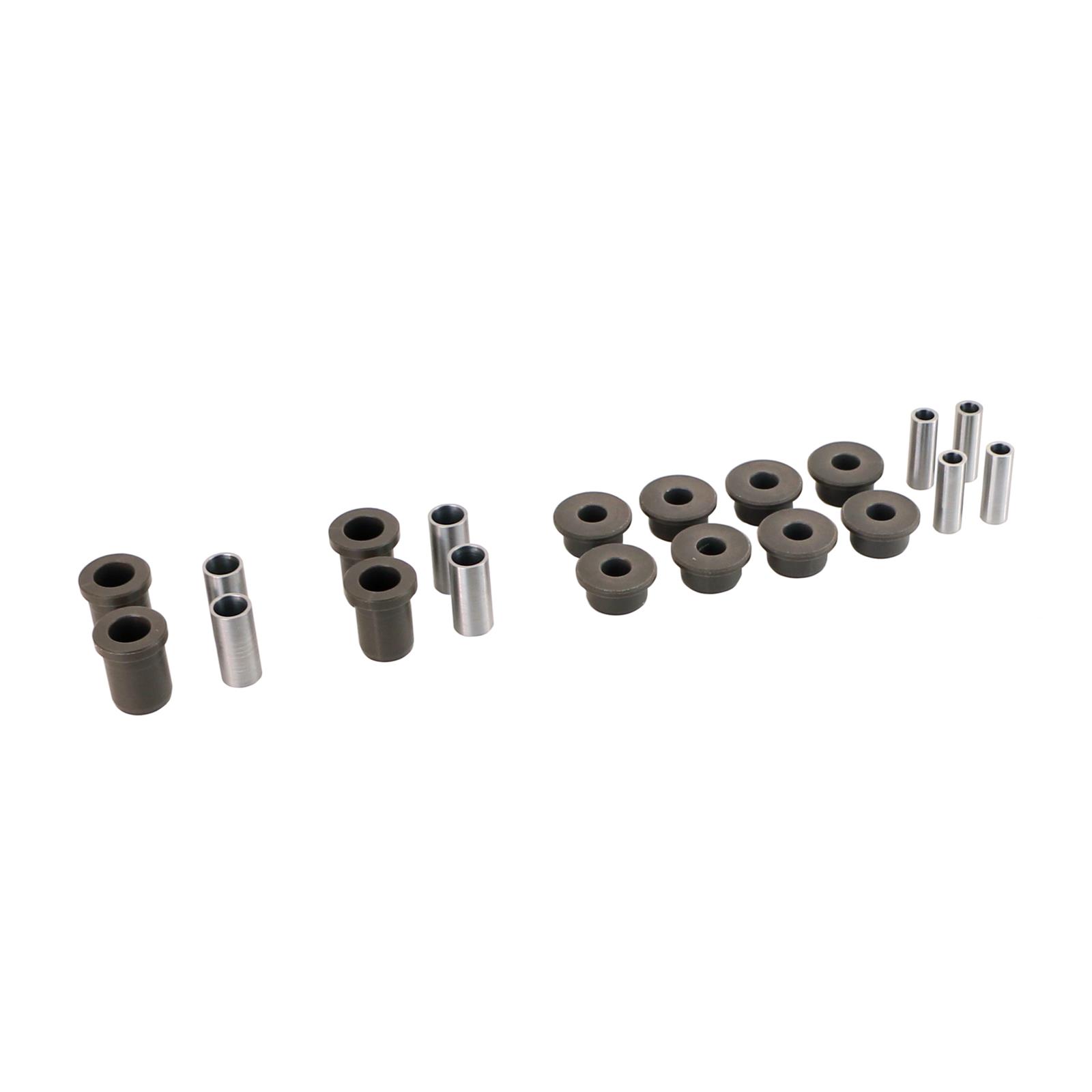

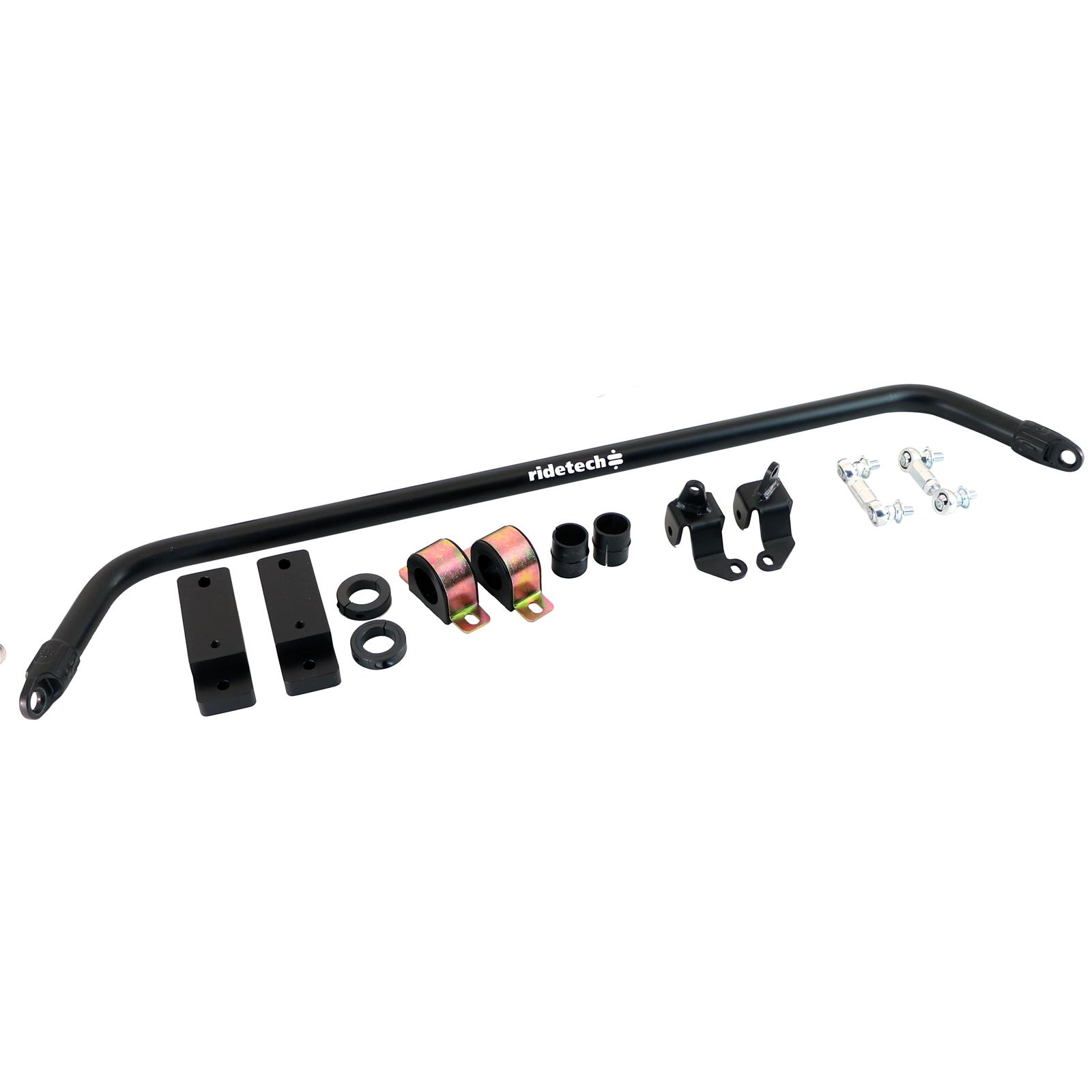

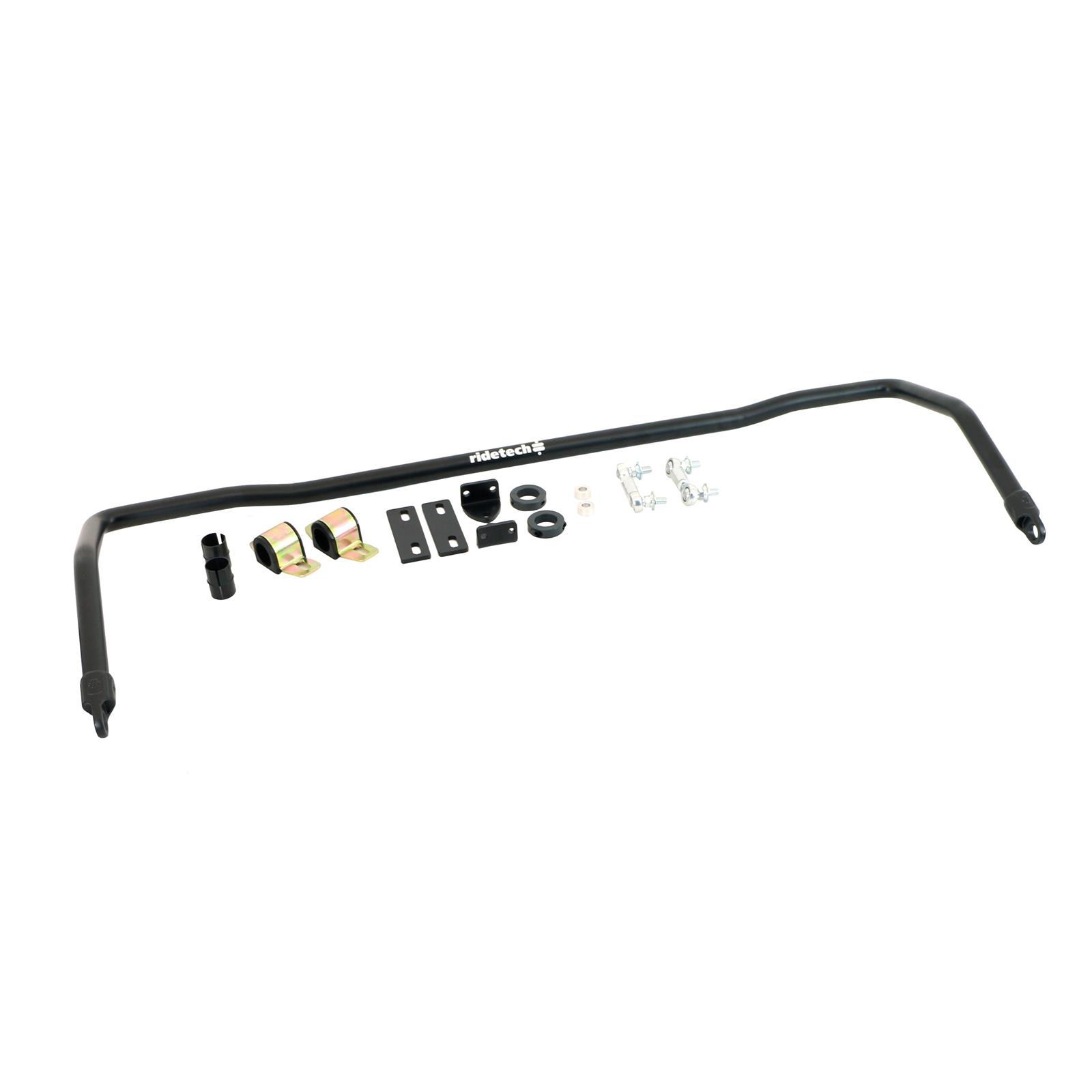

Ridetech's CNC-bent MuscleBar sway bars increase bar rate over stock. MuscleBars feature innovative investment-cast bar ends that perfectly engage end-link bushings as your Corvette's cornering loads change. Delrin-lined sway bar mounting bushings never squeak or need lubricating. A set of Delrin A-arm bushings greatly reduce deflection during cornering, eliminate stiction, and are maintenance-free. If you love your C4 Corvette, but wish for better ride quality and handling, you'll be thrilled with Ridetech's bolt-on Streetgrip suspension system.

Product Overview

Ridetech 89-96 Chevrolet Corvette StreetGrip Suspension System

Product Details

Description:	Ridetech 89-96 Chevrolet Corvette StreetGrip Suspension System

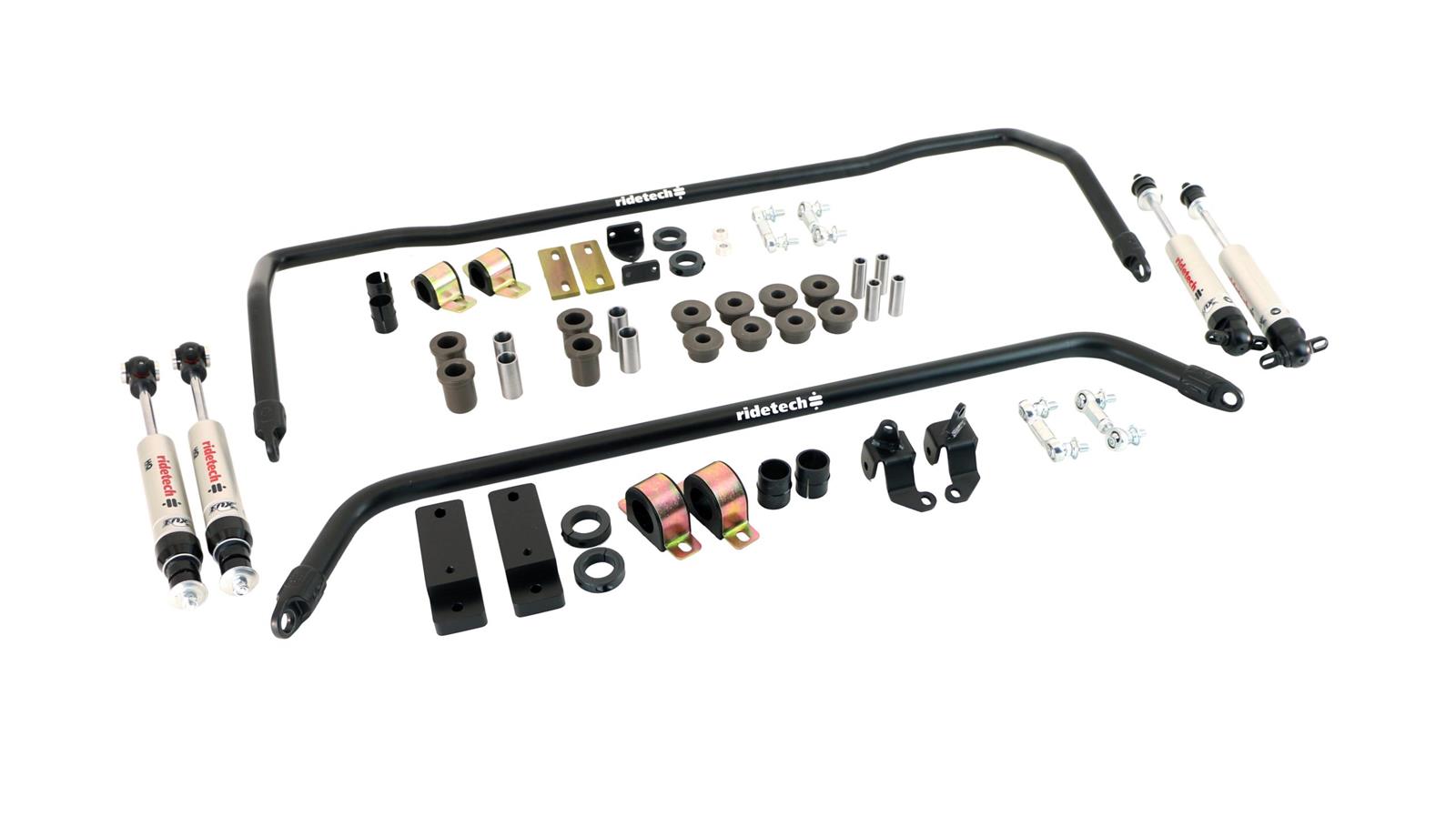

This is a group bundle consisting of:

Qty	SKU	MFR SKU	UPC	Description
1x	rid11569500	11569500	840123507303	Ridetech 89-96 Corvette Front Control Arm Delrin Bushing Kit
1x	rid11569122	11569122	840123502520	Ridetech 89-96 Chevy Corvette Rear MuscleBar
1x	rid11569120	11569120	840123502513	Ridetech 90-96 Chevy Corvette Front MuscleBar
1x	rid11560110	11560110	840123507266	Ridetech 89-96 Chevy Corvette HQ Series Shock System

Bundled group items may ship from multiple locations and could have slightly longer transit times if parts are sourced from different warehouses.

Images in this listing may include individual and/or group shots of the products included in the bundle. Please refer to the table to see a breakdown of what is included. Click on a SKU to see individual item details.

For details on the individual components in this bundle, click here.

Application Summary

1989-1996 Corvette

Part Type

Suspension Lowering Kit

Data: v4.2 - Upd: 2026-10-15 20:39:23

Specifications

Product Attributes - Brand: RideTech
Product Attributes - Manufacturer's Part Number: 11565010
Product Attributes - Part Type: Suspension Handling Packages
Product Attributes - Product Line: RideTech Corvette StreetGrip Suspension Systems
Product Attributes - UPC: 840123507297
Product Attributes - Front Coil Springs Included: No
Product Attributes - Rear Coil Springs Included: No
Product Attributes - Rear Leaf Springs Included: No
Product Attributes - Front Shocks/Struts Included: Yes
Product Attributes - Front Shock Type: 24-position adjustable monotube
Product Attributes - Rear Shocks/Struts Included: No
Product Attributes - Rear Shock Type: 24-position adjustable monotube
Product Attributes - Front Sway Bar Included: Yes
Product Attributes - Front Sway Bar Color: Black
Product Attributes - Front Sway Bar Type: Hollow
Product Attributes - Front Sway Bar Diameter (in.): 1.250 in.
Product Attributes - Front Sway Bar Diameter (mm): 31.75 mm
Product Attributes - Rear Sway Bar Included: Yes
Product Attributes - Rear Sway Bar Color: Black
Product Attributes - Rear Sway Bar Type: Hollow
Product Attributes - Rear Sway Bar Diameter (in.): 1.000 in.
Product Attributes - Rear Sway Bar Diameter (mm): 25.40 mm
Product Attributes - Tie Rod Sleeves Included: No
Product Attributes - End Link Bushings Included: Yes
Product Attributes - Rear Leaf Spring Bushings Included: No
Product Attributes - Sway Bar Bushings Included: Yes
Product Attributes - Upper Trailing Arms Included: No
Product Attributes - Lower Trailing Arms Included: No
Product Attributes - Trailing Arm Mount Braces Included: No
Product Attributes - Panhard Bar Included: No
Product Attributes - Torque Arm Included: No
Product Attributes - Upper Control Arms Included: No
Product Attributes - Lower Control Arms Included: No
Product Attributes - Front Strut Tower Bar Included: No
Product Attributes - K-Member Included: No
Product Attributes - K-Member Support Brace Included: No
Product Attributes - Rear Strut Tower Bar Included: No
Product Attributes - Subframe Connectors Included: No
Product Attributes - Chassis Stiffener Included: No
Product Attributes - Calipers Included: No
Product Attributes - Rotors Included: No
Product Attributes - Brake Pads Included: No
Product Attributes - Brake Lines Included: No
Product Attributes - Wheel Studs Included: No
Product Attributes - Center Link Included: No
Product Attributes - Spindles Included: No
Product Attributes - Inner Tie Rod Ends Included: No
Product Attributes - Outer Tie Rod Ends Included: No
Product Attributes - Bushing Material: Delrin®
Product Attributes - Bushing Color: Black
Product Attributes - Mounting Hardware Included: Yes
Product Attributes - Quantity: Sold as a kit.

Reference Information

Brand Name/s	Ridetech
StreetFX SKU	rid11565010
SFX Item ID	4135304
Supplier Item Code	4135304
Manufacturer SKU	11565010
Manufacturer UPC	N/A
Alternative References	rid-11569500, rid-11560110, rid-11569120, rid-11569122, ART-11565010, RDT11565010
