Ridetech 78-88 GM G-Body TruLink Rear Suspension System (1x rid11324499, 1x rid11326699, 2x rid22189853, 1x rid11227298)
Ridetech 78-88 GM G-Body TruLink Rear Suspension System (1x rid11324499, 1x rid11326699, 2x rid22189853, 1x rid11227298)
A$3,219.05
Special Order. Contact for ETA.
This item is out of stock in our warehouse and partner distribution centres. In some cases, this may be due to not having live inventory feeds available for all suppliers. Please contact us before ordering if you need to meet a specific deadline.
We accept
Description
Tune up your chassis with RideTech TruLink rear suspension systems and achieve significantly better handling and launch characteristics, along with dramatically improved ride quality and service life. The comprehensive system features heavy-duty tubular control arms equipped with patent-pending R-Joints plus application-tuned HQ Series adjustable shock absorbers. TruLink replaces your car's flex-prone stamped upper and lower control arms with precision-welded tubular steel StrongArms constructed from heavy-duty 1.5 in. O.D. DOM steel tube. The end result is less flex for more predictable handling and launch characteristics.
StrongArm rear trailing arms are precision welded at our Jasper, Indiana factory and then powder-coated for long-lasting appearance. RideTech installs patent-pending R-Joint rod ends and bearings for noise-free, high articulation movement with zero stiction. R-Joints eliminate the binding, stiction, noise and vibration associated with poly bushings offered in most aftermarket control arms. R-Joints never need lubrication and have exceptional wear resistance. For ultimate articulation, the TruLink system features press-in R-Joints for your axle to upper control arm attachment points. This critical feature is often overlooked in the upgrade process.
The final piece in the TruLink system is a pair of RideTech HQ Series adjustable monotube shock absorbers. They are custom-valved specifically for your vehicle's platform with modern tires. RideTech provides rebound adjustment to help you fine tune compliance. With a few turns of the adjusting knob, you can tune rebound damping to suit both your car's needs and your personal preferences. RideTech HQ Series shocks offer an industry-exclusive 1,000,001 mile warranty.
RideTech is confident that TruLink is the most comprehensive bolt-on rear suspension system ever offered. It's also the most versatile design on the market. As your needs and budget grow, you can add matching HQ Series front shocks, StreetGRIP high performance coil springs and an adjustable MuscleBar™ rear sway bar. Down the line, you can upgrade to adjustable coilovers or Shockwaves with matching TruTurn front suspension.
Product Overview
Ridetech 78-88 GM G-Body TruLink Rear Suspension System
Product Details
| Description: | Ridetech 78-88 GM G-Body TruLink Rear Suspension System |
|---|

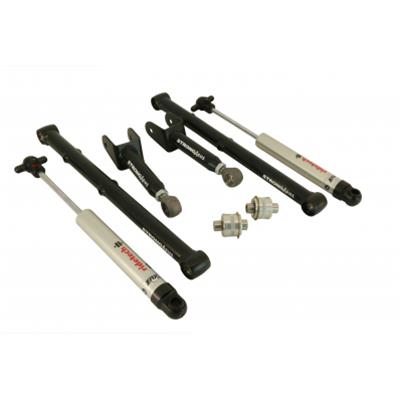

This is a group bundle consisting of:
| Image | Qty | SKU | MFR SKU | UPC | Description |
|---|---|---|---|---|---|
| 1x | rid11227298 | 11227298 | 840123502117 | Ridetech 64-77 GM A-Body and 78-88 GM G-Body Rear Upper R-Joint |
 | 2x | rid22189853 | 22189853 | 840123501936 | Ridetech HQ Series Shock Single Adjustable 7.55in Stroke Eye/T-Bar Mounting 13.15in x 20.7in |
 | 1x | rid11326699 | 11326699 | 840123505408 | Ridetech 78-88 GM G-Body StrongArms Rear Upper |
 | 1x | rid11324499 | 11324499 | 840123505330 | Ridetech 78-88 GM G-Body Rear Lower StrongArms |
Bundled group items may ship from multiple locations and could have slightly longer transit times if parts are sourced from different warehouses.
Images in this listing may include individual and/or group shots of the products included in the bundle. Please refer to the table to see a breakdown of what is included. Click on a SKU to see individual item details.
For details on the individual components in this bundle, click here.
Application Summary
1978-1988 Monte Carlo, Cutlass, etc.
Part Type
Suspension Trailing Arm / Panhard Rod Kit
Specifications
- Product Attributes - Brand
- RideTech
- Product Attributes - Manufacturer's Part Number
- 11327210
- Product Attributes - Part Type
- Rear Suspension Packages
- Product Attributes - Product Line
- RideTech TruLink Rear Suspension Systems
- Product Attributes - UPC
- 840123505415
- Product Attributes - Third Member Included
- No
- Product Attributes - Axle Shafts Included
- No
- Product Attributes - Upper Control Arms Included
- Yes
- Product Attributes - Lower Control Arms Included
- Yes
- Product Attributes - Control Arm Style
- Tubular
- Product Attributes - Control Arm Material
- Steel
- Product Attributes - Control Arm Color
- Black
- Product Attributes - Air Bags Included
- No
- Product Attributes - Rear Shocks/Struts Included
- Yes
- Product Attributes - Rear Shock Type
- Gas-charged adjustable monotube
- Product Attributes - Coilover Springs Included
- No
- Product Attributes - Suspension Package Finish
- Black powdercoated
- Product Attributes - Bushings Included
- Yes
- Product Attributes - Bushing Material
- Spherical bearing/PTFE
- Product Attributes - Sway Bar Included
- No
- Product Attributes - Watts Link Included
- No
- Product Attributes - Panhard Bar Included
- No
- Product Attributes - Adjustable Panhard Bar Included
- No
- Product Attributes - Upper Trailing Arms Included
- No
- Product Attributes - Adjustable Upper Trailing Arms Included
- No
- Product Attributes - Lower Trailing Arms Included
- No
- Product Attributes - Adjustable Lower Trailing Arms Included
- No
- Product Attributes - Trailing Arm Mount Braces Included
- No
- Product Attributes - Trailing Arm Hardware Included
- No
- Product Attributes - Rotors Included
- No
- Product Attributes - Calipers Included
- No
- Product Attributes - Quantity
- Sold as a kit.
Reference Information
| Brand Name/s | Ridetech |
|---|---|
| StreetFX SKU | rid11327210 |
| SFX Item ID | 4135301 |
| Supplier Item Code | 4135301 |
| Manufacturer SKU | 11327210 |
| Manufacturer UPC | 840123505415 |
| Alternative References | rid-11324499, rid-11326699, rid-22189853, 7.55in, 13.15in, 20.7in |
Compatibility
1978-1988 Monte Carlo, Cutlass, etc.
