RideTech 1973-74 GM X-Body Coilover Suspension Systems 11260302 Handling Packages, GM, X-Body, TQ Series Adjustable Coilover, MuscleBar, StrongArms Control Arms, Bolt On 4-Link, Tall Spindles, Kit
RideTech 1973-74 GM X-Body Coilover Suspension Systems 11260302 Handling Packages, GM, X-Body, TQ Series Adjustable Coilover, MuscleBar, StrongArms Control Arms, Bolt On 4-Link, Tall Spindles, Kit
A$22,585.64
BACKORDER
This item will be special ordered in for you. Contact us prior to purchase if you require an ETA.
We accept
Description

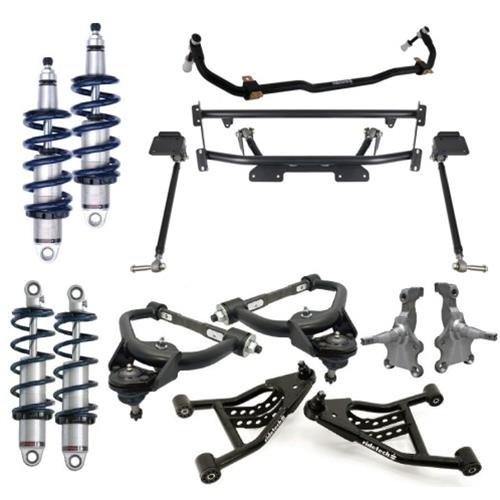

RideTech 1973-74 GM X-Body coilover suspension systema include everything you need to upgrade your existing suspension completely. Each package contains front upper and lower control arms, tall spindles, front sway bar, a rear 4-Link, and four HQ or TQ Series coilovers for every corner of your vehicle. The benefit of buying a complete suspension system is that it removes all of the guesswork. RideTech has spent hours collecting data to find a perfect spring rate and components for your vehicle's performance and ride quality. Order the system recommended for your specific application.
Additional product features:
* Tall spindles will induce more negative camber gain to maximize tire contact patch during cornering. They also offer a 2 in. pin drop which allows for the use of longer shocks, creating more suspension travel
* Upper StrongArms feature corrected ball joint angles for the tall spindles. The upper ball joints have been moved back to allow for additional caster setting to improve high-speed stability and steering feel. Offset slugs are also available for additional caster. Injection-molded Delrin® bushings with 13 percent PTFE are used to reduce deflection and stiction
* Lower StrongArms feature a double sheer lower mount for increased strength. RideTech also dropped the lower shock mount to increase suspension travel and moved the lower ball joint forward to increase caster settings while keeping the wheel centered in the wheel opening. Injection-molded Delrin® bushings with 13 percent PTFE are used to reduce deflection and stiction
* Coilovers utilize an impact-forged aluminum body and monotube design to deliver excellent ride quality and handling. They allow fine-tuning of the ride quality and handling; the rebound knob is located at the top of the shock for underhood access.
* Front sway bar reduces body roll and creates room for wider front tires. Includes billet aluminum frame straps (anodized black) and low friction bushings
* Bolt-on 4-link greatly improves traction, handling, and ride quality. Installation does not require any major modifications to the floor pan and requires only minimal welding to the axle tube. Works with mini tubs. The R-Joint rod ends combine the best qualities of low friction movement, lateral stability, full range articulation, and quiet operation into one special bearing that is as home on the street as it is on the racetrack
(NOTE: Some 1973-74 cars have a different shape frame rail and require kit number 11260202. See the instruction manual for identification details.)
Part Type
Suspension Handling Packages
Specifications
- Product Attributes - Brand
- RideTech
- Product Attributes - Manufacturer's Part Number
- 11260302
- Product Attributes - Part Type
- Suspension Handling Packages
- Product Attributes - Product Line
- RideTech 1973-74 GM X-Body Coilover Suspension Systems
- Product Attributes - UPC
- 840123579676
- Product Attributes - Front Coil Springs Included
- Yes
- Product Attributes - Rear Coil Springs Included
- Yes
- Product Attributes - Rear Leaf Springs Included
- No
- Product Attributes - Front Shocks/Struts Included
- Yes
- Product Attributes - Front Shock Type
- Triple adjustable monotube coilover with reservoir
- Product Attributes - Rear Shocks/Struts Included
- No
- Product Attributes - Front Sway Bar Included
- No
- Product Attributes - Front Sway Bar Color
- Black
- Product Attributes - Front Sway Bar Type
- Solid
- Product Attributes - Front Sway Bar Diameter (in.)
- 1.125 in.
- Product Attributes - Front Sway Bar Diameter (mm)
- 28.58 mm
- Product Attributes - Rear Sway Bar Included
- No
- Product Attributes - Tie Rod Sleeves Included
- No
- Product Attributes - End Link Bushings Included
- Yes
- Product Attributes - Rear Leaf Spring Bushings Included
- No
- Product Attributes - Sway Bar Bushings Included
- Yes
- Product Attributes - Upper Trailing Arms Included
- Yes
- Product Attributes - Lower Trailing Arms Included
- Yes
- Product Attributes - Trailing Arm Mount Braces Included
- Yes
- Product Attributes - Panhard Bar Included
- No
- Product Attributes - Torque Arm Included
- No
- Product Attributes - Upper Control Arms Included
- Yes
- Product Attributes - Lower Control Arms Included
- Yes
- Product Attributes - Control Arm Style
- Tubular
- Product Attributes - Control Arm Material
- Steel
- Product Attributes - Control Arm Color
- Black
- Product Attributes - Front Strut Tower Bar Included
- No
- Product Attributes - K-Member Included
- No
- Product Attributes - K-Member Support Brace Included
- No
- Product Attributes - Rear Strut Tower Bar Included
- No
- Product Attributes - Subframe Connectors Included
- No
- Product Attributes - Chassis Stiffener Included
- No
- Product Attributes - Calipers Included
- No
- Product Attributes - Rotors Included
- No
- Product Attributes - Brake Pads Included
- No
- Product Attributes - Brake Lines Included
- No
- Product Attributes - Wheel Studs Included
- No
- Product Attributes - Center Link Included
- No
- Product Attributes - Spindles Included
- Yes
- Product Attributes - Inner Tie Rod Ends Included
- No
- Product Attributes - Outer Tie Rod Ends Included
- No
- Product Attributes - Bushing Material
- Delrin®
- Product Attributes - Bushing Color
- Black
- Product Attributes - Mounting Hardware Included
- Yes
- Product Attributes - Quantity
- Sold as a kit.
- Product Attributes - Notes
- Features with bump and springs rates are 650 Ibs. front and 175 Ibs. rear.
Reference Information
| Brand Name/s | Ridetech |
|---|---|
| StreetFX SKU | rid11260302 |
| SFX Item ID | 4945848 |
| Supplier Item Code | 4945848 |
| Manufacturer SKU | 11260302 |
| Manufacturer UPC | 840123579676 |
| Alternative References | ART-11260302, RDT11260302, 4-Link |
