Ridetech 68-72 Nova CoilOver System (Bundled Kit)
Ridetech 68-72 Nova CoilOver System (Bundled Kit)
A$11,959.90
Special Order. Contact for ETA.
This item is out of stock in our warehouse and partner distribution centres. In some cases, this may be due to not having live inventory feeds available for all suppliers. Please contact us before ordering if you need to meet a specific deadline.
We accept
Description
RideTech 1968-72 GM X-body coilover suspension systems include everything you need to completely upgrade your existing suspension. They contain front upper and lower control arms, tall spindles, front MuscleBar, a rear 4-Link, and four HQ Series coilovers for every corner of your vehicle. The RideTech tall spindles will induce more negative camber gain to maximize tire contact patch during cornering. They also offer a 2 in. pin drop, which allows for the use of longer shocks—creating more suspension travel.

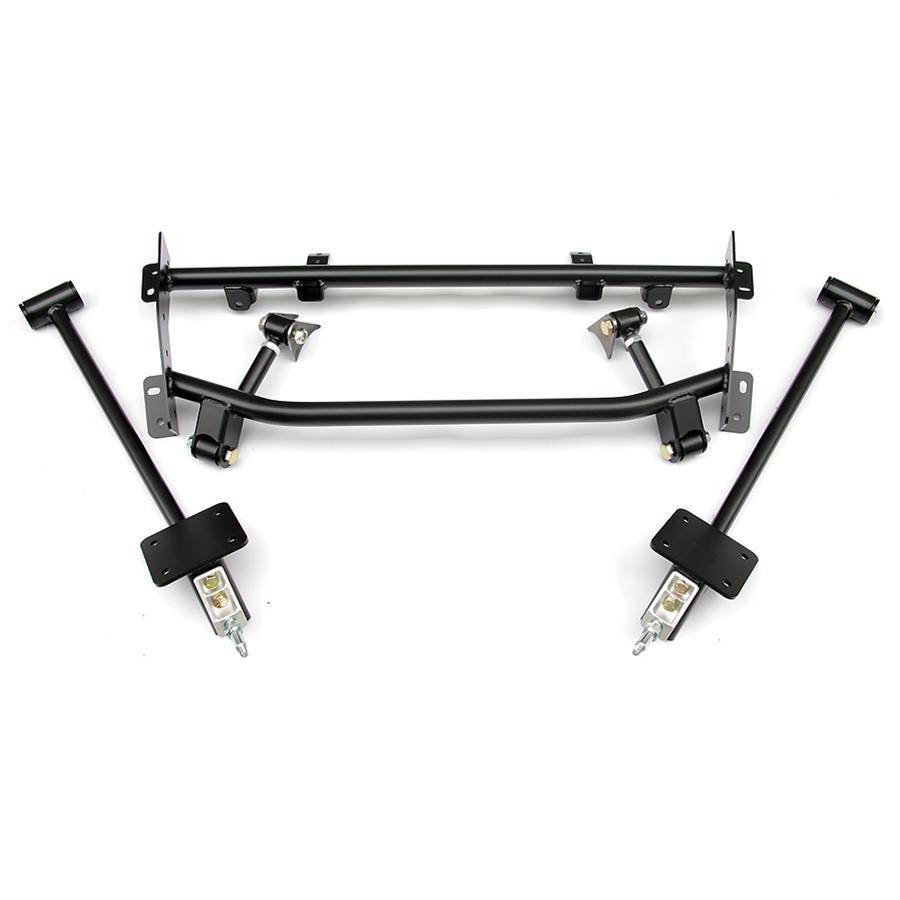

The bolt-on 4-link vastly improves traction, handling, and ride quality. Installation doesn't require any major modifications to the floor pan and requires only minimal welding to the axle tube (works with mini tubs). The R-joint rod ends combine the best qualities of low friction movement, lateral stability, full range articulation, and quiet operation into one special bearing. RideTech 1968-72 GM X-body coilover suspension systems are as comfortable on the street as they are on the racetrack!
Features, parts, and specs:
* Upper StrongArms feature corrected ball joint angles for the tall spindles
* Upper ball joints have been moved back to allow for additional caster setting (improves high-speed stability and steering feel; offset slugs also available for additional caster)
* Injection-molded Delrin bushings with 13 percent PTFE used to reduce deflection and stiction
* Lower StrongArms feature a double-sheer lower mount for increased strength
* Lower shock mount dropped to increase suspension travel
* Lower ball joint moved forward to increase caster settings, while keeping the wheel centered in the wheel opening

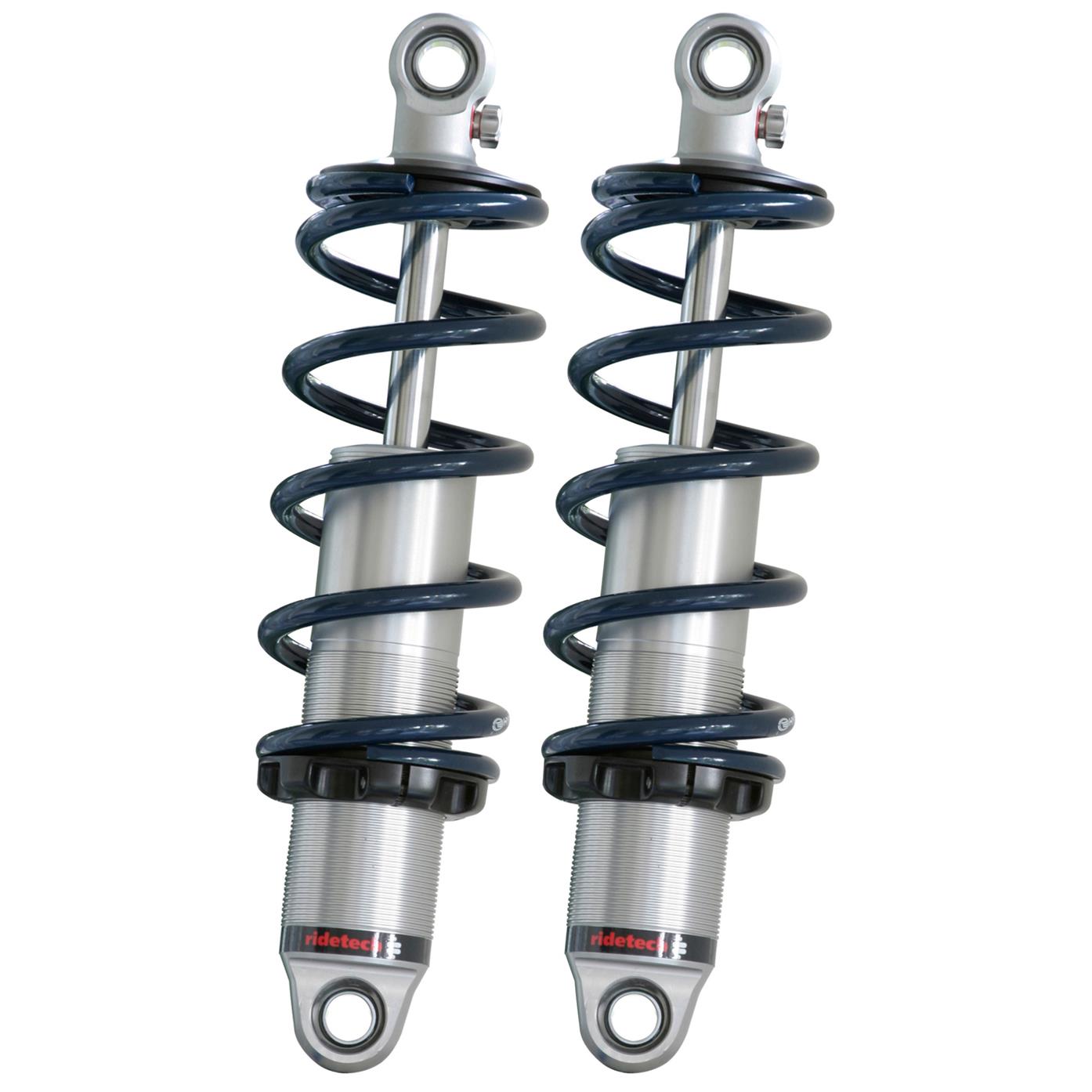

* HQ Series Shockwaves allow fine-tuning and deliver excellent ride quality and handling with a 1,000,0001 mile warranty (rebound knob located on top of shock for underhood access)
* Front MuscleBar helps reduce body roll and creates room for wider front tires (includes PosiLink end links that provide immediate engagement between chassis and control arms)
Product Overview
Ridetech 68-72 Nova CoilOver System
Product Details
| Description: | Ridetech 68-72 Nova CoilOver System |
|---|
This is a group bundle consisting of:
| Image | Qty | SKU | MFR SKU | UPC | Description |
|---|---|---|---|---|---|
 | 1x | rid85000000 | 85000000 | 840123511379 | Ridetech CoilOver Spanner Wrench |
| 1x | rid11169120 | 11169120 | 840123501349 | Ridetech 67-69 Camaro Firebird and 68-74 Nova Front MuscleBar |
 | 1x | rid11009300 | 11009300 | 840123500052 | Ridetech 67-69 GM F-Body 68-74 X-Body 64-72 A-Body Tall Spindles Pair |
 | 1x | rid11163699 | 11163699 | 840123501240 | Ridetech 67-69 Camaro Firebird and 68-74 Nova Front Upper StrongArms |
 | 1x | rid11166510 | 11166510 | 840123501295 | Ridetech 67-69 Camaro and Firebird Rear HQ Series CoilOver Pair |
 | 1x | rid11162899 | 11162899 | 840123501196 | Ridetech 67-69 Camaro Firebird and 68-74 Nova Front Lower StrongArms |
 | 1x | rid11263510 | 11263510 | 840123504791 | Ridetech 68-74 Nova HQ Series CoilOvers Front Pair |
 | 1x | rid11267199 | 11267199 | 840123504876 | Ridetech 68-72 Chevy Nova Bolt-On 4-Link |
Bundled group items may ship from multiple locations and could have slightly longer transit times if parts are sourced from different warehouses.
Images in this listing may include individual and/or group shots of the products included in the bundle. Please refer to the table to see a breakdown of what is included. Click on a SKU to see individual item details.
For details on the individual components in this bundle, click here.
Application Summary
1968-1974 Nova, Acadian, etc.
Part Type
Suspension Lowering Kit
Specifications
- Product Attributes - Brand
- RideTech
- Product Attributes - Manufacturer's Part Number
- 11260201
- Product Attributes - Part Type
- Suspension Handling Packages
- Product Attributes - Product Line
- RideTech 1968-72 GM X-Body Coilover Suspension Systems
- Product Attributes - UPC
- 840123504753
- Product Attributes - Front Coil Springs Included
- Yes
- Product Attributes - Rear Coil Springs Included
- Yes
- Product Attributes - Rear Leaf Springs Included
- No
- Product Attributes - Front Shocks/Struts Included
- Yes
- Product Attributes - Front Shock Type
- Single adjustable monotube coilover
- Product Attributes - Rear Shocks/Struts Included
- Yes
- Product Attributes - Rear Shock Type
- Single adjustable monotube coilover
- Product Attributes - Front Sway Bar Included
- Yes
- Product Attributes - Front Sway Bar Color
- Black
- Product Attributes - Front Sway Bar Type
- Solid
- Product Attributes - Front Sway Bar Diameter (in.)
- 1.125 in.
- Product Attributes - Front Sway Bar Diameter (mm)
- 28.58 mm
- Product Attributes - Rear Sway Bar Included
- No
- Product Attributes - Tie Rod Sleeves Included
- No
- Product Attributes - End Link Bushings Included
- Yes
- Product Attributes - Rear Leaf Spring Bushings Included
- No
- Product Attributes - Sway Bar Bushings Included
- Yes
- Product Attributes - Upper Trailing Arms Included
- Yes
- Product Attributes - Lower Trailing Arms Included
- Yes
- Product Attributes - Trailing Arm Mount Braces Included
- Yes
- Product Attributes - Panhard Bar Included
- No
- Product Attributes - Torque Arm Included
- No
- Product Attributes - Upper Control Arms Included
- Yes
- Product Attributes - Lower Control Arms Included
- Yes
- Product Attributes - Control Arm Style
- Tubular
- Product Attributes - Control Arm Material
- Steel
- Product Attributes - Control Arm Color
- Black
- Product Attributes - Front Strut Tower Bar Included
- No
- Product Attributes - K-Member Included
- No
- Product Attributes - K-Member Support Brace Included
- No
- Product Attributes - Rear Strut Tower Bar Included
- No
- Product Attributes - Subframe Connectors Included
- No
- Product Attributes - Chassis Stiffener Included
- No
- Product Attributes - Calipers Included
- No
- Product Attributes - Rotors Included
- No
- Product Attributes - Brake Pads Included
- No
- Product Attributes - Brake Lines Included
- No
- Product Attributes - Wheel Studs Included
- No
- Product Attributes - Center Link Included
- No
- Product Attributes - Spindles Included
- Yes
- Product Attributes - Inner Tie Rod Ends Included
- No
- Product Attributes - Outer Tie Rod Ends Included
- No
- Product Attributes - Bushing Material
- Delrin®
- Product Attributes - Bushing Color
- Black
- Product Attributes - Mounting Hardware Included
- Yes
- Product Attributes - Quantity
- Sold as a kit.
- Product Attributes - Notes
- Springs rates are 650 Ibs. front and 175 Ibs. rear.
Reference Information
| Brand Name/s | Ridetech |
|---|---|
| StreetFX SKU | rid11260201 |
| SFX Item ID | 4562635 |
| Supplier Item Code | 4562635 |
| Manufacturer SKU | 11260201 |
| Manufacturer UPC | N/A |
| Alternative References | rid-11162899, rid-11163699, rid-11009300, rid-11263510, rid-11166510 |
Compatibility
1968-1974 Nova, Acadian, etc.
