Ridetech 70-81 GM F-Body HQ Coil-Over System (1x rid11173510, 1x rid11176510, 1x rid11179120, 1x rid85000000, 1x rid11172899, 1x rid11173699, 1x rid11177187)
Ridetech 70-81 GM F-Body HQ Coil-Over System (1x rid11173510, 1x rid11176510, 1x rid11179120, 1x rid85000000, 1x rid11172899, 1x rid11173699, 1x rid11177187)
A$11,485.19
Special Order. Contact for ETA.
This item is out of stock in our warehouse and partner distribution centres. In some cases, this may be due to not having live inventory feeds available for all suppliers. Please contact us before ordering if you need to meet a specific deadline.
We accept
Description
The RideTech 1970-81 Camaro/Firebird Complete CoilOver suspension systems include everything you need to completely upgrade your existing suspension. The package contains front upper and lower StrongArm control-arms, front MuscleBar, a rear Bolt On 4-Link, and 4 HQ Series CoilOvers shocks for every corner of your vehicle. The benefit of buying a complete suspension system is that it takes all of the guesswork out when purchasing a new suspension. RideTech has spent hours collecting data to find a perfect spring rate and components for your vehicle's performance and ride quality.
RideTech Complete CoilOver systems include:
- Upper StrongArms feature corrected ball joint angles for the tall spindles. The upper ball joints have been moved back to allow for additional caster setting to improve high speed stability and steering feel. Offset slugs are also available for additional caster. Injection molded Delrin bushings with 13% Teflon are used to reduce deflection and stiction.

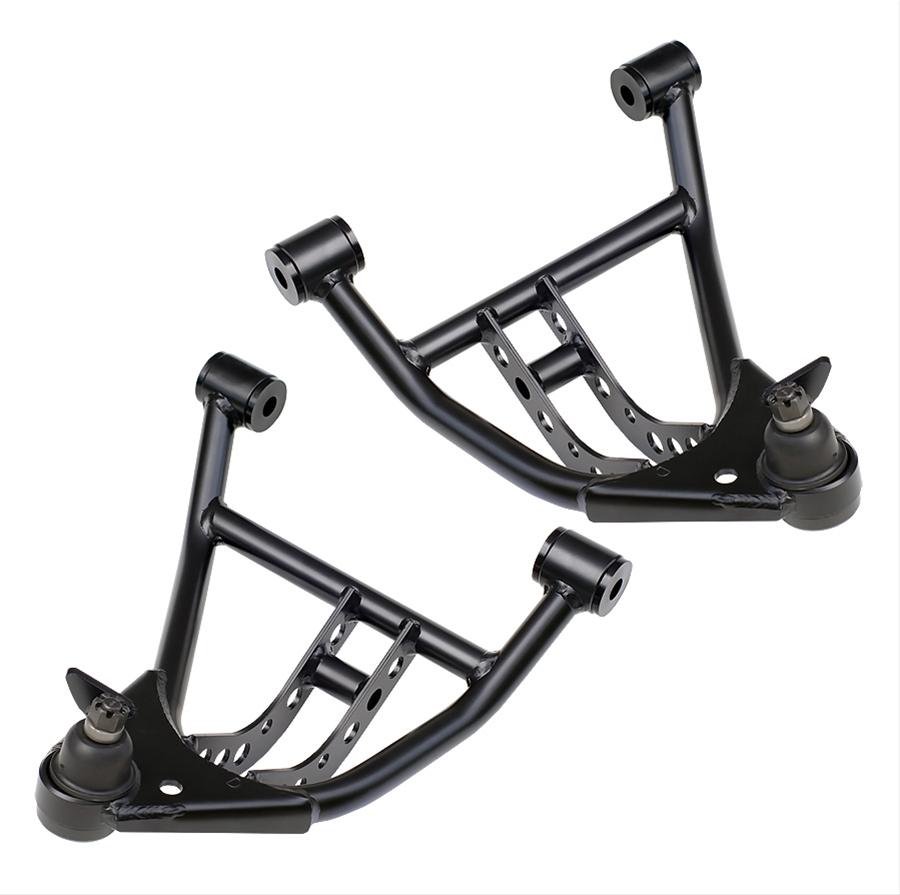

- Lower StrongArms feature a double sheer lower mount for increased strength. We have also dropped the lower shock mount to increase suspension travel and moved the lower ball joint forward to increase caster settings while keeping the wheel centered in the wheel opening. Injection molded Delrin bushings with 13% Teflon are used to reduce deflection and stiction.
- HQ Series CoilOver shocks utilize an impact forged aluminum body and Monotube design to deliver excellent ride quality and handling. They allow fine tuning of the ride quality and handling. The rebound knob is located at the top of the shock for under hood access.
- Front MuscleBar helps to reduce body roll and creates room for wider front tires. It includes the PosiLink endlinks that provide immediate engagement between the chassis and control arms.
- Bolt On 4-Link greatly improves traction, handling and ride quality. Installation does not require the any major modifications to the floor pan and requires only minimal welding to the axle tube. Equally important, the unique design addresses production variations and frame rail thickness issues that are common to the second-generation F-Body platform. Works with minitubs. The R-Joint rod ends combine the best qualities of low friction movement, lateral stability, full range articulation, and quiet operation into one special bearing that is as home on the street as it is on the racetrack!
Product Overview
Ridetech 70-81 GM F-Body HQ Coil-Over System
Product Details
| Description: | Ridetech 70-81 GM F-Body HQ Coil-Over System |
|---|
This is a group bundle consisting of:
| Image | Qty | SKU | MFR SKU | UPC | Description |
|---|---|---|---|---|---|
 | 1x | rid85000000 | 85000000 | 840123511379 | Ridetech CoilOver Spanner Wrench |
| 1x | rid11179120 | 11179120 | 840123502254 | Ridetech 70-81 Camaro and Firebird Front MuscleBar |
 | 1x | rid11173699 | 11173699 | 840123513205 | Ridetech 70-81 GM F-Body StrongArms Front Upper |
 | 1x | rid11176510 | 11176510 | 840123504104 | Ridetech 70-81 Camaro and Firebird Rear HQ Series CoilOvers Pair use w/ Ridetech Bolt-On 4 Link |
 | 1x | rid11172899 | 11172899 | 840123513199 | Ridetech 70-81 GM F-Body StrongArms Front Lower |
 | 1x | rid11173510 | 11173510 | 840123504050 | Ridetech 70-81 Camaro and Firebird HQ Series Front CoilOvers use w/ Ridetech Lower Arms |
 | 1x | rid11177187 | 11177187 | 840123579614 | Ridetech 70-81 GM F-Body Bolt-On 4-Link with Double Adj. Bars, R-Joints, Cradle, and Other Hardware |
Bundled group items may ship from multiple locations and could have slightly longer transit times if parts are sourced from different warehouses.
Images in this listing may include individual and/or group shots of the products included in the bundle. Please refer to the table to see a breakdown of what is included. Click on a SKU to see individual item details.
For details on the individual components in this bundle, click here.
Application Summary
1970-1981 Camaro & Firebird
Part Type
Suspension Lowering Kit
Specifications
- Product Attributes - Brand
- RideTech
- Product Attributes - Manufacturer's Part Number
- 11170203
- Product Attributes - Part Type
- Suspension Handling Packages
- Product Attributes - Product Line
- RideTech 1970-81 Camaro/Firebird Complete CoilOver Suspension Systems
- Product Attributes - UPC
- 840123579577
- Product Attributes - Front Coil Springs Included
- Yes
- Product Attributes - Rear Coil Springs Included
- Yes
- Product Attributes - Rear Leaf Springs Included
- No
- Product Attributes - Front Shocks/Struts Included
- Yes
- Product Attributes - Front Shock Type
- Single adjustable coilover
- Product Attributes - Rear Shocks/Struts Included
- Yes
- Product Attributes - Rear Shock Type
- Single adjustable coilover
- Product Attributes - Front Sway Bar Included
- Yes
- Product Attributes - Front Sway Bar Color
- Black
- Product Attributes - Front Sway Bar Type
- Solid
- Product Attributes - Front Sway Bar Diameter (in.)
- 1.375 in.
- Product Attributes - Rear Sway Bar Included
- No
- Product Attributes - Tie Rod Sleeves Included
- No
- Product Attributes - End Link Bushings Included
- Yes
- Product Attributes - Rear Leaf Spring Bushings Included
- No
- Product Attributes - Sway Bar Bushings Included
- Yes
- Product Attributes - Upper Trailing Arms Included
- No
- Product Attributes - Lower Trailing Arms Included
- No
- Product Attributes - Trailing Arm Mount Braces Included
- No
- Product Attributes - Panhard Bar Included
- No
- Product Attributes - Torque Arm Included
- No
- Product Attributes - Upper Control Arms Included
- Yes
- Product Attributes - Lower Control Arms Included
- Yes
- Product Attributes - Control Arm Style
- Tubular
- Product Attributes - Control Arm Material
- Steel
- Product Attributes - Control Arm Color
- Black
- Product Attributes - Front Strut Tower Bar Included
- No
- Product Attributes - K-Member Included
- No
- Product Attributes - K-Member Support Brace Included
- No
- Product Attributes - Rear Strut Tower Bar Included
- No
- Product Attributes - Subframe Connectors Included
- No
- Product Attributes - Chassis Stiffener Included
- Yes
- Product Attributes - Calipers Included
- No
- Product Attributes - Rotors Included
- No
- Product Attributes - Brake Pads Included
- No
- Product Attributes - Brake Lines Included
- No
- Product Attributes - Wheel Studs Included
- No
- Product Attributes - Center Link Included
- No
- Product Attributes - Spindles Included
- No
- Product Attributes - Inner Tie Rod Ends Included
- No
- Product Attributes - Outer Tie Rod Ends Included
- No
- Product Attributes - Bushing Material
- Polyurethane
- Product Attributes - Bushing Color
- Black
- Product Attributes - Mounting Hardware Included
- Yes
- Product Attributes - Quantity
- Sold as a kit.
- Product Attributes - Notes
- Bolt on 4 Link Kit
Reference Information
| Brand Name/s | Ridetech |
|---|---|
| StreetFX SKU | rid11170203 |
| SFX Item ID | 4562734 |
| Supplier Item Code | 4562734 |
| Manufacturer SKU | 11170203 |
| Manufacturer UPC | N/A |
| Alternative References | art-11170203, rid-11173510, rid-11176510, rid-11179120, rid-85000000, rid11172899 |
Compatibility
1970-1981 Camaro & Firebird
