RideTech offers HQ air suspension systems for 1967-69 Camaro and Firebird (GM F-Body) applications. These Air Ride adjustable suspensions enable you to raise or lower your muscle car at the push of a button. The systems include front and rear HQ Series Shockwaves with adjustable rebound, plus upper and lower StrongArm front control arms, tall spindles, a bolt-on 4-link, and a front MuscleBar sway bar. Air Ride provides ultra-low show stance with modern ride quality and handling—and includes several components that will dramatically improve the suspension geometry to give your classic muscle car modern drivability. Systems are available with "pin" or "hub" spindles.

Product features:

* Tall "pin" spindles will induce more negative camber gain to maximize tire contact patch during cornering. They also offer a 2 in. drop—which allows for the use of longer shocks, creating more suspension travel. Compatible with all brake kits designed to fit the stock disc brake spindle.
* OR … "hub" spindles offer the same geometry improvements as the pin spindle but add the performance and simplicity of late-model Corvette hubs and brakes. Uses C5/C6/C7 Corvette hubs for maximum strength, consistent braking, and reduced maintenance. (Hubs not included). Compatible with C5/C6 Corvette brake systems, OE, and aftermarket (caliper brackets included). Minimum 17 in. wheels.
* The upper StrongArms feature corrected ball joint angles for the tall spindles. The upper ball joints have been moved back to allow for additional caster settings to improve high-speed stability and steering feel. Offset slugs are also available for additional caster. Delrin© bushings with 13 percent PTFE are used to reduce deflection and stiction.
* The lower StrongArms feature a double sheer lower mount for increased strength. RideTech has also dropped the lower shock mount to increase suspension travel and moved the lower ball joint forward to increase caster settings while keeping the wheel centered in the wheel opening. Delrin© bushings with 13 percent PTFE are used to reduce deflection and stiction.
* HQ Series Shockwaves utilize an impact forged aluminum body and monotube design to deliver excellent ride quality and handling. They allow fine-tuning of the ride quality and handling. The rebound knob is at the top of the shock for easy underhood access.

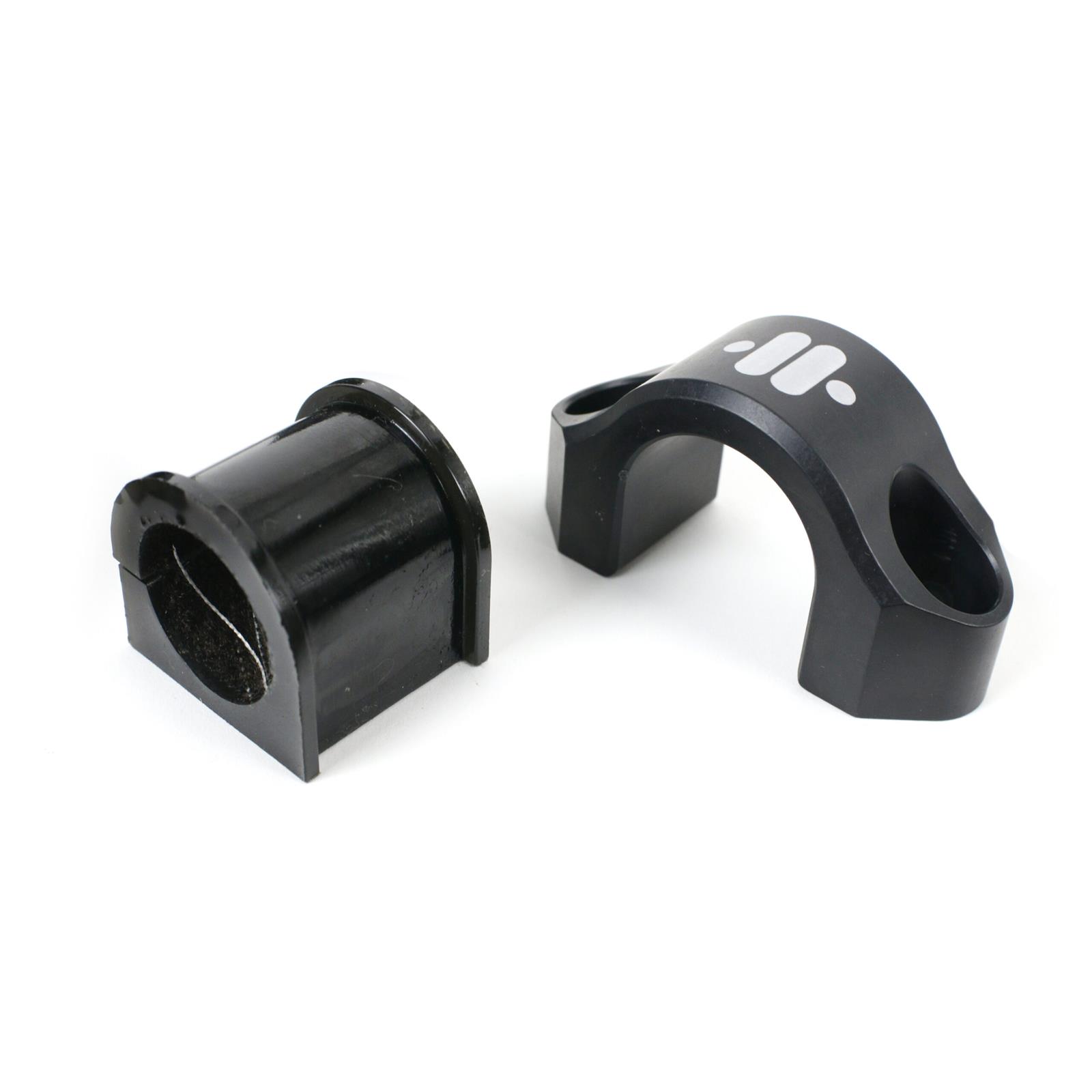

* Front sway bar reduces body roll and creates room for wider front tires. Includes billet aluminum frame straps (anodized black) and low friction bushings.
* The bolt-on 4-link dramatically improves traction, handling, and ride quality. Installation does not require significant modifications to the floor pan and requires only minimal welding to the axle tube. Works with mini-tubs. All links are double adjustable with R-joint rod ends, combining the best qualities of low friction movement, lateral stability, full range articulation, and quiet operation into one special street/strip bearing.

Upgrades:

* Early Camaro/Nova front-ends have very poor suspension geometry—the tires lean outward around turns, the bump steer is bad, and there's little room to run a wide wheel because of the OEM steering arm interference with the inside of the wheel. The TruTurn System resolves ALL these issues; the tires now lean INTO the turn, the bump steer is UNDER .050 in. through 5 in. of suspension travel, and you now have clearance to run up to a 10 in. wide wheel with a 275mm tire! Compatible with both the Ridetech "pin" and "hub" spindles.
* The addition of the rear sway bar is for the true track car. Wide tires plus big horsepower typically means faster corner speeds. The MuscleBar sway bar helps keep those rear tires hooked up through the corner.
* Compressor Sytems: RideTech offers its RidePro E5 air suspension control system as a pre-assembled, all-in-one module as the "AirPOD"; or you can purchase the RidePRO E5 system as a component kit to install how you like.

This is a group bundle consisting of:

Image	Qty	SKU	MFR SKU	UPC	Description
	1x	rid11009546	11009546	840123517227	Ridetech C5/C6 Caliper Brackets for Ridetech AFX C7 Hub Spindles
	1x	rid11169120	11169120	840123501349	Ridetech 67-69 Camaro Firebird and 68-74 Nova Front MuscleBar
	1x	rid11009312	11009312	840123517210	Ridetech AFX Hub 2in Drop Spindle for GM A, F, and X Body
	1x	rid11163699	11163699	840123501240	Ridetech 67-69 Camaro Firebird and 68-74 Nova Front Upper StrongArms
	1x	rid11162899	11162899	840123501196	Ridetech 67-69 Camaro Firebird and 68-74 Nova Front Lower StrongArms
	1x	rid21150701	21150701	840123509345	Ridetech HQ Series Rear ShockWaves 5in Travel 4in dia Rolling Sleeve .625 Bearing/.625 Bearing
	1x	rid11163001	11163001	840123501202	Ridetech 67-69 Camaro Firebird and 68-74 Nova HQ Series Front Shockwaves Pair
	1x	rid11167197	11167197	840123501318	Ridetech 67-69 Camaro and Firebird Bolt-On 4 Link System

Bundled group items may ship from multiple locations and could have slightly longer transit times if parts are sourced from different warehouses.

Images in this listing may include individual and/or group shots of the products included in the bundle. Please refer to the table to see a breakdown of what is included. Click on a SKU to see individual item details.

For details on the individual components in this bundle, click here.

1967-1969 Camaro & Firebird
