Ridetech 58-64 GM B-Body Big Block StreetGrip Suspension System (Bundled Kit)
Ridetech 58-64 GM B-Body Big Block StreetGrip Suspension System (Bundled Kit)
A$8,967.48
Special Order. Contact for ETA.
This item is out of stock in our warehouse and partner distribution centres. In some cases, this may be due to not having live inventory feeds available for all suppliers. Please contact us before ordering if you need to meet a specific deadline.
We accept
Description
IMPORTANT NOTICE: Images are supplied by the manufacturer and may be generic. While all efforts are made to provide accurate pictures, there may be differences in the actual product, such as colour, quantity, version, or included components. Please carefully review the description and specifications for details on inclusions or any variations. Some items may be sold individually or in sets, and images may occasionally depict additional products or quantities not included in your purchase. For assistance or clarification, please contact customer support.Reference Information Reference Data (Provide these details to our support team) Brand Name/s Ridetech StreetFX SKU rid11055110 SFX Item ID 4135287 Accounting SKU rid-11055110 Manufacturer SKU 11055110 Manufacturer UPC 840123500724 Alternative References 11055110, ART-11055110, RDT11055110
Ridetech 58-64 GM B-Body Big Block StreetGrip Suspension System
Product Details
| Description: | Ridetech 58-64 GM B-Body Big Block StreetGrip Suspension System |
Product Overview
Ridetech 58-64 GM B-Body Big Block StreetGrip Suspension System
This is a group bundle consisting of:
| Image | Qty | SKU | MFR SKU | UPC | Description |
|---|---|---|---|---|---|
 | 2x | rid90003077 | 90003077 | 840123512680 | Ridetech 58-64 Chevy Impala Lower Ball Joint |
 | 2x | rid90003041 | 90003041 | 840123512420 | Ridetech 55-64 Chevy Full Size 3/4in Tall Upper Ball Joint |

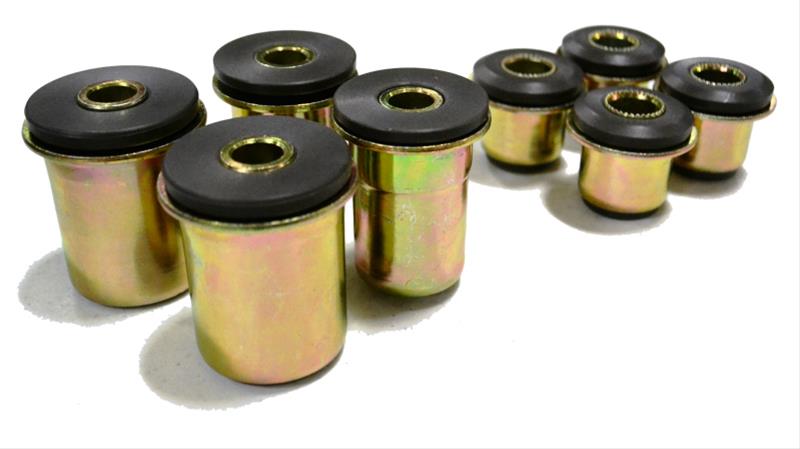

 | 1x | rid11059590 | 11059590 | 840123500823 | Ridetech 58-64 GM B-Body StreetGRIP Delrin Stock Control Arm Bushings Set |

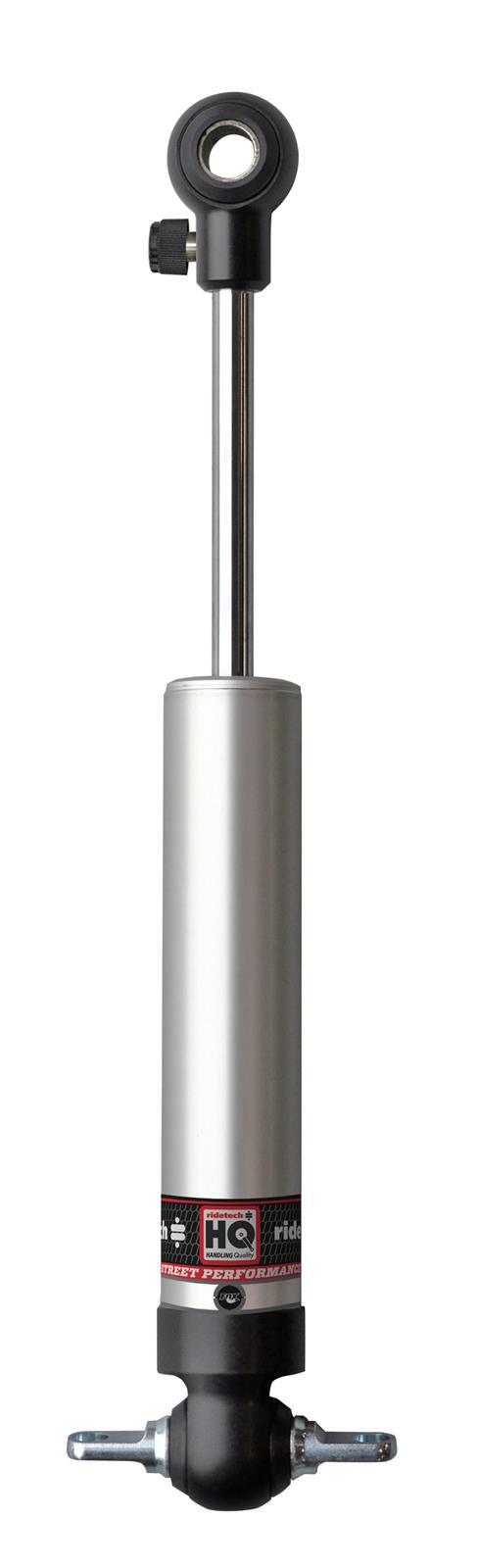

 | 2x | rid22189844 | 22189844 | 840123501912 | Ridetech HQ Series Shock Single Adjustable 7.55in Stroke Eye/T-Bar Mounting 13.15in x 20.7in |

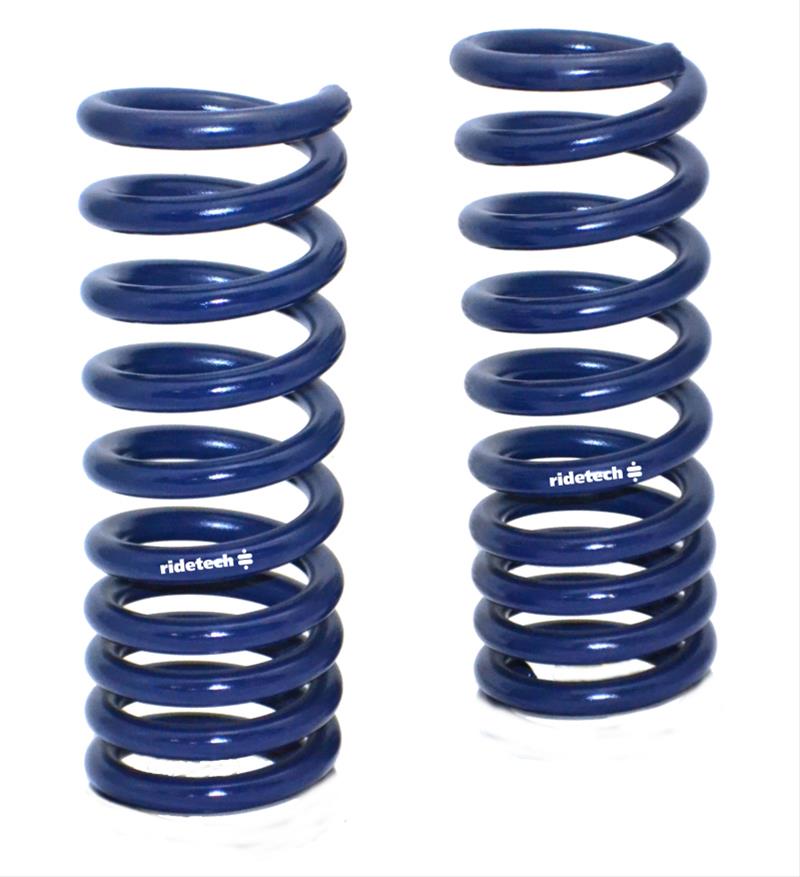

 | 1x | rid11052351 | 11052351 | 840123500595 | Ridetech 58-64 GM B-Body Big Block StreetGRIP Dual-Rate Front Coil Springs Pair |
 | 1x | rid11054798 | 11054798 | 840123500694 | Ridetech 58-64 B-Body StreetGRIP Lowering Coil Springs Rear Dual Rate Pair |
 | 2x | rid22169847 | 22169847 | 840123501790 | Ridetech HQ Series Shock Single Adjustable 5.75in Stroke T-Bar/Stud Mounting 9.55in x 15.3in |

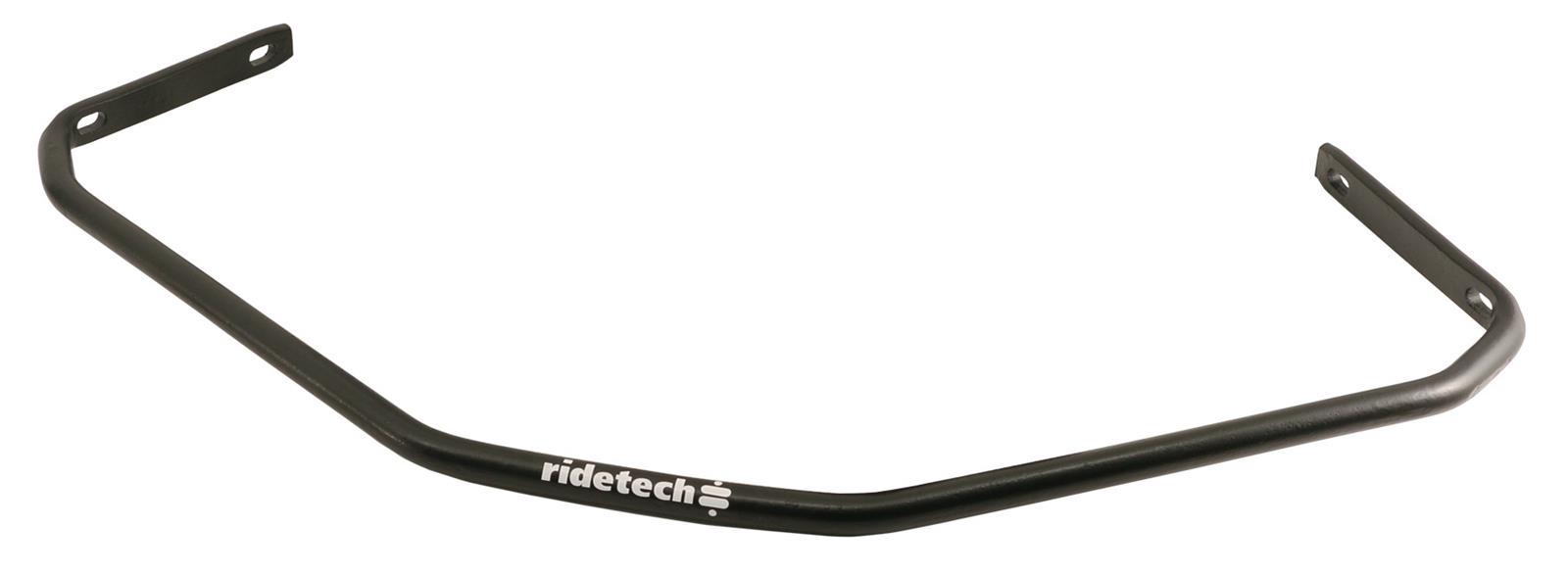

 | 1x | rid11059122 | 11059122 | 840123500762 | Ridetech 58-64 GM B-Body StreetGRIP Rear Sway Bar |
 | 1x | rid11059300 | 11059300 | 840123500779 | Ridetech 58-64 GM B-Body StreetGRIP 2in Drop Spindle |

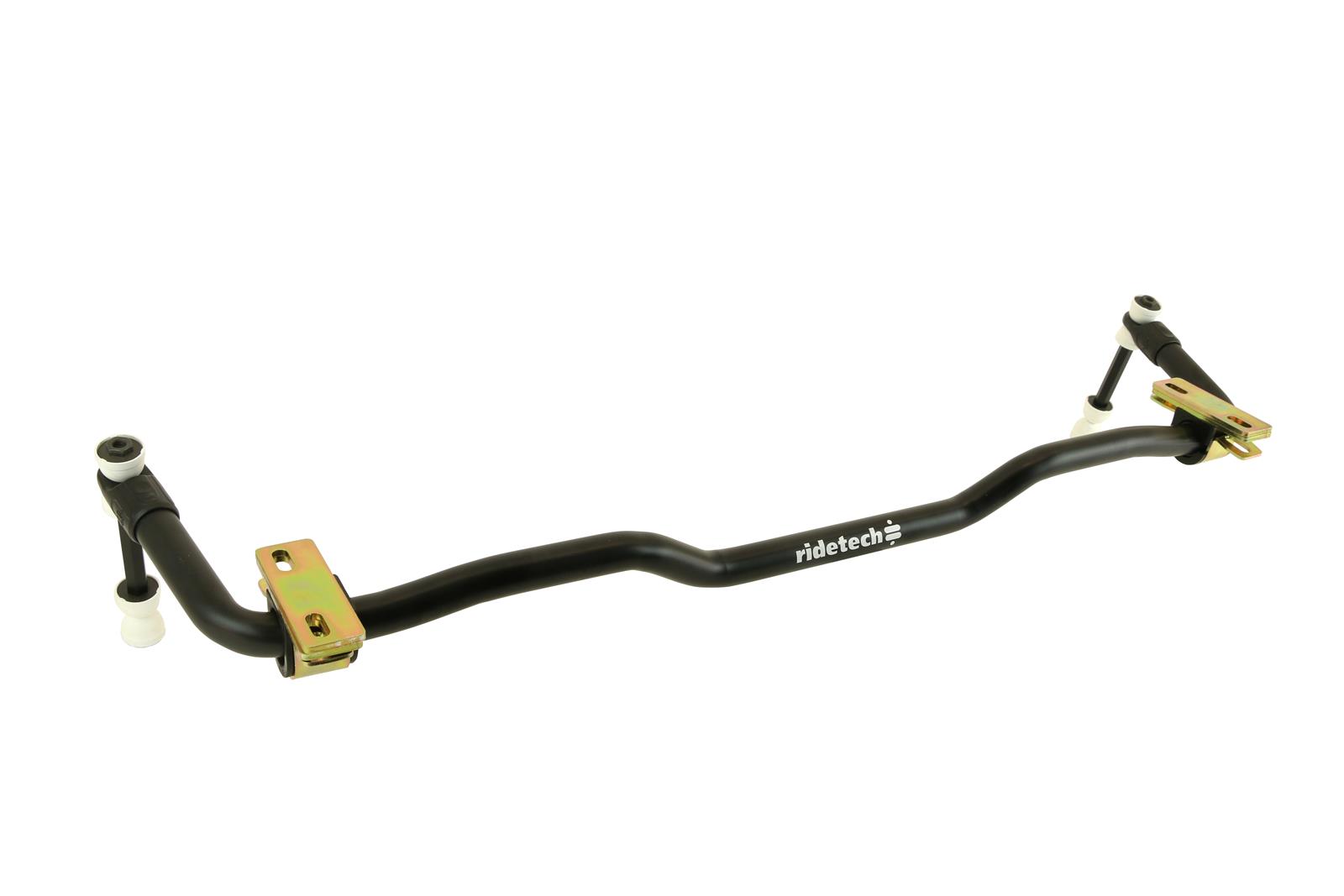

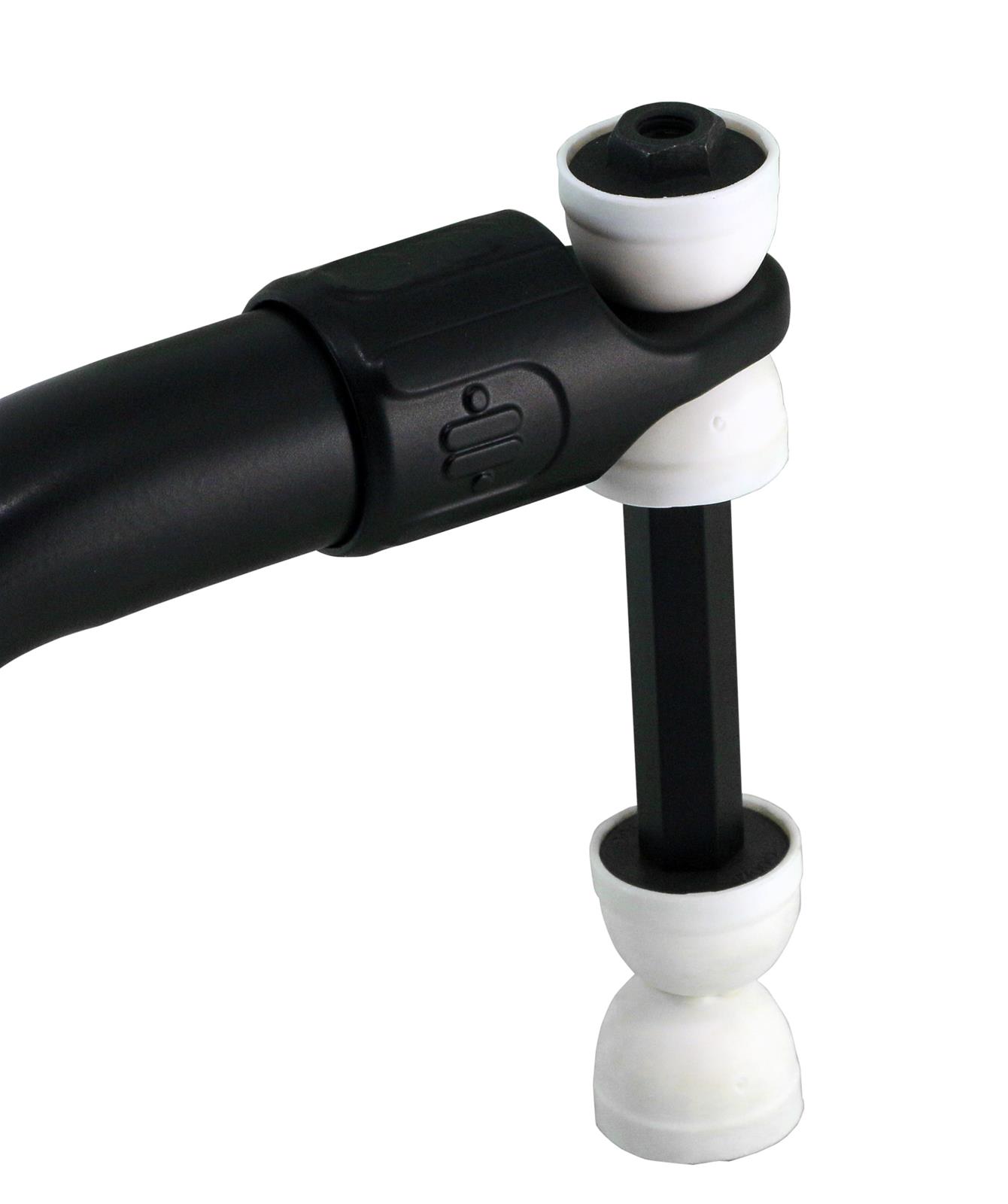

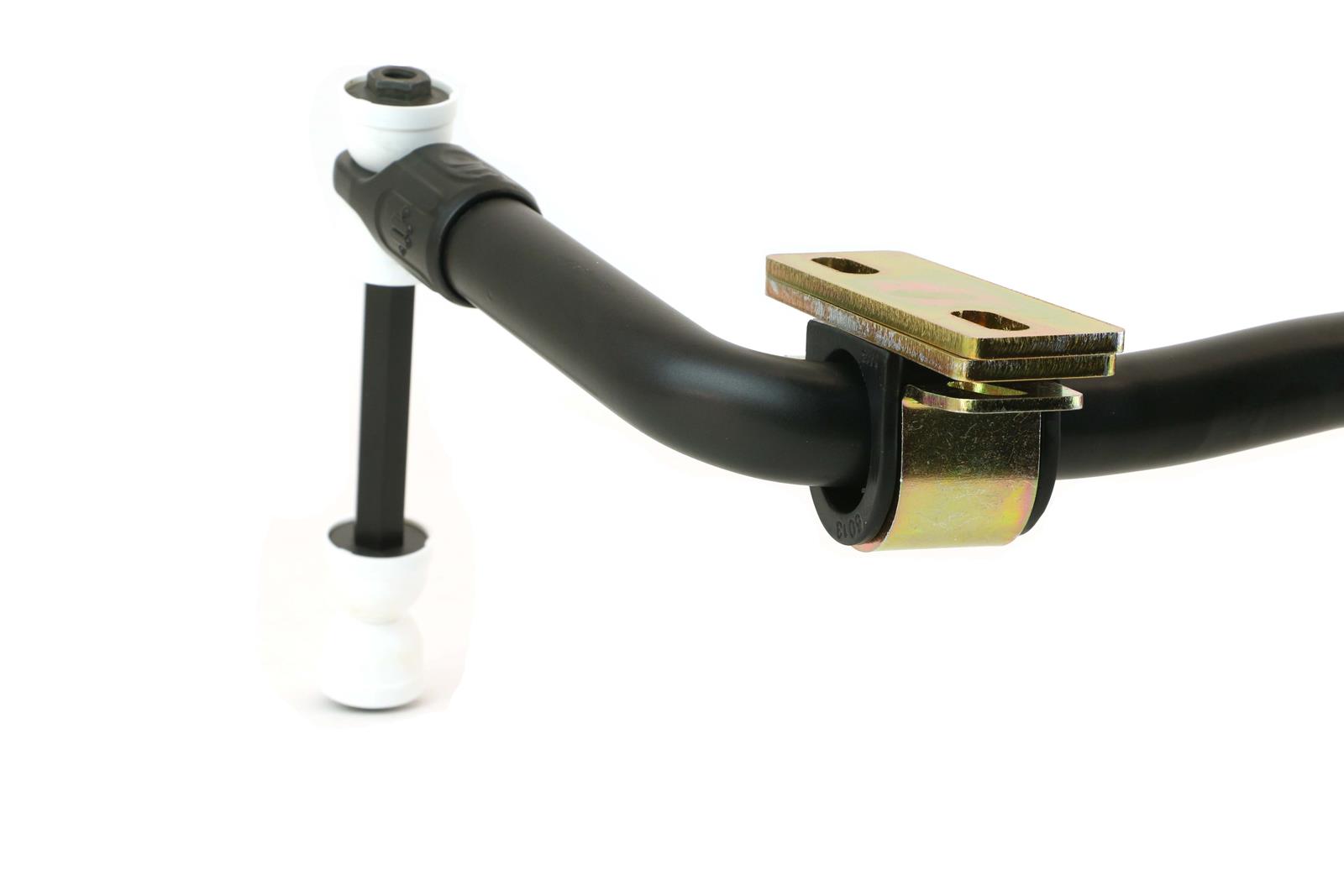

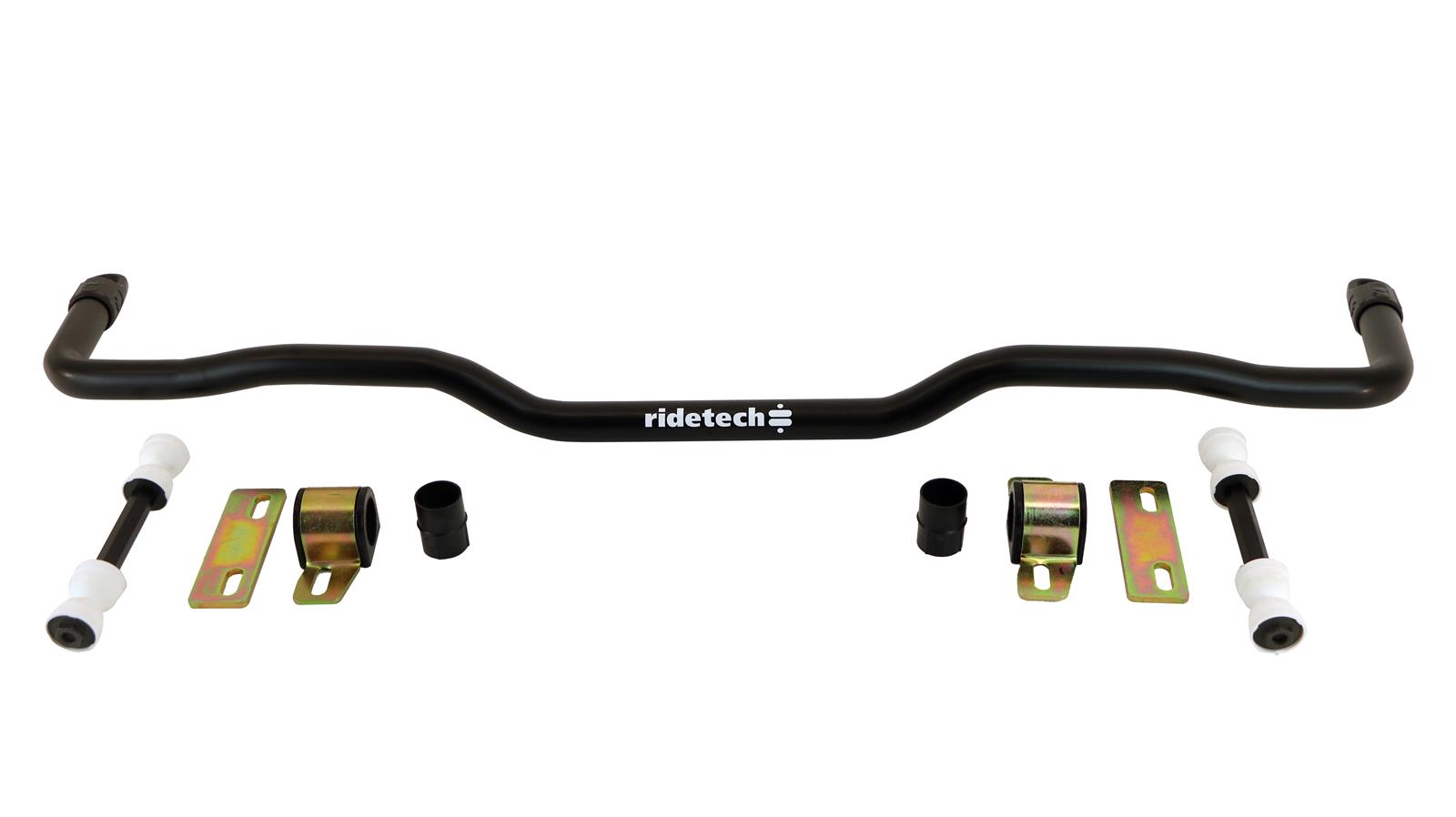

 | 1x | rid11059120 | 11059120 | 840123500755 | Ridetech 58-64 Impala Front MuscleBar |
Bundled group items may ship from multiple locations and could have slightly longer transit times if parts are sourced from different warehouses.
Images in this listing may include individual and/or group shots of the products included in the bundle. Please refer to the table to see a breakdown of what is included. Click on a SKU to see individual item details.
For details on the individual components in this bundle, click here.
Data: v2 - Desc: v4.2 - Upd: 2026-10-15 17:07:54
Product Overview
Ridetech 58-64 GM B-Body Big Block StreetGrip Suspension System
Product Details
| Description: | Ridetech 58-64 GM B-Body Big Block StreetGrip Suspension System |
|---|
This is a group bundle consisting of:
| Image | Qty | SKU | MFR SKU | UPC | Description |
|---|---|---|---|---|---|
| 2x | rid90003077 | 90003077 | 840123512680 | Ridetech 58-64 Chevy Impala Lower Ball Joint |
| 2x | rid90003041 | 90003041 | 840123512420 | Ridetech 55-64 Chevy Full Size 3/4in Tall Upper Ball Joint |
| 1x | rid11059590 | 11059590 | 840123500823 | Ridetech 58-64 GM B-Body StreetGRIP Delrin Stock Control Arm Bushings Set |
| 2x | rid22189844 | 22189844 | 840123501912 | Ridetech HQ Series Shock Single Adjustable 7.55in Stroke Eye/T-Bar Mounting 13.15in x 20.7in |
| 1x | rid11052351 | 11052351 | 840123500595 | Ridetech 58-64 GM B-Body Big Block StreetGRIP Dual-Rate Front Coil Springs Pair |
| 1x | rid11054798 | 11054798 | 840123500694 | Ridetech 58-64 B-Body StreetGRIP Lowering Coil Springs Rear Dual Rate Pair |
| 2x | rid22169847 | 22169847 | 840123501790 | Ridetech HQ Series Shock Single Adjustable 5.75in Stroke T-Bar/Stud Mounting 9.55in x 15.3in |
| 1x | rid11059122 | 11059122 | 840123500762 | Ridetech 58-64 GM B-Body StreetGRIP Rear Sway Bar |
| 1x | rid11059300 | 11059300 | 840123500779 | Ridetech 58-64 GM B-Body StreetGRIP 2in Drop Spindle |
| 1x | rid11059120 | 11059120 | 840123500755 | Ridetech 58-64 Impala Front MuscleBar |
Bundled group items may ship from multiple locations and could have slightly longer transit times if parts are sourced from different warehouses.
Images in this listing may include individual and/or group shots of the products included in the bundle. Please refer to the table to see a breakdown of what is included. Click on a SKU to see individual item details.
For details on the individual components in this bundle, click here.
Application Summary
1958-1964 Impala, Bel Air, etc.
Part Type
Suspension Lowering Kit
Specifications
Suspension Package, StreetGrip, Handling, Chevy, Kit
What are some of the virtues of a quality RideTech StreetGrip suspension system? For starters, they're easy to install. The Delrin bushings eliminate deflection, and dual-rate springs allow the vehicle to transition small road irregularities via a compliant spring rate. Adjustable monotube shocks deliver premium ride quality and handling performance, while the tall upper ball joints reposition the control arms to correct camber for more stability. Sway bar end links are also included to minimize body roll through corners. Give your vehicle the components it needs to handle the road with a StreetGrip suspension system—RideTech's one-box solution for better ride and control. Order the model designed for fitment on your vehicle.
| Product Attributes | |
|---|---|
| Brand | RideTech |
| Manufacturer's Part Number | 11055110 |
| Part Type | Suspension Handling Packages |
| Product Line | RideTech StreetGrip Suspension Systems |
| UPC | 840123500724 |
| Front Coil Springs Included | Yes |
| Rear Coil Springs Included | Yes |
| Rear Leaf Springs Included | No |
| Front Shocks/Struts Included | Yes |
| Front Shock Type | Gas-charged adjustable monotube |
| Rear Shocks/Struts Included | Yes |
| Rear Shock Type | Gas-charged adjustable monotube |
| Front Sway Bar Included | Yes |
| Front Sway Bar Color | Black |
| Front Sway Bar Type | Solid |
| Front Sway Bar Diameter (in.) | 1.000 in. |
| Rear Sway Bar Included | Yes |
| Rear Sway Bar Color | Black |
| Rear Sway Bar Type | Solid |
| Rear Sway Bar Diameter (in.) | 1.000 in. |
| Tie Rod Sleeves Included | No |
| End Link Bushings Included | Yes |
| Rear Leaf Spring Bushings Included | Yes |
| Sway Bar Bushings Included | Yes |
| Upper Trailing Arms Included | No |
| Lower Trailing Arms Included | No |
| Trailing Arm Mount Braces Included | No |
| Panhard Bar Included | No |
| Torque Arm Included | No |
| Upper Control Arms Included | No |
| Lower Control Arms Included | No |
| Front Strut Tower Bar Included | No |
| K-Member Included | No |
| K-Member Support Brace Included | No |
| Rear Strut Tower Bar Included | No |
| Subframe Connectors Included | No |
| Chassis Stiffener Included | No |
| Calipers Included | No |
| Rotors Included | No |
| Brake Pads Included | No |
| Brake Lines Included | No |
| Wheel Studs Included | No |
| Center Link Included | No |
| Spindles Included | Yes |
| Inner Tie Rod Ends Included | No |
| Outer Tie Rod Ends Included | No |
| Mounting Hardware Included | Yes |
| Quantity | Sold as a kit. |
| Manufacturer Attributes | |
|---|---|
| Pricing Group | StreetGrip Suspension System |
| Manufacturer Designation | StreetGrip system for 1958-1964 Impala with big block. |
| Product Class | Suspension Lowering Kit |
| Construction/Type | StreetGrip suspension system for 1958-1964 Impala with big block. Includes front and rear dual rate coil springs, delrin control arm bushings, ball joints, front and rear sway bars and HQ shocks |
| Vehicle Designations | 1958-1964 Impala, Bel Air, etc. |
| Vehicle Brief | StreetGrip BB 58-64 Impala |
Product Details
| Description: | Ridetech 58-64 GM B-Body Big Block StreetGrip Suspension System |
|---|
Reference Information
| Brand Name/s | Ridetech |
|---|---|
| StreetFX SKU | rid11055110 |
| SFX Item ID | 4135287 |
| Supplier Item Code | 4135287 |
| Manufacturer SKU | 11055110 |
| Manufacturer UPC | 840123500724 |
| Alternative References | rid-90003077, rid-90003041, 4in, rid-11059590, rid-11052351 |
Compatibility
| Ridetech 58-64 GM B-Body Big Block StreetGrip Suspension System (2x rid90003077, 2x rid90003041, 1x rid11059590, 1x rid11052351, 1x rid11054798, 1x rid11059300, 2x rid22189844, 2x rid22169847, 1x rid11059120, 1x rid11059122) | ||||
|---|---|---|---|---|
| Year Range | Make | Model | Submodels | Region |
| 1958-1964 | Chevrolet | Bel Air | Base | US |
| 1958-1964 | Chevrolet | Biscayne | Base, Fleetmaster | US |
| 1958-1961 | Chevrolet | Brookwood | Base | US |
| 1958 | Chevrolet | Del Ray | Base | US |
| 1959-1960 | Chevrolet | El Camino | Base | US |
| 1958-1964 | Chevrolet | Impala | Base, SS | US |
| 1959-1961 | Chevrolet | Kingswood | Base | US |
| 1958-1961 | Chevrolet | Nomad | Base | US |
| 1959-1961 | Chevrolet | Parkwood | Base | US |
| 1958-1960 | Chevrolet | Sedan Delivery | Base | US |
| 1958 | Chevrolet | Yeoman | Base | US |
Please note that this information serves as a fitment guide only. For specific fitment questions or clarifications, please contact us, as manufacturers may introduce variations and modifications during model year or regional revisions. While we strive to provide accurate data, fitment details may vary by region; therefore, compatibility outside the listed region and submodel variant cannot be guaranteed.
Detailed Compatibility
| Application Data | |
|---|---|
| Make | CHEVROLET |
| Model | BEL AIR |
| Submodel | BASE |
| Beginning Year | 1958 |
| Ending Year | 1961 |
| Engine Type | V8 |
| Liter | 5.7 |
| CID | 348 |
| CC | 5704 |
| Engine Family | Chevy big block W-engines |
| Engine Size | 5.7L/348 |
| Drivetrain | RWD |
| Make | CHEVROLET |
| Model | BEL AIR |
| Submodel | BASE |
| Beginning Year | 1958 |
| Ending Year | 1961 |
| Engine Type | V8 |
| Engine Family | Chevy big block W-engines |
| Engine Size | 5.7L/348 |
| Drivetrain | RWD |
| Amount of Drop Front | None |
| Amount of Drop Rear | None |
| Make | CHEVROLET |
| Model | BEL AIR |
| Submodel | BASE |
| Beginning Year | 1958 |
| Ending Year | 1962 |
| Engine Type | L6 |
| Liter | 3.8 |
| CID | 235 |
| CC | 3852 |
| Engine Family | GM inline 6-cylinder |
| Engine Size | 3.8L/235 |
| Drivetrain | RWD |
This may not be an exhaustive list of compatible vehicles. Please reach out to one of our representatives if you are unsure or do not see your vehicle here.
