Ridetech 55-57 Chevy TQ Series CoilOvers Front Pair
Ridetech 55-57 Chevy TQ Series CoilOvers Front Pair
A$3,856.09
Available from MFR.
This item is available from the manufacturer's distribution centre. The dispatch timeframe shown is an estimate based on historical order processing and release times for this part. This item is not held in our own warehouse, and actual dispatch timing may vary depending on manufacturer workload and logistics at the time of ordering.
We accept
Description

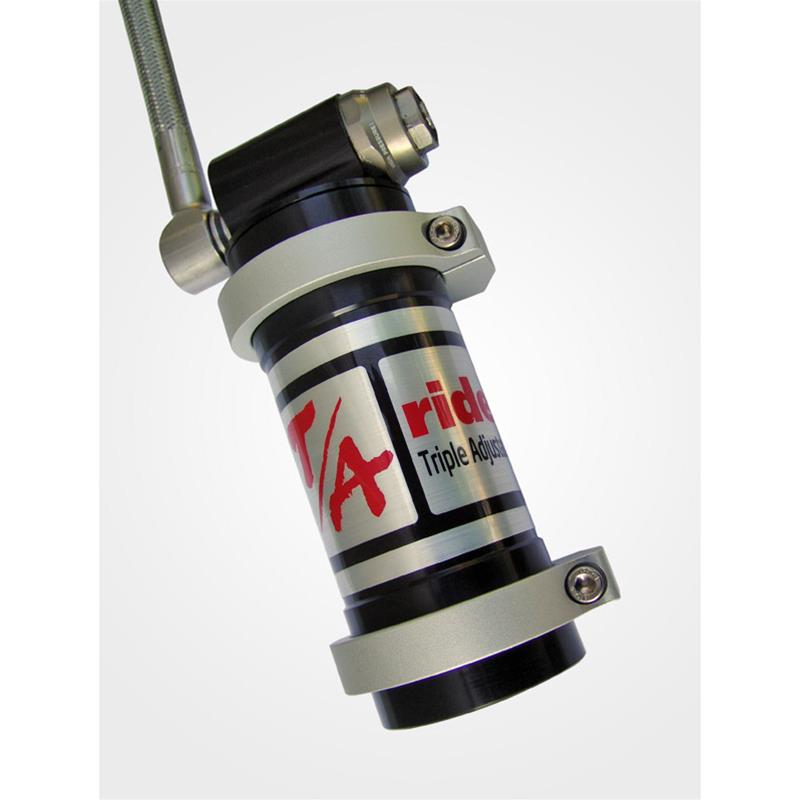

Track quality—Ridetech TQ coilover shocks offer a performance level for competition. TQ coilovers feature a single rebound adjustment and a dual stage—high speed and low speed—compression adjustment. Ridetech also designed these monotube aluminum shocks with a remote reservoir that is connected with a 30 in. braided line for easy installation in a variety of applications. These supreme shocks are surrounded by powdercoated high-tensile premium steel CNC cold-wound springs that offer less weight, more resistance to bowing, and increased travel. There's ride quality, handling quality, and now track quality from Ridetech—the TQ series of coilover shocks for winning performance on road courses, race tracks, and extreme environments.
Other premium features:
* Impact-forged aluminum body
* Anodized finished
* CNC-machined billet hardware
* Larger piston
* Double sealed rod guide
* 5/8 in. chrome shock shaft
Product Overview
Front TQ Coil-Overs for 1955-1957 Bel Air. For use with Ridetech lower arms. Includes a pair of triple adjustable shocks, springs, spring mounts and delrin spring washers.
Product Details
| Description: | Ridetech 55-57 Chevy TQ Series CoilOvers Front Pair |
|---|---|
| Part Number: | rid11013511 |
| Pricing Group: | TQ Coil-Overs |
| Prop 65 Chemicals: | chromium,nickel,nickel_acetate,nickel_compounds,toluene |
| Proposition 65 Warning: | Y |
Kit Options
This item is available as a full kit.
Select a kit option in the following table if you are looking for this item in a bundle form with all associated components.
Kit option/s:
| Thumb | SKU | Kit Title |
|---|---|---|
 |
rid11020301 | Ridetech 55-57 Chevy w/ One Piece Frame TQ CoilOver System (1x rid11012899, 1x rid11013699, 1x rid11027199, 1x rid11019100, 1x rid85000000, 1x rid11013511, 1x rid11016511) |
|
rid11030301 | Ridetech 55-57 Chevy w/ Two Piece Frame TQ CoilOver System (1x rid11012899, 1x rid11013699, 1x rid11037199, 1x rid11019100, 1x rid85000000, 1x rid11013511, 1x rid11016511) |
Application Summary
1955-1957 Bel Air, 210 etc.
Part Type
Coilover Spring and Shock Assembly
Specifications
- Product Attributes - Brand
- Ridetech
- Product Attributes - Manufacturer's Part Number
- 11013511
- Product Attributes - Part Type
- Coilover Kits
- Product Attributes - Product Line
- Ridetech TQ Coilover Shocks
- Product Attributes - UPC
- 840123500236
- Product Attributes - Coilover Kit Position
- Front
- Product Attributes - Adjustable Valving
- Yes
- Product Attributes - Number of Valving Selections
- 72
- Product Attributes - Shocks Included
- Yes
- Product Attributes - Internal Design
- Monotube
- Product Attributes - Coilover Springs Included
- Yes
- Product Attributes - Suspension Height Adjustment
- 1.0-3.0 in. lowered
- Product Attributes - Gas Charged
- Yes
- Product Attributes - Extended Length (in.)
- 14.50
- Product Attributes - Collapsed Length (in.)
- 10.43
- Product Attributes - Threaded Adjustment Range
- 3.500 in.
- Product Attributes - Upper Mount
- Stud
- Product Attributes - Lower Mount
- Eyelet
- Product Attributes - Body Diameter (in.)
- 2.000
- Product Attributes - Shock Body Material
- Aluminum
- Product Attributes - Shock Body Finish
- Silver
- Product Attributes - Bushing Material
- Spherical bearing/Delrin®
- Product Attributes - Spring Finish
- Blue
- Product Attributes - Crossmember Included
- No
- Product Attributes - Adjustable Mounting Bracket Included
- No
- Product Attributes - Hardware Included
- Yes
- Product Attributes - Welding Required
- No
- Product Attributes - Quantity
- Sold as a kit.
Reference Information
| Brand Name/s | Ridetech |
|---|---|
| StreetFX SKU | rid11013511 |
| SFX Item ID | 4135453 |
| Supplier Item Code | 4135453 |
| Manufacturer SKU | 11013511 |
| Manufacturer UPC | 840123500236 |
| Alternative References | ART-11013511, RDT11013511 |
Compatibility
1955-1957 Bel Air, 210 etc.
