Injen 17-20 Ford F150 Raptor Super Crew V6 3.5L 3in Cat-Back SS Exhaust w/ Dual Black Chrome Tips
Injen 17-20 Ford F150 Raptor Super Crew V6 3.5L 3in Cat-Back SS Exhaust w/ Dual Black Chrome Tips
A$2,516.40
Special Order. Contact for ETA.
This item is out of stock in our warehouse and partner distribution centres. In some cases, this may be due to not having live inventory feeds available for all suppliers. Please contact us before ordering if you need to meet a specific deadline.
We accept
Description

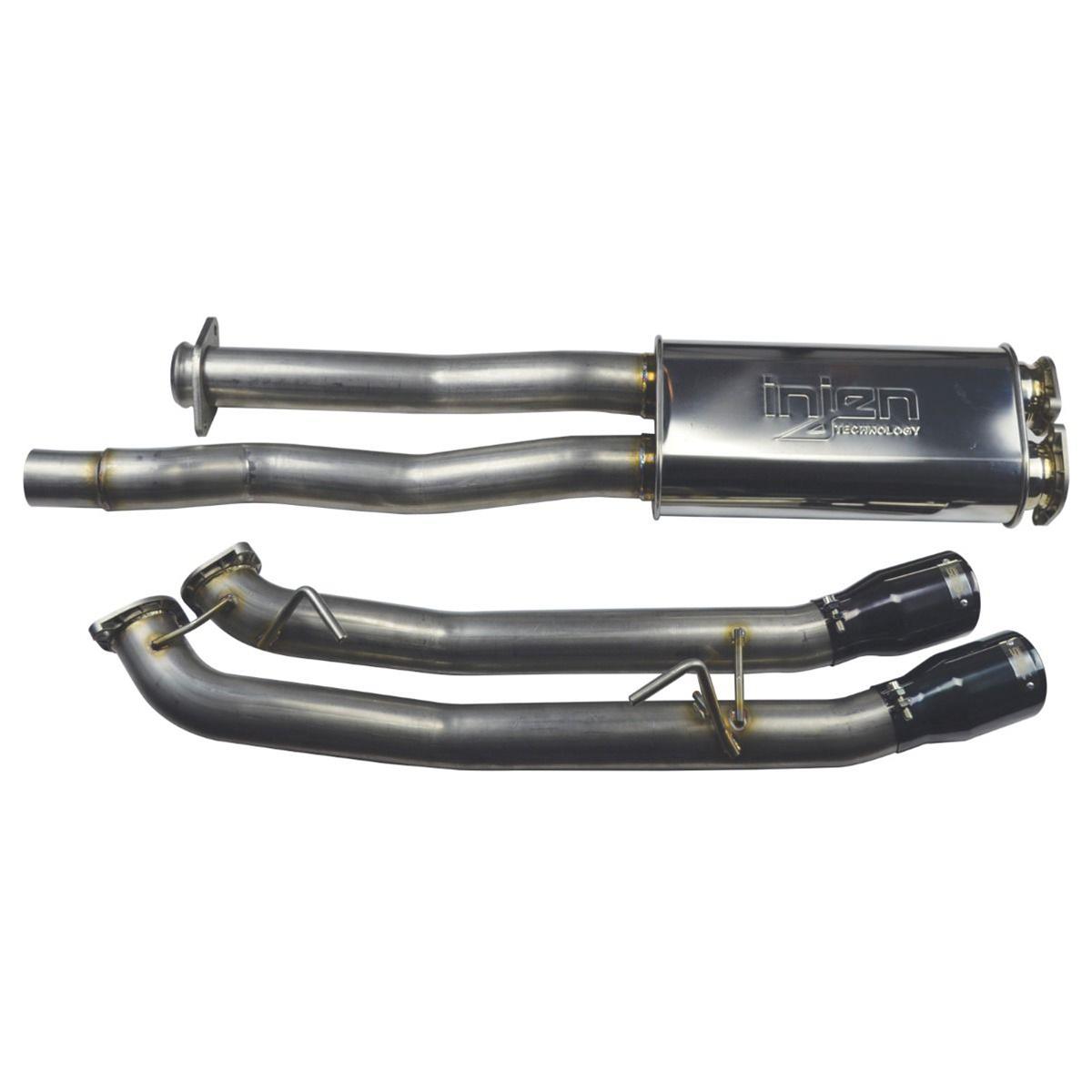

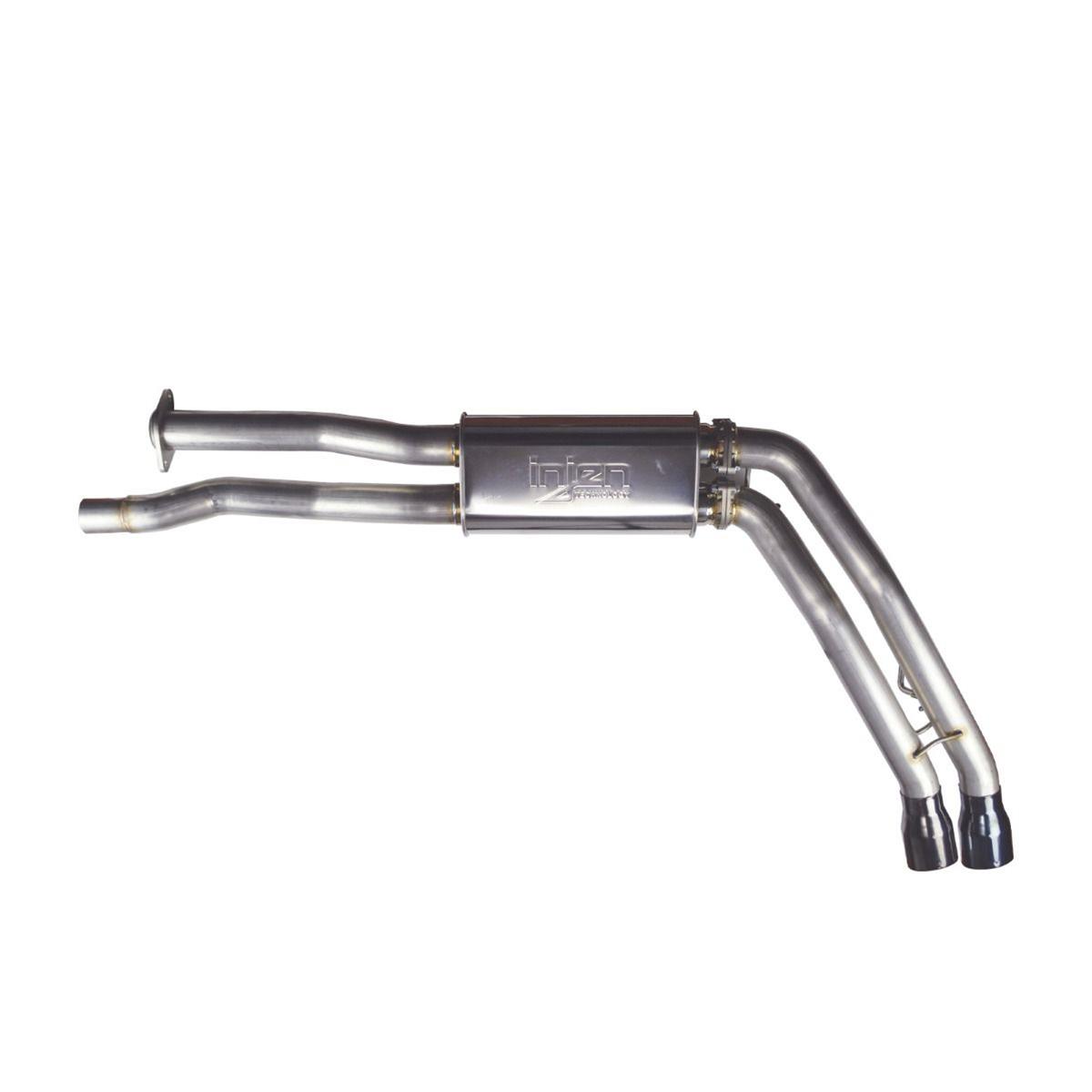

Injen Technology is proud to introduce our new true dual, side exit exhaust system for the 2017-2020 Ford F-150 Raptor with the V6-3.5L EcoBoost twin-turbo engine. You asked for a system that delivered a unique and throaty sound for the 3.5L Raptor and Injen Technology has delivered. Injen has spent countless hours testing and fine tuning the sound that this side exit exhaust system makes and it's second to none. Our engineers were not satisfied with an off the shelf muffler, so we completely designed our own to provide you with the power and the sound that you crave!, , This Injen Technology dual side exit cat-back exhaust is also designed with bolt-on "black chrome"exhaust tips that have our beautiful Injen badge attached. Those same tips exit in front of the rear passenger tire for an aggressive and captivating appearance that will surely set your Raptor apart from the crowd. , , Quality is never a concern when you run Injen Technology products and this exhaust is no different. Mandrel bent 304 stainless steel is used throughout this entire system that is hand Tig welded for that uncompromising quality that you've come to trust from Injen Technology. Upon opening the box, you'll quickly learn that this is more than an exhaust ? it's a piece of art! The bends are smooth and well thought-out for dyno proven power and maximum flow. Don't forget that Injen never compromises, as we include our stainless steel investment cast flanges for leak and trouble free fitment. A true bolt-on system in every sense of the word and everything you need is included with our system for a hassle-free installation. , ,
Product Overview

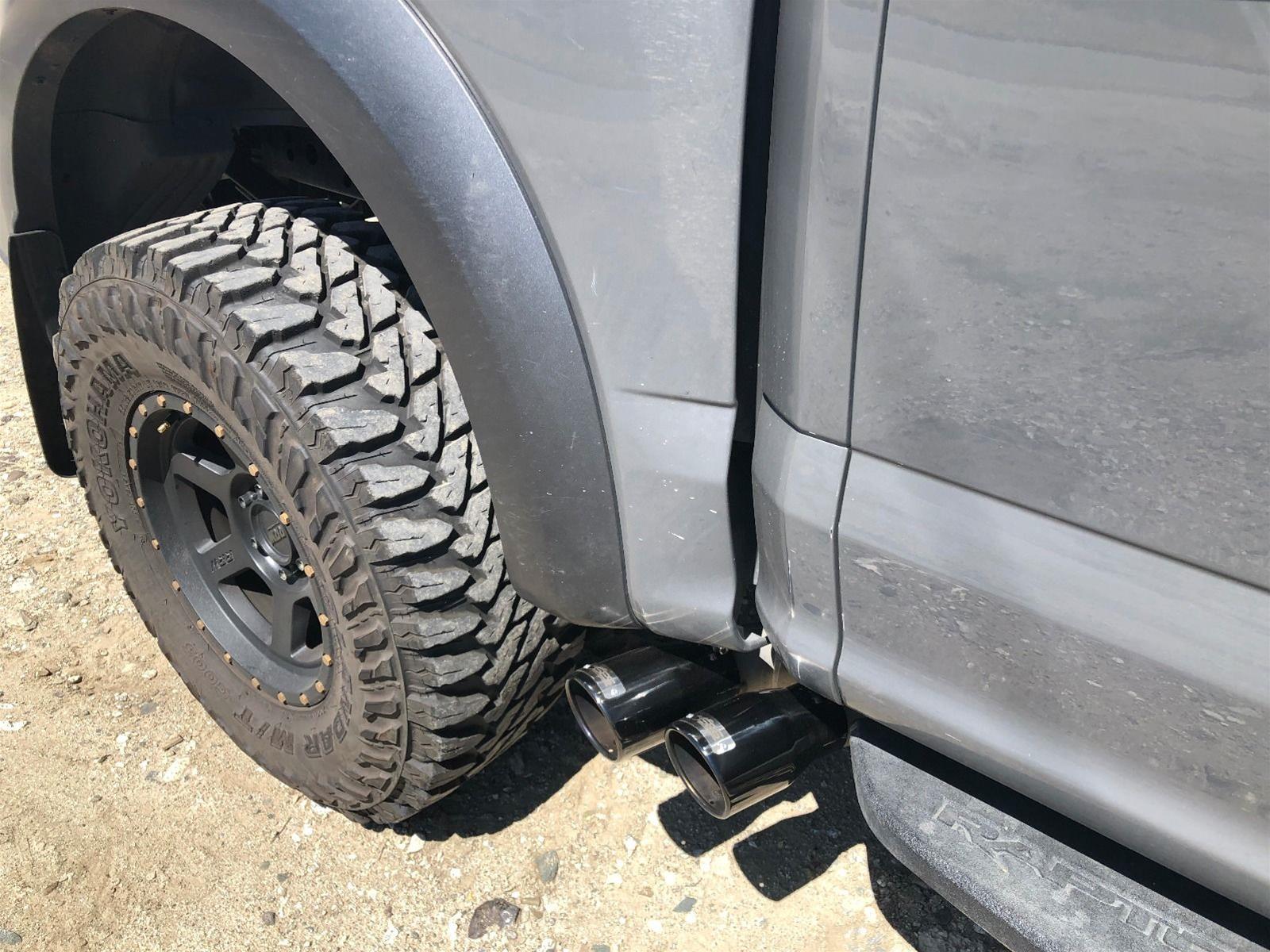

Custom Dual inlet/outlet muffler: You won't find a Y-Pipe here like the competition! The muffler used on this system was designed specifically for the dual side exit Raptor exhaust and features dual 3"inlets/outlets for maximum airflow. The muffler's internal design and length was changed numerous times until our engineers found the perfect sound without sacrificing power output. It's this type of dedication to every component that sets Injen apart from the completion. No Exhaust Leaks or fitment issues!, Unlike our competition, Injen never compromises to reduce costs. Where our competition uses band clamps, Injen uses superior quality stainless steel investment cast flanges for the ultimate seals and ensures a hassle free exhaust. No twisting of the exhaust to make sure if aligns correctly ? simply install the system and enjoy!, , Dual Black-Chrome Exhaust Tips: Dual 4"black chrome exhaust tips are the finishing touch on this beautiful exhaust system. The tips bolt-on for easy adjustments and provide a visual punch that will set your Raptor apart for the pack!, , OE Style Fitment: OE-Style exhaust hangers are used throughout that utilize the OE hanger bushing that came with your Raptor. This allows the system to install and flex like the factory system during high-stress situations without any damage. A true hassle-free installation with no cutting required. , , Dyno Proven: Plain and simple, NUMBERS talk! We put in the time to test and prove that we have developed a superior exhaust system for your Ford F-150 Raptor. After hours of designing and dyno testing, Injen is proud to say that the SES9102 Dual Side-Exit exhaust system puts down numbers of up to 12 additional horsepower and 14 lb-ft. of torque. Engineered and manufactured at the Injen Technology headquarters in Pomona, Ca.
Features and Benefits
- Injen Technology Limited Lifetime Warranty
- Fits Super Crew (4 Door) models only

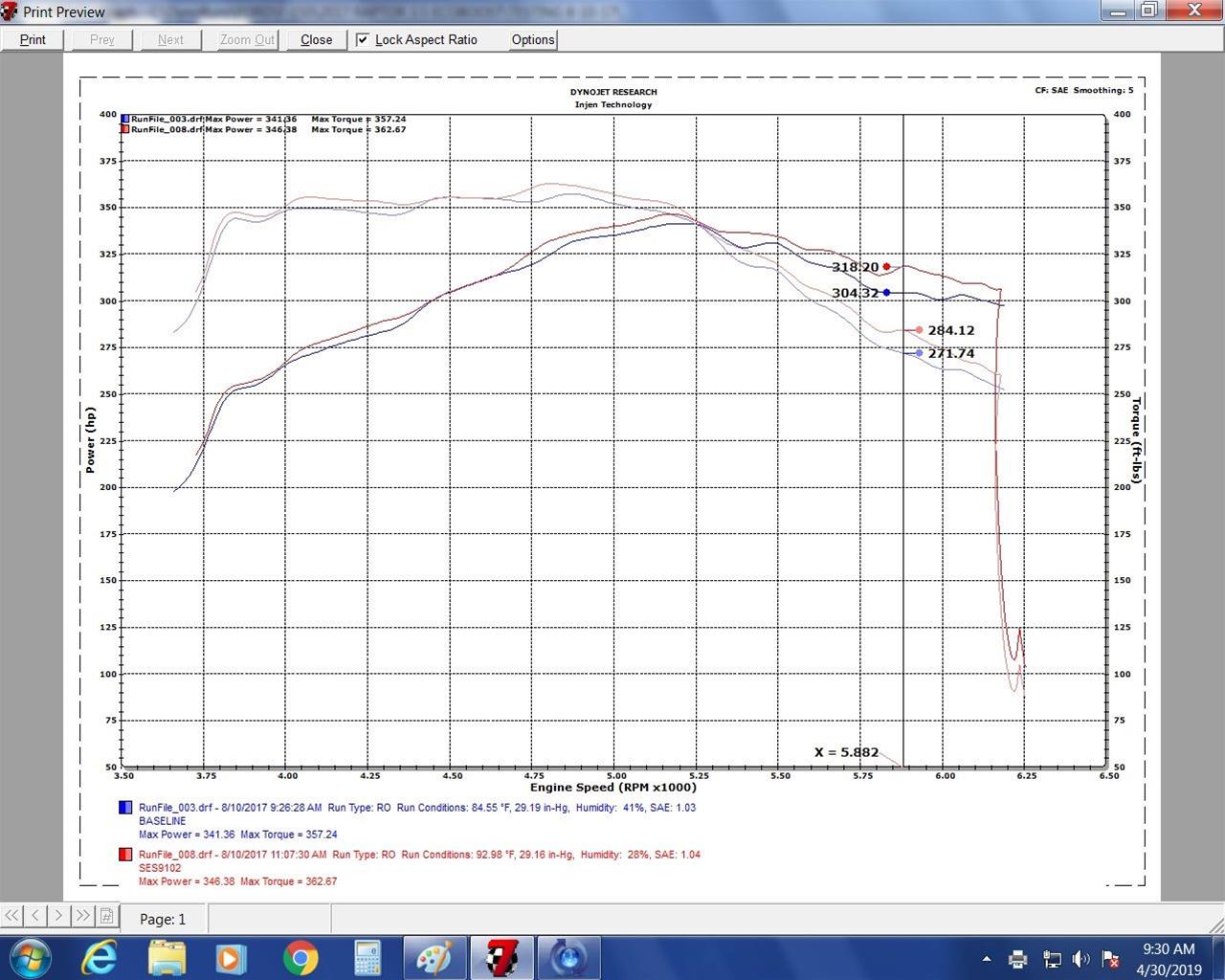

- Dyno Proven gains of up to 14 hp and 15 lb-ft. of torque
- Full 76MM piping made from premium 304 SS Mandrel-Bent Tubing

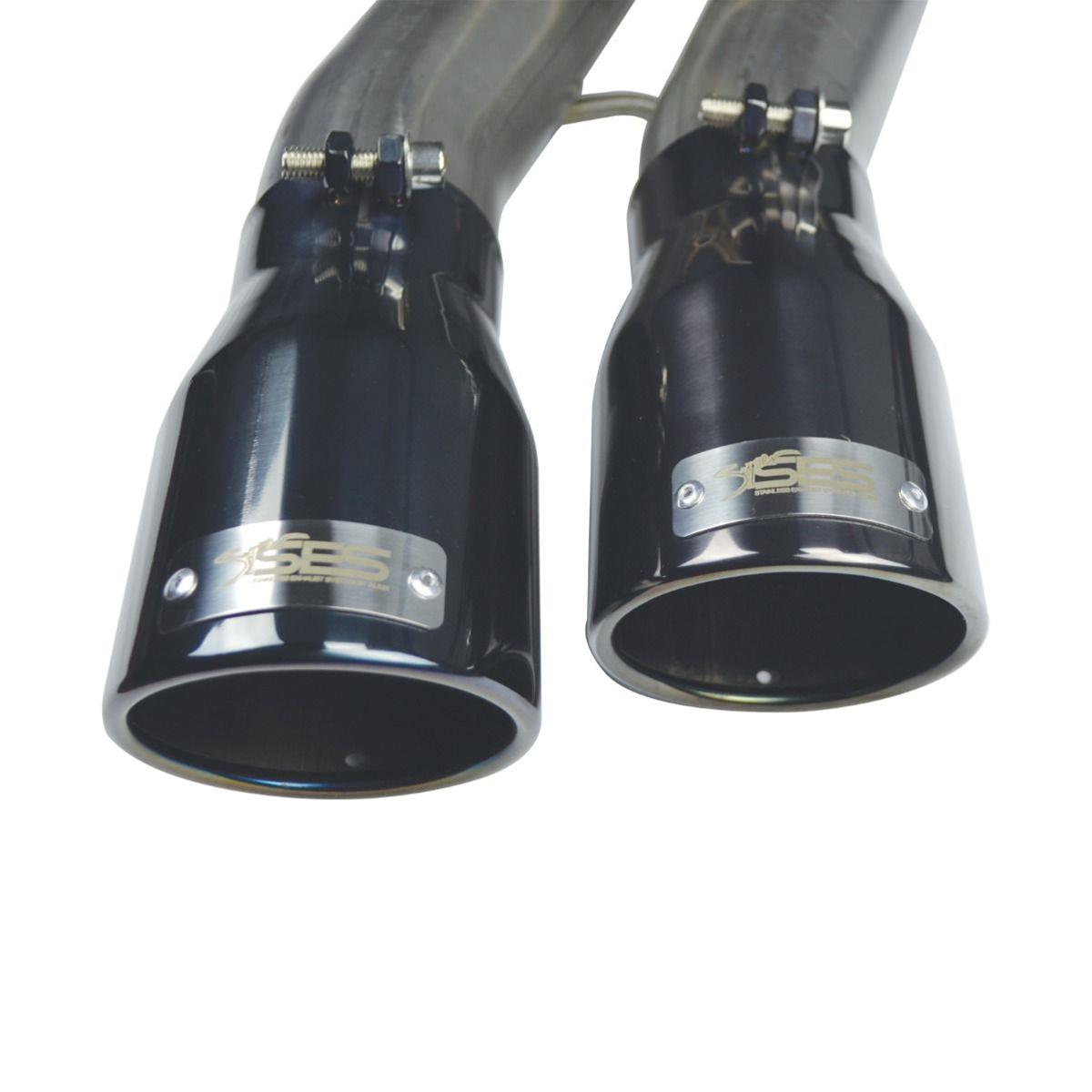

- Beautiful dual 4.0"black chrome exhaust tips
- Features Injen's dual in/out muffler designed specifically for the 3.5L Raptor
- Unique design and muffler delivers a clean, crisp, distinctively Injen sound

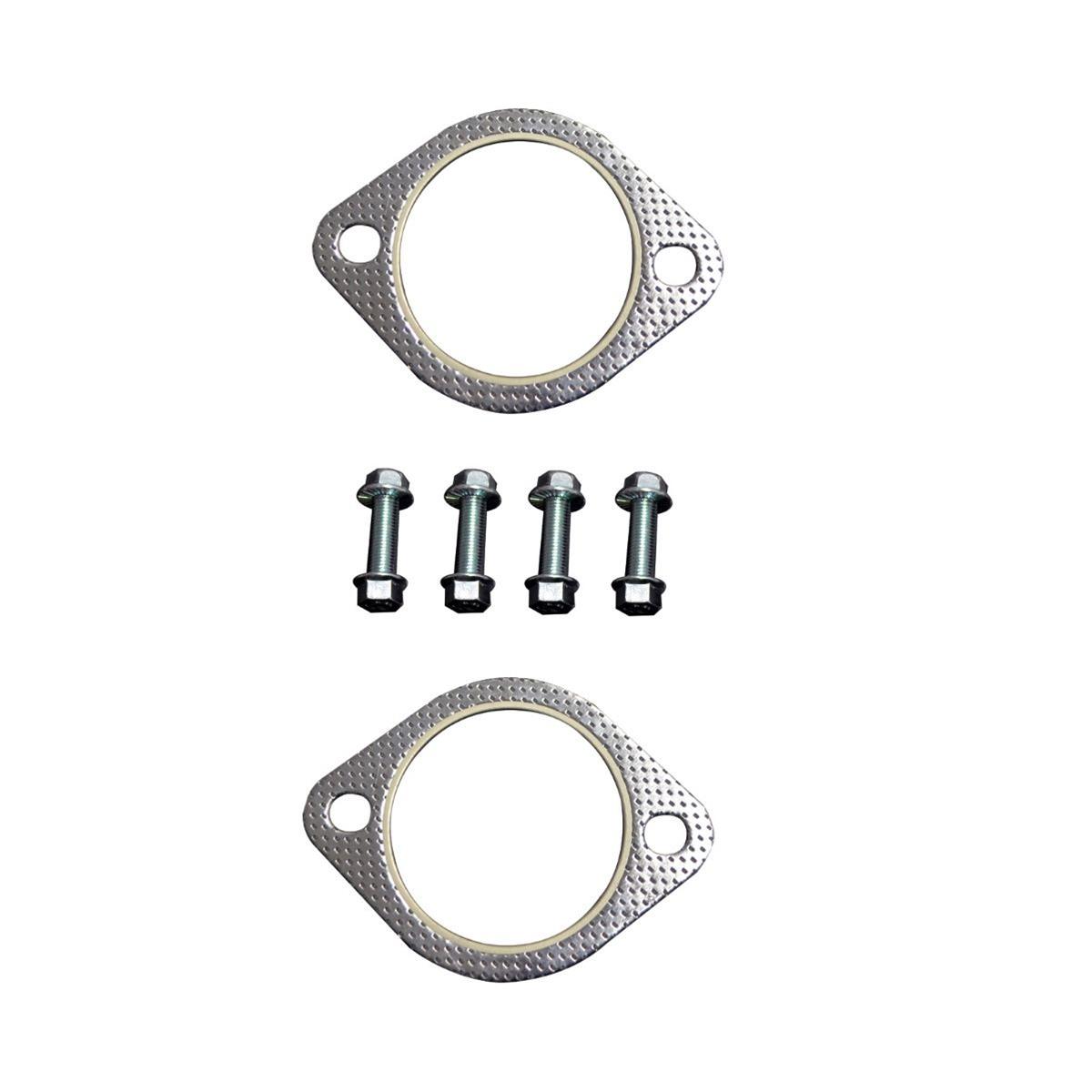

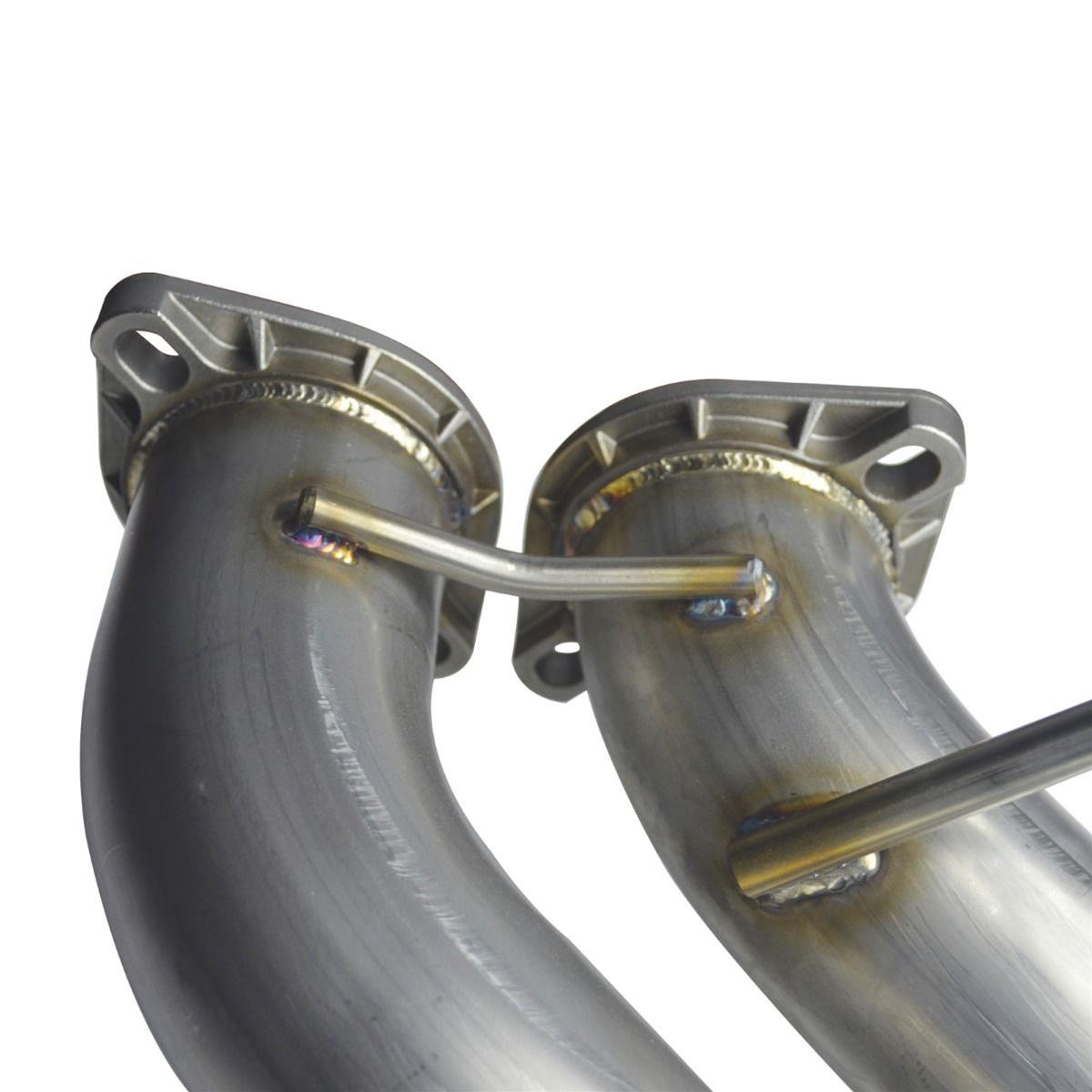

- Stainless Steel Investment Cast Flange for a Fast and Easy Install
- Hand Crafted and TIG Welded to Perfection for Strength and Durability
- Premium Stainless Steel Hardware and Hangers for a simple install
- No Cutting or Welding Required
- If you're looking to improve sound, power, and looks then this is the system for you!
- Designed and Manufactured in Pomona, CA
Product Details
| Catalytic Converter Quantity: | 0 |
|---|---|
| Compatible Throttle Controller: | PT0013B |
| Description: | Cat-Back Exhaust System |
| Exhaust System Connection: | Flanged |
| Exhaust Type: | Cat-Back |
| Exit Position: | Dual Side |
| Finish: | Polished |
| Grade Type: | Performance |
| Hangers Included: | Yes |
| Hardware Included: | Yes |
| Inlet Inside Diameter: | 3.000 in. |
| Material: | 304S Stainless Steel |
| Muffler Body Diameter: | 5.0X8.5 |
| Muffler Body Length: | 15 |
| Muffler Body Material: | 304 Stainless Steel |
| Muffler Body Shape: | Oval |
| Muffler Flanged Inlet: | No |
| Muffler Flanged Outlet: | Yes |
| Muffler Let Size: | 3 |
| Muffler Outlet Quantity: | 2 |
| Muffler Outlet Size: | 3 |
| Muffler Quantity: | 1 |
| Part Number: | injSES9102 |
| Pipe Material: | 304 Stainless Steel |
| Primary Pipe OD: | 3 |
| Prop 65 (C, R or CR): | CR |
| Prop 65 - Short Label: | prop65_warning.jpg |
| Prop 65 Yes/No: | Yes |
| Secondary Pipe OD: | 3 |
| Stepped Pipe Diameter: | No |
| Tail Pipe Diameter: | 3.000 in. |
| Tail Pipe Material: | Black Chrome |
| Tail Pipe Outlet Outside Diameter: | 4 |
| Tail Pipe Quantity: | 2 |
| Tip Diameter: | 4.000 in. |
| Title: | Injen Technology Dual Side Exit Exhaust System |
| Tubing Diameter: | 3.000 in. |
| WARNING CA Proposition 65 Message: | This product can expose you to chemicals including Chromium; Nickel and Cobalt; which are known to the State of California to cause cancer. |
| WARNING CA Proposition 65: | Yes |
| Y-Pipe Included: | No |
Part Type
Exhaust System Kit
Features
- Beautiful dual 4.0"black chrome exhaust tips
- Designed and Manufactured in Pomona, CA
- Dyno Proven gains of up to 14 hp and 15 lb-ft. of torque
- Features Injen's dual in/out muffler designed specifically for the 3.5L Raptor
- Full 76MM piping made from premium 304 SS Mandrel-Bent Tubing
- Hand Crafted and TIG Welded to Perfection for Strength and Durability
- If you're looking to improve sound, power, and looks then this is the system for you!
- Injen Technology Limited Lifetime Warranty
- No Cutting or Welding Required
- Premium Stainless Steel Hardware and Hangers for a simple install
- Stainless Steel Investment Cast Flange for a Fast and Easy Install
- Unique design and muffler delivers a clean, crisp, distinctively Injen sound
Specifications
- Product Attributes - Brand
- Injen
- Product Attributes - Manufacturer's Part Number
- SES9102
- Product Attributes - Part Type
- Exhaust Systems
- Product Attributes - Product Line
- Injen Super SES Stainless Exhaust Systems
- Product Attributes - UPC
- 843115027254
- Product Attributes - System Material
- 304 stainless steel
- Product Attributes - System Style
- Cat-back
- Product Attributes - Exhaust Type
- Dual in/Dual out
- Product Attributes - Exit Location
- Driver side
- Product Attributes - System Finish
- Polished
- Product Attributes - Catalytic Converter(s) Included
- No
- Product Attributes - Intermediate Pipe Diameter (in.)
- 3.00 in.
- Product Attributes - Muffler Included
- Yes
- Product Attributes - Muffler Quantity
- One
- Product Attributes - Muffler Configuration
- Dual inlet/Dual outlet
- Product Attributes - Muffler Style
- Perforated tube
- Product Attributes - Muffler Material
- 304 stainless steel
- Product Attributes - Muffler Finish
- Polished
- Product Attributes - Hardware Included
- Yes
- Product Attributes - Tailpipe Diameter (in.)
- 3.00 in.
- Product Attributes - Tip Included
- Yes
- Product Attributes - Tip Outlet Size (in.)
- 4.00
- Product Attributes - Tip Quantity
- 2
- Product Attributes - Tip Shape
- Round
- Product Attributes - Tip Cut
- Straight
- Product Attributes - Tip Edge Style
- Rolled edge, single-wall
- Product Attributes - Tip Material
- 304 stainless steel
- Product Attributes - Tip Color
- Black chrome
- Product Attributes - Remanufactured
- No
- Product Attributes - Quantity
- Sold as a kit.
- Product Attributes - Special Attention
- It is illegal to install parts or components that bypass, defeat, or render inoperative the manufacturers’ technology and design necessary to reduce vehicle emissions to meet state and federal Clean Air Act standards.
Reference Information
| Brand Name/s | Injen |
|---|---|
| StreetFX SKU | injSES9102 |
| SFX Item ID | 4243178 |
| Supplier Item Code | 4243178 |
| Manufacturer SKU | SES9102 |
| Manufacturer UPC | 843115027254 |
| Alternative References | F150, 3.5L, 3in |
