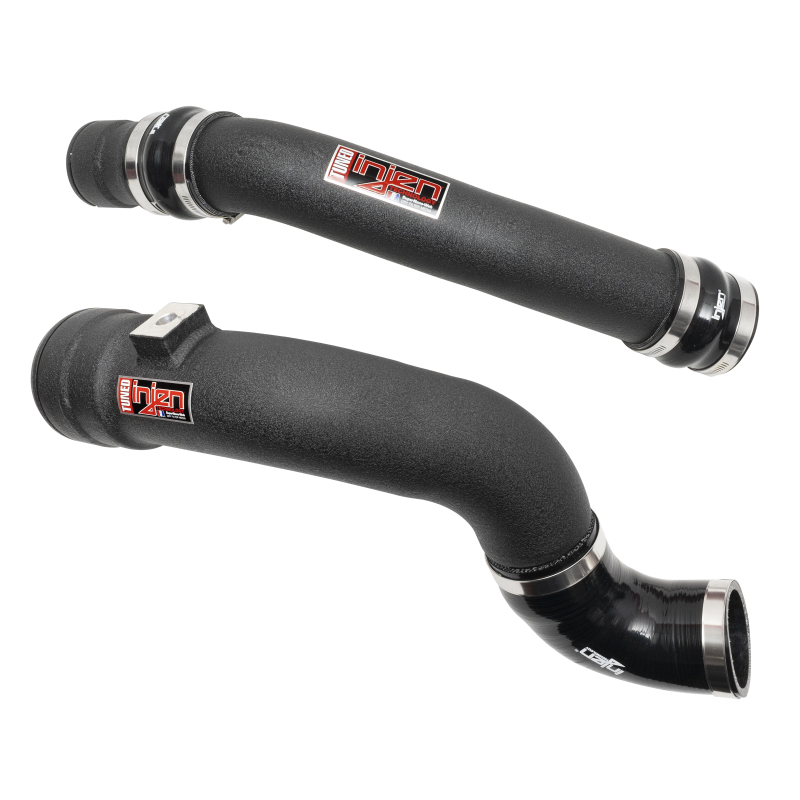

Injen 17-22 Ford F250/F/350/F-450/F-550 V8-6.7L Turbo Diesel Wrinkle Black Intercooler Piping Kit
Injen 17-22 Ford F250/F/350/F-450/F-550 V8-6.7L Turbo Diesel Wrinkle Black Intercooler Piping Kit
A$1,204.15
IN STOCK! Est Ship 3-5 days.
This item is IN STOCK at one of our warehouses or distribution centres, the ETA is the approximate time required to prepare your order for dispatch.
We accept
Description
This upgraded charge pipe system is manufactured from oversized mandrel-bent 6061 aluminum and every bend and TIG weld is completed by hand at the Injen Technology headquarters in Pomona, California. The Injen hot-side pipe has an ID of 3.00in and the cold side has an ID of 3.25in. By utilizing oversized piping on both the hot side and the cold side, these charge pipes are able to reduce restriction, balance the airflow in and out of the intercooler to improve performance, and lower engine damaging exhaust gas temperatures (EGTs).
Product Overview
This upgraded charge pipe system is manufactured from oversized mandrel-bent 6061 aluminum and every bend and TIG weld is completed by hand at the Injen Technology headquarters in Pomona, California. The Injen hot-side pipe has an ID of 3.00in and the cold side has an ID of 3.25in. By utilizing oversized piping on both the hot side and the cold side, these charge pipes are able to reduce restriction, balance the airflow in and out of the intercooler to improve performance, and lower engine damaging exhaust gas temperatures (EGTs).
Features and Benefits

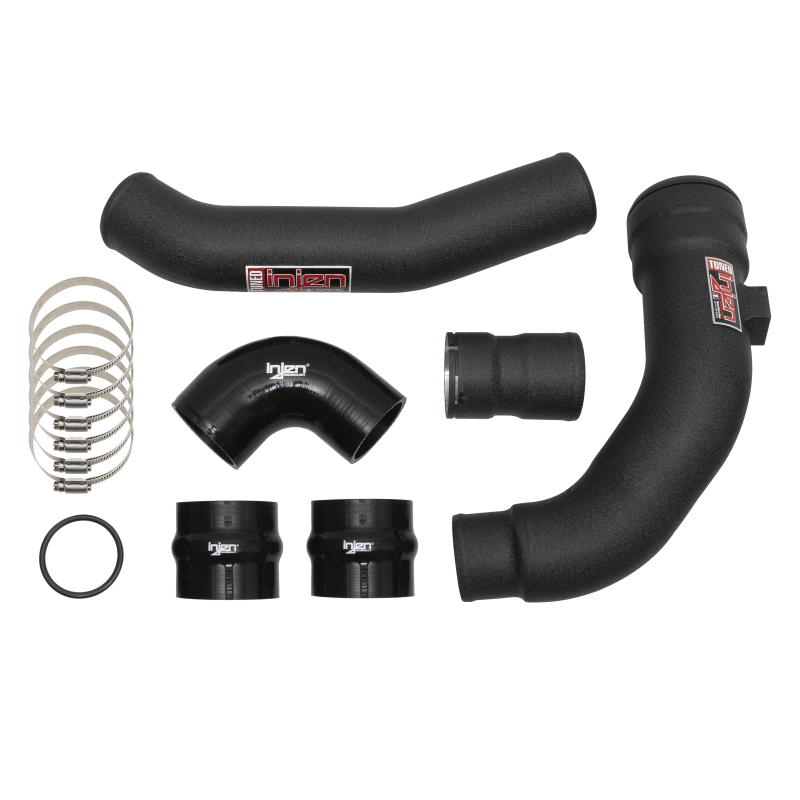

- Complete system including both HOT and COLD side piping
- Pairs perfectly with Injen's EVO9004 cold air intake
- Cold Side Pipe Inside Diameter - 3.250in
- Hot Side Pipe Inside Diameter - 3.00in
- Manufactured from Mandrel-Bent 6061 Aluminum
- Cold side pipe is 2-pieces for easier installation
- Precision CNC machined factory-style quick connections utilizing the OE spring clip
- Works seamlessly with the OE intercooler
- Available in three finishes
- Polished - SES9004ICP
- Wrinkle Black ? SES9004ICPWB
- Wrinkle Red ? SES9004ICPWR
- Stainless Steel Band Clamps with Inner Protective Liner
- Automotive Grade Reinforced Silicone Couplers

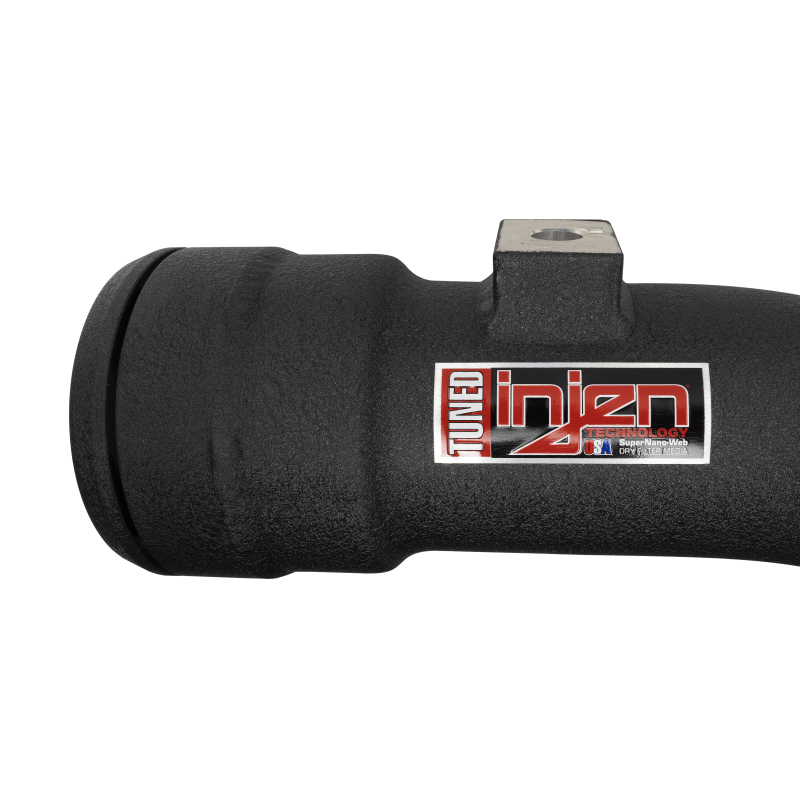

- Unique Injen Logo Plate for a Refined Style
- Increase Throttle Response and Decreases Turbo Lag
- Beaded Tube Ends to Help Prevent Couplers from Coming Off
- Uses all factory mounting locations
- Includes all necessary hardware for a hassle-free installation
- Made in Pomona California, USA
- Injen Technology Limited Lifetime Warranty
- Note: This product is not CARB exempt at this time and is not legal for sale in California or use on vehicles registered with the California Department of Motor Vehicles.
Product Details
| Attachment Method: | Coupler/OEM Retaining Clip |
|---|---|
| CNC Flanges Included: | Yes |
| CNC Sensor Adapters Inlcuded: | No |
| Cold Side Pipe Material: | 6061-T6 Aluminum |
| Cold Side Pipe Size: | 3.25 |
| Compatible Throttle Controller: | N/A |
| Description: | Injen 17-22 Ford F250/F/350/F-450/F-550 V8-6.7L Turbo Diesel Wrinkle Black Intercooler Piping Kit |
| Finish: | Wrinkle Black |
| Grade Type: | Performance |
| Hardware Included: | Yes |
| Hot Side Pipe Material: | 6061-T6 Aluminum |
| Hot Side Pipe Size: | 3.0 |
| Hot and Cold Side Included: | Yes |
| NPT Fitting Quantity: | N/A |
| NPT Fitting Size: | N/A |
| Part Number: | injSES9004ICPWB |
| Prop 65 (C, R or CR): | CR |
| Prop 65 - Short Label: | prop65_warning.jpg |
| Prop 65 Yes/No: | Yes |
| Stepped Design: | No |
| Title: | Injen SES Intercooler Pipes |
Part Type
Intercooler Pipes
Features
- Automotive Grade Reinforced Silicone Couplers
- Available in three finishes
- Beaded Tube Ends to Help Prevent Couplers from Coming Off
- Cold Side Pipe Inside Diameter - 3.250in
- Cold side pipe is 2-pieces for easier installation
- Complete system including both HOT and COLD side piping
- Hot Side Pipe Inside Diameter - 3.00in
- Includes all necessary hardware for a hassle-free installation
- Increase Throttle Response and Decreases Turbo Lag
- Injen Technology Limited Lifetime Warranty
- Made in Pomona California, USA
- Manufactured from Mandrel-Bent 6061 Aluminum
- Note: This product is not CARB exempt at this time and is not legal for sale in California or use on vehicles registered with the California Department of Motor Vehicles.
- Pairs perfectly with Injen's EVO9004 cold air intake
- Polished - SES9004ICP
- Precision CNC machined factory-style quick connections utilizing the OE spring clip
- Stainless Steel Band Clamps with Inner Protective Liner
- Unique Injen Logo Plate for a Refined Style
- Uses all factory mounting locations
- Works seamlessly with the OE intercooler
- Wrinkle Black ? SES9004ICPWB
- Wrinkle Red ? SES9004ICPWR
Specifications
- Product Attributes - UPC
- 843115029586
- Product Attributes - Brand
- Injen
- Product Attributes - Quantity
- Sold as a kit.
- Product Attributes - Part Type
- Intercooler Pipes
- Product Attributes - Product Line
- Injen Intercooler Pipes
- Product Attributes - Intercooler Pipe Color
- Black
- Product Attributes - Intercooler Pipe Diameter
- 3.00/3.25 in.
- Product Attributes - Intercooler Pipe Material
- Aluminum
- Product Attributes - Intercooler Pipe Position
- Turbo to Intercooler (Hot Side), Intercooler to Engine (Cold Side)
- Product Attributes - Manufacturer's Part Number
- SES9004ICPWB
Reference Information
| Brand Name/s | Injen |
|---|---|
| StreetFX SKU | injSES9004ICPWB |
| SFX Item ID | 4243829 |
| Supplier Item Code | 4243829 |
| Manufacturer SKU | SES9004ICPWB |
| Manufacturer UPC | 843115029586 |
| Alternative References | F250/F/350/F-450/F-550, V8-6.7L |
