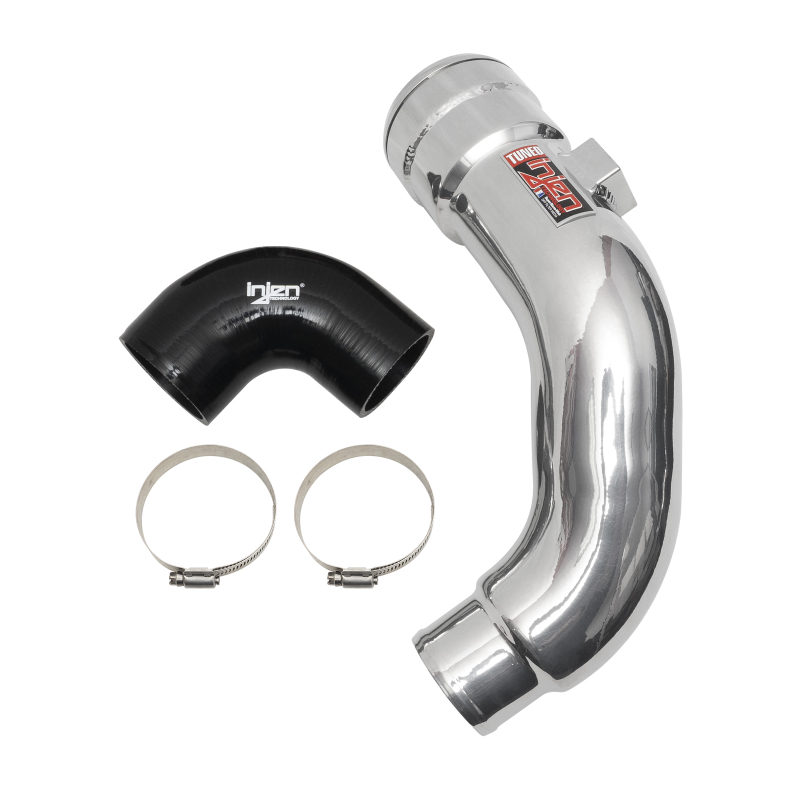

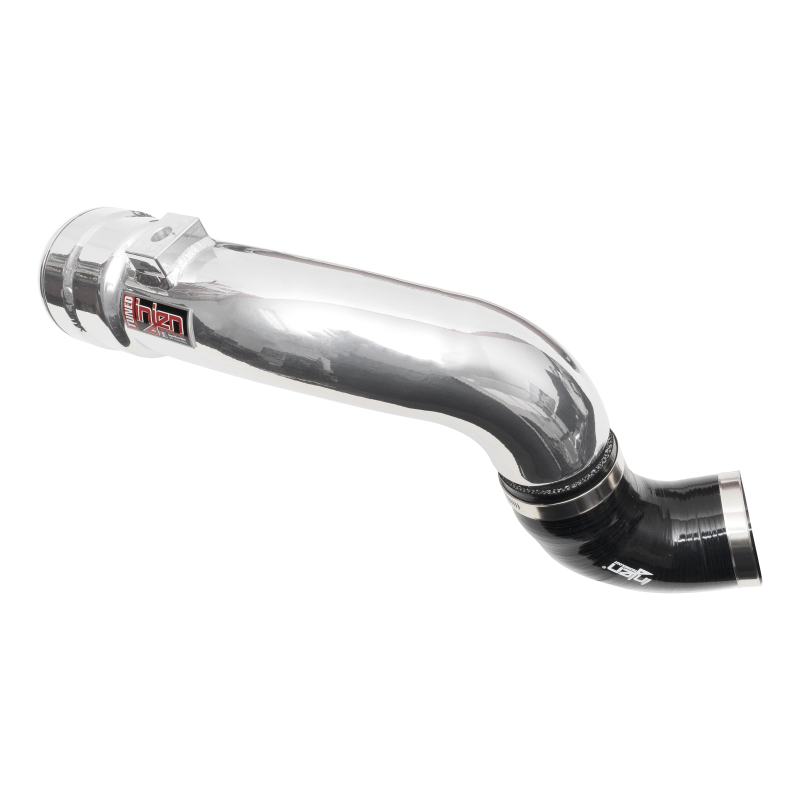

Injen 17-22 Ford F250/F/350/F-450/F-550 V8-6.7L Turbo Diesel Polished Intercooler Cold Side Piping
Injen 17-22 Ford F250/F/350/F-450/F-550 V8-6.7L Turbo Diesel Polished Intercooler Cold Side Piping
A$730.80
Special Order. Contact for ETA.
This item is out of stock in our warehouse and partner distribution centres. In some cases, this may be due to not having live inventory feeds available for all suppliers. Please contact us before ordering if you need to meet a specific deadline.
We accept
Description
This cold side charge pipe is an upgrade over the factory unit and is manufactured from oversized mandrel-bent 6061 aluminum and every bend and TIG weld is completed by hand at the Injen Technology headquarters in Pomona, California. Having an internal diameter of 3.25in, this charge pipe is able to reduce restriction and quickly transfer cool air from the intercooler directly into the engine. The cold side pipe also aides in balancing airflow from the intercooler to improve performance and also helps lower engine damaging exhaust gas temperatures (EGTs).
Product Overview
This cold side charge pipe is an upgrade over the factory unit and is manufactured from oversized mandrel-bent 6061 aluminum and every bend and TIG weld is completed by hand at the Injen Technology headquarters in Pomona, California. Having an internal diameter of 3.25in, this charge pipe is able to reduce restriction and quickly transfer cool air from the intercooler directly into the engine. The cold side pipe also aides in balancing airflow from the intercooler to improve performance and also helps lower engine damaging exhaust gas temperatures (EGTs).
Features and Benefits
- Replaces the restrictive and crack-prone OEM charge pipe
- Cold Side Piping Only
- Pairs perfectly with Injen's SES9004ICPH Hot Side Charge Pipe
- For Optimum performance, use with Injen's EVO9004 cold air intake
- Cold Side Pipe Inside Diameter - 3.25in
- Manufactured from Mandrel-Bent 6061 Aluminum
- Precision CNC machined factory-style quick connections utilizing the OE spring clip
- Works seamlessly with the OE intercooler
- Available in three finishes
- Polished - SES9004ICPC
- Wrinkle Black ? SES9004ICPCWB
- Wrinkle Red ? SES9004ICPCWR
- Stainless Steel Band Clamps with Inner Protective Liner
- Automotive Grade Reinforced Silicone Couplers
- Unique Injen Logo Plate for a Refined Style
- Increase Throttle Response and Decreases Turbo Lag
- Beaded Tube Ends to Help Prevent Couplers from Coming Off
- Uses all factory mounting locations
- Includes all necessary hardware for a hassle-free installation
- Made in Pomona California, USA
- Injen Technology Limited Lifetime Warranty
- Note: This product is not CARB exempt at this time and is not legal for sale in California or use on vehicles registered with the California Department of Motor Vehicles.
Product Details
| Attachment Method: | Coupler/OEM Retaining Clip |
|---|---|
| CNC Flanges Included: | Yes |
| CNC Sensor Adapters Inlcuded: | No |
| Compatible Throttle Controller: | N/A |
| Description: | Injen 17-22 Ford F250/F/350/F-450/F-550 V8-6.7L Turbo Diesel Polished Intercooler Cold Side Piping |
| Finish: | Polished |
| Grade Type: | Performance |
| Hardware Included: | Yes |
| Hot and Cold Side Included: | Cold Side Only |
| NPT Fitting Quantity: | N/A |
| NPT Fitting Size: | N/A |
| Part Number: | injSES9004ICPC |
| Pipe Material: | 6061-T6 Aluminum |
| Pipe Size: | 3.25 |
| Prop 65 (C, R or CR): | CR |
| Prop 65 - Short Label: | prop65_warning.jpg |
| Prop 65 Yes/No: | Yes |
| Stepped Design: | No |
| Title: | Injen SES Intercooler Pipes |
Part Type
Intercooler Pipes
Features
- Automotive Grade Reinforced Silicone Couplers
- Available in three finishes
- Beaded Tube Ends to Help Prevent Couplers from Coming Off
- Cold Side Pipe Inside Diameter - 3.25in
- Cold Side Piping Only
- For Optimum performance, use with Injen's EVO9004 cold air intake
- Includes all necessary hardware for a hassle-free installation
- Increase Throttle Response and Decreases Turbo Lag
- Injen Technology Limited Lifetime Warranty
- Made in Pomona California, USA
- Manufactured from Mandrel-Bent 6061 Aluminum
- Note: This product is not CARB exempt at this time and is not legal for sale in California or use on vehicles registered with the California Department of Motor Vehicles.
- Pairs perfectly with Injen's SES9004ICPH Hot Side Charge Pipe
- Polished - SES9004ICPC
- Precision CNC machined factory-style quick connections utilizing the OE spring clip
- Replaces the restrictive and crack-prone OEM charge pipe
- Stainless Steel Band Clamps with Inner Protective Liner
- Unique Injen Logo Plate for a Refined Style
- Uses all factory mounting locations
- Works seamlessly with the OE intercooler
- Wrinkle Black ? SES9004ICPCWB
- Wrinkle Red ? SES9004ICPCWR
Specifications
- Product Attributes - UPC
- 843115029609
- Product Attributes - Brand
- Injen
- Product Attributes - Quantity
- Sold as a kit.
- Product Attributes - Part Type
- Intercooler Pipes
- Product Attributes - Product Line
- Injen Intercooler Pipes
- Product Attributes - Intercooler Pipe Color
- Polished
- Product Attributes - Intercooler Pipe Diameter
- 3.25 in.
- Product Attributes - Intercooler Pipe Material
- Aluminum
- Product Attributes - Intercooler Pipe Position
- Intercooler to Engine (Cold Side)
- Product Attributes - Manufacturer's Part Number
- SES9004ICPC
Reference Information
| Brand Name/s | Injen |
|---|---|
| StreetFX SKU | injSES9004ICPC |
| SFX Item ID | 4243827 |
| Supplier Item Code | 4243827 |
| Manufacturer SKU | SES9004ICPC |
| Manufacturer UPC | 843115029609 |
| Alternative References | F250/F/350/F-450/F-550, V8-6.7L |
