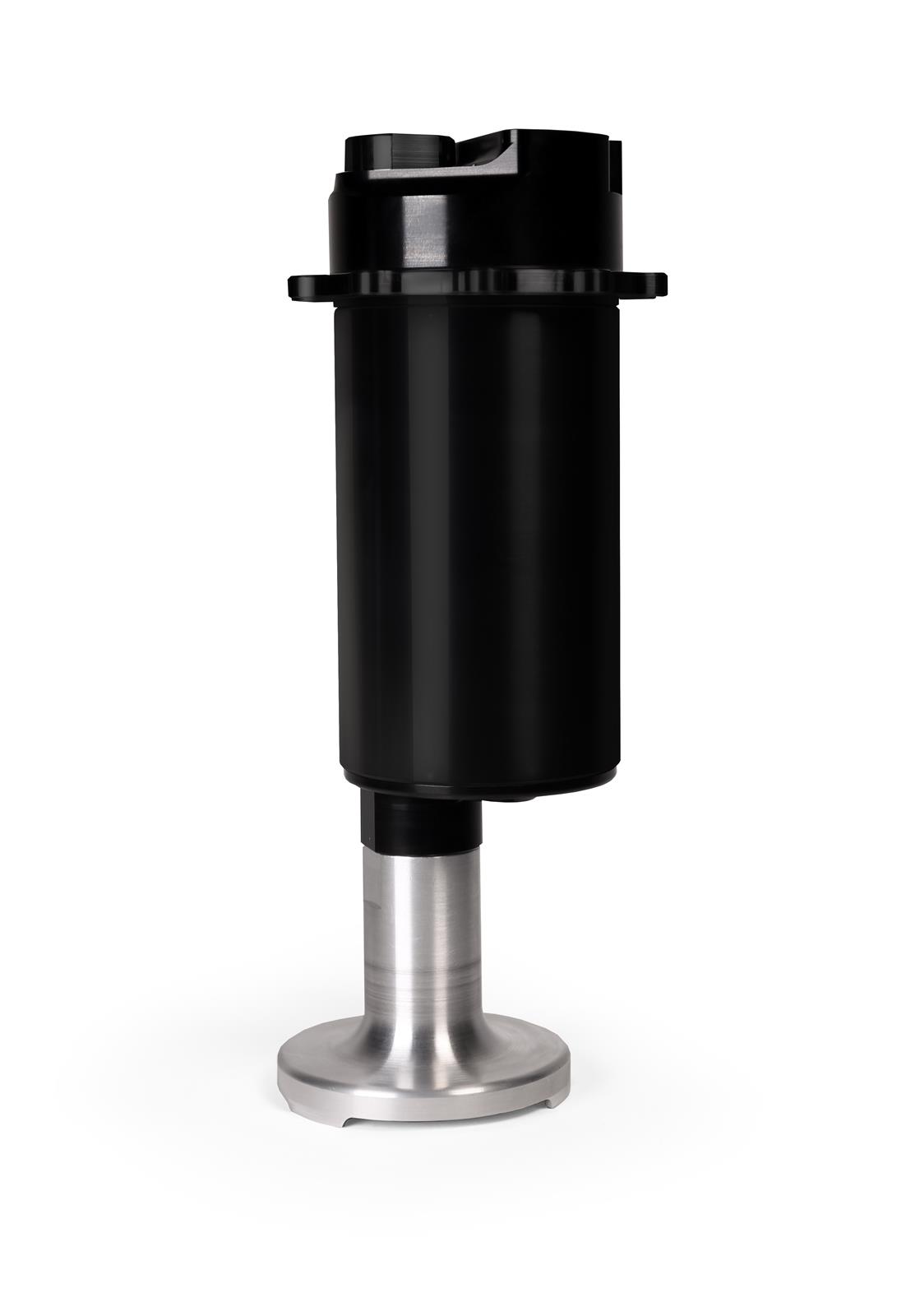

Aeromotive Variable Speed Controlled Fuel Pump - Module - w/Fuel Cell Pickup - Brushless Spur 3.5

SKU: AER18045

Fuel Pumps

AER In-Tank Fuel Pumps...

Aeromotive

Aeromotive Variable Speed Controlled Fuel Pump - Module - w/Fuel Cell Pickup - Brushless Spur 3.5

SKU: AER18045

Fuel Pumps

AER In-Tank Fuel Pumps...

Special Order. Contact for ETA. This item is out of stock in our warehouse and partner distribution centres. In some cases, this may be due to not having live inventory feeds available for all suppliers. Please contact us before ordering if you need to meet a specific deadline.

We accept

Description

Designed as a direct drop-in replacement for the any Aeromotive Stealth Fuel Cell, including COPO, Cobra Jet or Drag Pak race cars. This configuration is also a great option when building a 10? deep custom fuel cell. Aeromotive?s True Variable Speed Controller offers the advantages of built-in pump speed control via a dedicated 0-5V analog DC input signal. The Controller capitalizes on our existing brushless technology by reducing fuel flow during low engine demand and decreasing an already low current draw, therefore minimizing both motor heat the introduction of environmental via reduced fuel recycling. The Pro-Series performance you expect and more: Fuel injected engines: up to 2400 FWHP ? naturally aspirated, up to 1800 FWHP ? forced air induction. Carbureted engines: up to 2600 FWHP ? naturally aspirated, up to 2000 FWHP ? forced air induction. E85 Compatible, reduce max FWHP by 30%. Lighter than the traditional Pro-Series pump. Reduced current draw at higher, EFI pressures. Extended service life in methanol and ethanol. New integral spur-gear pumping mechanism. 90-PSI continuous operating pressure and up to 150-PSI peak pressure, base plus boost. Integral, external brushless controller for clean installation, cooler fuel and enhanced reliability. ORB-10 outlet port. Requires straight 12-VDC to 16-VDC power supply. Not compatible with pulse modulated systems or fuel pump speed controllers. EFI Rated flow of 1,250 lbs./hr. @ 40 psi, 13.5 volts. Carb Rated Flow of 1,350 lbs./hr. @ 9 psi, 13.5 volts.

Part Type

Fuel Pump

Data: v4.2 - Upd: 2026-10-13 20:43:58

Specifications

Product Attributes - Brand: Aeromotive
Product Attributes - Manufacturer's Part Number: 18045
Product Attributes - Part Type: Fuel Pumps
Product Attributes - Product Line: Aeromotive 3.5 GPM Brushless Variable Speed In-Tank Gear Pumps
Product Attributes - UPC: 684980010985
Product Attributes - Fuel Pump Type: Electric In-tank
Product Attributes - Flow Rate: 3.5 gpm
Product Attributes - Fuel Pressure (psi): 125 psi
Product Attributes - Fuel Pump Voltage: 12 V
Product Attributes - Fuel Pressure Regulator Included: No
Product Attributes - Sending Unit Included: No
Product Attributes - Fuel Pump Inlet Size: -12 AN
Product Attributes - Inlet Quantity: 1
Product Attributes - Inlet Attachment: Female straight cut O-ring
Product Attributes - Fuel Pump Outlet Size: -10 AN
Product Attributes - Outlet Quantity: 1
Product Attributes - Outlet Attachment: Female straight cut O-ring
Product Attributes - Gasket Included: No
Product Attributes - Wiring Harness Included: No
Product Attributes - Mounting Bracket Included: No
Product Attributes - Mounting Hardware Included: No
Product Attributes - Pulley Included: No
Product Attributes - Remanufactured: No
Product Attributes - Quantity: Sold individually.
Product Attributes - Notes: Pick-up designed for 10 in. fuel cell depth. Not compatible with pulse modulated systems or fuel pump speed controllers.

Reference Information

Brand Name/s	Aeromotive
StreetFX SKU	aer18045
SFX Item ID	4495128
Supplier Item Code	4495128
Manufacturer SKU	18045
Manufacturer UPC	684980010985
Alternative References	AEI-18045
