Aeromotive Phantom 340 Universal In-Tank Fuel System
Aeromotive Phantom 340 Universal In-Tank Fuel System
A$1,190.40
LOW STOCK! READY TO SHIP!
HURRY! LOW STOCK. This item is in limited stock at our warehouse and ready for next-day dispatch.
We accept
Description
IMPORTANT NOTICE: Works on a 6.000 in. to 11.000 in. deep tank. Also features a -6 AN O-ring vent. Must be used with a return style system. Requires 3 1/4 in. hole.
Aeromotive Inc. is a true high performance aftermarket manufacturer specializing in fuel delivery and fuel delivery components. Utilizing aerospace tolerances and procedures, three generations of track experience, and a meticulous approach to engineering, Aeromotive Fuel Systems has become the absolute pinnacle of performance fuel delivery.
Product Overview
Finally, a truly universal system that is built for street rods, drag racing, off-road, autocross, drifting and any other performance application you can think of! The Aeromotive Stealth Fuel Systems (ASFS) are a complete line of “IN TANK†fuel systems that feature 1 of 2 popular Aeromotive fuel pumps, built right into an aluminum fuel cell or an innovative fuel tank sump box. Choose from the A1000 or the Eliminator Fuel Pump. The new ASFS bring you all the advantages of an in-tank system; quiet cool operation, ideal fuel pump environments and a serious reduction in installation time and investment. In addition, this entire line of ASFS eliminate the risk of fuel pump cavitation due to hard cornering, launching or braking thanks to innovative baffling built into each of these applications. (see cutaway drawing).
Aeromotive Stealth Fuel Systems save you time and money and take the guess workout out of plumbing your system. No longer do you have to worry about modifying your factory tank, pickup tubes or small sump boxes. One part number gets you a fuel cell or sumped tank with a high horsepower fuel pump and pre- filter built right in. Simply hook up your two wires and the feed line and your done. The best part... they will work in low HP carbureted or high HP EFI applications, nitrous assisted or supercharged/turbocharged applications. It’s just a change of the regulator. This will be the last fuel pump system you will ever buy no matter how you change the car.
Product Details
| California Proposition 65: | WARNING: This product can expose you to chemicals including chromium, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.p65warnings.ca.gov |
|---|---|
| Description: | Phantom 340 Stealth Fuel System |
| Filter Included: | No |
| Fuel Delivery Type: | Carburation & Fuel Injection |
| Fuel Sending Unit Included: | No |
| Fuel Type: | Gas |
| Gasket Or Seal Included: | Yes |
| Grade Type: | Performance |
| Inlet Outside Diameter: | NA |
| Integrated Controller: | No |
| Internal Or External: | Internnal |
| Maximum Current Draw: | 13 / each |
| Maximum Flow Rating: | 340 x 2 |
| Maximum Pressure: | 105 |
| Mounting Bracket Included: | Yes |
| Mounting Hardware Included: | Yes |
| Mounting Type: | Internal |
| Negative Ground: | Yes |
| Outlet Outside Diameter: | AN-06 X2 |
| Outlet Type: | Female Thread |
| Part Number: | aer18688 |
| Prop 65 (C, R or CR): | CR |
| Prop 65 - Long Label: | WARNING: This product can expose you to chemicals including chromium, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.p65warnings.ca.gov |
| Prop 65 - Short Label: | P65_Warning_Chromium.jpg |
| Prop 65 Flag: | Yes |
| Prop 65 Yes/No: | Yes |
| Pulse Width Modulation Compatible: | No |
| Pump Design: | turbine impeller |
| Regulator Included: | No |
| Seal And Lock Ring Included: | Yes |
| Series: | Phantom |
| Strainer Included: | Yes |
| Terminal Gender: | Male |
| Terminal Quantity: | 4 |
| Terminal Type: | Threaded Stud |
| Title: | Aeromotive Phantom 340 Stealth Fuel System |
| Universal Or Specific Fit: | Universal |
| Voltage: | 12 |
| Wiring Harness Included: | No |
Additional Information
6 to 10 tall tanks. 340 lph pump Supports 825hp EFI N/A, 700 forced induction. Three -6an ORB ports.
Part Type
Phantom 340 Fuel Pump System
Specifications
- Product Attributes - Brand
- Aeromotive
- Product Attributes - Manufacturer's Part Number
- 18688
- Product Attributes - Part Type
- Fuel Pumps
- Product Attributes - Product Line
- Aeromotive Phantom 340 Stealth Fuel Systems
- Product Attributes - UPC
- 00684980005271
- Product Attributes - Fuel Pump Type
- Electric In-tank
- Product Attributes - Flow Rate
- 90 gph/340 lph
- Product Attributes - Fuel Pressure (psi)
- 90 psi
- Product Attributes - Fuel Pump Voltage
- 12 V
- Product Attributes - Fuel Pressure Regulator Included
- No
- Product Attributes - Sending Unit Included
- No
- Product Attributes - Fuel Pump Inlet Size
- -6 AN
- Product Attributes - Inlet Quantity
- 1
- Product Attributes - Inlet Attachment
- Female straight cut O-ring
- Product Attributes - Fuel Pump Outlet Size
- -6 AN
- Product Attributes - Outlet Quantity
- 1
- Product Attributes - Outlet Attachment
- Female straight cut O-ring
- Product Attributes - Gasket Included
- No
- Product Attributes - Wiring Harness Included
- No
- Product Attributes - Mounting Bracket Included
- No
- Product Attributes - Mounting Hardware Included
- No
- Product Attributes - Pulley Included
- No
- Product Attributes - Remanufactured
- No
- Product Attributes - Quantity
- Sold individually.
- Product Attributes - Notes
- Works on a 6.000 in. to 11.000 in. deep tank. Also features a -6 AN O-ring vent. Must be used with a return style system. Requires 3 1/4 in. hole.
Reference Information
| Brand Name/s | Aeromotive |
|---|---|
| StreetFX SKU | aer18688 |
| SFX Item ID | 4495807 |
| Supplier Item Code | 4495807 |
| Manufacturer SKU | 18688 |
| Manufacturer UPC | 684980005271 |
| Alternative References | aei-18688, AFS18688 |
Brochures
Compatibility
| Application Data |
|
|---|
Loading compatibility information...
Keep shopping
More from Aeromotive
Aeromotive

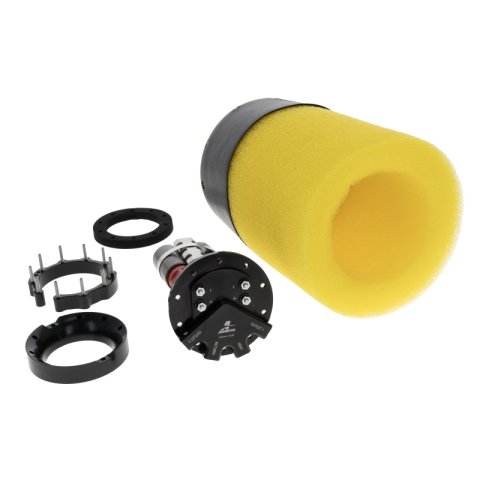

Aeromotive Fuel Pump - Universal - Phantom Dual 340 - 6-10in Depth
aer18309
A$1,980.98
A$2,002.13
Aeromotive

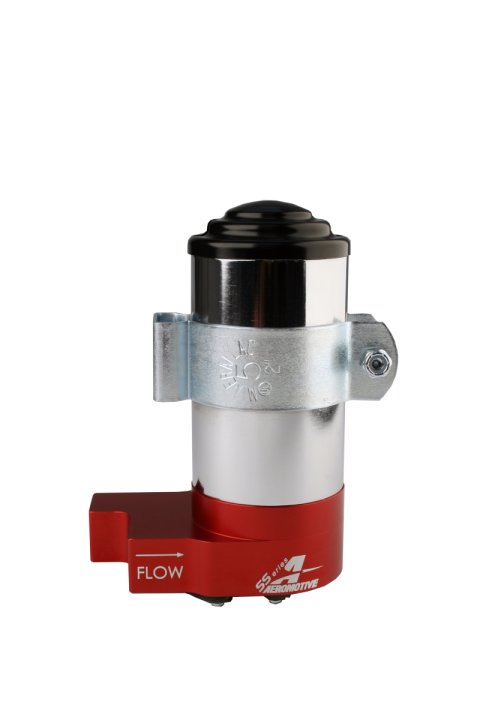

Aeromotive SS Series Billet (14 PSI) Carbureted Fuel Pump - 3/8in NPT Ports
