Aeromotive Phantom 200 Fuel System - Return Style w/3/8in Quick Connect
Aeromotive Phantom 200 Fuel System - Return Style w/3/8in Quick Connect
A$2,892.71
Last Available from MFR.
LAST ONE AVAILABLE from the manufacturer's distribution centre. Once sold, this item may not be immediately available again. The dispatch timeframe shown is an estimate based on historical orders for this part and is dependent on the manufacturer releasing the final available unit.
We accept
Description

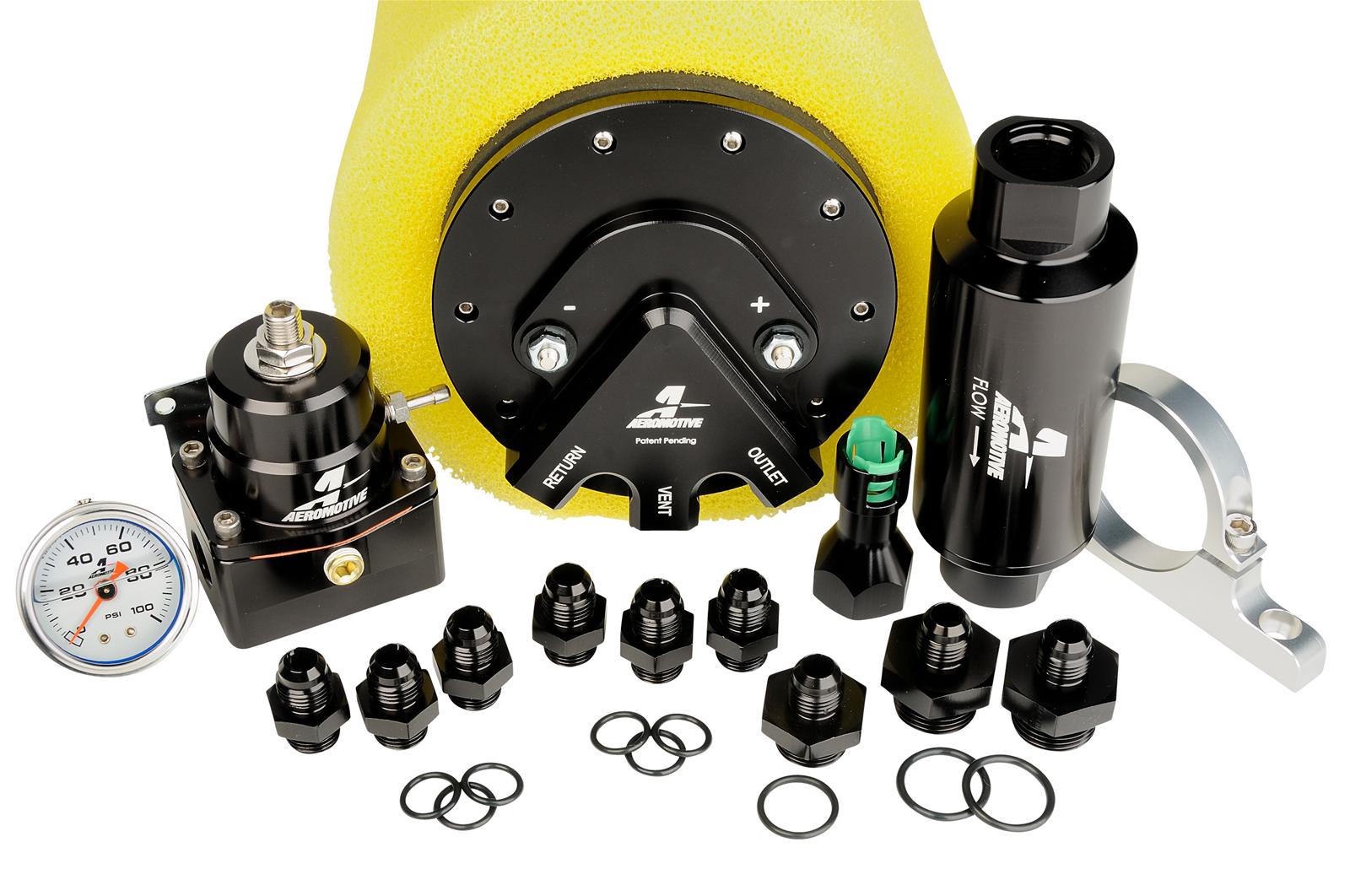

These new Phantom EFI Fuel Systems include all main fuel system components required to create a proper return-style EFI fuel system for engines with OEM ?return-less? style fuel rails, including the desired Phantom Baffled Fuel Pump Kit with a 200 LPH fuel pump.? Each system ships with the a custom black EFI bypass fuel pressure regulator, high-flow billet fuel filter, filter mounting bracket, 3/8? Quick-Connect fuel rail adapter, plus all the required port fittings and o-rings, the deluxe wiring kit (not shown) and Aeromotive fuel pressure gauge. Ideal for late model engine transplants so hot with Street Rodders around the world.? Suitable for naturally aspirated and blown, EFI engines producing from 300- 700 plus flywheel Horse Power, on the street or at the track.?AN-06 Style fuel hose and hose-ends are required for the installation of a fuel supply and return line, sold separately and not included. This kit contains the following parts: 1ea p/n 18689 Phantom 200, 1ea p/n 12321 10-micron Filter Assembly, 1ea p/n 12305 Filter Bracket, 1ea p/n 13131 Fuel Pressure Regulator, 1ea p/n 16307 Fuel Pump Wiring Kit, 6 ea p/n 15606 AN-06 ORB to AN-06 flare, 2 ea p/n 15609 AN 10 ORB to AN-06 flare, 1ea p/n 15633 0-100 psi Gauge, 1ea p/n 15672 Y-Block, AN-06.
Part Type
Fuel Pump Complete Kit
Specifications
- Product Attributes - Brand
- Aeromotive
- Product Attributes - Manufacturer's Part Number
- 17167
- Product Attributes - Part Type
- Fuel System Pump Kits
- Product Attributes - Product Line
- Aeromotive Phantom 200 Stealth EFI Returnless Rail Fuel Systems
- Product Attributes - UPC
- 00684980005974
- Product Attributes - Maximum Fuel Pressure (psi)
- 90
- Product Attributes - Fuel Pump Included
- Yes
- Product Attributes - Flow Rate
- 53 gph/200 lph
- Product Attributes - Fuel Pressure Regulator Included
- Yes
- Product Attributes - Boost/Vacuum Reference Port
- No
- Product Attributes - Fuel Line Included
- No
- Product Attributes - Fuel Filter Included
- Yes
- Product Attributes - Fittings Included
- Yes
- Product Attributes - Clamps Included
- Yes
- Product Attributes - Quantity
- Sold as a kit.
- Product Attributes - Notes
- Phantom EFI returnless fuel system. Kit includes 200 LPH fuel pump, EFI regulator, fuel pressure gauge, high-flow billet filter, mounting bracket, y-block, fittings, and wiring harness. Includes. 3/8 in. OEM Female Quick Connect to -08 AN Fitting.
Reference Information
| Brand Name/s | Aeromotive |
|---|---|
| StreetFX SKU | aer17167 |
| SFX Item ID | 4495698 |
| Supplier Item Code | 4495698 |
| Manufacturer SKU | 17167 |
| Manufacturer UPC | 684980005974 |
| Alternative References | AEI-17167, w/3/8in |
Brochures
Compatibility
| Application Data |
|
|---|
Loading compatibility information...
