Aeromotive 86-95 Ford Mustang 5.0L - Eliminator Fuel System
Aeromotive 86-95 Ford Mustang 5.0L - Eliminator Fuel System
A$5,424.90
Special Order. Contact for ETA.
This item is out of stock in our warehouse and partner distribution centres. In some cases, this may be due to not having live inventory feeds available for all suppliers. Please contact us before ordering if you need to meet a specific deadline.
We accept
Description

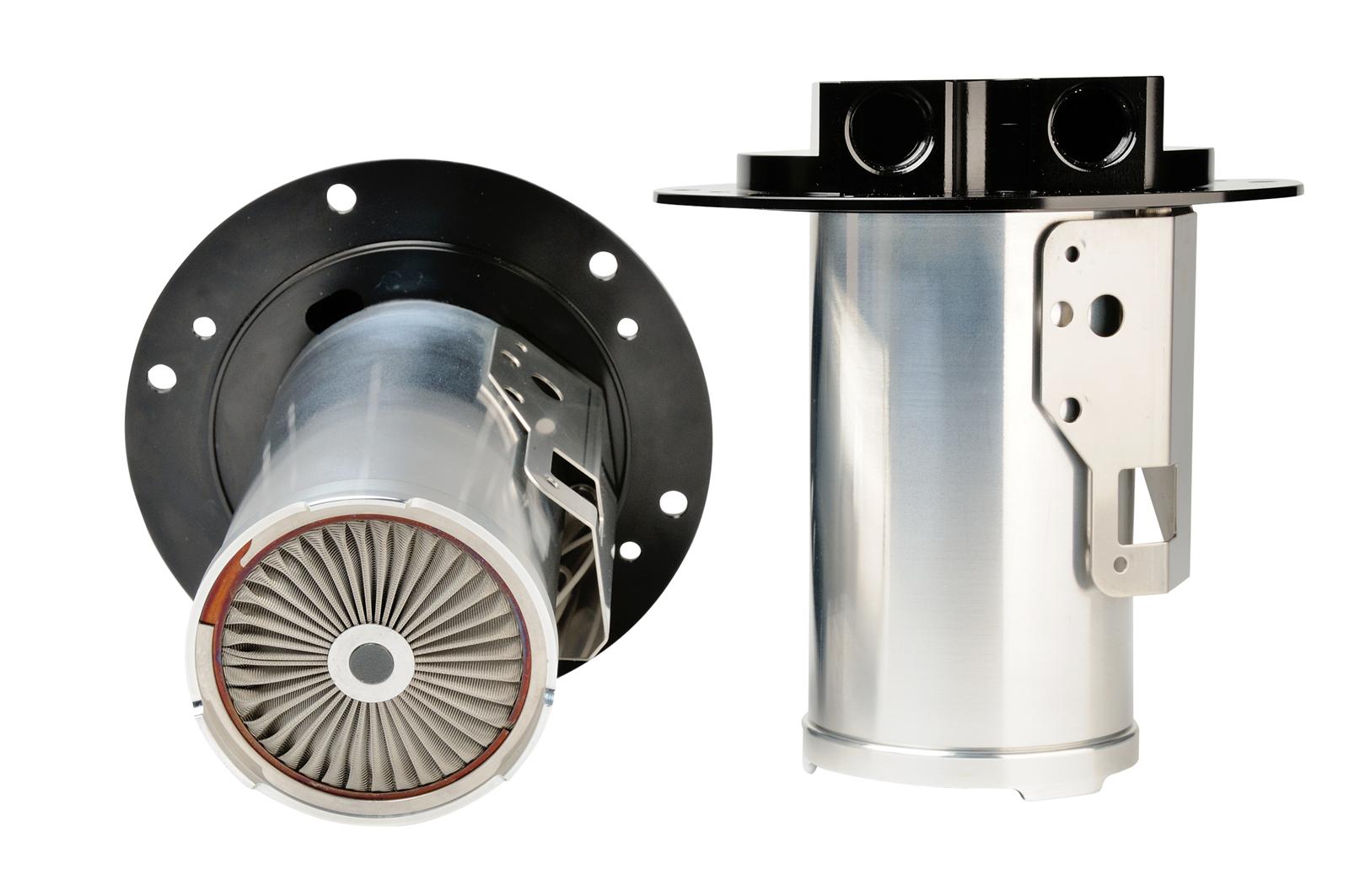

In 2003. Ford developed a specific tank for the 03 and 04 Mustang Cobras. This tank looked like a normal tank from the outside, but featured one of the finest internal baffling systems we?ve seen from an OE tank to date. In late 2011, Ford decided to discontinue these tanks. At Aeromotive, we saw an opportunity to reproduce these tanks. Not only can we offer reproduction 03-04 Cobra tanks, but we can also modify the tooling in the production process to offer this same tank to fit all Fox Body Mustangs. And that is exactly what we did. But we took it one step further. We built specific A1000 and Eliminator Fuel Pumps that bolt right into top of these tanks. Then, we built a complete system to make it one part number that gives you everything you could possibly need to install a complete Aeromotive Fuel System into your Fox Body. These Fox Body Stealth tanks give you the best performance possible from a stock appearing tank, and our proven A1000 or Eliminator fuel pumps built right into the tank. Choose from either pump and you can now bolt in a fuel tank into your Fox that appears stock, but features an innovative baffling system, a built in fuel pump capable of supporting almost any HP demand and a pre-pump filter. These tanks and systems are a direct bolt-in for 1986 to 1998 ? Ford Mustangs. Although the Fox Body began in 1979 and carried all the way through 2004, some modifications are necessary for these system to be direct bolt-ins. See notes below on year specifications. Built-in A1000 Fuel Pump. 100-Micron Stainless Steel Pre Filter. (1) ORB-08 Outlet Port & (1) ORB-08 Return Port. Bolts right into factory location using factory tank straps. P/N 13109 ? EFI Bypass Regulator.?P/N 12301 ? 10-Micron Post Pump Filter. P/N 12305 ? 2? Billet Filter Bracket.?P/N 14101 ? 86-95 5.0L GT & Cobra Fuel Rail Kit. Complete Fuel Pump Wiring Kit. All of the necessary port fittings.
Part Type
Fuel Pump and Regulator Kit
Specifications
- Product Attributes - Brand
- Aeromotive
- Product Attributes - Manufacturer's Part Number
- 17131
- Product Attributes - Part Type
- Fuel System Pump Kits
- Product Attributes - Product Line
- Aeromotive Eliminator 5.0L Mustang Stealth Systems
- Product Attributes - UPC
- 00684980005189
- Product Attributes - Maximum Fuel Pressure (psi)
- 100
- Product Attributes - Fuel Pump Included
- Yes
- Product Attributes - Flow Rate
- 133 gph/503 lph
- Product Attributes - Fuel Pressure Regulator Included
- Yes
- Product Attributes - Pressure Range (psi)
- 30-70 psi
- Product Attributes - Boost/Vacuum Reference Port
- Yes
- Product Attributes - Fuel Line Included
- Yes
- Product Attributes - Fuel Line Type
- Braided stainless steel
- Product Attributes - Fuel Line Diameter
- -8 AN
- Product Attributes - Fuel Filter Included
- Yes
- Product Attributes - Fittings Included
- Yes
- Product Attributes - Clamps Included
- Yes
- Product Attributes - Quantity
- Sold as a kit.
Reference Information
| Brand Name/s | Aeromotive |
|---|---|
| StreetFX SKU | aer17131 |
| SFX Item ID | 4495682 |
| Supplier Item Code | 4495682 |
| Manufacturer SKU | 17131 |
| Manufacturer UPC | 684980005189 |
| Alternative References | AEI-17131, 5.0L |
