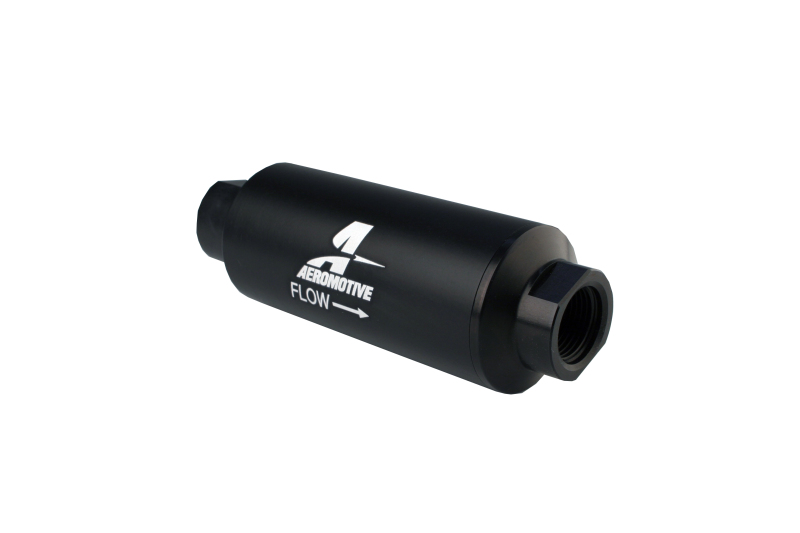

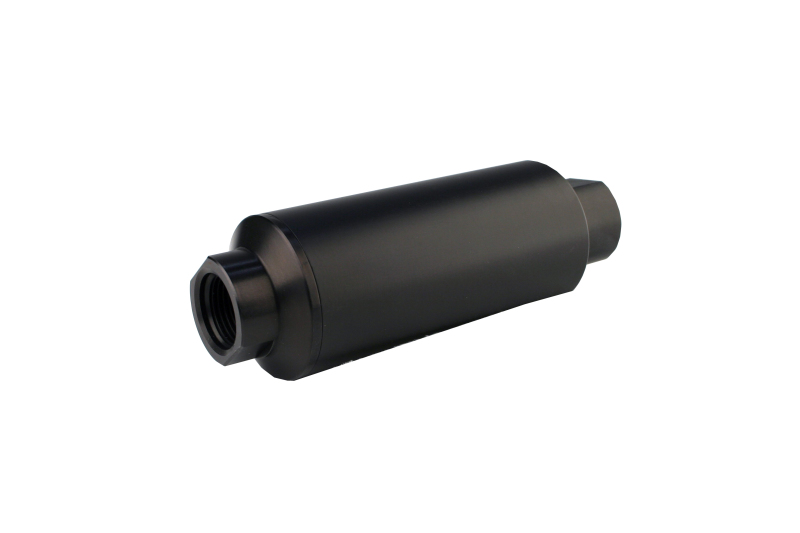

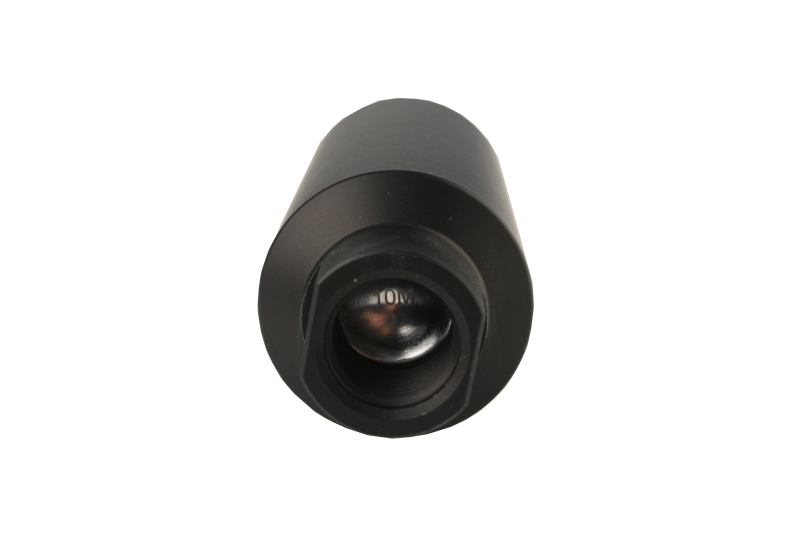

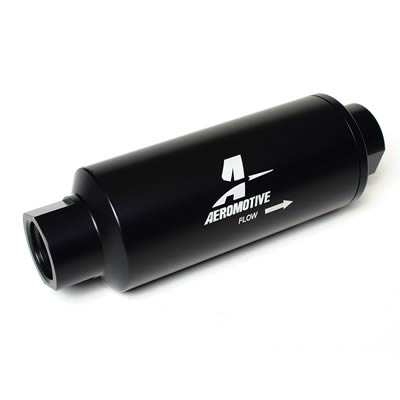

Aeromotive Marine AN-12 Fuel Filter - 10 Micron
Aeromotive Marine AN-12 Fuel Filter - 10 Micron
A$507.67
Available from MFR.
This item is available from the manufacturer's distribution centre. The dispatch timeframe shown is an estimate based on historical order processing and release times for this part. This item is not held in our own warehouse, and actual dispatch timing may vary depending on manufacturer workload and logistics at the time of ordering.
We accept
Description
High flow 10-micron fabric (fine) replaceable element. Flows 2,000 lb/hr with a pressure drop of less than 0.5 PSI. ORB-12 ports. Fittings available to adapt these filters to AN-12 and -10 line sizes. Pro-Series filters feature an indestructible electroless nickel finish. 7? long x 2.5? diameter.
Part Type
Fuel Filter
Specifications
- Product Attributes - Brand
- Aeromotive
- Product Attributes - Manufacturer's Part Number
- 12311
- Product Attributes - Part Type
- Fuel Filters
- Product Attributes - Product Line
- Aeromotive Marine Fuel Filters
- Product Attributes - UPC
- 00684980002072
- Product Attributes - Fuel Filter Style
- Inline
- Product Attributes - Inlet Quantity
- 1
- Product Attributes - Fuel Filter Inlet Size
- -12 AN
- Product Attributes - Inlet Attachment
- Female straight cut O-ring
- Product Attributes - Outlet Quantity
- 1
- Product Attributes - Fuel Filter Outlet Size
- -12 AN
- Product Attributes - Outlet Attachment
- Female straight cut O-ring
- Product Attributes - Filter Element Included
- Yes
- Product Attributes - Smallest Particle Filtered
- 10 microns
- Product Attributes - Filter Element Material
- Fabric
- Product Attributes - Filter Housing Material
- Aluminum
- Product Attributes - Filter Housing Color
- Black
- Product Attributes - Overall Length (in.)
- 7.00 in.
- Product Attributes - Outside Diameter (in.)
- 2.500
- Product Attributes - Mounting Bracket Included
- No
- Product Attributes - Fittings Included
- No
- Product Attributes - Clamps Included
- No
- Product Attributes - Maximum Fuel Pressure (psi)
- 400
- Product Attributes - Quantity
- Sold individually.
- Product Attributes - Notes
- Flows 2,000 lbs./hr. with a pressure drop of less than 0.5 psi. Marine outlet fuel filter.
Reference Information
| Brand Name/s | Aeromotive |
|---|---|
| StreetFX SKU | aer12311 |
| SFX Item ID | 4495411 |
| Supplier Item Code | 4495411 |
| Manufacturer SKU | 12311 |
| Manufacturer UPC | 684980002072 |
| Alternative References | AEI-12311, AN-12 |
