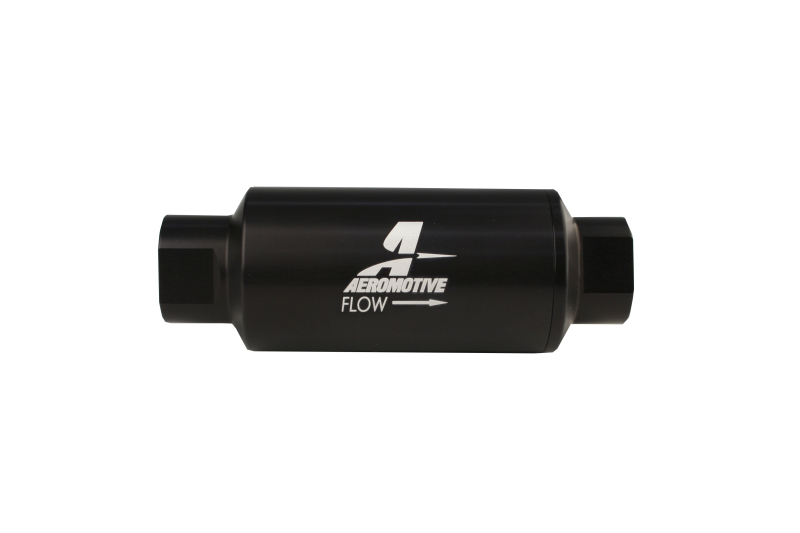

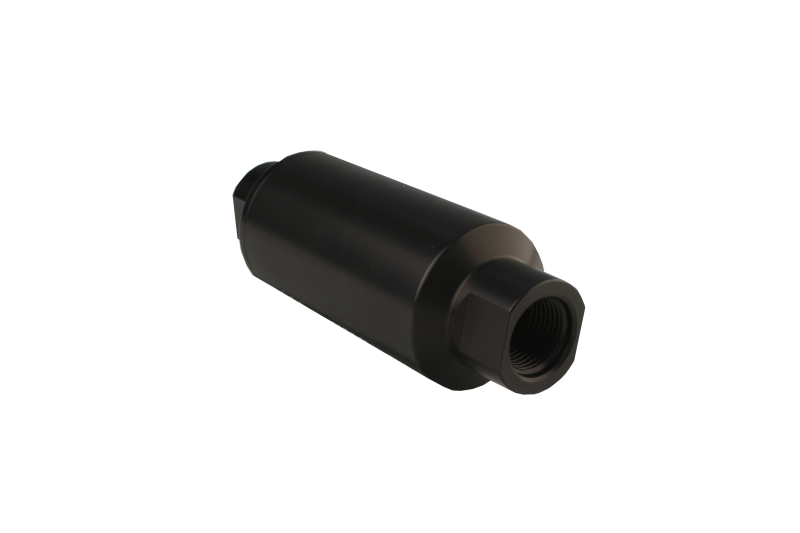

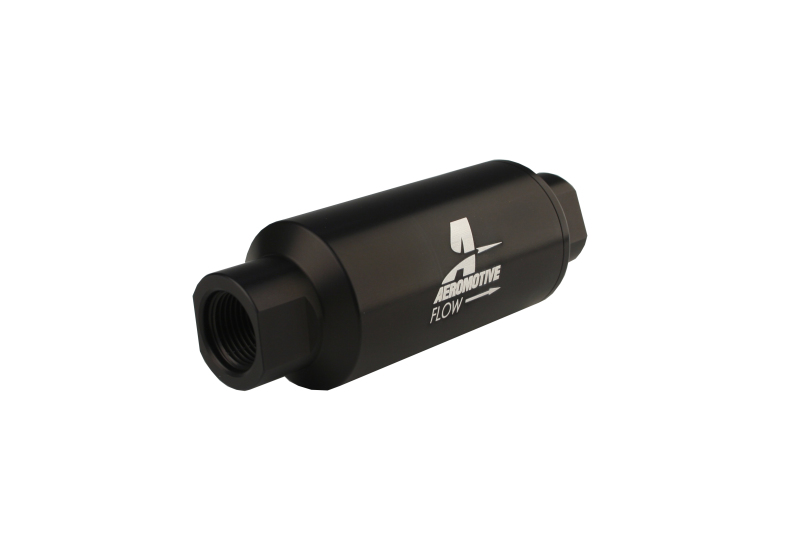

Aeromotive Marine 100-Micron AN-10 Fuel Filter

SKU: AER12307

Fuel Filters

AER Fuel Filters...

Aeromotive

Aeromotive Marine 100-Micron AN-10 Fuel Filter

SKU: AER12307

Fuel Filters

AER Fuel Filters...

Available from MFR. This item is available from the manufacturer's distribution centre. The dispatch timeframe shown is an estimate based on historical order processing and release times for this part. This item is not held in our own warehouse, and actual dispatch timing may vary depending on manufacturer workload and logistics at the time of ordering.

We accept

Description

An inexpensive insurance policy to protect your investment, proper filtration is key to fuel system performance. Engineered filter solutions are required to achieve protection with minimum restriction. For 200 ? 3,000 plus HP applications, our filter assemblies offer unmatched flow, ease of installation and maintenance, along with the impeccable machining and finish you?ve come to expect from all Aeromotive components. High 100-micron stainless steel (coarse) cleanable element. Flows 2,000 lb/hr with a pressure drop of less than 0.5 PSI. ORB-10 ports. Fittings available to adapt these filters to AN-10, -08, and -06 line sizes. Compact size: 5.5? long x 2? diameter.

Part Type

Fuel Filter

Data: v4.2 - Upd: 2026-10-16 22:06:31

Specifications

Product Attributes - Brand: Aeromotive
Product Attributes - Manufacturer's Part Number: 12307
Product Attributes - Part Type: Fuel Filters
Product Attributes - Product Line: Aeromotive Fuel Filters
Product Attributes - UPC: 00684980001952
Product Attributes - Fuel Filter Style: Inline
Product Attributes - Inlet Quantity: 1
Product Attributes - Fuel Filter Inlet Size: -10 AN
Product Attributes - Inlet Attachment: Female straight cut O-ring
Product Attributes - Outlet Quantity: 1
Product Attributes - Fuel Filter Outlet Size: -10 AN
Product Attributes - Outlet Attachment: Female straight cut O-ring
Product Attributes - Filter Element Included: Yes
Product Attributes - Smallest Particle Filtered: 100 microns
Product Attributes - Filter Element Material: Stainless steel mesh
Product Attributes - Filter Housing Material: Aluminum
Product Attributes - Filter Housing Color: Black
Product Attributes - Overall Length (in.): 5.50 in.
Product Attributes - Outside Diameter (in.): 2.000
Product Attributes - Mounting Bracket Included: No
Product Attributes - Fittings Included: No
Product Attributes - Clamps Included: No
Product Attributes - Maximum Fuel Pressure (psi): 250
Product Attributes - Quantity: Sold individually.

Reference Information

Brand Name/s	Aeromotive
StreetFX SKU	aer12307
SFX Item ID	4495408
Supplier Item Code	4495408
Manufacturer SKU	12307
Manufacturer UPC	684980001952
Alternative References	AEI-12307, AFS12307, 100-Micron, AN-10
