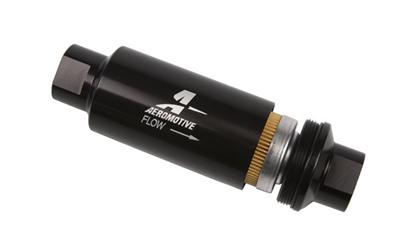

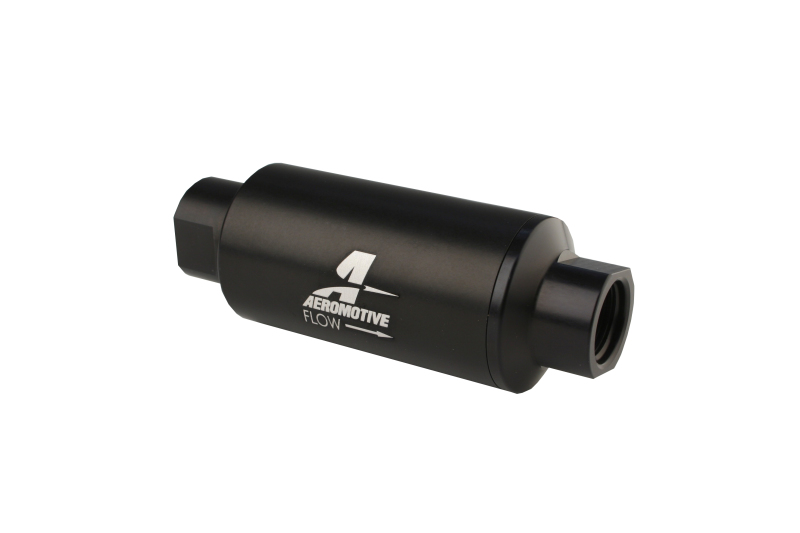

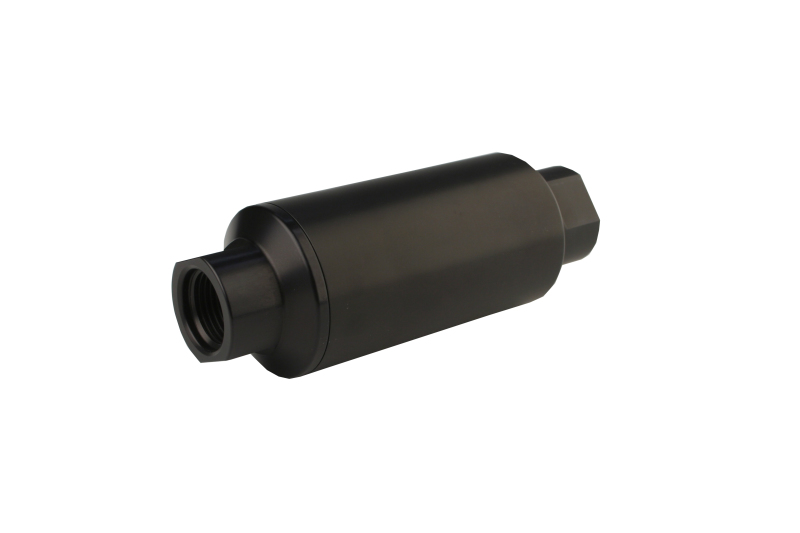

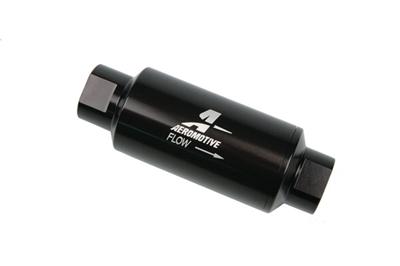

Aeromotive Marine AN-10 Fuel Filter - 10 Micron
Aeromotive Marine AN-10 Fuel Filter - 10 Micron
A$359.56
Available from MFR.
This item is available from the manufacturer's distribution centre. The dispatch timeframe shown is an estimate based on historical order processing and release times for this part. This item is not held in our own warehouse, and actual dispatch timing may vary depending on manufacturer workload and logistics at the time of ordering.
We accept
Description
An inexpensive insurance policy to protect your investment, proper filtration is key to fuel system performance. Engineered filter solutions are required to achieve protection with minimum restriction. For 200 ? 3,000 plus HP applications, our filter assemblies offer unmatched flow, ease of installation and maintenance, along with the impeccable machining and finish you?ve come to expect from all Aeromotive components. High flow 10-micron fabric (fine) replaceable element. Flows 2,000 lb/hr with a pressure drop of less than 1 PSI. Compact size: 5.5" long x 2" diameter. ORB-10 ports. Fittings available to adapt these filters to AN-10, -08, and -06 line sizes. All filter assemblies feature an O-ring for positive sealing in high pressure applications. CNC-machined from 6061-T6 aircraft aluminum. Hard-coat black anodized finish for a corrosion resistant, show-car quality appearance. 10-micron filters may ONLY be used after the fuel pump to protect your injectors or carburetor. Fabric elements not suitable for use in E85 or alcohol applications.
Part Type
Fuel Filter
Specifications
- Product Attributes - Brand
- Aeromotive
- Product Attributes - Manufacturer's Part Number
- 12306
- Product Attributes - Part Type
- Fuel Filters
- Product Attributes - Product Line
- Aeromotive Fuel Filters
- Product Attributes - UPC
- 00684980001945
- Product Attributes - Fuel Filter Style
- Inline
- Product Attributes - Inlet Quantity
- 1
- Product Attributes - Fuel Filter Inlet Size
- -10 AN
- Product Attributes - Inlet Attachment
- Female straight cut O-ring
- Product Attributes - Outlet Quantity
- 1
- Product Attributes - Fuel Filter Outlet Size
- -10 AN
- Product Attributes - Outlet Attachment
- Female straight cut O-ring
- Product Attributes - Filter Element Included
- Yes
- Product Attributes - Smallest Particle Filtered
- 10 microns
- Product Attributes - Filter Element Material
- Fabric
- Product Attributes - Filter Housing Material
- Aluminum
- Product Attributes - Filter Housing Color
- Black
- Product Attributes - Overall Length (in.)
- 5.50 in.
- Product Attributes - Outside Diameter (in.)
- 2.000
- Product Attributes - Mounting Bracket Included
- No
- Product Attributes - Fittings Included
- No
- Product Attributes - Clamps Included
- No
- Product Attributes - Maximum Fuel Pressure (psi)
- 250
- Product Attributes - Quantity
- Sold individually.
Reference Information
| Brand Name/s | Aeromotive |
|---|---|
| StreetFX SKU | aer12306 |
| SFX Item ID | 4495407 |
| Supplier Item Code | 4495407 |
| Manufacturer SKU | 12306 |
| Manufacturer UPC | 684980001945 |
| Alternative References | AEI-12306, AN-10 |
