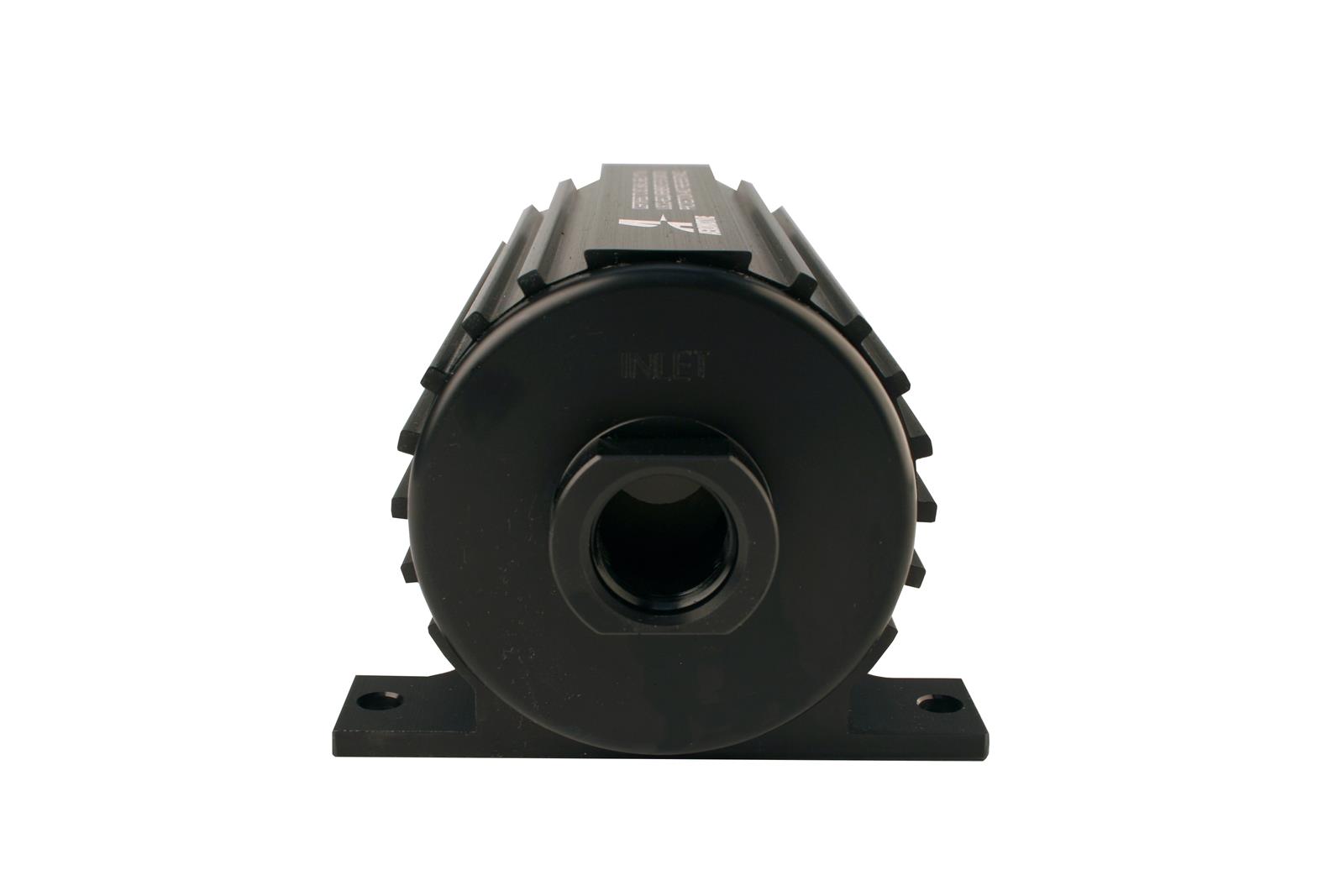

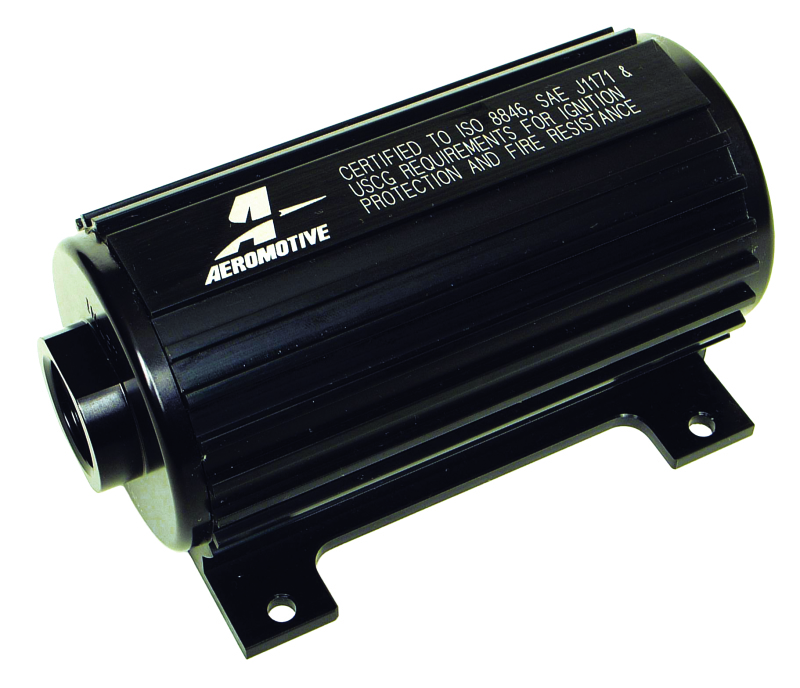

Aeromotive Marine 1200 HP EFI Pump
Aeromotive Marine 1200 HP EFI Pump
A$1,918.82
Available from MFR.
This item is available from the manufacturer's distribution centre. The dispatch timeframe shown is an estimate based on historical order processing and release times for this part. This item is not held in our own warehouse, and actual dispatch timing may vary depending on manufacturer workload and logistics at the time of ordering.
We accept
Description
Certified to ISO 8846, SAE J1171; United States Coast Guard Requirements for Ignition Protection; Fire Resistance. Carbureted Engines: up to 2300 HP naturally aspirated and up to 1700 HP forced air induction. Fuel Injected Engines: up to 1900 HP naturally aspirated and up to 1400 HP forced air induction.
Part Type
Eliminator Fuel Pump - Marine 1200HP EFI
Features
- Carbureted Engines: up to 2300 HP – naturally aspirated up to 1700 HP – forced air induction
- Certified to ISO 8846, SAE J1171 & United States Coast Guard Requirements for Ignition Protection & Fire Resistance.
- Fuel Injected Engines: up to 1900 HP – naturally aspirated up to 1400 HP – forced air induction
Specifications
- Product Attributes - Brand
- Aeromotive
- Product Attributes - Manufacturer's Part Number
- 11110
- Product Attributes - Part Type
- Fuel Pumps
- Product Attributes - Product Line
- Aeromotive Eliminator Marine Fuel Pumps
- Product Attributes - UPC
- 00684980002096
- Product Attributes - Fuel Pump Type
- Electric external
- Product Attributes - Flow Rate
- 216 gph/817 lph
- Product Attributes - Fuel Pressure (psi)
- 70 psi
- Product Attributes - Fuel Pump Voltage
- 12 V
- Product Attributes - Fuel Pressure Regulator Included
- No
- Product Attributes - Sending Unit Included
- No
- Product Attributes - Fuel Pump Inlet Size
- -12 AN
- Product Attributes - Inlet Quantity
- 1
- Product Attributes - Inlet Attachment
- Female straight cut O-ring
- Product Attributes - Fuel Pump Outlet Size
- -10 AN
- Product Attributes - Outlet Quantity
- 1
- Product Attributes - Outlet Attachment
- Female straight cut O-ring
- Product Attributes - Gasket Included
- No
- Product Attributes - Wiring Harness Included
- No
- Product Attributes - Mounting Bracket Included
- No
- Product Attributes - Mounting Hardware Included
- No
- Product Attributes - Pulley Included
- No
- Product Attributes - Remanufactured
- No
- Product Attributes - Quantity
- Sold individually.
- Product Attributes - Notes
- Pump is rated at 1,300 lbs//hr. at 8 psi and 1,000 lbs./hr. at 45 psi with 13.5 volts. Fully submersible for custom, in-tank placement. Maximum continuous operating pressure should not exceed 70 psi.
Reference Information
| Brand Name/s | Aeromotive |
|---|---|
| StreetFX SKU | aer11110 |
| SFX Item ID | 4495369 |
| Supplier Item Code | 4495369 |
| Manufacturer SKU | 11110 |
| Manufacturer UPC | 684980002096 |
| Alternative References | AEI-11110, AFS11110 |
