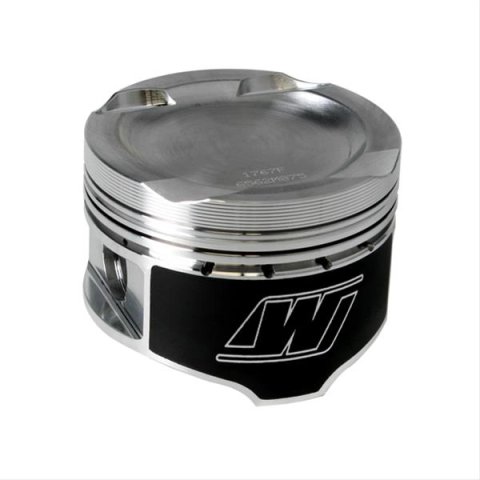

Wiseco Toyota 3TC Turbo F-TOP 1.375 X 89MM Piston Shelf Stock Kit

SKU: WISK547M89

Pistons

WIS Piston Sets - 4 Cyl...

Wiseco Toyota 3TC Turbo F-TOP 1.375 X 89MM Piston Shelf Stock Kit

SKU: WISK547M89

Pistons

WIS Piston Sets - 4 Cyl...

Special Order. Contact for ETA. This item is out of stock in our warehouse and partner distribution centres. In some cases, this may be due to not having live inventory feeds available for all suppliers. Please contact us before ordering if you need to meet a specific deadline.

We accept

Description

Professional Series forged racing pistons from Wiseco are no-expense-spared pistons designed for the serious racers and builders. Packed full of custom-level performance and durability features and provided with premium rings, Professional Series pistons are designed and built for use in heavy to severe duty race builds. Remove your limits with Wiseco's Professional Series.

Product Overview

World renowned for our work building race winning pistons, Wiseco utilizes experience from a diverse background of the most sophisticated sport compact engines. Wisecoâ€™s Sport Compact Pro Tru line creates the best value in forged pistons today. These American made pistons are forged and machined by skilled Ohio craftsmen with state-of-the-art forging presses and CNC machines. By using dedicated forgings specific to the final piston shape, Pro Tru pistons are stronger and lighter than industry standards. Pro Tru sets include plasma moly 1/16, 1/16, 3/16 pre-gapped ring packages which provide excellent seal, friction reduction, and long life. Pro Tru pistons also come in a variety of volumes that allow the engine builder to choose the exact compression ratio required for their engine.

Features and Benefits

Engineered, forged, and machined in the USA from 2618 aluminum for improved tensile strengthArmorGlide? Skirt Coating: seizure resistant, friction reduction, and quieter operationFully machined crown featuresPrecision ring grooves, anti-detonation groove, and additional ring seal improving featuresForced pin oilingDesigned and built to withstand heavy to severe duty performance applications

Product Details

Bore Diameter:	89.00
Bore:	89mm
Category Hierarchy:	Auto>Pistons>Piston Kits>Sport Compact
Comp Height:	34.92
Comp Ratio:	7.5:1
Compression Height:	34.92
Description:	Pro Tru Pistons; Sport Compact Series; Set of 4 Pistons; Recommended RingSet: 8900XX; Rings & Pins Included
Dome Volume:	-2 FT
Engine - Web:	3TC
Engine Type:	ICE
Engine:	3TC
Forging Type:	Full Round
Gram Weight:	377
Industry:	Automotive
Make - Web:	Toyota
Make:	Toyota
Oil Ring Thickness:	2.8
Out of Stock Message:	Estimated Shipped Date 3-4 Weeks
Part Number:	wisK547M89
Piston Material:	2618
Piston Quantity:	4
Piston Volume:	-2.00
Product Market:	Sport Compact
Product Series:	Professional
Product Type:	Engine Piston Set
Prop 65 (C, R or CR):	CR
Prop 65 - Short Label:	Prop 65 Warning Label.JPG
Prop 65 Yes/No:	Yes
Ring Set Included:	Yes
Rod:	123
Second Compression Ring Thickness:	1.2
Skirt Coating:	Yes
Stroke:	78
Title - Web:	Professional Toyota 3TC Piston Set - 89.00 mm Bore - 34.92 mm CH, -2.00 CC
Title:	Wiseco - Toyota, 3TC, 89.00 mm Bore, Piston Set
Top Compression Ring Thickness:	1.0
Wrist Pin Included:	Yes
Wrist Pin Material:	5115
Wrist Pin Outer Diameter:	0.866
Wrist Pin Style:	Floating

Application Summary

Toyota 3TC 1.8L 8V

Part Type

Engine Piston Set

Data: v4.2 - Upd: 2026-10-13 17:06:28

Features

ArmorGlide Skirt Coating: seizure resistant, friction reduction, and quieter operation
Designed and built to withstand heavy to severe duty performance applications
Engineered, forged, and machined in the USA from 2618 aluminum for improved tensile strength
Forced pin oiling
Fully machined crown features
Precision ring grooves, anti-detonation groove, and additional ring seal improving features

Specifications

Product Attributes - Brand: Wiseco
Product Attributes - Manufacturer's Part Number: K547M89
Product Attributes - Part Type: Pistons
Product Attributes - Product Line: Wiseco Sport Compact Piston and Ring Kits
Product Attributes - UPC: 00193564075024
Product Attributes - Piston Rings Included: Yes
Product Attributes - Bore (in.): 3.504 in.
Product Attributes - Bore (mm): 89.000mm
Product Attributes - Stroke: 3.070 in.
Product Attributes - Rod Length: 4.835 in.
Product Attributes - Piston Style: Flat top, with no valve reliefs
Product Attributes - Piston Material: Forged aluminum
Product Attributes - Compression Height (in.): 1.375 in.
Product Attributes - Piston Head Volume (cc): +2.00cc
Product Attributes - Wrist Pin Style: Press-fit or floating
Product Attributes - Wrist Pin Retainers Included: Yes
Product Attributes - Wrist Pin Included: Yes
Product Attributes - Pin Diameter (in.): 0.866 in.
Product Attributes - File Fit: No
Product Attributes - Gapless: No
Product Attributes - Top Ring Thickness: 1.0mm
Product Attributes - Top Ring Material: Steel
Product Attributes - Top Ring Facing Material: Gas nitrided
Product Attributes - Second Ring Thickness: 1.2mm
Product Attributes - Second Ring Material: Cast iron
Product Attributes - Second Ring Facing Material: Phosphate coated
Product Attributes - Oil Ring Thickness: 2.8mm
Product Attributes - Oil Ring Material: Stainless steel
Product Attributes - Oil Ring Tension: Standard
Product Attributes - Remanufactured: No
Product Attributes - Quantity: Sold as a set of 4.

Reference Information

Brand Name/s	Wiseco
StreetFX SKU	wisK547M89
SFX Item ID	4061872
Supplier Item Code	4061872
Manufacturer SKU	K547M89
Manufacturer UPC	193564075024
Alternative References	3TC, 89MM
