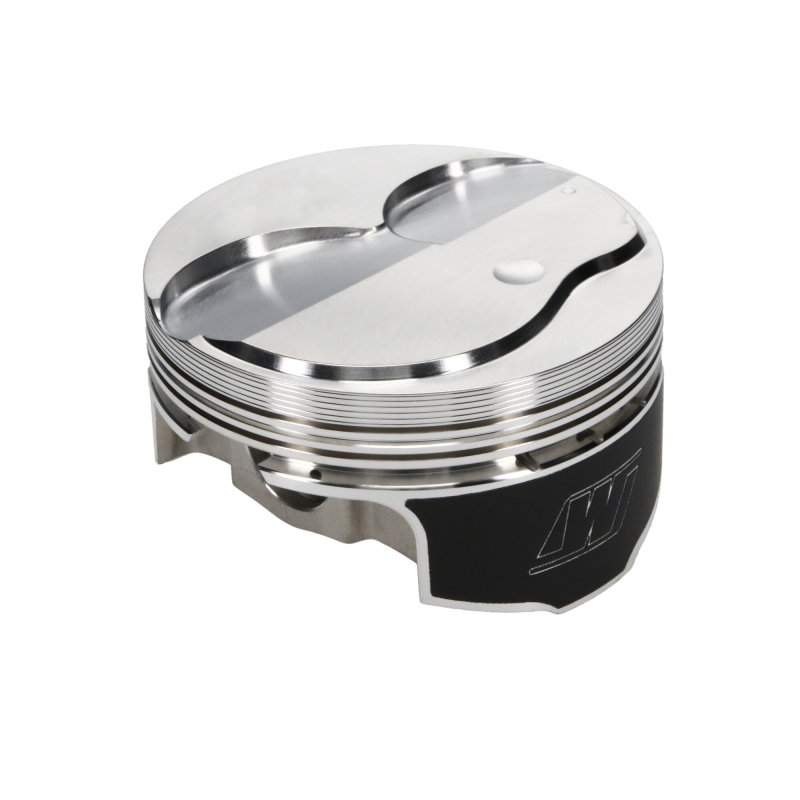

Wiseco Chevy LS Series -12cc Dome 1.300 x 4.070 Shelf Piston Kit - Set of 8
Wiseco Chevy LS Series -12cc Dome 1.300 x 4.070 Shelf Piston Kit - Set of 8
A$2,279.99
Special Order. Contact for ETA.
This item is out of stock in our warehouse and partner distribution centres. In some cases, this may be due to not having live inventory feeds available for all suppliers. Please contact us before ordering if you need to meet a specific deadline.
We accept
Description
Professional Series forged racing pistons from Wiseco are no-expense-spared pistons designed for the serious racers and builders. Packed full of custom-level performance and durability features and provided with premium rings, Professional Series pistons are designed and built for use in heavy to severe duty race builds. Remove your limits with Wiseco's Professional Series.
Product Overview
Professional Series forged racing pistons from Wiseco are no-expense-spared pistons designed for the serious racers and builders. Packed full of custom-level performance and durability features and provided with premium rings, Professional Series pistons are designed and built for use in heavy to severe duty race builds. Remove your limits with Wiseco?s Professional Series.
Features and Benefits
- Engineered, forged, and machined in the USA from 2618 aluminum for improved tensile strengthArmorGlide? Skirt Coating: seizure resistant, friction reduction, and quieter operationFully machined crown featuresPrecision ring grooves, anti-detonation groove, and additional ring seal improving featuresForced pin oilingDesigned and built to withstand heavy to severe duty performance applications
Product Details
| Bore Diameter: | 4.070 |
|---|---|
| Category Hierarchy: | Auto>Pistons>Piston Kits>Domestic>Professional |
| Compression Height: | 1.300 |
| Description: | Wiseco Chevy LS Series -12cc Dome 1.300 x 4.070 Shelf Piston Kit - Set of 8 |
| Engine - Web: | LS |
| Engine Type: | ICE |
| Engine: | LS |
| Forging Type: | Strutted |
| Industry: | Automotive |
| Make - Web: | Chevrolet |
| Make: | Chevrolet |
| Oil Ring Thickness: | 3.0 |
| Out of Stock Message: | Estimated Shipped Date 3-4 Weeks |
| Part Number: | wisK447X7 |
| Piston Material: | 2618 |
| Piston Quantity: | 8 |
| Piston Volume: | 12.00 |
| Product Market: | Domestic |
| Product Series: | Professional |
| Product Type: | Engine Piston Set |
| Prop 65 (C, R or CR): | CR |
| Prop 65 - Short Label: | Prop 65 Warning Label.JPG |
| Prop 65 Yes/No: | Yes |
| Ring Set Included: | Yes |
| Rod Length: | 6.125 |
| Second Compression Ring Thickness: | 0.047 |
| Skirt Coating: | Yes |
| Stroke: | 3.622 |
| Title - Web: | Professional Chevy LS Piston Set - 4.070 in. Bore - 1.300 .in CH, 12.00 CC |
| Title: | Wiseco - Chevrolet, LS, 4.070 in. Bore, Piston Set |
| Top Compression Ring Thickness: | 0.047 |
| Wrist Pin Included: | Yes |
| Wrist Pin Material: | 5115 |
| Wrist Pin Outer Diameter: | 0.927 |
| Wrist Pin Style: | Floating |
Application Summary
Chevrolet LS
Part Type
Engine Piston Set
Features
- ArmorGlide Skirt Coating: seizure resistant, friction reduction, and quieter operation
- Designed and built to withstand heavy to severe duty performance applications
- Engineered, forged, and machined in the USA from 2618 aluminum for improved tensile strength
- Forced pin oiling
- Fully machined crown features
- Precision ring grooves, anti-detonation groove, and additional ring seal improving features
Specifications
- Product Attributes - Brand
- Wiseco
- Product Attributes - Manufacturer's Part Number
- K447X7
- Product Attributes - Part Type
- Pistons
- Product Attributes - Product Line
- Wiseco LS Series Pistons
- Product Attributes - UPC
- 00193564073068
- Product Attributes - Piston Rings Included
- No
- Product Attributes - Bore (in.)
- 4.070 in.
- Product Attributes - Bore (mm)
- 103.378mm
- Product Attributes - Stroke
- 3.622 in.
- Product Attributes - Engine Stroke Type
- Stock
- Product Attributes - Rod Length
- 6.125 in.
- Product Attributes - Piston Style
- Dome, with two valve reliefs
- Product Attributes - Piston Material
- Forged aluminum
- Product Attributes - Compression Height (in.)
- 1.300 in.
- Product Attributes - Piston Head Volume (cc)
- -12.00cc
- Product Attributes - Wrist Pin Style
- Press-fit or floating
- Product Attributes - Wrist Pin Retainers Included
- Yes
- Product Attributes - Wrist Pin Included
- Yes
- Product Attributes - Pin Diameter (in.)
- 0.927 in.
- Product Attributes - Piston Ring Thickness
- 1.20mm x 1.20mm x 3.00mm
- Product Attributes - File Fit
- No
- Product Attributes - Gapless
- No
- Product Attributes - Remanufactured
- No
- Product Attributes - Quantity
- Sold as a set of 8.
Reference Information
| Brand Name/s | Wiseco |
|---|---|
| StreetFX SKU | wisK447X7 |
| SFX Item ID | 4061852 |
| Supplier Item Code | 4061852 |
| Manufacturer SKU | K447X7 |
| Manufacturer UPC | 193564073068 |
| Alternative References | -12cc |
Compatibility
Chevrolet LS
