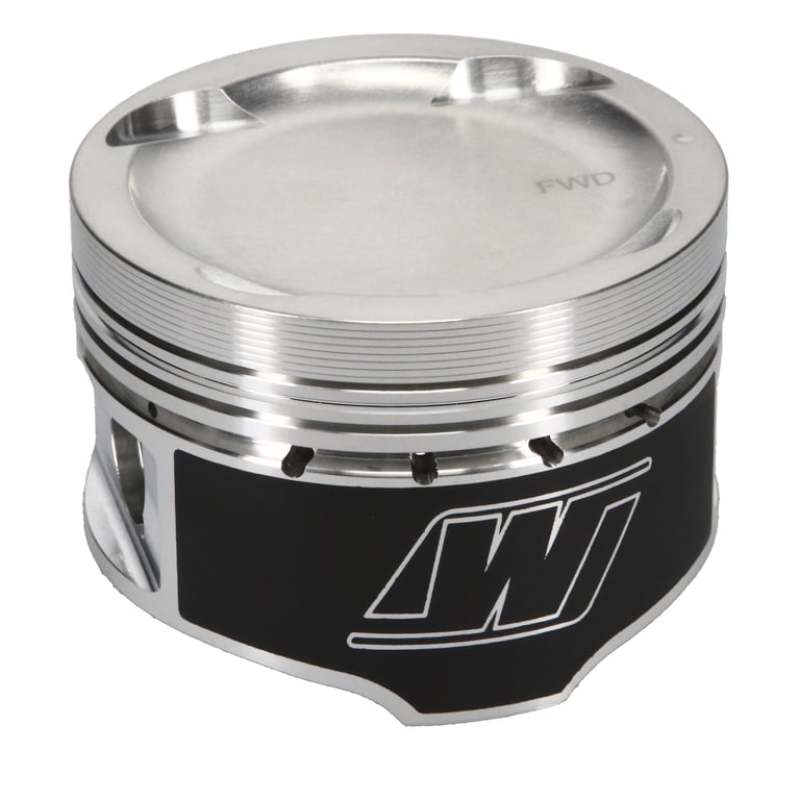

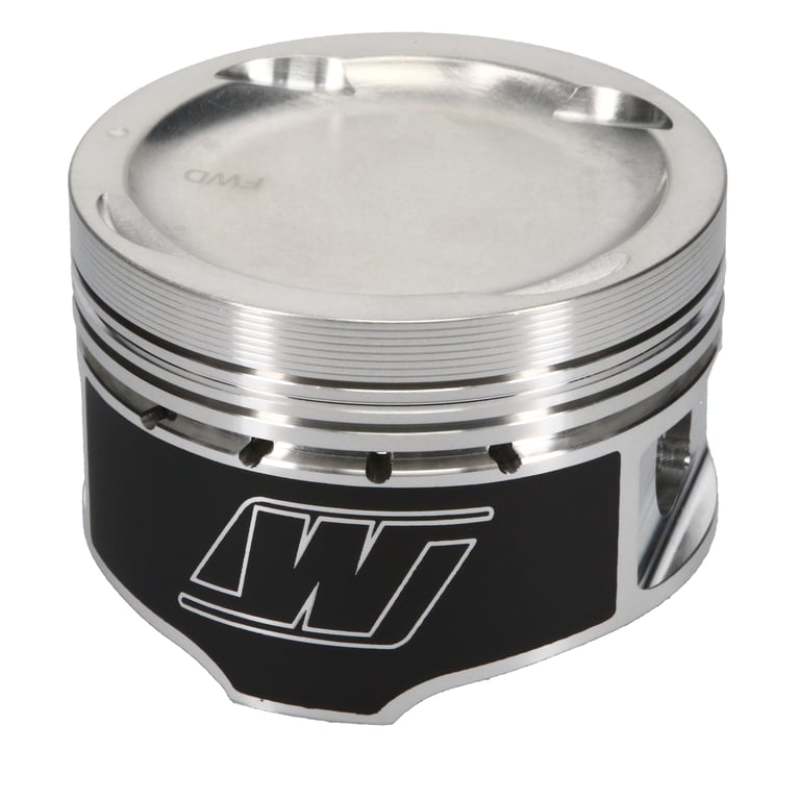

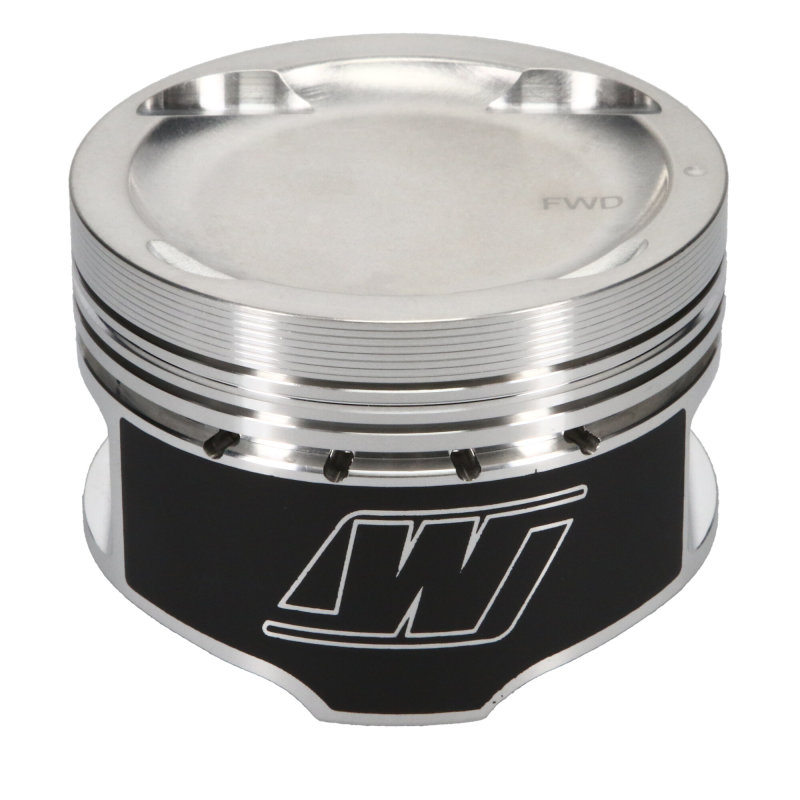

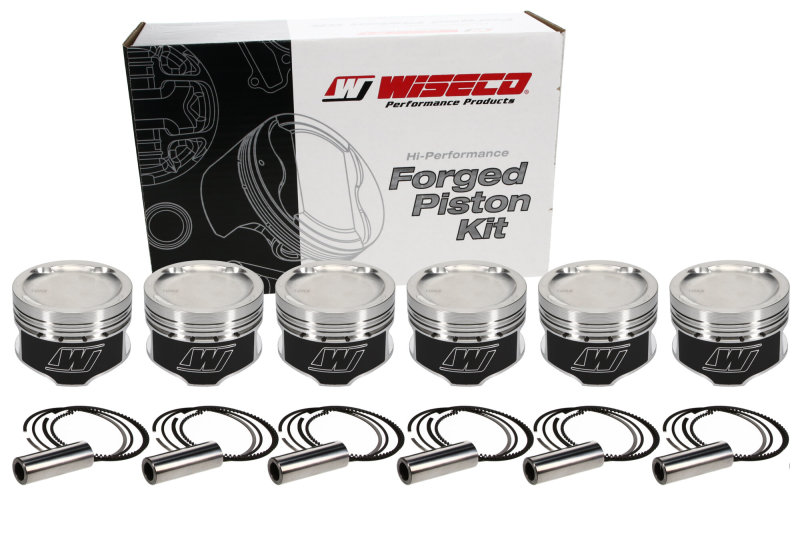

Wiseco Toyota 7MGTE 4v Dished -16cc Turbo 83.5 Piston Shelf Stock Kit
Wiseco Toyota 7MGTE 4v Dished -16cc Turbo 83.5 Piston Shelf Stock Kit
A$1,864.88
IN STOCK! Est Ship 3-5 days.
This item is IN STOCK at one of our warehouses or distribution centres, the ETA is the approximate time required to prepare your order for dispatch.
We accept
Description
Professional Series forged racing pistons from Wiseco are no-expense-spared pistons designed for the serious racers and builders. Packed full of custom-level performance and durability features and provided with premium rings, Professional Series pistons are designed and built for use in heavy to severe duty race builds. Remove your limits with Wiseco's Professional Series.
Product Overview
World renowned for our work building race winning pistons, Wiseco utilizes experience from a diverse background of the most sophisticated sport compact engines.
Wiseco’s Sport Compact Pro Tru line creates the best value in forged pistons today. These American made pistons are forged and machined by skilled Ohio craftsmen with state-of-the-art forging presses and CNC machines. By using dedicated forgings specific to the final piston shape, Pro Tru pistons are stronger and lighter than industry standards.
Pro Tru sets include plasma moly 1/16, 1/16, 3/16 pre-gapped ring packages which provide excellent seal, friction reduction, and long life. Pro Tru pistons also come in a variety of volumes that allow the engine builder to choose the exact compression ratio required for their engine.
Features and Benefits
- Engineered, forged, and machined in the USA from 2618 aluminum for improved tensile strength
- ArmorGlide Skirt Coating: seizure resistant, friction reduction, and quieter operation
- Fully machined crown features
- Precision ring grooves, anti-detonation groove, and additional ring seal improving features
- Forced pin oiling
- Designed and built to withstand heavy to severe duty performance applications
Product Details
| Year | Make |
|---|---|
| Bore Diameter: | 83.50 |
| Bore: | 83.5mm |
| Category Hierarchy: | Auto>Piston Kits>Professional |
| Comp Height: | 33 |
| Comp Ratio: | 9.0:1 |
| Compression Height: | 33.00 |
| Description: | Pro Tru Pistons; Sport Compact Series; Set of 6 Pistons; Recommended RingSet: 8350XX; Rings & Pins Included |
| Dome Volume: | -16 |
| EBAY Category ID: | 33623 |
| Engine - Web: | 7MGTE |
| Engine Type: | ICE |
| Engine: | 7MGTE |
| Forging Type: | Full Round |
| Gram Weight: | 322 |
| Industry: | Automotive |
| Make - Web: | Toyota |
| Make: | Toyota |
| Oil Ring Thickness: | 2.8 |
| Out of Stock Message: | Estimated Shipped Date 3-4 Weeks |
| Part Number: | wisK613M835 |
| Piston Material: | 2618 |
| Piston Quantity: | 6 |
| Piston Volume: | -16.00 |
| Product Market: | Sport Compact |
| Product Series: | Professional |
| Product Type: | Engine Piston Set |
| Prop 65 (C, R or CR): | CR |
| Prop 65 - Short Label: | Prop 65 Warning Label.JPG |
| Prop 65 Yes/No: | Yes |
| Ring Set Included: | Yes |
| Rod: | 152 |
| Second Compression Ring Thickness: | 1.2 |
| Skirt Coating: | Yes |
| Stroke: | 91 |
| Title - Web: | Professional Toyota 7MGTE Piston Set of 6 - 83.50 mm Bore - 33.00 mm CH, -16.00 CC |
| Title: | Wiseco - Toyota, 7MGTE, 83.50 mm Bore, Piston Set of 6 |
| Top Compression Ring Thickness: | 1.0 |
| Wrist Pin Included: | Yes |
| Wrist Pin Material: | 5115 |
| Wrist Pin Outer Diameter: | 0.866 |
| Wrist Pin Style: | Floating |
Application Summary
Toyota 7MGTE 3.0L 24V
Part Type
Engine Piston Set
Features
- ArmorGlide Skirt Coating: seizure resistant, friction reduction, and quieter operation
- Designed and built to withstand heavy to severe duty performance applications
- Engineered, forged, and machined in the USA from 2618 aluminum for improved tensile strength
- Forced pin oiling
- Fully machined crown features
- Precision ring grooves, anti-detonation groove, and additional ring seal improving features
Specifications
- Product Attributes - UPC
- 00193564076892
- Product Attributes - Brand
- Wiseco
- Product Attributes - Stroke
- 3.583 in.
- Product Attributes - Gapless
- No
- Product Attributes - File Fit
- No
- Product Attributes - Quantity
- Sold as a kit.
- Product Attributes - Bore (mm)
- 83.500mm
- Product Attributes - Part Type
- Pistons
- Product Attributes - Bore (in.)
- 3.287 in.
- Product Attributes - Rod Length
- 5.988 in.
- Product Attributes - Piston Style
- Dish, with no valve reliefs
- Product Attributes - Product Line
- Wiseco Sport Compact Piston and Ring Kits
- Product Attributes - Piston Material
- Forged aluminum
- Product Attributes - Wrist Pin Style
- Press-fit or floating
- Product Attributes - Oil Ring Tension
- Standard
- Product Attributes - Oil Ring Material
- Stainless steel
- Product Attributes - Top Ring Material
- Steel
- Product Attributes - Oil Ring Thickness
- 2.8mm
- Product Attributes - Pin Diameter (in.)
- 0.866 in.
- Product Attributes - Top Ring Thickness
- 1.0mm
- Product Attributes - Wrist Pin Included
- Yes
- Product Attributes - Second Ring Material
- Cast iron
- Product Attributes - Piston Rings Included
- Yes
- Product Attributes - Second Ring Thickness
- 1.2mm
- Product Attributes - Piston Head Volume (cc)
- +16.00cc
- Product Attributes - Compression Height (in.)
- 1.299 in.
- Product Attributes - Top Ring Facing Material
- Gas nitrided
- Product Attributes - Manufacturer's Part Number
- K613M835
- Product Attributes - Second Ring Facing Material
- Phosphate coated
- Product Attributes - Wrist Pin Retainers Included
- Yes
Reference Information
| Brand Name/s | Wiseco |
|---|---|
| StreetFX SKU | wisK613M835 |
| SFX Item ID | 4063290 |
| Supplier Item Code | 4063290 |
| Manufacturer SKU | K613M835 |
| Manufacturer UPC | 193564076892 |
| Alternative References | 7MGTE, -16cc |
Compatibility
Toyota 7MGTE 3.0L 24V
