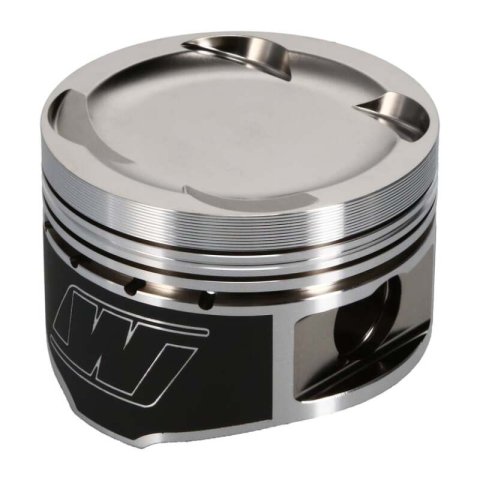

Wiseco Toyota 2JZGTE Turbo -14.8cc 1.338 X 86.25in Bore Piston Kit
Wiseco Toyota 2JZGTE Turbo -14.8cc 1.338 X 86.25in Bore Piston Kit
A$2,134.29
IN STOCK! Est Ship 3-5 days.
This item is IN STOCK at one of our warehouses or distribution centres, the ETA is the approximate time required to prepare your order for dispatch.
We accept
Description
Professional Series forged racing pistons from Wiseco are no-expense-spared pistons designed for the serious racers and builders. Packed full of custom-level performance and durability features and provided with premium rings, Professional Series pistons are designed and built for use in heavy to severe duty race builds. Remove your limits with Wiseco's Professional Series.
Product Overview
Professional Series forged racing pistons from Wiseco are no-expense-spared pistons designed for the serious racers and builders. Packed full of custom-level performance and durability features and provided with premium rings, Professional Series pistons are designed and built for use in heavy to severe duty race builds. Remove your limits with Wiseco?s Professional Series.
Features and Benefits
- Engineered, forged, and machined in the USA from 2618 aluminum for improved tensile strengthArmorGlide? Skirt Coating: seizure resistant, friction reduction, and quieter operationFully machined crown featuresPrecision ring grooves, anti-detonation groove, and additional ring seal improving featuresForced pin oilingDesigned and built to withstand heavy to severe duty performance applications
Product Details
| Bore Diameter: | 86.25 |
|---|---|
| Category Hierarchy: | Auto>Pistons>Piston Kits>Sport Compact |
| Compression Height: | 34.00 |
| Description: | Wiseco Toyota 2JZGTE Turbo -14.8cc 1.338 X 86.25in Bore Piston Kit |
| Engine - Web: | 2JZ-GTE |
| Engine Type: | ICE |
| Engine: | 2JZ-GTE |
| Forging Type: | Full Round |
| Industry: | Automotive |
| Make - Web: | Toyota |
| Make: | Toyota |
| Oil Ring Thickness: | 2.8 |
| Out of Stock Message: | Estimated Shipped Date 3-4 Weeks |
| Part Number: | wisk550M8625AP |
| Piston Material: | 2618 |
| Piston Quantity: | 4 |
| Piston Volume: | -14.80 |
| Product Market: | Sport Compact |
| Product Series: | Professional |
| Product Type: | Engine Piston Set |
| Prop 65 (C, R or CR): | CR |
| Prop 65 - Short Label: | Prop 65 Warning Label.JPG |
| Prop 65 Yes/No: | Yes |
| Ring Set Included: | Yes |
| Second Compression Ring Thickness: | 1.2 |
| Skirt Coating: | Yes |
| Title - Web: | Professional Toyota 2JZ-GTE Piston Set - 86.25 mm Bore - 34.00 mm CH, -14.80 CC |
| Title: | Wiseco - Toyota, 2JZ-GTE, 86.25 mm Bore, Piston Set |
| Top Compression Ring Thickness: | 1.0 |
| Wrist Pin Included: | Yes |
| Wrist Pin Material: | 5115 |
| Wrist Pin Outer Diameter: | 0.866 |
| Wrist Pin Style: | Floating |
Application Summary
Toyota 2JZGTE 3.0L 24V
Part Type
Engine Piston Set
Features
- ArmorGlide Skirt Coating: seizure resistant, friction reduction, and quieter operation
- Designed and built to withstand heavy to severe duty performance applications
- Engineered, forged, and machined in the USA from 2618 aluminum for improved tensile strength
- Forced pin oiling
- Fully machined crown features
- Precision ring grooves, anti-detonation groove, and additional ring seal improving features
Specifications
- Product Attributes - UPC
- 00193564075178
- Product Attributes - Brand
- Wiseco
- Product Attributes - Notes
- Fits 2JZGTE 24-valve engines.
- Product Attributes - Stroke
- 3.386 in.
- Product Attributes - Gapless
- No
- Product Attributes - File Fit
- Yes
- Product Attributes - Quantity
- Sold as a kit.
- Product Attributes - Bore (mm)
- 86.250mm
- Product Attributes - Part Type
- Pistons
- Product Attributes - Bore (in.)
- 3.396 in.
- Product Attributes - Rod Length
- 5.590 in.
- Product Attributes - Piston Style
- Dish, with four valve reliefs
- Product Attributes - Product Line
- Wiseco Sport Compact Piston and Ring Kits
- Product Attributes - Piston Material
- Forged aluminum
- Product Attributes - Wrist Pin Style
- Press-fit or floating
- Product Attributes - Oil Ring Tension
- Standard
- Product Attributes - Oil Ring Material
- Stainless steel
- Product Attributes - Top Ring Material
- Steel
- Product Attributes - Oil Ring Thickness
- 2.8mm
- Product Attributes - Pin Diameter (in.)
- 0.866 in.
- Product Attributes - Top Ring Thickness
- 1.0mm
- Product Attributes - Wrist Pin Included
- Yes
- Product Attributes - Second Ring Material
- Cast iron
- Product Attributes - Piston Rings Included
- Yes
- Product Attributes - Second Ring Thickness
- 1.2mm
- Product Attributes - Piston Head Volume (cc)
- +14.80cc
- Product Attributes - Compression Height (in.)
- 1.338 in.
- Product Attributes - Top Ring Facing Material
- Gas nitrided
- Product Attributes - Manufacturer's Part Number
- K550M8625AP
- Product Attributes - Second Ring Facing Material
- Phosphate coated
- Product Attributes - Wrist Pin Retainers Included
- Yes
Reference Information
| Brand Name/s | Wiseco |
|---|---|
| StreetFX SKU | wisk550M8625AP |
| SFX Item ID | 4061997 |
| Supplier Item Code | 4061997 |
| Manufacturer SKU | k550M8625AP |
| Manufacturer UPC | 193564075178 |
| Alternative References | 2JZGTE, -14.8cc, 86.25in |
Compatibility
Toyota 2JZGTE 3.0L 24V
