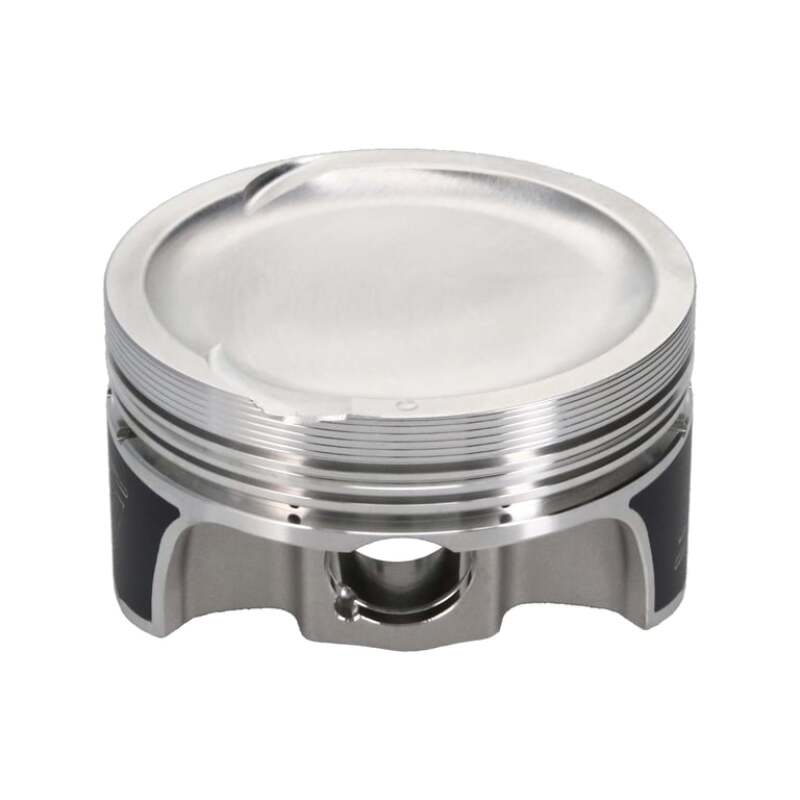

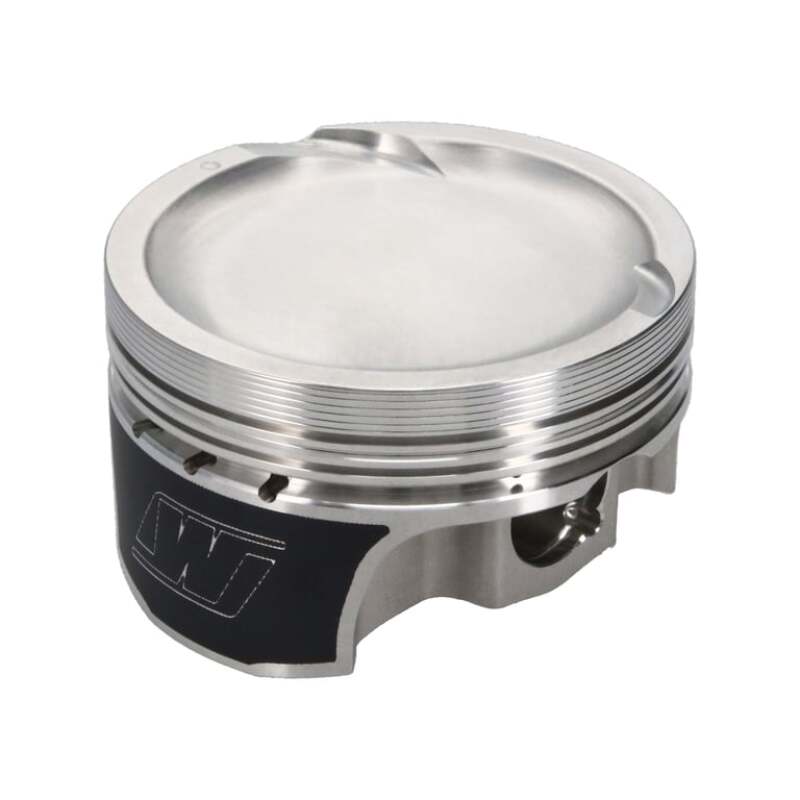

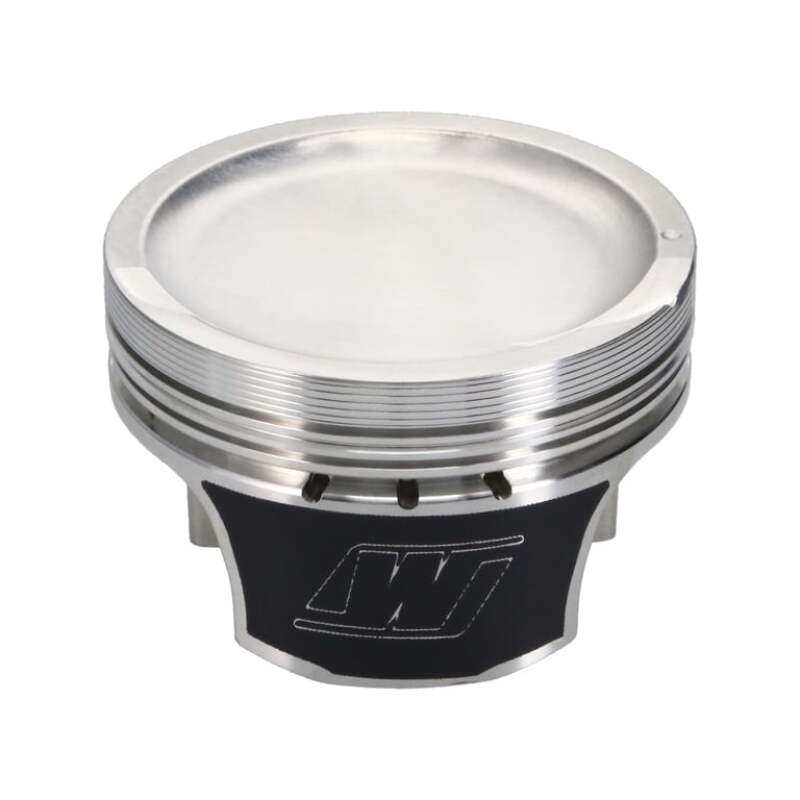

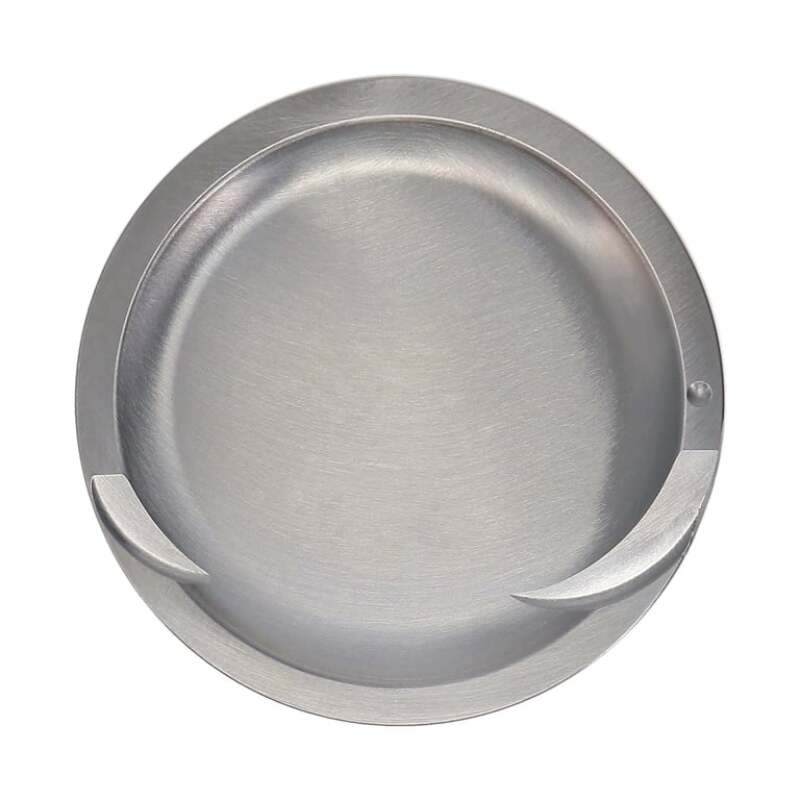

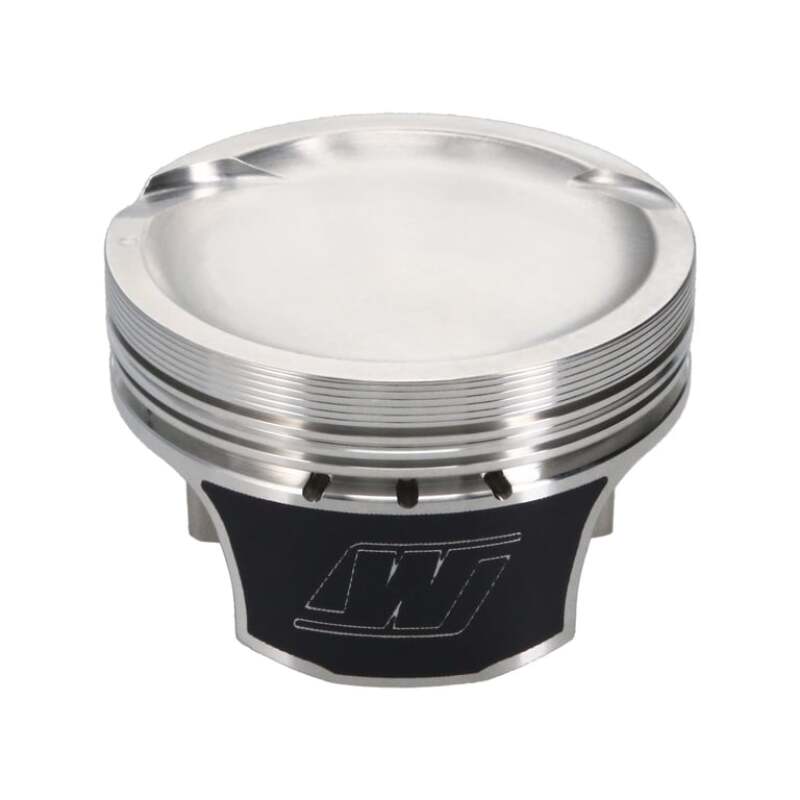

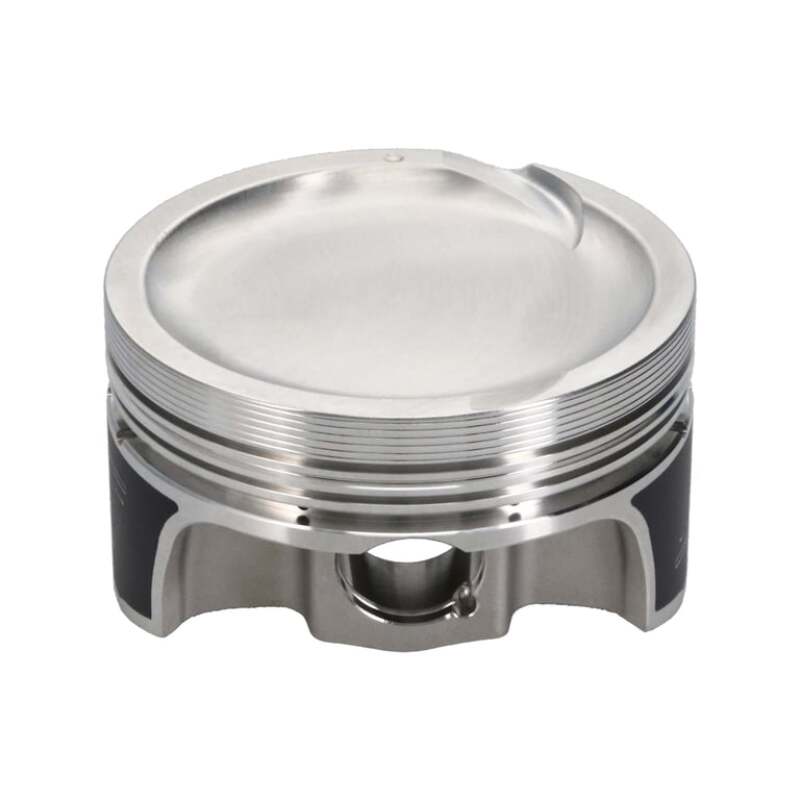

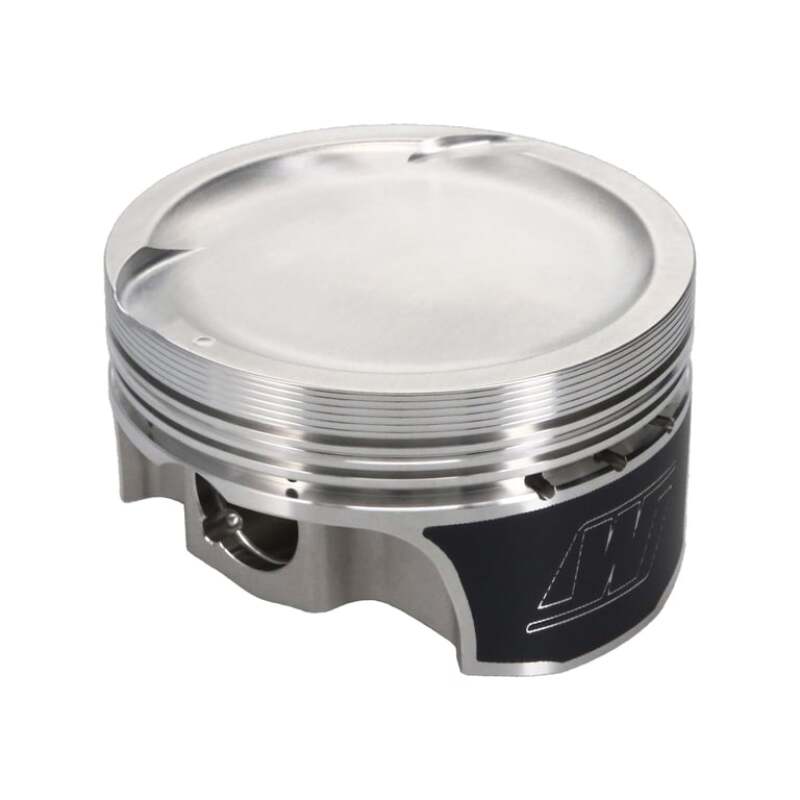

Wiseco Ford 4.6L/5.4L Modular Piston - 3.552in Bore
Wiseco Ford 4.6L/5.4L Modular Piston - 3.552in Bore
A$322.77
Special Order. Contact for ETA.
This item is out of stock in our warehouse and partner distribution centres. In some cases, this may be due to not having live inventory feeds available for all suppliers. Please contact us before ordering if you need to meet a specific deadline.
We accept
Description
Professional Series forged racing pistons from Wiseco are no-expense-spared pistons designed for the serious racers and builders. Packed full of custom-level performance and durability features and provided with premium rings, Professional Series pistons are designed and built for use in heavy to severe duty race builds. Remove your limits with Wiseco's Professional Series.
Application Summary
Ford 4.6L SOHC V8
Part Type
Engine Piston
Features
- ArmorGlide Skirt Coating: seizure resistant, friction reduction, and quieter operation
- Designed and built to withstand heavy to severe duty performance applications
- Engineered, forged, and machined in the USA from 2618 aluminum for improved tensile strength
- Forced pin oiling
- Fully machined crown features
- Precision ring grooves, anti-detonation groove, and additional ring seal improving features
Specifications
- Product Attributes - Brand
- Wiseco
- Product Attributes - Manufacturer's Part Number
- 60088RXS
- Product Attributes - Part Type
- Pistons
- Product Attributes - Product Line
- Wiseco Professional Series Pistons
- Product Attributes - UPC
- 00193564099013
- Product Attributes - Piston Rings Included
- Yes
- Product Attributes - Bore (in.)
- 3.552 in.
- Product Attributes - Bore (mm)
- 90.221mm
- Product Attributes - Stroke
- 3.543 in.
- Product Attributes - Engine Stroke Type
- Stock
- Product Attributes - Actual Engine Displacement
- 4.6L/280
- Product Attributes - Rod Length
- 5.933 in.
- Product Attributes - Piston Style
- Dish, with two valve reliefs
- Product Attributes - Piston Material
- Forged aluminum
- Product Attributes - Compression Height (in.)
- 1.220 in.
- Product Attributes - Piston Head Volume (cc)
- +16.00cc
- Product Attributes - Wrist Pin Style
- Floating
- Product Attributes - Wrist Pin Retainers Included
- Yes
- Product Attributes - Wrist Pin Included
- Yes
- Product Attributes - Pin Diameter (in.)
- 0.866 in.
- Product Attributes - Piston Ring Thickness
- 1.50mm x 1.50mm x 3.00mm
- Product Attributes - File Fit
- Yes
- Product Attributes - Gapless
- No
- Product Attributes - Top Ring Thickness
- 1.5mm
- Product Attributes - Top Ring Material
- Steel
- Product Attributes - Top Ring Facing Material
- Gas nitrided
- Product Attributes - Second Ring Thickness
- 1.5mm
- Product Attributes - Second Ring Material
- Cast iron
- Product Attributes - Second Ring Facing Material
- Phosphate coated
- Product Attributes - Oil Ring Thickness
- 3.0mm
- Product Attributes - Oil Ring Material
- Stainless steel
- Product Attributes - Oil Ring Tension
- Standard
- Product Attributes - Remanufactured
- No
- Product Attributes - Quantity
- Sold individually.
- Product Attributes - Notes
- Replacement right side piston and designed to fit 2-valve engines only.
Reference Information
| Brand Name/s | Wiseco |
|---|---|
| StreetFX SKU | wis60088RXS |
| SFX Item ID | 4069832 |
| Supplier Item Code | 4069832 |
| Manufacturer SKU | 60088RXS |
| Manufacturer UPC | 193564099013 |
| Alternative References | 4.6L/5.4L, 3.552in |
Compatibility
Ford 4.6L SOHC V8
