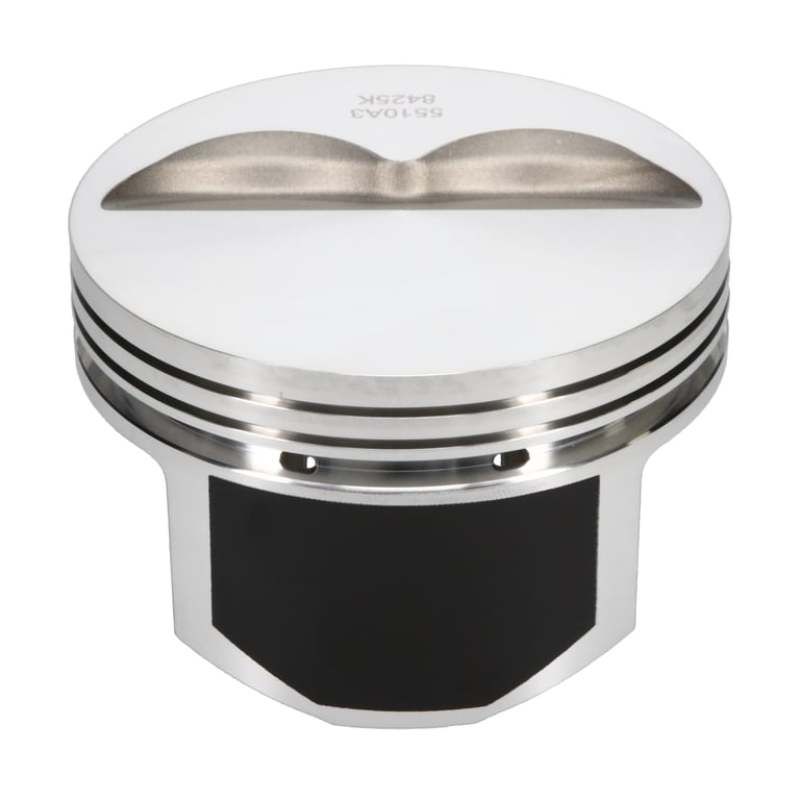

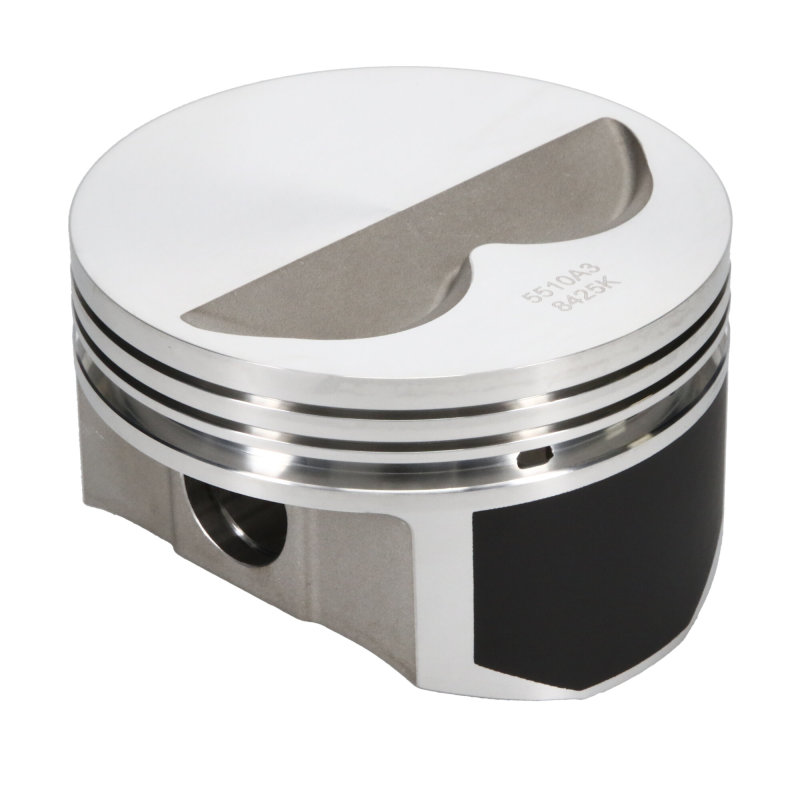

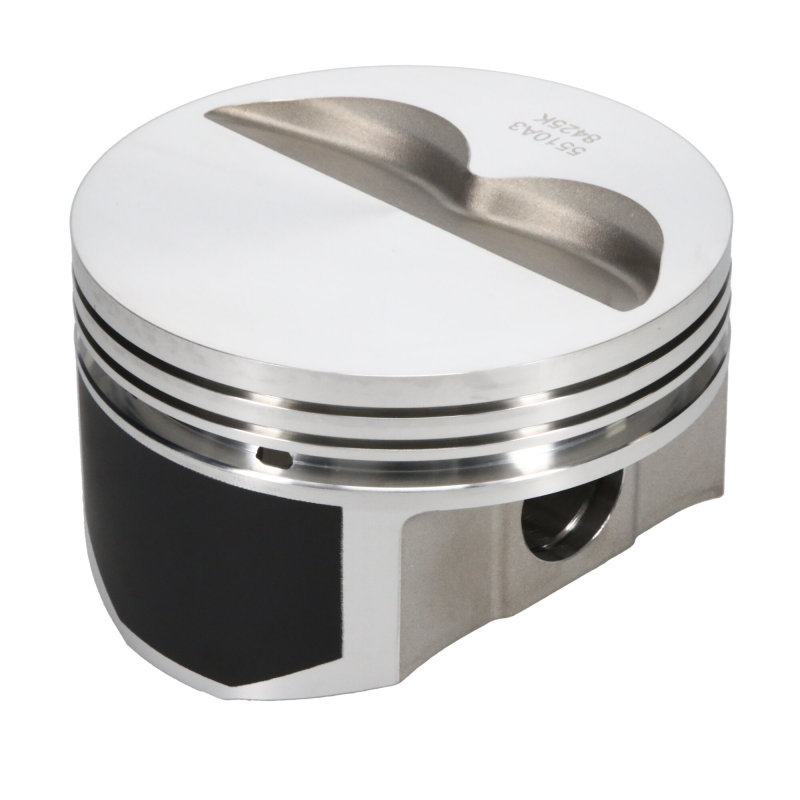

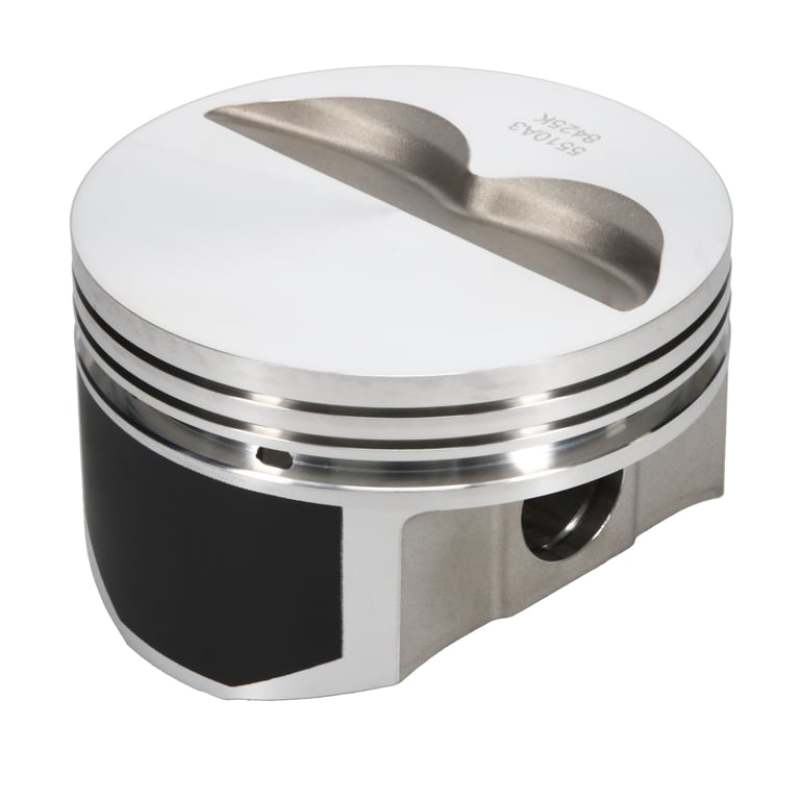

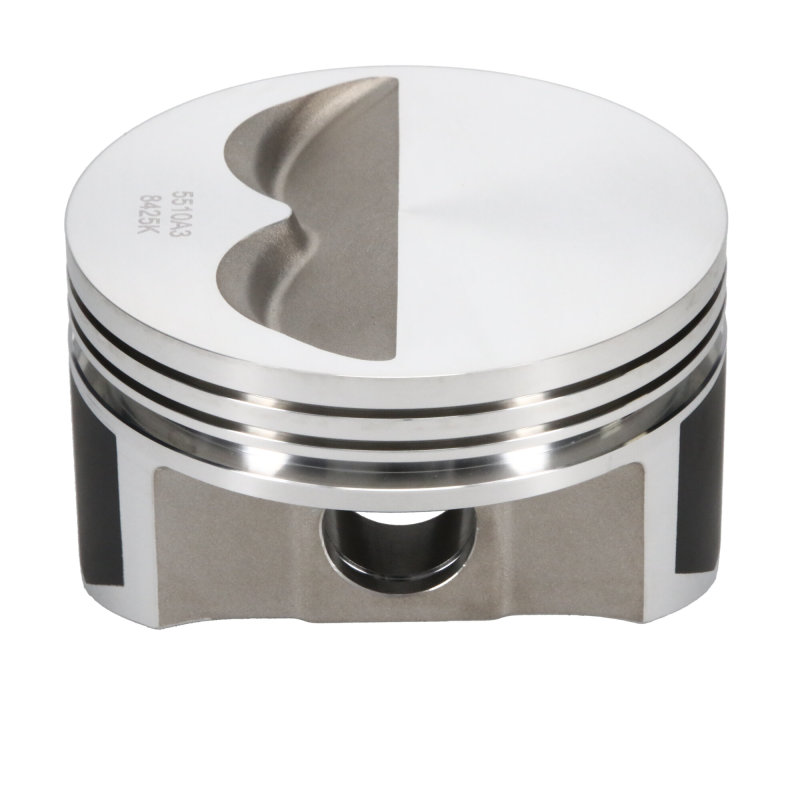

Wiseco Chevrolet Small Block 4.155in. Bore 1.425in. Comp Height Pro Tru Street Piston - Single
Wiseco Chevrolet Small Block 4.155in. Bore 1.425in. Comp Height Pro Tru Street Piston - Single
A$208.36
Special Order. Contact for ETA.
This item is out of stock in our warehouse and partner distribution centres. In some cases, this may be due to not having live inventory feeds available for all suppliers. Please contact us before ordering if you need to meet a specific deadline.
We accept
Description
Our Pro Tru Street series pistons are forged from 4032 alloy aluminum in Mentor, Ohio and includes rings, pins, and clips for an all-inclusive rebuild. For any build budget, Wiseco has the piston to get you on the road or down the track.
Product Overview
Our Pro Tru? Street series pistons are forged from 4032 alloy aluminum in Mentor, Ohio and includes rings, pins, and clips for an all-inclusive rebuild. For any build budget, Wiseco has the piston to get you on the road or down the track.
Features and Benefits
- ArmorGlide? Skirt Coating: Seizure resistant, Friction Reduction, and Quieter Operation4032 Forged AluminumAS-Forged Dome with Crown Features & Oil Drain BacksChromium Alloy Steel Piston Pin & Spirolox? Included
Product Details
| Bore Diameter: | 4.155 |
|---|---|
| Category Hierarchy: | Auto>Pistons>Individual Pistons>Domestic>Pro Tru Street |
| Compression Height: | 1.425 |
| Description: | Wiseco Chevrolet Small Block 4.155in. Bore 1.425in. Comp Height Pro Tru Street Piston - Single |
| Engine - Web: | Small Block Gen I |
| Engine Type: | ICE |
| Engine: | Small Block 400 |
| Forging Type: | Slab Side |
| Industry: | Automotive |
| Make - Web: | Chevrolet |
| Make: | Chevrolet |
| Oil Ring Thickness: | 3/16 |
| Out of Stock Message: | Estimated Shipped Date 3-4 Weeks |
| Part Number: | wis5510A3 |
| Piston Material: | 4032 |
| Piston Quantity: | 1 |
| Piston Volume: | -5.00 |
| Product Market: | Domestic |
| Product Series: | Pro Tru Street |
| Product Type: | Engine Piston |
| Prop 65 (C, R or CR): | CR |
| Prop 65 - Short Label: | Prop 65 Warning Label.JPG |
| Prop 65 Yes/No: | Yes |
| Ring Quantity: | 1 |
| Ring Set Included: | Yes |
| Ring Set Part Number: | S100S1-4155-5 |
| Second Compression Ring Thickness: | 1/16 |
| Skirt Coating: | Yes |
| Title - Web: | Pro Tru Street Chevy Small Block Piston - 4.155 in. Bore - 1.425 .in CH, -5.00 CC |
| Title: | Pro Tru Street - Chevrolet, Small Block, 4.155 in. Bore, Piston |
| Top Compression Ring Thickness: | 1/16 |
| Wrist Pin Included: | Yes |
| Wrist Pin Material: | 5115 |
| Wrist Pin Outer Diameter: | 0.927 |
| Wrist Pin Style: | Floating |
Application Summary
Chevrolet Small Block 400
Part Type
Engine Piston
Features
- 4032 Forged Aluminum
- ArmorGlide Skirt Coating: Seizure resistant, Friction Reduction, and Quieter Operation
- AS-Forged Dome with Crown Features & Oil Drain Backs
- Chromium Alloy Steel Piston Pin & Spirolox Included
Specifications
- Product Attributes - Brand
- Wiseco
- Product Attributes - Manufacturer's Part Number
- 5510A3
- Product Attributes - Part Type
- Pistons
- Product Attributes - Product Line
- Wiseco Pro Tru Street Pistons
- Product Attributes - UPC
- 00193564094407
- Product Attributes - Piston Rings Included
- Yes
- Product Attributes - Bore (in.)
- 4.155 in.
- Product Attributes - Bore (mm)
- 105.537mm
- Product Attributes - Stroke
- 3.750 in.
- Product Attributes - Actual Engine Displacement
- 6.7L/407
- Product Attributes - Rod Length
- 5.700 in.
- Product Attributes - Piston Style
- Flat top, with two valve reliefs
- Product Attributes - Piston Material
- Forged aluminum
- Product Attributes - Compression Height (in.)
- 1.425 in.
- Product Attributes - Piston Head Volume (cc)
- +5.00cc
- Product Attributes - Wrist Pin Style
- Floating
- Product Attributes - Wrist Pin Retainers Included
- Yes
- Product Attributes - Wrist Pin Included
- Yes
- Product Attributes - Pin Diameter (in.)
- 0.927 in.
- Product Attributes - Piston Ring Thickness
- 1/16 in. x 1/16 in. x 3/16 in.
- Product Attributes - File Fit
- Yes
- Product Attributes - Gapless
- No
- Product Attributes - Top Ring Thickness
- 1/16 in.
- Product Attributes - Top Ring Material
- Ductile iron
- Product Attributes - Top Ring Facing Material
- Plasma-moly
- Product Attributes - Second Ring Thickness
- 1/16 in.
- Product Attributes - Second Ring Material
- Cast iron
- Product Attributes - Second Ring Facing Material
- Phosphate coated
- Product Attributes - Oil Ring Thickness
- 3/16 in.
- Product Attributes - Oil Ring Material
- Carbon steel
- Product Attributes - Oil Ring Facing Material
- Chrome
- Product Attributes - Oil Ring Tension
- Standard
- Product Attributes - Remanufactured
- No
- Product Attributes - Quantity
- Sold individually.
Reference Information
| Brand Name/s | Wiseco |
|---|---|
| StreetFX SKU | wis5510A3 |
| SFX Item ID | 4064310 |
| Supplier Item Code | 4064310 |
| Manufacturer SKU | 5510A3 |
| Manufacturer UPC | 193564094407 |
| Alternative References | 4.155in., 1.425in. |
Compatibility
Chevrolet Small Block 400
