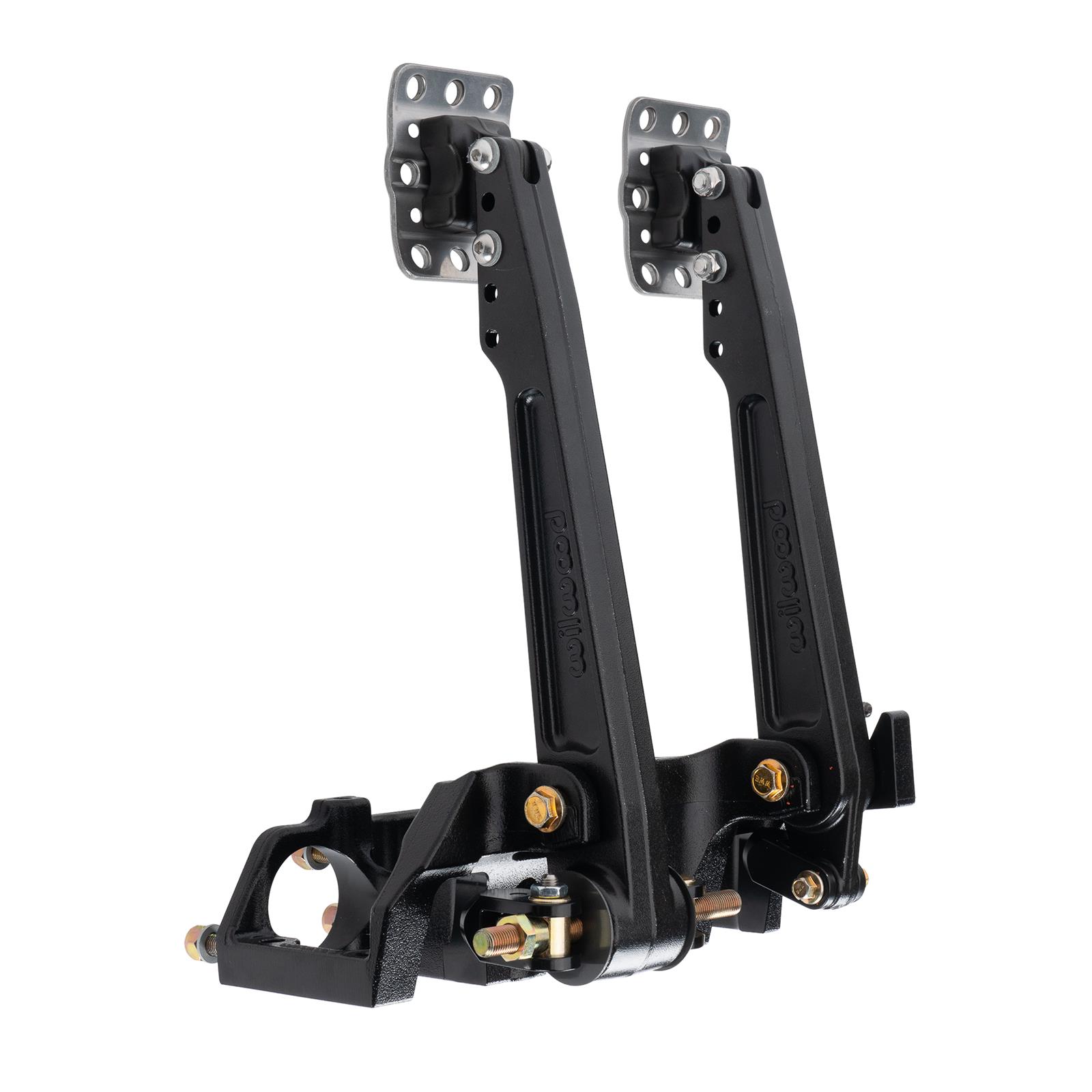

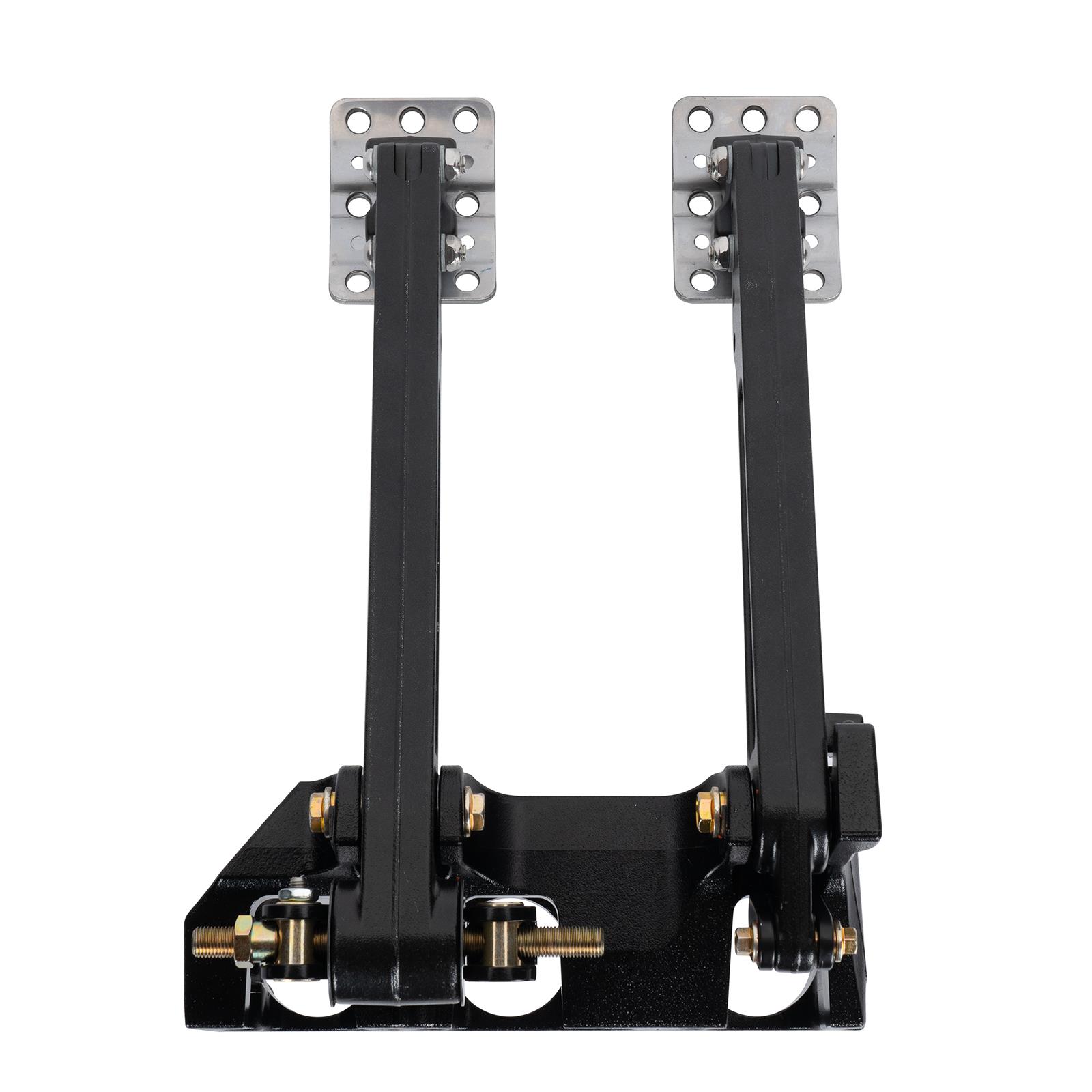

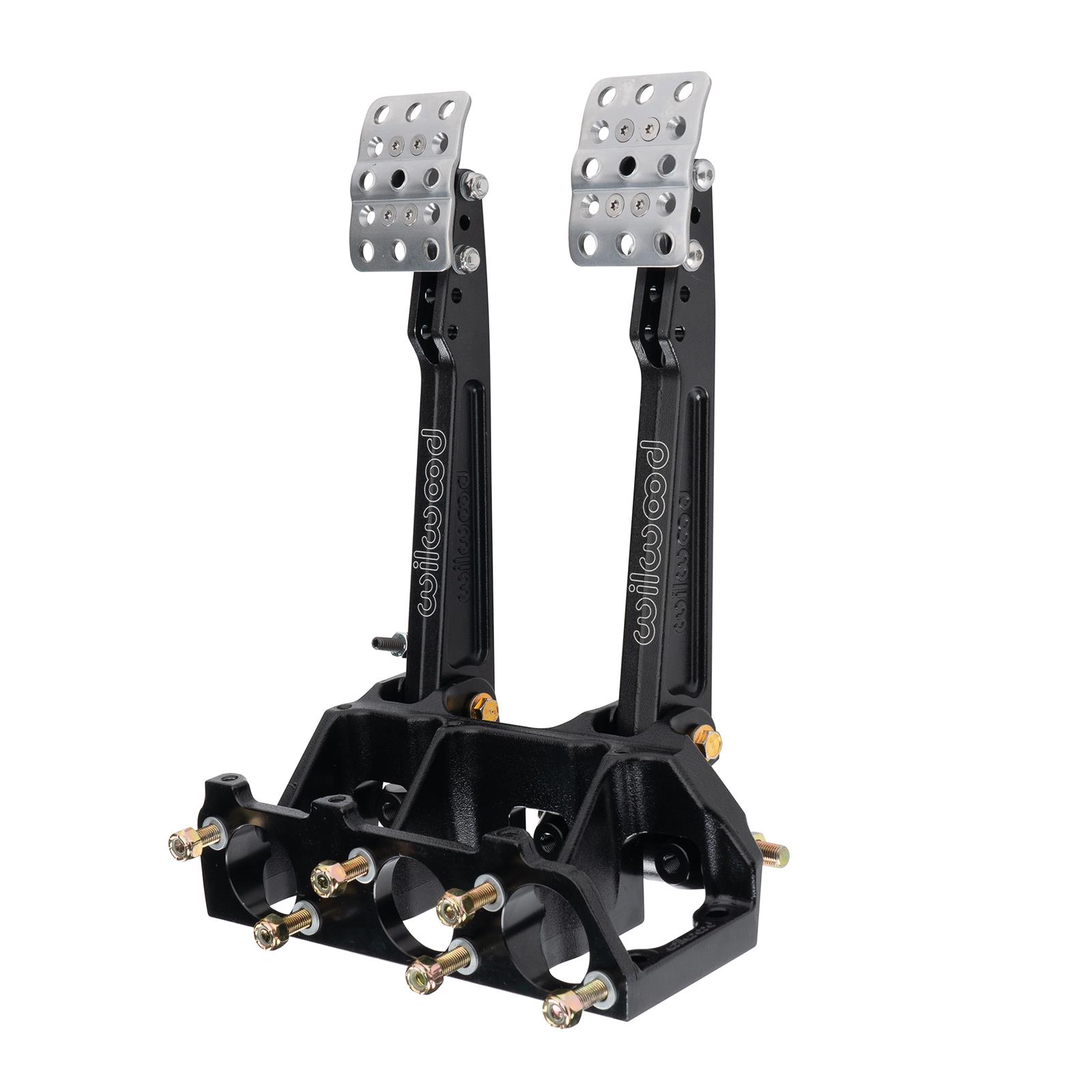

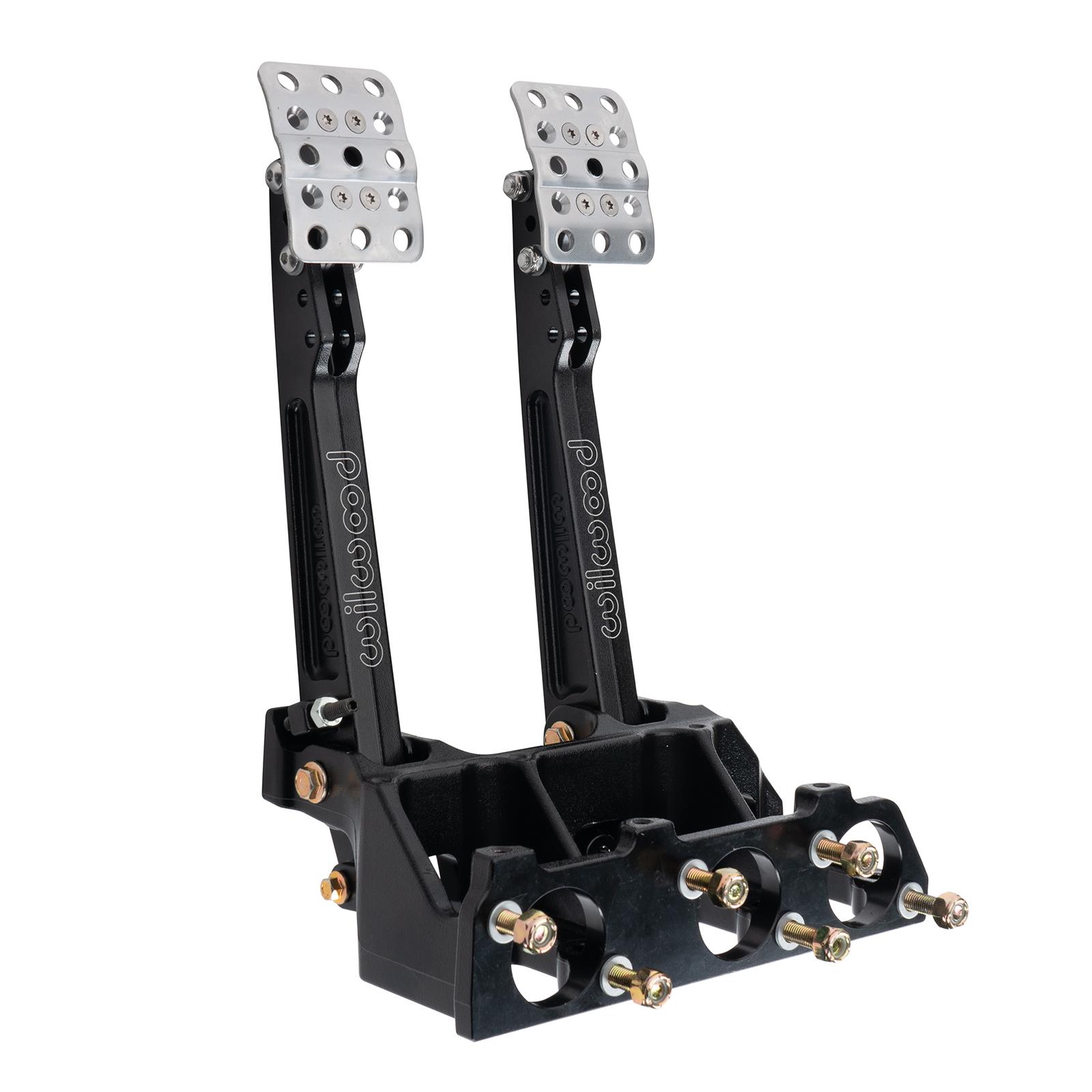

Wilwood Reverse Swing Triple Master Cylinder Pedal w/Balance Bar

SKU: WIL340-17803

Pedal Assemblies

WIL Brake and Clutch Pedals...

Special Order. Contact for ETA. This item is out of stock in our warehouse and partner distribution centres. In some cases, this may be due to not having live inventory feeds available for all suppliers. Please contact us before ordering if you need to meet a specific deadline.

We accept

Description

Wilwood has engineered two reverse floor-mount brake pedal assemblies, one with a standard bias adjuster balance bar and the other with a precision Tru-Bar. Both models incorporate an adjustable clutch pedal assembly.

Wilwood floor-mount 2-pedal assemblies feature lightweight aluminum frames with high-strength reinforced I-beam style forged pedal arms and stainless steel foot pedal pads. The pedal heads adjust vertically to fine-tune the pedal ratio (5.25:1 to 6.00:1) for more feel or less pedal effort. The non-skid waffled pedal pads can be laterally adjusted for driver preference. A clutch and two brake master cylinders (sold separately) mount to the assemblies with the adjustable balance bar or the friction-free, trunnion-based adjustable Tru-Bar balance bar, providing front-to-rear brake bias fine tuning. Both the balance bar and Tru-Bar incorporate a positive detent stop every full turn to maintain adjustment position and can be locked in place with the included jam nut, or used with an optional remote knob for quick on-track adjustments. Select the Wilwood 2-pedal assembly with the brake pedal option desired.

Key features and notes:

* Adjustable pedal ratio
* Adjustable foot pads
* Forged aluminum pedal arms
* Adjustable clutch stop
* Wilwood's own black e-coat finish
* Triple high-strength steel master cylinder mounts
-- Traditional flange mounts at a 45-degree angle
-- Accommodates three Wilwood compact remote master cylinders (sold separately)
* Balance bar utilizes a pin and clevis pushrod attachment system
-- Ensures the smallest possible misalignment angle for bind-free operation through the entire range of travel
* Tru-Bar pedals utilize a fixed trunnion bearing in the pedal arm with spherical rod-end bearing pushrod attachments
-- Reduces compliance and friction for more accurate brake feel
-- Pedals utilize the same chassis and master cylinder mounting as Wilwood balance bar-style pedals

Part Type

Pedal Assemblies

Data: v4.2 - Upd: 2026-10-15 05:06:58

Specifications

Product Attributes - Brand: Wilwood Disc Brakes
Product Attributes - Manufacturer's Part Number: 340-17803
Product Attributes - Part Type: Pedal Assemblies
Product Attributes - Product Line: Wilwood Floor-Mount 2-Pedal Assemblies
Product Attributes - UPC: 889545118384
Product Attributes - Pedal Type: Brake/Clutch
Product Attributes - Pedal Mounting Location: Floor mount
Product Attributes - Pedal Pad Included: Yes
Product Attributes - Master Cylinder Included: No
Product Attributes - Brake Booster Included: No
Product Attributes - Throttle Cable Included: No
Product Attributes - Pedal Material: Aluminum
Product Attributes - Pedal Pad Attachment: Bolt-on
Product Attributes - Pedal Pad Material: Aluminum
Product Attributes - Pedal Pad Color: Natural
Product Attributes - Pedal Color: Black
Product Attributes - Brake Pedal Shape: Rectangle
Product Attributes - Clutch Pedal Shape: Rectangle
Product Attributes - Pedal Ratio: 5.25:1 to 6.0:1
Product Attributes - Balance Bar Included: Yes
Product Attributes - Quantity: Sold individually.
Product Attributes - Notes: This pedal accepts three Wilwood 2.25 in. vertical mount flange, remote inlet, single outlet master cylinders.
