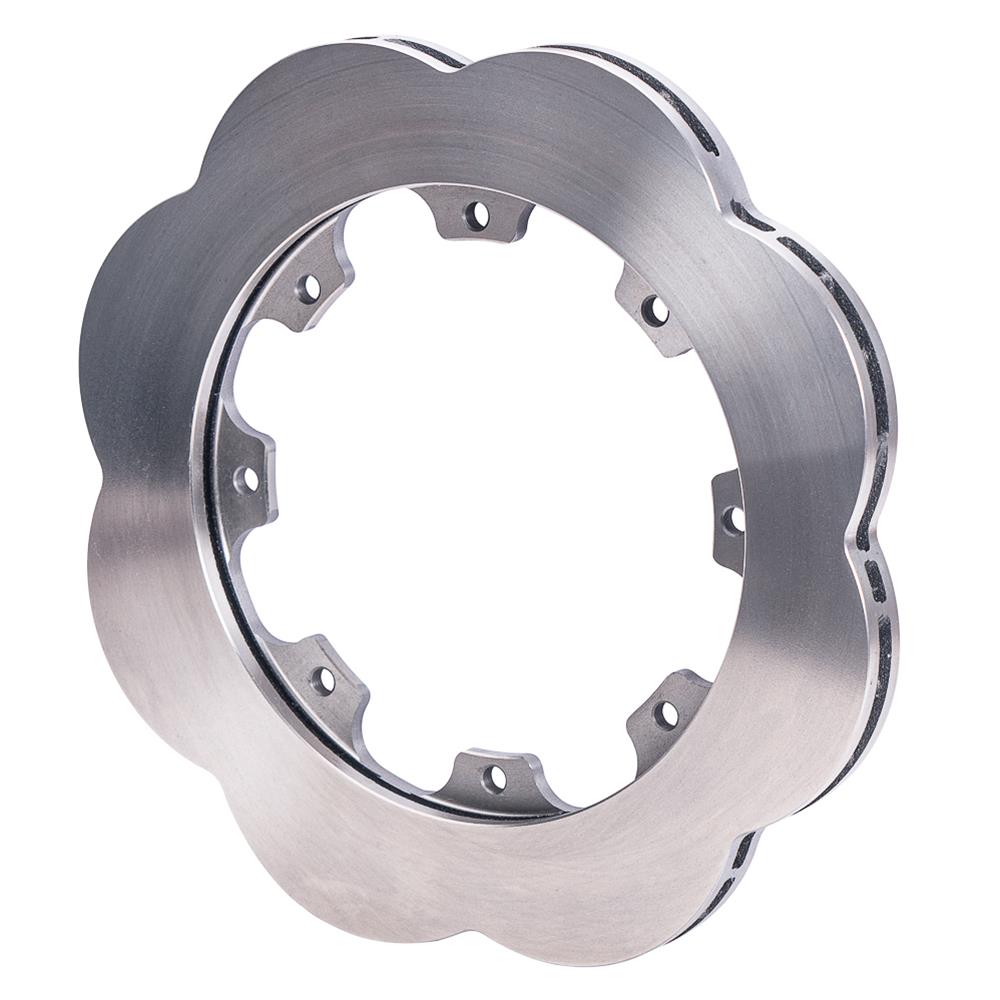

Wilwood HD 36 Curved Vane Scalloped Rotors 160-16869 ROTOR1175-081AT638-000SCEXXXXR

SKU: WIL160-16869

Brake Rotors

Wilwood HD 36 Curved Vane Scalloped Rotors 160-16869 ROTOR1175-081AT638-000SCEXXXXR

SKU: WIL160-16869

Brake Rotors

Available from MFR. This item is available from the manufacturer's distribution centre. The dispatch timeframe shown is an estimate based on historical order processing and release times for this part. This item is not held in our own warehouse, and actual dispatch timing may vary depending on manufacturer workload and logistics at the time of ordering.

We accept

Description

Wilwood HD 36 Scalloped Curved Vane Spec 37 rotors are manufactured from a proprietary iron alloy developed to withstand extreme temperatures with the highest possible degree of resistance against distortion, warping, cracking, and wear. The formulation for this alloy is a derivative of technology and materials that were significant in the development of Wilwood's extreme-duty military-spec rotors. The HD Series rotors include full detail machining and smooth pad contact faces without slots. They are available for right and left sides. Select the one(s) needed.

Features:

* Each rotor weighs only 8 lbs.
* Spec37 iron alloy originally developed for severe duty in armored vehicles
* Produces high friction and withstands high temperatures while maintaining structural integrity
* Vented with 36 directional vanes to pump air through the rotor and reduce temperatures
* Full detail machining for smooth pad contact faces with the highest resistance to warping, cracking, and wear

Part Type

Rotor 11.75in Dia x .810in Right Spec 37

Data: v4.2 - Upd: 2026-10-17 19:05:56

Specifications

Product Attributes - Brand: Wilwood Disc Brakes
Product Attributes - Manufacturer's Part Number: 160-16869
Product Attributes - Part Type: Brake Rotors
Product Attributes - Product Line: Wilwood HD 36 Curved Vane Scalloped Rotors
Product Attributes - UPC: 889545106138
Product Attributes - Intended for Street Use: No
Product Attributes - For Use with Stock Calipers: No
Product Attributes - Rotor Construction: Vented
Product Attributes - Rotor Style: Solid surface
Product Attributes - Rotor Outside Diameter (in.): 11.75 in.
Product Attributes - Brake Rotor Bolt Pattern (in.): 8 x 7.00 in.
Product Attributes - Brake Rotor Bolt Pattern (mm): 8 x 177.80mm
Product Attributes - Nominal Thickness (in.): 0.810
Product Attributes - Rotor Material: Iron
Product Attributes - Rotor Finish: Natural
Product Attributes - Quantity: Sold individually.
Product Attributes - Notes: Right hand side rotor.

Reference Information

Brand Name/s	Wilwood
StreetFX SKU	wil160-16869
SFX Item ID	4779801
Supplier Item Code	4779801
Manufacturer SKU	160-16869
Manufacturer UPC	889545106138
Alternative References	ROTOR1175-081AT638-000SCEXXXXR
