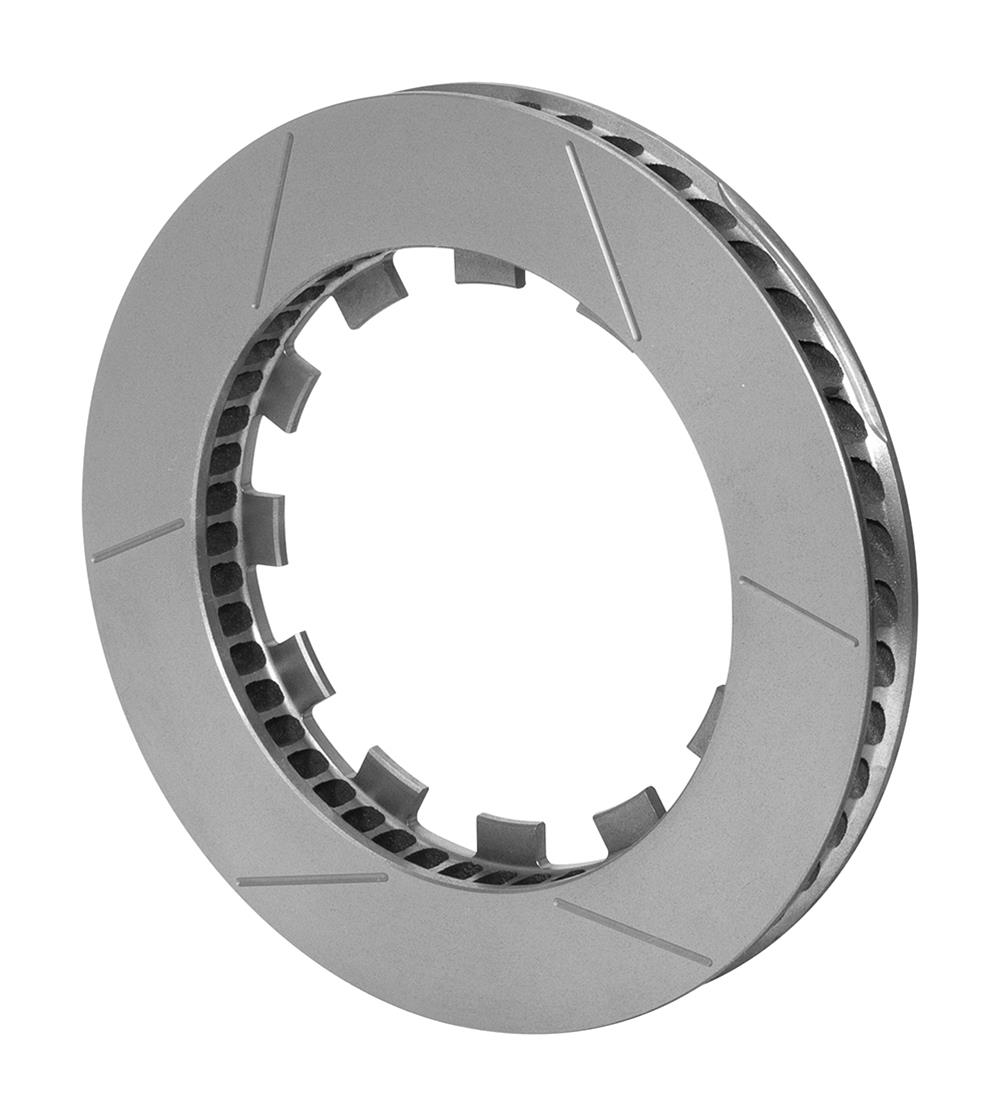

Wilwood GT 48 Series Curved Vane Rotors 160-15562-B Brake Rotor, Series, Slotted Surface, Carbon Iron, Natural, Driver Side, Each
Wilwood GT 48 Series Curved Vane Rotors 160-15562-B Brake Rotor, Series, Slotted Surface, Carbon Iron, Natural, Driver Side, Each
A$605.25
Available from MFR.
This item is available from the manufacturer's distribution centre. The dispatch timeframe shown is an estimate based on historical order processing and release times for this part. This item is not held in our own warehouse, and actual dispatch timing may vary depending on manufacturer workload and logistics at the time of ordering.
We accept
Description
Wilwood’s GT 48 Curved Vane Spec-37 Dynamic Lug Mount Rotors are manufactured from a proprietary iron alloy developed to withstand extreme temperatures with the highest possible degree of resistance against distortion, warping, cracking, and wear. The formulation for this alloy is a derivative of technology and materials that were significant in the development of the extreme duty military spec rotors that are manufactured by Wilwood. Combined with our proven GT Series asymmetrical face slot pattern, individual dynamic balancing and dynamic lug mounting you are assured the smoothest, vibration free performance at any speed. These rotors provide the highest cooling capacity and longest service life for extreme braking short tracks and road course competition.
Part Type
Brake Rotors
Specifications
- Product Attributes - Brand
- Wilwood Disc Brakes
- Product Attributes - Manufacturer's Part Number
- 160-15562-B
- Product Attributes - Part Type
- Brake Rotors
- Product Attributes - Product Line
- Wilwood GT 48 Series Curved Vane Rotors
- Product Attributes - UPC
- 889545089561
- Product Attributes - Intended for Street Use
- No
- Product Attributes - For Use with Stock Calipers
- No
- Product Attributes - Rotor Construction
- Vented
- Product Attributes - Rotor Style
- Slotted surface
- Product Attributes - Rotor Outside Diameter (in.)
- 12.19 in.
- Product Attributes - Brake Rotor Bolt Pattern (in.)
- 12 x 7.77 in.
- Product Attributes - Brake Rotor Bolt Pattern (mm)
- 12 x 197.36mm
- Product Attributes - Nominal Thickness (in.)
- 1.250
- Product Attributes - Nominal Thickness (mm)
- 31.75
- Product Attributes - Rotor Material
- Iron
- Product Attributes - Rotor Finish
- Natural
- Product Attributes - Quantity
- Sold individually.
- Product Attributes - Notes
- Has a 12 x 7.77 in. rotor bolt circle.
Reference Information
| Brand Name/s | Wilwood |
|---|---|
| StreetFX SKU | wil160-15562-B |
| SFX Item ID | 4780604 |
| Supplier Item Code | 4780604 |
| Manufacturer SKU | 160-15562-B |
| Manufacturer UPC | 889545089561 |
