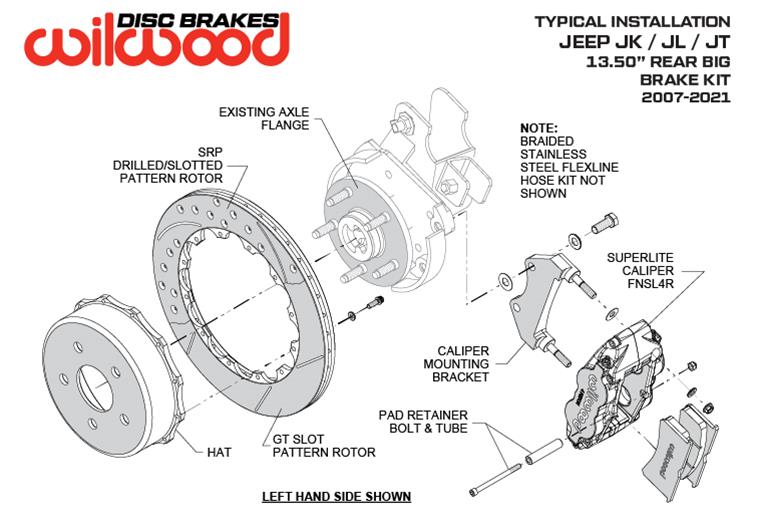

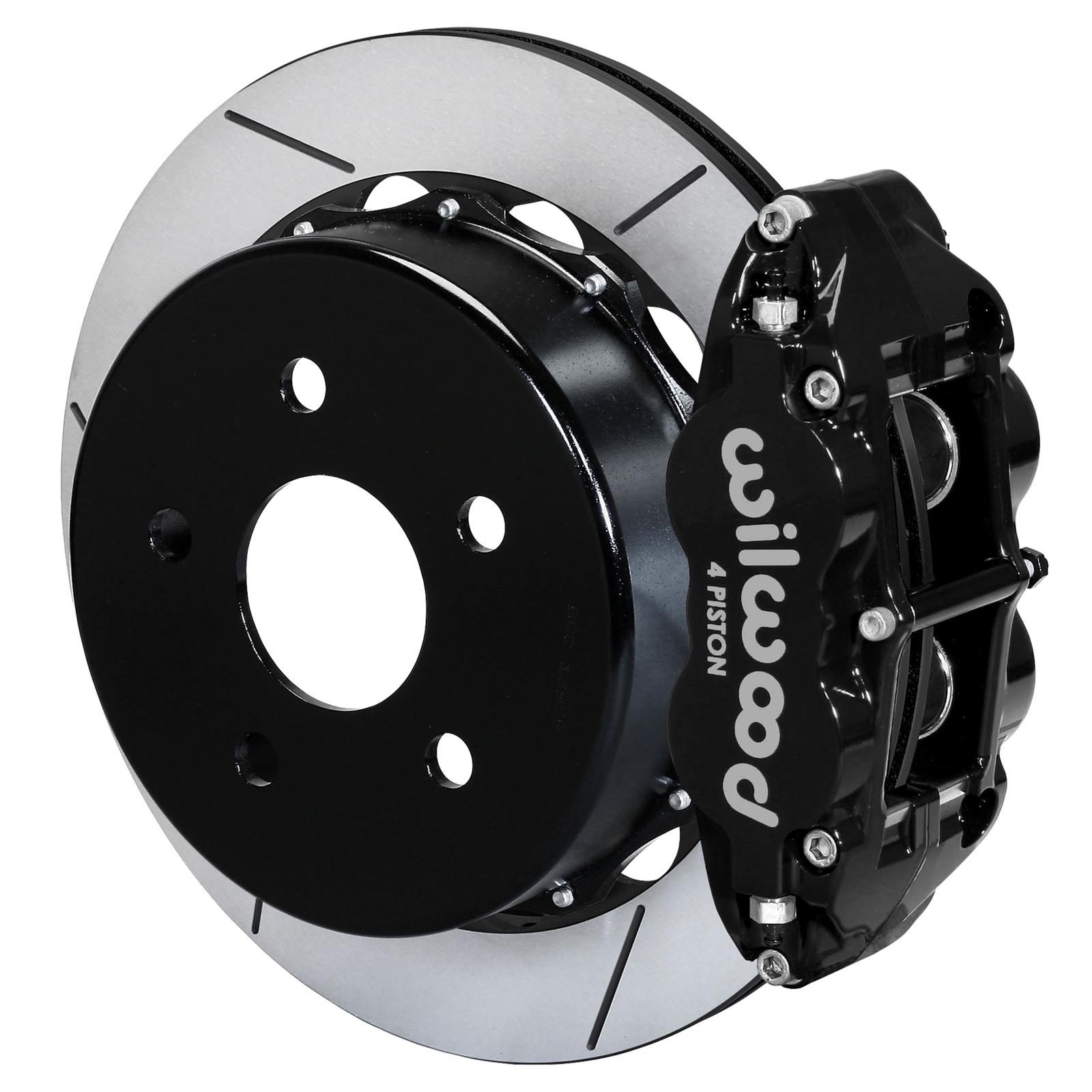

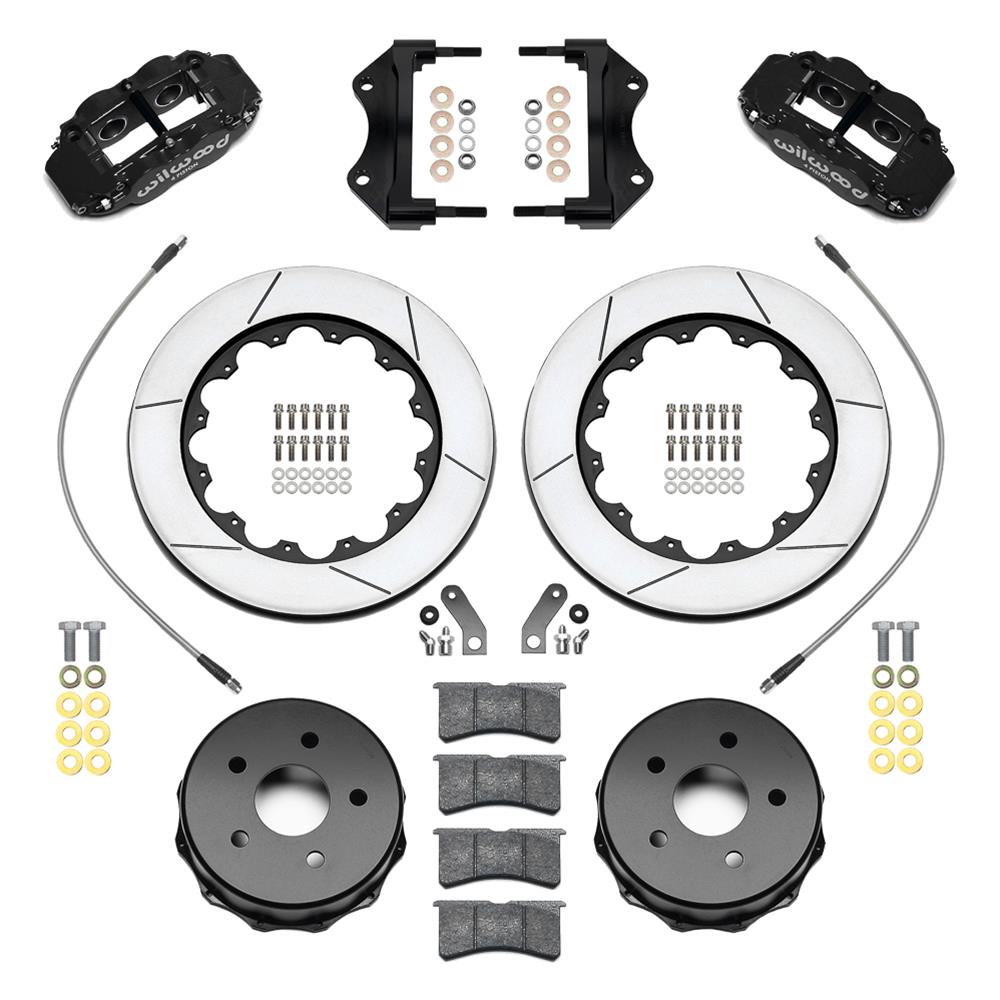

Wilwood 18-21 Jeep Wrangler Narrow Superlite 4R Rear Brake Kit Slotted 13.50in Rotor w/Lines - Black
Wilwood 18-21 Jeep Wrangler Narrow Superlite 4R Rear Brake Kit Slotted 13.50in Rotor w/Lines - Black
A$4,447.38
Special Order. Contact for ETA.
This item is out of stock in our warehouse and partner distribution centres. In some cases, this may be due to not having live inventory feeds available for all suppliers. Please contact us before ordering if you need to meet a specific deadline.
We accept
Description
Wilwood Forged Narrow Superlite 4R Big Brake rear brake kits are the engineered match for the AERO6R/ST front race kits on vehicles intended for unrestricted road race competition. All emphasis is on matched front to rear balance, high durability, and high-efficiency heat management, without adding unnecessary rotating or unsprung weight to the driveline and rear suspension. Wilwood Forged Narrow Superlite 4R Big Brake rear brake kits are championship-proven systems.
Features and benefits:
* FNSL4R/ST calipers use a forged aluminum body and feature a Type III Mil-Spec, medium gray color hard anodized finish that provides superior wear resistance in the piston bores, and high resistance to abrasion and corrosion throughout
* Thermlock pistons are used to reduce heat transfer from the pads to increase fade resistance, and extend service life by decreasing temperatures in the caliper body, fluid, and seals
* Internal damper springs and controlled retraction, high-temperature piston seals assure consistent pedal height from start to finish
* Caliper piston volumes are matched for full compatibility with the OE master cylinder output and ABS controls
* Calipers are also fully compatible with manual brake conversions to balance bar pedals using appropriately sized master cylinders.
* Spec 37 alloy GT Series directional vane 13 in. rotors are dynamically mounted using Wilwood Dynamic Lug Mounting system to forged aluminum hats
* Hats are hard anodized for superior wear resistance and extended service life at the load bearing surfaces
* Mounting brackets include all premium grade fasteners and secure the calipers to the uprights in the stock location with no modifications required
* High-temperature, high-friction, race compound pads selected specifically by application
Part Type
Disc Brake Kits
Specifications
- Product Attributes - Brand
- Wilwood Disc Brakes
- Product Attributes - Manufacturer's Part Number
- 140-18075
- Product Attributes - Part Type
- Disc Brake Kits
- Product Attributes - Product Line
- Wilwood Forged Narrow Superlite 4R Big Brake Rear Brake Kits
- Product Attributes - UPC
- 889545123289
- Product Attributes - Position
- Rear
- Product Attributes - Disc Brake Kit Type
- Power assist
- Product Attributes - Front Rotor Included
- No
- Product Attributes - Brake Rotor Bolt Pattern (in.)
- 5 x 5.00 in.
- Product Attributes - Brake Rotor Bolt Pattern (mm)
- 5 x 127.00mm
- Product Attributes - Rear Rotor Included
- Yes
- Product Attributes - Rear Rotor Style
- Slotted surface
- Product Attributes - Rear Rotor Construction
- Vented
- Product Attributes - Rear Rotor Diameter
- 13.50 in./342.90mm
- Product Attributes - Rear Rotor Thickness (in.)
- 0.81
- Product Attributes - Front Caliper Included
- No
- Product Attributes - Rear Caliper Included
- Yes
- Product Attributes - Rear Caliper Piston Quantity
- Four
- Product Attributes - Rear Caliper Material
- Aluminum
- Product Attributes - Rear Caliper Color
- Black
- Product Attributes - Brake Pads Included
- Yes
- Product Attributes - Friction Material Name
- BP-20
- Product Attributes - Parking Brake Provision
- No
- Product Attributes - Minimum Recommended Wheel Diameter (in.)
- 18 in.
- Product Attributes - Offset (in.)
- 0.000 in.
- Product Attributes - Front Spindles Included
- No
- Product Attributes - Master Cylinder Included
- No
- Product Attributes - Brake Booster Included
- No
- Product Attributes - Remanufactured
- No
- Product Attributes - Brake Hoses Included
- Yes
- Product Attributes - Quantity
- Sold as a kit.
- Product Attributes - Notes
- Radial mount calipers. Intended for use with OE parking brake.
Reference Information
| Brand Name/s | Wilwood |
|---|---|
| StreetFX SKU | wil140-18075 |
| SFX Item ID | 4409991 |
| Supplier Item Code | 4409991 |
| Manufacturer SKU | 140-18075 |
| Manufacturer UPC | 889545123289 |
| Alternative References | 13.50in |
