Wilwood 88-98 GM C1500 Rear Electronic Parking Brake Kit Red 12.19in SRP Rotor 3.25in Offset
Wilwood 88-98 GM C1500 Rear Electronic Parking Brake Kit Red 12.19in SRP Rotor 3.25in Offset
A$4,957.66
Available from MFR.
This item is available from the manufacturer's distribution centre. The dispatch timeframe shown is an estimate based on historical order processing and release times for this part. This item is not held in our own warehouse, and actual dispatch timing may vary depending on manufacturer workload and logistics at the time of ordering.
We accept
Description

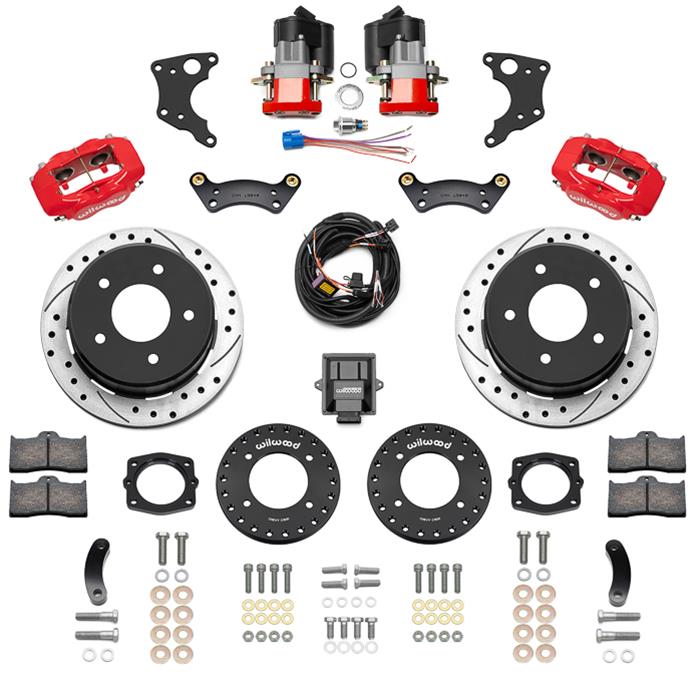

Wilwood Forged Dynalite rear electronic parking brake kits provide a complete solution for popular muscle car rear axles that require a parking brake. Forged Billet Dynalite 4-piston calipers, 12.19 in. one-piece rotors, and high friction pads provide optimized and balanced braking for all types of custom performance street/strip and show machines. The unique electronic parking brake caliper provides high-torque static holding power for parking without mechanical cabling. Supplied with a control unit and harness assembly, it simplifies installation and use. Optional caliper finishes and rotor designs enable builders to personalize the style and optimize brake performance for every individual application.
Part Type
Disc Brake Kits
Specifications
- Product Attributes - Brand
- Wilwood Disc Brakes
- Product Attributes - Manufacturer's Part Number
- 140-18043-DR
- Product Attributes - Part Type
- Disc Brake Kits
- Product Attributes - Product Line
- Wilwood Forged Dynalite Rear Electronic Parking Brake Kits
- Product Attributes - UPC
- 889545122817
- Product Attributes - Position
- Rear
- Product Attributes - Front Rotor Included
- No
- Product Attributes - Brake Rotor Bolt Pattern (in.)
- 5 x 5.00 in.
- Product Attributes - Brake Rotor Bolt Pattern (mm)
- 5 x 127.00mm
- Product Attributes - Rear Rotor Included
- Yes
- Product Attributes - Rear Rotor Style
- Cross-drilled/Slotted surface
- Product Attributes - Rear Rotor Construction
- Vented
- Product Attributes - Rear Rotor Diameter
- 12.19 in./309.50mm
- Product Attributes - Rear Rotor Thickness (in.)
- 0.81
- Product Attributes - Front Caliper Included
- No
- Product Attributes - Rear Caliper Included
- Yes
- Product Attributes - Rear Caliper Piston Quantity
- Four
- Product Attributes - Rear Caliper Material
- Forged billet aluminum
- Product Attributes - Rear Caliper Color
- Red
- Product Attributes - Brake Pads Included
- Yes
- Product Attributes - Friction Material Name
- BP-10
- Product Attributes - Parking Brake Provision
- Yes
- Product Attributes - Parking Brake Style
- Electric caliper
- Product Attributes - Minimum Recommended Wheel Diameter (in.)
- 15 in.
- Product Attributes - Offset (in.)
- 3.250 in.
- Product Attributes - Front Spindles Included
- No
- Product Attributes - Master Cylinder Included
- No
- Product Attributes - Brake Booster Included
- No
- Product Attributes - Remanufactured
- No
- Product Attributes - Brake Hoses Included
- No
- Product Attributes - Quantity
- Sold as a kit.
Reference Information
| Brand Name/s | Wilwood |
|---|---|
| StreetFX SKU | wil140-18043-DR |
| SFX Item ID | 4410028 |
| Supplier Item Code | 4410028 |
| Manufacturer SKU | 140-18043-DR |
| Manufacturer UPC | 889545122817 |
| Alternative References | C1500, 12.19in, 3.25in |
