Wilwood Forged Dynalite Front Race BBK Kit - Anodize Caliper - 11.75in GT Slotted Rotor 16+ Miata
Wilwood Forged Dynalite Front Race BBK Kit - Anodize Caliper - 11.75in GT Slotted Rotor 16+ Miata
A$3,680.84
Available from MFR.
This item is available from the manufacturer's distribution centre. The dispatch timeframe shown is an estimate based on historical order processing and release times for this part. This item is not held in our own warehouse, and actual dispatch timing may vary depending on manufacturer workload and logistics at the time of ordering.
We accept
Description

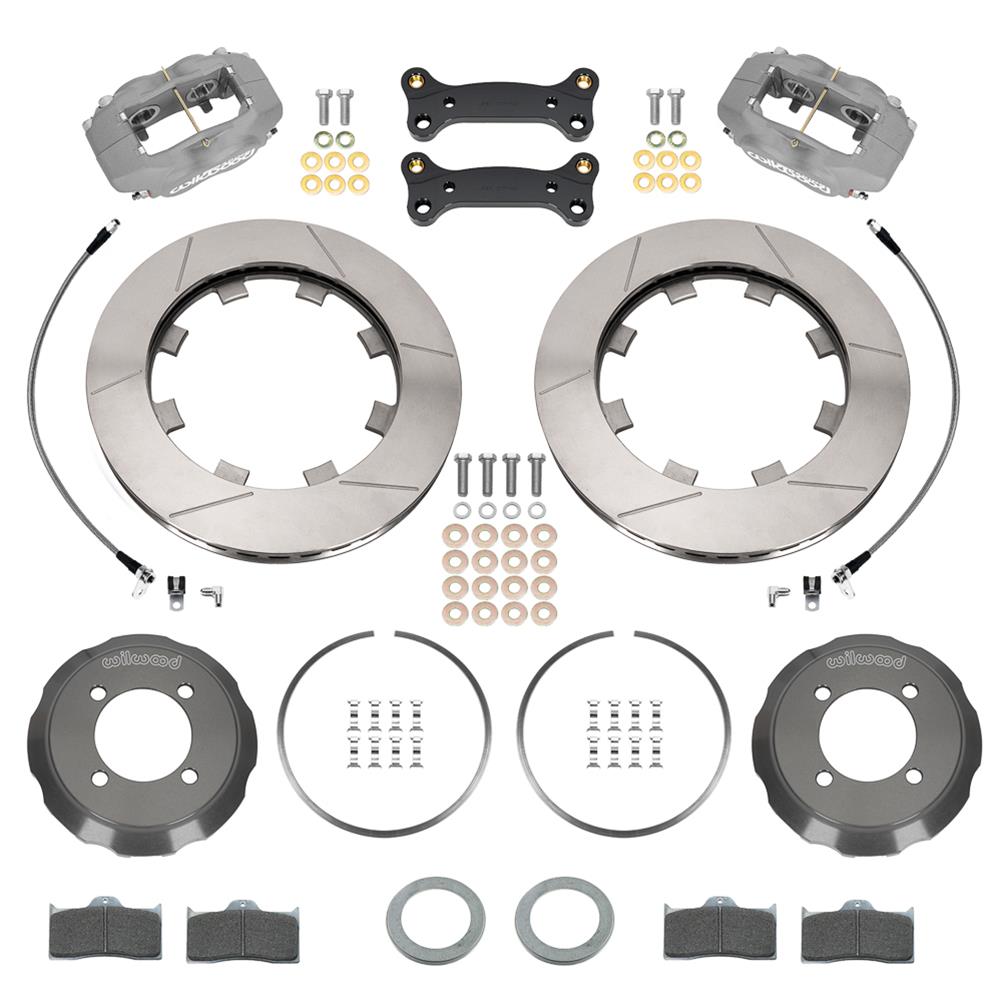

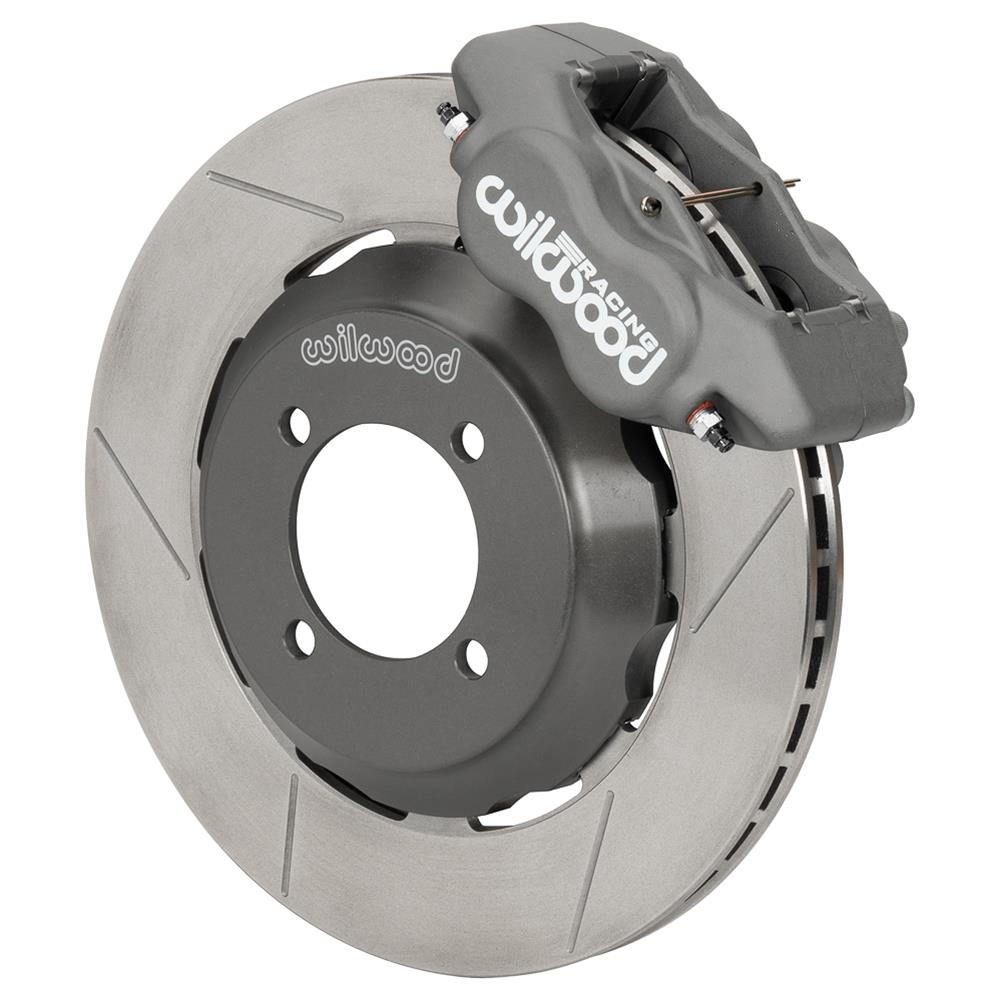

Wilwood's forged DynaPro Big Brake front brake kit (140-14316) is configured for dedicated road racing vehicles such as the Mazda MX-5 Miata and Fiat 124 Spider. It requires 15 in. wheels designed with additional inside clearance to accommodate the larger-than-stock brake package. The 4-piston DP/ST calipers used in this kit feature a forged aluminum body with a Type III Mil-Spec hard anodized, medium gray color finish. Hard anodizing provides superior wear resistance in the piston bores, and high resistance to abrasion and corrosion throughout. Thermlock pistons are used to reduce heat transfer from the pads to increase fade resistance, and to extend service life by decreasing temperatures in the caliper body, fluid, and seals. Internal damper springs and controlled retraction, high-temperature piston seals assure consistent pedal height from start to finish.
Caliper piston volumes are sized for compatibility with OE power brake boosters and master cylinders—and are easily configured with manual brake conversions and balance bar pedals using appropriately sized master cylinders. Spec37 alloy, GT competition series 11.00 in. diameter 72 vane rotors are mounted to either the OE hubs or Wilwood racing ProHubs, with weight-saving forged aluminum hats. Unsprung and rotating weight are minimized while providing high cooling efficiency and rugged durability with thermal stability in sustained high-heat competition. Mounting brackets, including all premium-grade fasteners, secure the calipers in the stock location, without modifications. This race-winning system is completed with high-temperature, high-friction, endurance compound race pads selected specifically by application. Stainless steel braided flexlines are included in each kit to complete the installation.
Part Type
Disc Brake Kits
Specifications
- Product Attributes - Brand
- Wilwood Disc Brakes
- Product Attributes - Manufacturer's Part Number
- 140-17938
- Product Attributes - Part Type
- Disc Brake Kits
- Product Attributes - Product Line
- Wilwood Forged DynaPro Big Brake Front Brake Kits
- Product Attributes - UPC
- 889545120110
- Product Attributes - Position
- Front
- Product Attributes - Front Rotor Included
- Yes
- Product Attributes - Front Rotor Style
- Slotted surface
- Product Attributes - Front Rotor Construction
- Vented
- Product Attributes - Front Rotor Diameter
- 11.75 in./298.50mm
- Product Attributes - Front Rotor Thickness (in.)
- 0.81 in.
- Product Attributes - Brake Rotor Bolt Pattern (in.)
- 4 x 3.93 in.
- Product Attributes - Brake Rotor Bolt Pattern (mm)
- 4 x 100.00mm
- Product Attributes - Rear Rotor Included
- No
- Product Attributes - Front Caliper Included
- Yes
- Product Attributes - Front Caliper Piston Quantity
- Four
- Product Attributes - Front Caliper Material
- Forged billet aluminum
- Product Attributes - Front Caliper Color
- Gray/Silver
- Product Attributes - Rear Caliper Included
- No
- Product Attributes - Brake Pads Included
- Yes
- Product Attributes - Friction Material Name
- BP-35
- Product Attributes - Parking Brake Provision
- No
- Product Attributes - Minimum Recommended Wheel Diameter (in.)
- 15 in.
- Product Attributes - Front Spindles Included
- No
- Product Attributes - Master Cylinder Included
- No
- Product Attributes - Brake Booster Included
- No
- Product Attributes - Remanufactured
- No
- Product Attributes - Brake Hoses Included
- Yes
- Product Attributes - Quantity
- Sold as a kit.
- Product Attributes - Notes
- Road Race kits contain high temperature racing pads. Extended low temperature use will cause premature rotor and pad wear.
Reference Information
| Brand Name/s | Wilwood |
|---|---|
| StreetFX SKU | wil140-17938 |
| SFX Item ID | 4409964 |
| Supplier Item Code | 4409964 |
| Manufacturer SKU | 140-17938 |
| Manufacturer UPC | 889545120110 |
| Alternative References | 11.75in |
