Wilwood Aero4R/ST Front Big Brake Kit 14in Black Anodize 97-13 Chevrolet Corvette C5/C6

SKU: WIL140-16181

Disc Brake Kits

WIL Aero Brake Kit...

Wilwood

Wilwood Aero4R/ST Front Big Brake Kit 14in Black Anodize 97-13 Chevrolet Corvette C5/C6

SKU: WIL140-16181

Disc Brake Kits

WIL Aero Brake Kit...

Special Order. Contact for ETA. This item is out of stock in our warehouse and partner distribution centres. In some cases, this may be due to not having live inventory feeds available for all suppliers. Please contact us before ordering if you need to meet a specific deadline.

We accept

Description

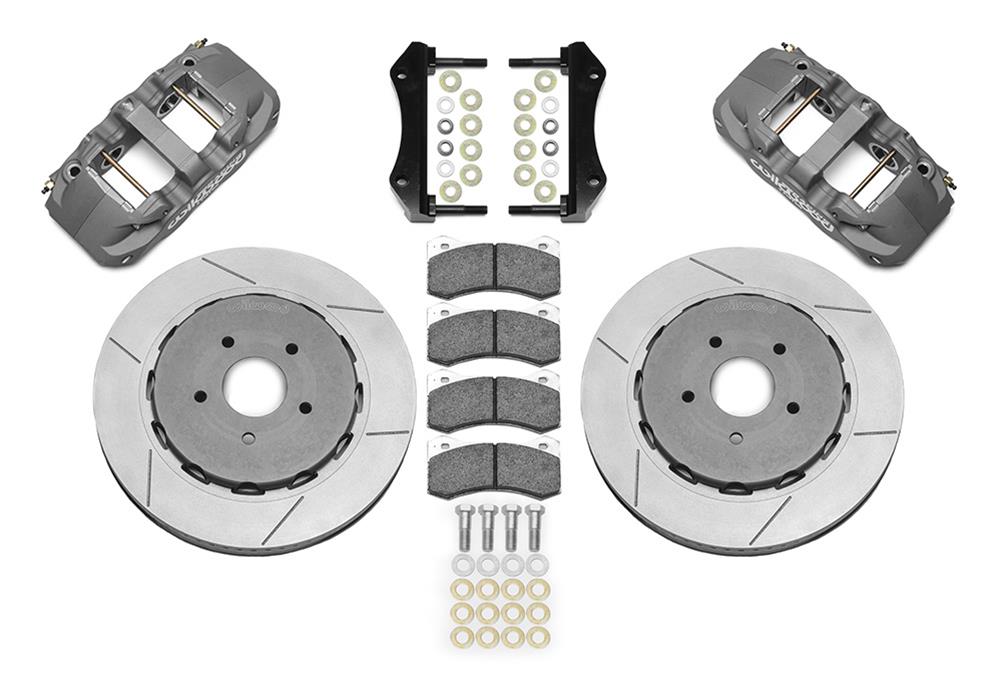

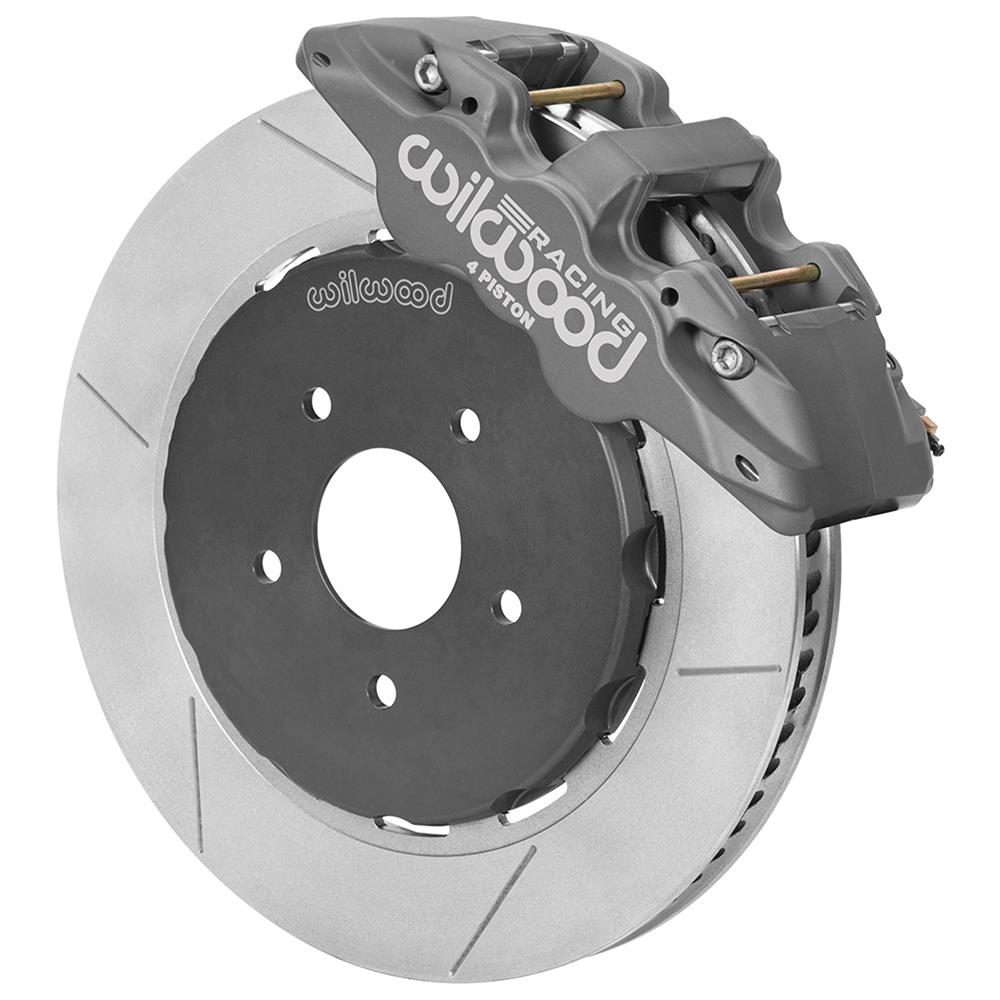

Wilwood AERO4 Racing Big Brake front brake kits enhance the performance of your OE production based road racing vehicle. These kits feature AERO4 forged aluminum and fixed mount ST Series calipers with Thermlock pistons that deliver heavy-duty stopping power in a tough hard anodized finish. Premium-grade GT Series Spec 37 alloy rotors, high performance pads, and precision-machined hats complete the list of these matched component kits. For a strong braking advantage over the competition, bolt on the optimum performance of a Wilwood AERO4 Racing Big Brake front brake kit.

Part Type

Disc Brake Kits

Data: v4.2 - Upd: 2026-10-13 21:11:30

Specifications

Product Attributes - Brand: Wilwood Disc Brakes
Product Attributes - Manufacturer's Part Number: 140-16181
Product Attributes - Part Type: Disc Brake Kits
Product Attributes - Product Line: Wilwood AERO4 Racing Big Brake Front Brake Kits
Product Attributes - UPC: 889545098273
Product Attributes - Position: Front
Product Attributes - Disc Brake Kit Type: Heavy-duty
Product Attributes - Front Rotor Included: Yes
Product Attributes - Front Rotor Style: Slotted surface
Product Attributes - Front Rotor Construction: Vented
Product Attributes - Front Rotor Diameter: 14.00 in./355.60mm
Product Attributes - Front Rotor Thickness (in.): 1.25 in.
Product Attributes - Brake Rotor Bolt Pattern (in.): 5 x 4.75 in.
Product Attributes - Brake Rotor Bolt Pattern (mm): 5 x 120.65mm
Product Attributes - Rear Rotor Included: No
Product Attributes - Front Caliper Included: Yes
Product Attributes - Front Caliper Piston Quantity: Four
Product Attributes - Front Caliper Material: Forged billet aluminum
Product Attributes - Front Caliper Color: Gray/Silver
Product Attributes - Rear Caliper Included: No
Product Attributes - Brake Pads Included: Yes
Product Attributes - Friction Material Name: BP-30
Product Attributes - Parking Brake Provision: No
Product Attributes - Front Spindles Included: No
Product Attributes - Master Cylinder Included: No
Product Attributes - Brake Booster Included: No
Product Attributes - Remanufactured: No
Product Attributes - Brake Hoses Included: No
Product Attributes - Quantity: Sold as a kit.

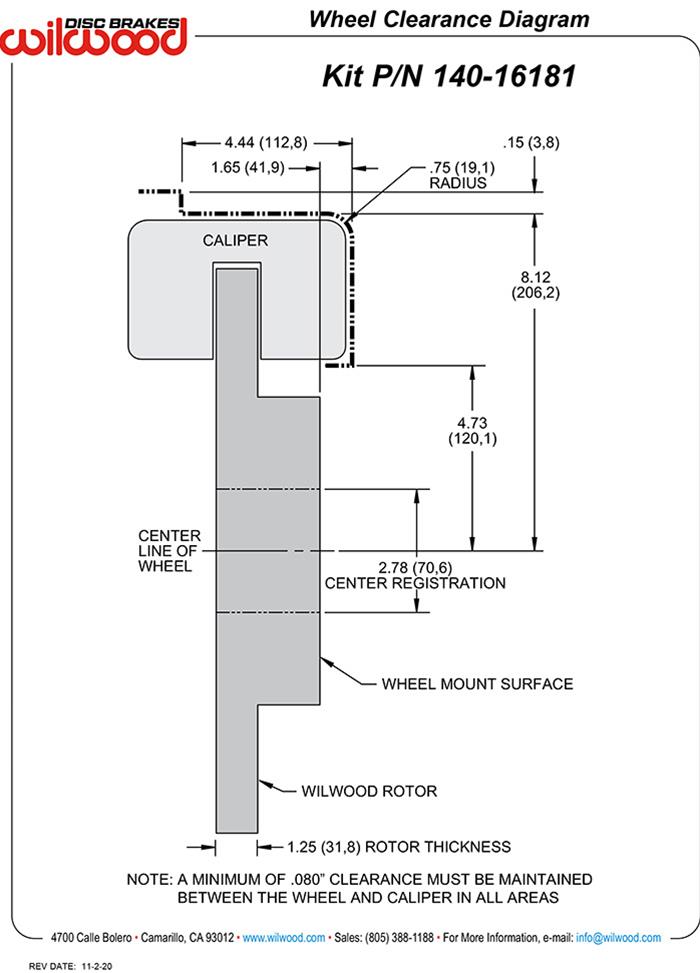

Product Attributes - Notes: Brake kits are designed to fit OE factory spindles. Wheel mounting pad must not be larger than 6 inches to fit into the inset area of the hat.

Reference Information

Brand Name/s	Wilwood
StreetFX SKU	wil140-16181
SFX Item ID	4408028
Supplier Item Code	4408028
Manufacturer SKU	140-16181
Manufacturer UPC	889545098273
Alternative References	Aero4R/ST, 14in, C5/C6

Compatibility

Application Data

Make	CHEVROLET
Model	CORVETTE
Submodel	427
Beginning Year	2013
Ending Year	2013
Engine Type	V8
Engine Size	7.0L/427
Engine Family	Chevy small block Gen III/IV (LS-based engines)
Drivetrain	RWD
Application Notes	Wheel mounting pad must not be larger than 6.00 in. to fit into inset area of this hat. Road Race kits contain high temperature racing pads. Extended low temperature use will cause premature rotor and pad wear. Check wheel clearance before installation.

Make	CHEVROLET
Model	CORVETTE
Submodel	50TH ANNIVERSARY EDITION
Beginning Year	2003
Ending Year	2003
Engine Type	V8
Engine Size	5.7L/350
Engine Family	Chevy small block Gen III/IV (LS-based engines)
Drivetrain	RWD
Application Notes	Wheel mounting pad must not be larger than 6.00 in. to fit into inset area of this hat. Road Race kits contain high temperature racing pads. Extended low temperature use will cause premature rotor and pad wear. Check wheel clearance before installation.

Make	CHEVROLET
Model	CORVETTE
Submodel	50TH ANNIVERSARY EDITION PACE CAR
Beginning Year	2003
Ending Year	2003
Engine Type	V8
Engine Size	5.7L/350
Engine Family	Chevy small block Gen III/IV (LS-based engines)
Drivetrain	RWD
Application Notes	Wheel mounting pad must not be larger than 6.00 in. to fit into inset area of this hat. Road Race kits contain high temperature racing pads. Extended low temperature use will cause premature rotor and pad wear. Check wheel clearance before installation.

Make	CHEVROLET
Model	CORVETTE
Submodel	BASE
Beginning Year	1997
Ending Year	2004
Engine Type	V8
Engine Size	5.7L/350
Engine Family	Chevy small block Gen III/IV (LS-based engines)
Drivetrain	RWD
Application Notes	Wheel mounting pad must not be larger than 6.00 in. to fit into inset area of this hat. Road Race kits contain high temperature racing pads. Extended low temperature use will cause premature rotor and pad wear. Check wheel clearance before installation.

Make	CHEVROLET
Model	CORVETTE
Submodel	BASE
Beginning Year	2005
Ending Year	2007
Engine Type	V8
Engine Size	6.0L/364
Engine Family	Chevy small block Gen III/IV (LS-based engines)
Drivetrain	RWD
Application Notes	Wheel mounting pad must not be larger than 6.00 in. to fit into inset area of this hat. Road Race kits contain high temperature racing pads. Extended low temperature use will cause premature rotor and pad wear. Check wheel clearance before installation.

Make	CHEVROLET
Model	CORVETTE
Submodel	BASE
Beginning Year	2008
Ending Year	2013
Engine Type	V8
Engine Size	6.2L/376
Engine Family	Chevy small block Gen III/IV (LS-based engines)
Drivetrain	RWD
Application Notes	Wheel mounting pad must not be larger than 6.00 in. to fit into inset area of this hat. Road Race kits contain high temperature racing pads. Extended low temperature use will cause premature rotor and pad wear. Check wheel clearance before installation.

Make	CHEVROLET
Model	CORVETTE
Submodel	GRAND SPORT
Beginning Year	2010
Ending Year	2013
Engine Type	V8
Engine Size	6.2L/376
Engine Family	Chevy small block Gen III/IV (LS-based engines)
Drivetrain	RWD
Application Notes	Wheel mounting pad must not be larger than 6.00 in. to fit into inset area of this hat. Road Race kits contain high temperature racing pads. Extended low temperature use will cause premature rotor and pad wear. Check wheel clearance before installation.

Make	CHEVROLET
Model	CORVETTE
Submodel	INDIANAPOLIS 500 PACE CAR
Beginning Year	1998
Ending Year	1998
Engine Type	V8
Engine Size	5.7L/350
Engine Family	Chevy small block Gen III/IV (LS-based engines)
Drivetrain	RWD
Application Notes	Wheel mounting pad must not be larger than 6.00 in. to fit into inset area of this hat. Road Race kits contain high temperature racing pads. Extended low temperature use will cause premature rotor and pad wear. Check wheel clearance before installation.

Make	CHEVROLET
Model	CORVETTE
Submodel	Z06
Beginning Year	2001
Ending Year	2004
Engine Type	V8
Engine Size	5.7L/350
Engine Family	Chevy small block Gen III/IV (LS-based engines)
Drivetrain	RWD
Application Notes	Wheel mounting pad must not be larger than 6.00 in. to fit into inset area of this hat. Road Race kits contain high temperature racing pads. Extended low temperature use will cause premature rotor and pad wear. Check wheel clearance before installation.

Make	CHEVROLET
Model	CORVETTE
Submodel	Z06
Beginning Year	2006
Ending Year	2013
Engine Type	V8
Engine Size	7.0L/427
Engine Family	Chevy small block Gen III/IV (LS-based engines)
Drivetrain	RWD
Application Notes	Wheel mounting pad must not be larger than 6.00 in. to fit into inset area of this hat. Road Race kits contain high temperature racing pads. Extended low temperature use will cause premature rotor and pad wear. Check wheel clearance before installation.

Make	CHEVROLET
Model	CORVETTE
Submodel	Z06 CARBON
Beginning Year	2011
Ending Year	2011
Engine Type	V8
Engine Size	7.0L/427
Engine Family	Chevy small block Gen III/IV (LS-based engines)
Drivetrain	RWD
Application Notes	Wheel mounting pad must not be larger than 6.00 in. to fit into inset area of this hat. Road Race kits contain high temperature racing pads. Extended low temperature use will cause premature rotor and pad wear. Check wheel clearance before installation.

Make	CHEVROLET
Model	CORVETTE
Submodel	ZR1
Beginning Year	2009
Ending Year	2013
Engine Type	V8
Engine Size	6.2L/376
Engine Family	Chevy small block Gen III/IV (LS-based engines)
Drivetrain	RWD
Application Notes	Wheel mounting pad must not be larger than 6.00 in. to fit into inset area of this hat. Road Race kits contain high temperature racing pads. Extended low temperature use will cause premature rotor and pad wear. Check wheel clearance before installation.
