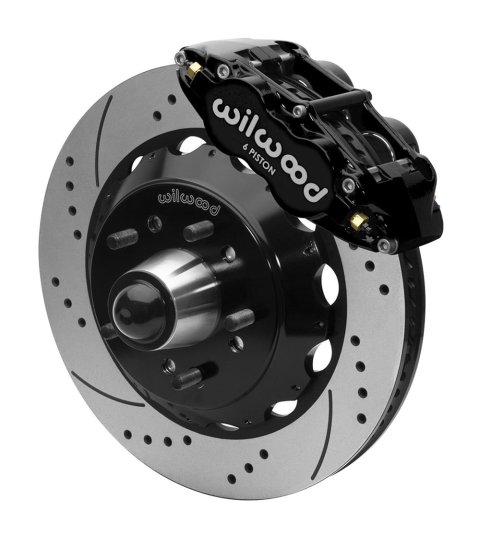

Wilwood 88-98 GMC C1500 Forged Narrow Superlite 6R Big Brake Front Brake Kit (Hub) - Black Powder
Wilwood 88-98 GMC C1500 Forged Narrow Superlite 6R Big Brake Front Brake Kit (Hub) - Black Powder
A$4,816.93
LAST ONE! Est Ship 3-5 days.
LAST ONE! This is the last unit at our distribution centre. Contact us if you need more. The ETA is the approximate time required to prepare your order for dispatch.
We accept
Description
Wilwood forged narrow Superlite 6R Big Brake front brake kits upgrade your late model ride with increased brake capacity and complimentary style. They're application-specific for a simpler installation and offer full compatibility with OE master cylinder output and ABS functions, where used. These front brake kits feature the extremely durable and efficient body design of their forged narrow 6-piston radial mount calipers. You can choose from optional caliper finishes and rotor designs to meet your personal style and braking requirements. Don't just replace—upgrade to generate big stopping power with Wilwood forged narrow Superlite 6R Big Brake front brake kits.
Part Type
Disc Brake Kits
Specifications
- Product Attributes - Brand
- Wilwood Disc Brakes
- Product Attributes - Manufacturer's Part Number
- 140-15950-D
- Product Attributes - Part Type
- Disc Brake Kits
- Product Attributes - Product Line
- Wilwood Forged Narrow Superlite 6R Big Brake Front Brake Kits
- Product Attributes - UPC
- 889545094442
- Product Attributes - Position
- Front
- Product Attributes - Front Rotor Included
- Yes
- Product Attributes - Front Rotor Style
- Cross-drilled/Slotted surface
- Product Attributes - Front Rotor Construction
- Vented
- Product Attributes - Front Rotor Diameter
- 14.00 in./355.60mm
- Product Attributes - Front Rotor Thickness (in.)
- 1.25 in.
- Product Attributes - Brake Rotor Bolt Pattern (in.)
- Dual 5 x 4.75 in./5 x 5.00 in.
- Product Attributes - Brake Rotor Bolt Pattern (mm)
- Dual 5 x 120.65mm/5 x 127.00mm
- Product Attributes - Rear Rotor Included
- No
- Product Attributes - Front Caliper Included
- Yes
- Product Attributes - Front Caliper Piston Quantity
- Six
- Product Attributes - Front Caliper Material
- Forged billet aluminum
- Product Attributes - Front Caliper Color
- Black
- Product Attributes - Rear Caliper Included
- No
- Product Attributes - Brake Pads Included
- Yes
- Product Attributes - Friction Material Name
- BP-20
- Product Attributes - Parking Brake Provision
- No
- Product Attributes - Front Spindles Included
- No
- Product Attributes - Master Cylinder Included
- No
- Product Attributes - Brake Booster Included
- No
- Product Attributes - Remanufactured
- No
- Product Attributes - Brake Hoses Included
- No
- Product Attributes - Quantity
- Sold as a kit.
- Product Attributes - Special Attention
- Brake kits require Wilwood ProSpindles,1-Piece Iron, Drop Spindles to fit. Please see the Required Parts tab.
Reference Information
| Brand Name/s | Wilwood |
|---|---|
| StreetFX SKU | wil140-15950-D |
| SFX Item ID | 4409871 |
| Supplier Item Code | 4409871 |
| Manufacturer SKU | 140-15950-D |
| Manufacturer UPC | 889545094442 |
| Alternative References | C1500 |
