Wilwood SX6R WCCB Carbon-Ceramic 2014-2019 C7 Corvette All Front Big Brake Kit - Red

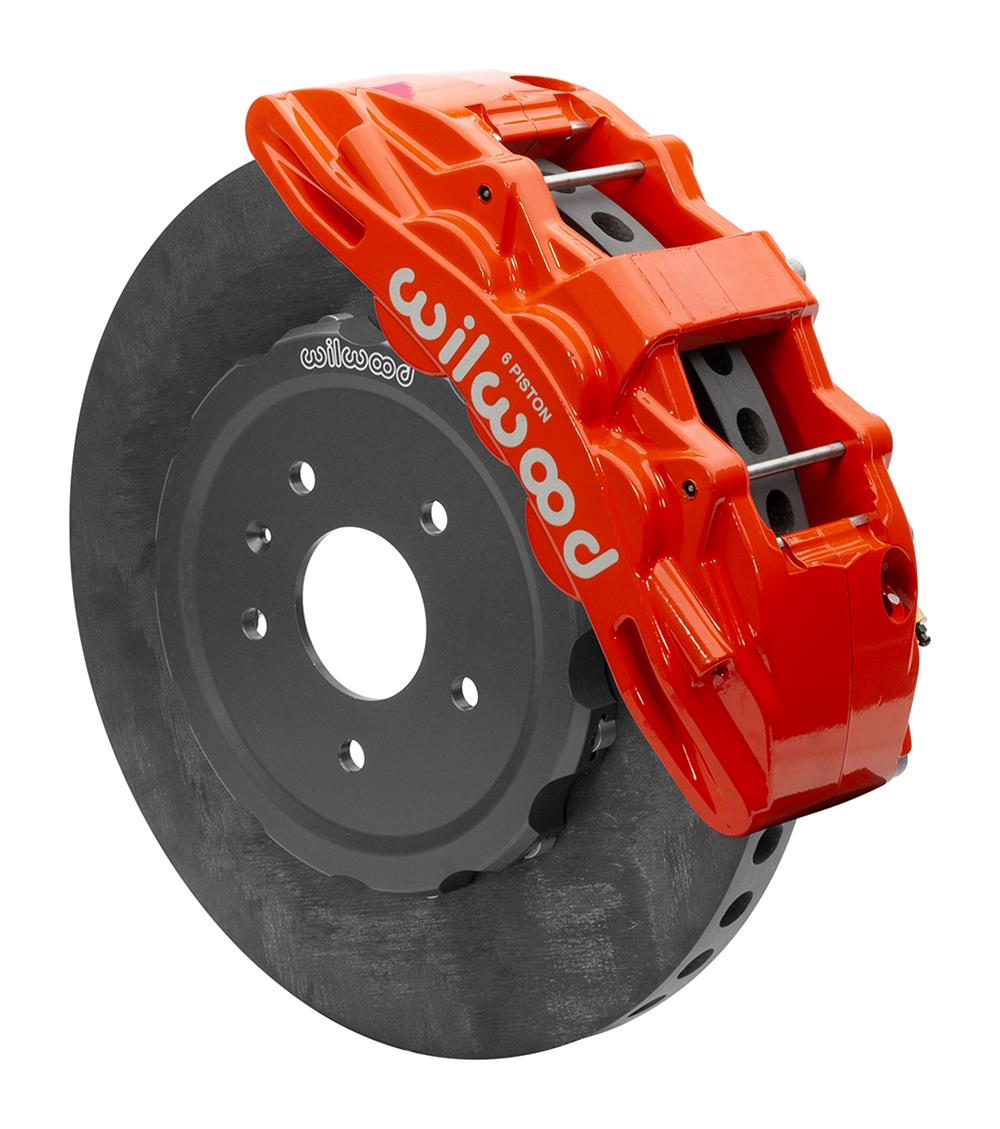

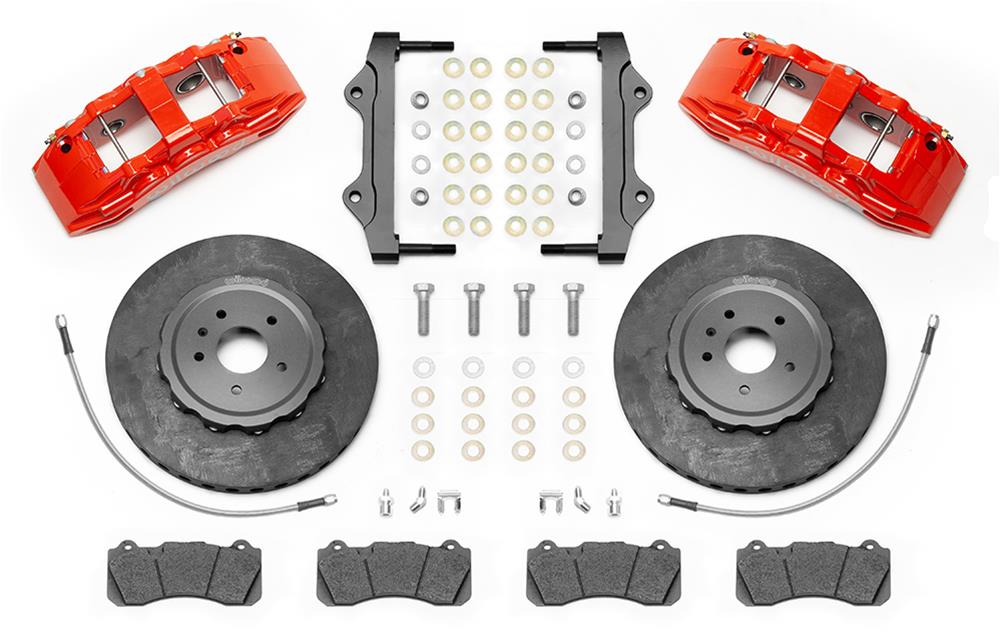

Wilwood SX6R WCCB Carbon-Ceramic 2014-2019 C7 Corvette All Front Big Brake Kit - Red
A$16,825.43
Special Order. Contact for ETA.
This item is out of stock in our warehouse and partner distribution centres. In some cases, this may be due to not having live inventory feeds available for all suppliers. Please contact us before ordering if you need to meet a specific deadline.
We accept
Description
Wilwood SX6R front brake kits deliver an extreme performance upgrade—featuring WCCB carbon-ceramic dynamic mount rotors with the exclusive Bobbin Mounting System. They're engineered to maximize braking capacity inside custom wheels. These Big Brake kits offer a simple bolt-on installation, with minor modifications required to the front spindle only, and are fully compatible with ABS and OE master cylinder output.
SX6R calipers were designed specifically to provide high-capacity braking with large diameter rotors for extreme-duty and race vehicles. It's the largest dual-purpose caliper Wilwood has produced, assuring big brake performance for street and track vehicles. Kits are available with caliper color options; check fitment on the Application tab.
Part Type
Disc Brake Kits
Specifications
- Product Attributes - Brand
- Wilwood Disc Brakes
- Product Attributes - Manufacturer's Part Number
- 140-15746-CSICR
- Product Attributes - Part Type
- Disc Brake Kits
- Product Attributes - Product Line
- Wilwood SX6R WCCB Carbon-Ceramic Big Brake Front Brake Kits
- Product Attributes - UPC
- 889545092059
- Product Attributes - Position
- Front
- Product Attributes - Front Rotor Included
- Yes
- Product Attributes - Front Rotor Style
- Solid surface
- Product Attributes - Front Rotor Construction
- Vented
- Product Attributes - Front Rotor Diameter
- 15.00 in./381.00mm
- Product Attributes - Front Rotor Thickness (in.)
- 1.25 in.
- Product Attributes - Brake Rotor Bolt Pattern (in.)
- 5 x 4.75 in.
- Product Attributes - Brake Rotor Bolt Pattern (mm)
- 5 x 120.65mm
- Product Attributes - Rear Rotor Included
- No
- Product Attributes - Front Caliper Included
- Yes
- Product Attributes - Front Caliper Piston Quantity
- Six
- Product Attributes - Front Caliper Material
- Forged billet aluminum
- Product Attributes - Front Caliper Color
- Red
- Product Attributes - Rear Caliper Included
- No
- Product Attributes - Brake Pads Included
- Yes
- Product Attributes - Friction Material Name
- Poly-carbon matrix
- Product Attributes - Parking Brake Provision
- No
- Product Attributes - Minimum Recommended Wheel Diameter (in.)
- 19 in.
- Product Attributes - Front Spindles Included
- No
- Product Attributes - Master Cylinder Included
- No
- Product Attributes - Brake Booster Included
- No
- Product Attributes - Remanufactured
- No
- Product Attributes - Brake Hoses Included
- No
- Product Attributes - Quantity
- Sold as a kit.
Reference Information
| Brand Name/s | Wilwood |
|---|---|
| StreetFX SKU | wil140-15746-CSICR |
| SFX Item ID | 4407804 |
| Supplier Item Code | 4407804 |
| Manufacturer SKU | 140-15746-CSICR |
| Manufacturer UPC | 889545092059 |
| Alternative References | sx6r, WIL-S0005 |
