Wilwood 10+ Camaro w/C6 Hub Rear Kit AERO4

SKU: WIL140-14650-CSIC

Disc Brake Kits

WIL Aero Brake Kit...

Wilwood

Wilwood 10+ Camaro w/C6 Hub Rear Kit AERO4

SKU: WIL140-14650-CSIC

Disc Brake Kits

WIL Aero Brake Kit...

Special Order. Contact for ETA. This item is out of stock in our warehouse and partner distribution centres. In some cases, this may be due to not having live inventory feeds available for all suppliers. Please contact us before ordering if you need to meet a specific deadline.

We accept

Description

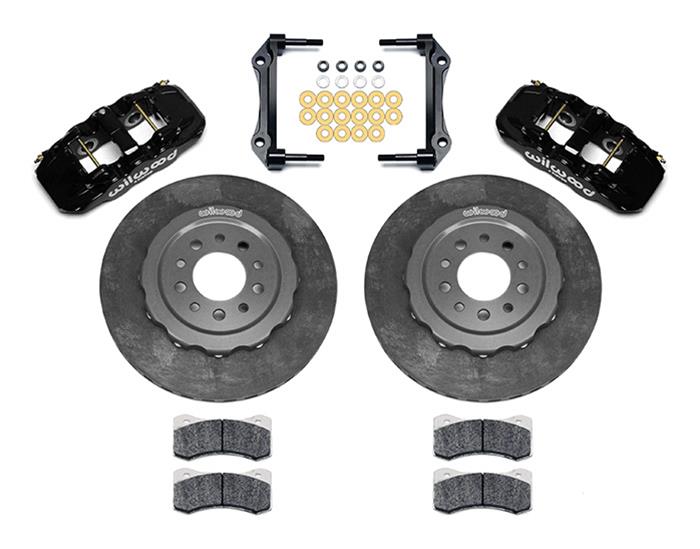

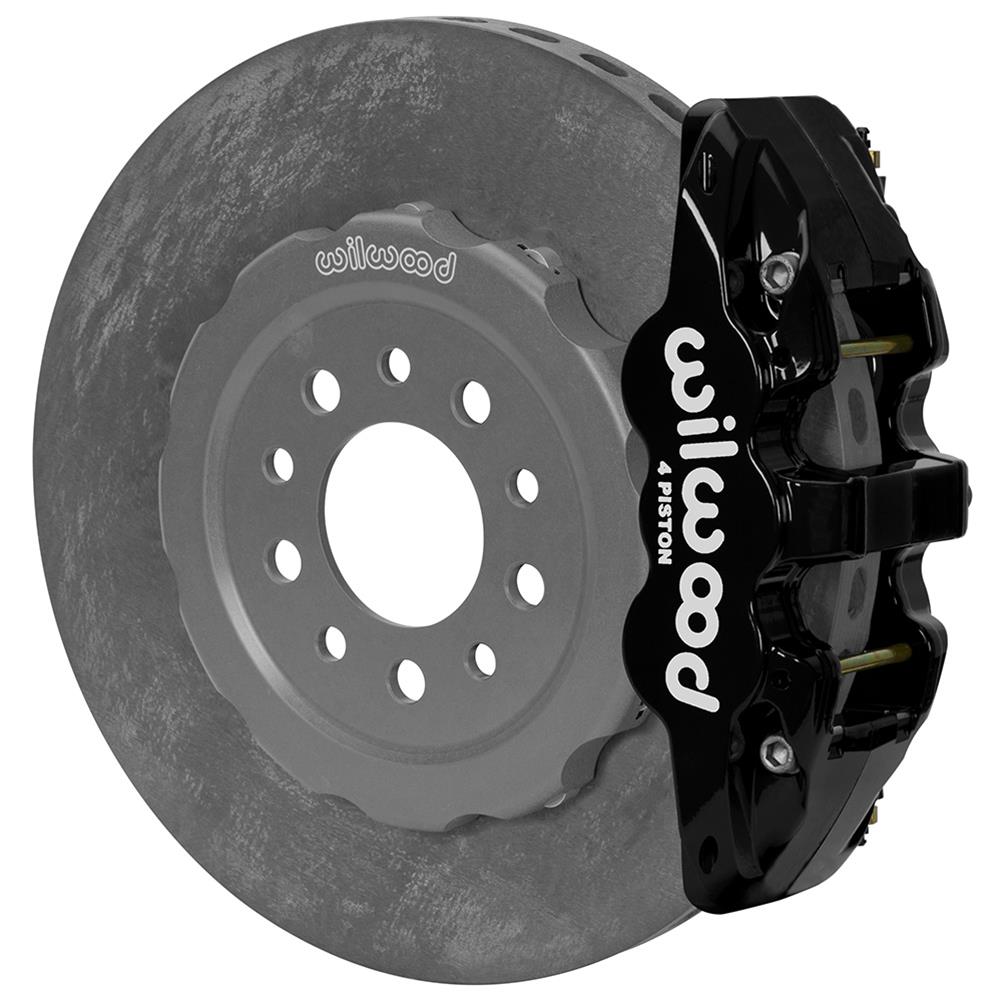

AERO4 WCCB Carbon-Ceramic Rotor Rear Brake Kits offer an extreme performance upgrade featuring WCCB Carbon-Ceramic Dynamic Mount Rotors with Wilwood’s exclusive Bobbin Mounting System. AERO4 WCCB kits are engineered to maximize braking capacity inside custom wheels. Rear parking brake kits offer a simple bolt-on installation and are fully compatible with ABS and OE master cylinder output. AERO4 calipers are a competition proven and offer fully detail machined forged caliper body demonstrates superior strength and resistance to deflection and separation under high load. 14.00” WCCB rotors are made from a proprietary blend ceramic matrix composite material commonly known as Carbon-Ceramic and dynamically using Wilwood’s proprietary integrated anti-rattle Bobbin Mounting System. WCCB rotors offer higher thermal conductivity and heat capacity in excess of conventional iron or titanium rotors of similar or even greater weight and have been developed to withstand extreme temperatures with the highest possible degree of resistance against distortion, warping, cracking and wear.

Part Type

Disc Brake Kits

Data: v4.2 - Upd: 2026-10-13 21:11:04

Specifications

Product Attributes - Brand: Wilwood Disc Brakes
Product Attributes - Manufacturer's Part Number: 140-14650-CSIC
Product Attributes - Part Type: Disc Brake Kits
Product Attributes - Product Line: Wilwood AERO4 WCCB Carbon-Ceramic Big Brake Rear Parking Brake Kits
Product Attributes - UPC: 889545082098
Product Attributes - Position: Rear
Product Attributes - Front Rotor Included: No
Product Attributes - Front Rotor Style: Solid surface
Product Attributes - Rear Rotor Included: No
Product Attributes - Rear Rotor Style: Solid surface
Product Attributes - Rear Rotor Construction: Vented
Product Attributes - Rear Rotor Diameter: 14.00 in./355.60mm
Product Attributes - Front Caliper Included: Yes
Product Attributes - Front Caliper Piston Quantity: Four
Product Attributes - Front Caliper Material: Aluminum
Product Attributes - Front Caliper Color: Black
Product Attributes - Rear Caliper Included: No
Product Attributes - Brake Pads Included: Yes
Product Attributes - Friction Material Name: Poly-carbon matrix
Product Attributes - Parking Brake Provision: No
Product Attributes - Minimum Recommended Wheel Diameter (in.): 18 in.
Product Attributes - Front Spindles Included: No
Product Attributes - Master Cylinder Included: No
Product Attributes - Brake Booster Included: No
Product Attributes - Remanufactured: No
Product Attributes - Brake Hoses Included: No
Product Attributes - Quantity: Sold as a kit.
Product Attributes - Notes: For use with C6 Corvette hub conversion.

Reference Information

Brand Name/s	Wilwood
StreetFX SKU	wil140-14650-CSIC
SFX Item ID	4408762
Supplier Item Code	4408762
Manufacturer SKU	140-14650-CSIC
Manufacturer UPC	889545082098
Alternative References	w/C6, AERO4
