Wilwood Dynapro Radial Front Drag Kit 12.90in Drilled 15-23 Mustang
Wilwood Dynapro Radial Front Drag Kit 12.90in Drilled 15-23 Mustang
A$3,509.15
Special Order. Contact for ETA.
This item is out of stock in our warehouse and partner distribution centres. In some cases, this may be due to not having live inventory feeds available for all suppliers. Please contact us before ordering if you need to meet a specific deadline.
We accept
Description

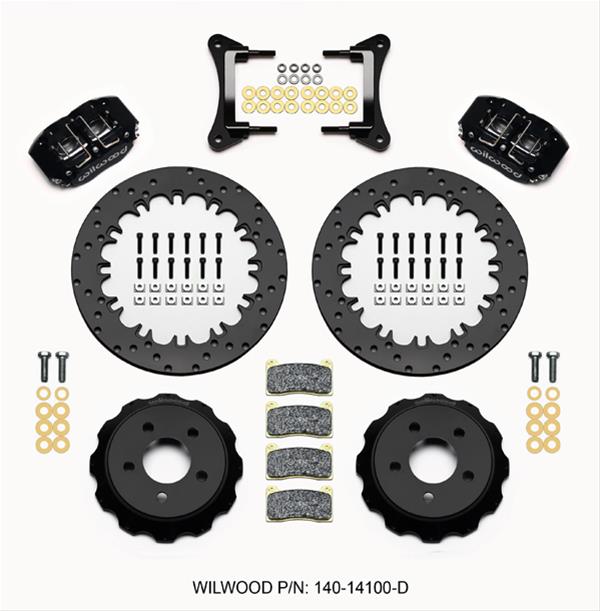

DynaPro4R Drag Race front brake kits deliver high torque stopping power with a substantial weight savings over the OE brake components. Dynamic mount steel rotors weigh only 5.7 pounds each. They attach to the OE hubs with lightweight forged aluminum hats using our T-nut mounting system that allows the rotor to move independently of the hat during heat cycles. This eliminates stress at the mount points and the subsequent rotor distortion that can otherwise occur with fixed mount steel plate rotors. Dynamic mount rotors also assure full release from the pads to run true and drag free down the track. Clamping force is provided by radial mount DynaPro 4R four piston aluminum calipers weighing in at only 4.1 pounds each. DP4R calipers feature stainless steel pistons, internal bore seals, stainless steel bridge wear plates, and allow easy access to the pads for service without removing the calipers from the mount. BP-20 compound SmartPads provide high response and holding power when cold, and resistance to fade when hot. The complete package mounts to the OE spindle with full bolt-on installation. This kit is configured for drag racing only and is not recommended for street use. A minimum size 17” wheels are required along with a stainless steel braided flexline kit available separately.
Part Type
Disc Brake Kits
Specifications
- Product Attributes - Brand
- Wilwood Disc Brakes
- Product Attributes - Manufacturer's Part Number
- 140-14100-D
- Product Attributes - Part Type
- Disc Brake Kits
- Product Attributes - Product Line
- Wilwood DynaPro Radial Front Drag Brake Kits
- Product Attributes - UPC
- 889545076370
- Product Attributes - Position
- Front
- Product Attributes - Front Rotor Included
- Yes
- Product Attributes - Front Rotor Style
- Cross-drilled surface
- Product Attributes - Front Rotor Construction
- Solid
- Product Attributes - Front Rotor Diameter
- 12.90 in./327.70mm
- Product Attributes - Front Rotor Thickness (in.)
- 0.38 in.
- Product Attributes - Brake Rotor Bolt Pattern (in.)
- 5 x 4.50 in.
- Product Attributes - Brake Rotor Bolt Pattern (mm)
- 5 x 114.30mm
- Product Attributes - Rear Rotor Included
- No
- Product Attributes - Front Caliper Included
- Yes
- Product Attributes - Front Caliper Piston Quantity
- Four
- Product Attributes - Front Caliper Material
- Forged billet aluminum
- Product Attributes - Front Caliper Color
- Gray/Silver
- Product Attributes - Rear Caliper Included
- No
- Product Attributes - Brake Pads Included
- Yes
- Product Attributes - Friction Material Name
- BP-20
- Product Attributes - Parking Brake Provision
- No
- Product Attributes - Minimum Recommended Wheel Diameter (in.)
- 17 in.
- Product Attributes - Front Spindles Included
- No
- Product Attributes - Master Cylinder Included
- No
- Product Attributes - Brake Booster Included
- No
- Product Attributes - Remanufactured
- No
- Product Attributes - Brake Hoses Included
- No
- Product Attributes - Quantity
- Sold as a kit.
Reference Information
| Brand Name/s | Wilwood |
|---|---|
| StreetFX SKU | wil140-14100-D |
| SFX Item ID | 4404316 |
| Supplier Item Code | 4404316 |
| Manufacturer SKU | 140-14100-D |
| Manufacturer UPC | 889545076370 |
| Alternative References | 12.90in |
Compatibility
| Application Data |
|
|---|
Loading compatibility information...
