Wilwood Forged Superlite 4R ST BB Front Kit Road Race 82-92 Camaro//Firebird

SKU: WIL140-12518

Disc Brake Kits

WIL Superlite Brake Kit...

Wilwood Forged Superlite 4R ST BB Front Kit Road Race 82-92 Camaro//Firebird

SKU: WIL140-12518

Disc Brake Kits

WIL Superlite Brake Kit...

Special Order. Contact for ETA. This item is out of stock in our warehouse and partner distribution centres. In some cases, this may be due to not having live inventory feeds available for all suppliers. Please contact us before ordering if you need to meet a specific deadline.

We accept

Description

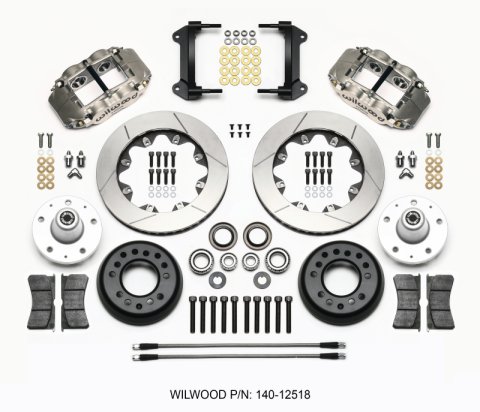

This kit is configured for dedicated road racing on all 1982-92 Camaros and Firebirds using the OE factory single piston caliper spindles that have been modified to accept the Wilwood caliper brackets. Four piston, nickel finish Quick-Silver FSL4R/ST calipers, with Thermlock® pistons and internal knock-back damping springs, are volume matched for system compatibility with either a factory power brake booster and master cylinder, or a manual balance bar style pedal with appropriately sized master cylinders. The kit includes two-piece 12.19” diameter Spec 37 alloy GT series directional vane rotors to comply with SCCA American Sedan rules, cross-overs into the NASA pony car categories, or any other sanction racing with racing with 16” or 17” wheels. Unsprung and rotating weight are minimized by using forged aluminum hats to mount the rotors to the forged aluminum hubs supplied with the kit. The kit also includes high-temp Wilwood race compound pads, machined billet radial mount caliper brackets, stainless steel braided flexlines, extra length wheel studs, hub bearings, grease seals, and all premium grade hardware. Detailed instructions illustrating the required spindle modifications can be found on page 2 of the assembly instructions.

Part Type

Disc Brake Kits

Data: v4.2 - Upd: 2026-10-13 21:14:32

Specifications

Product Attributes - Brand: Wilwood Disc Brakes
Product Attributes - Manufacturer's Part Number: 140-12518
Product Attributes - Part Type: Disc Brake Kits
Product Attributes - Product Line: Wilwood Forged Superlite 4R Big Brake Front Disc Brake Kits
Product Attributes - UPC: 889545016703
Product Attributes - Position: Front
Product Attributes - Front Rotor Included: Yes
Product Attributes - Front Rotor Style: Slotted surface
Product Attributes - Front Rotor Construction: Vented
Product Attributes - Front Rotor Diameter: 12.19 in./309.63mm
Product Attributes - Front Rotor Thickness (in.): 1.25 in.
Product Attributes - Brake Rotor Bolt Pattern (in.): Dual 5 x 4.50 in./5 x 4.75 in.
Product Attributes - Brake Rotor Bolt Pattern (mm): Dual 5 x 114.30mm/5 x 120.65mm
Product Attributes - Rear Rotor Included: No
Product Attributes - Front Caliper Included: Yes
Product Attributes - Front Caliper Piston Quantity: Four
Product Attributes - Front Caliper Material: Forged billet aluminum
Product Attributes - Front Caliper Color: Gray/Silver
Product Attributes - Rear Caliper Included: No
Product Attributes - Brake Pads Included: No
Product Attributes - Parking Brake Provision: No
Product Attributes - Minimum Recommended Wheel Diameter (in.): 15 in.
Product Attributes - Front Spindles Included: No
Product Attributes - Master Cylinder Included: No
Product Attributes - Brake Booster Included: No
Product Attributes - Remanufactured: No
Product Attributes - Brake Hoses Included: Yes
Product Attributes - Quantity: Sold as a kit.
