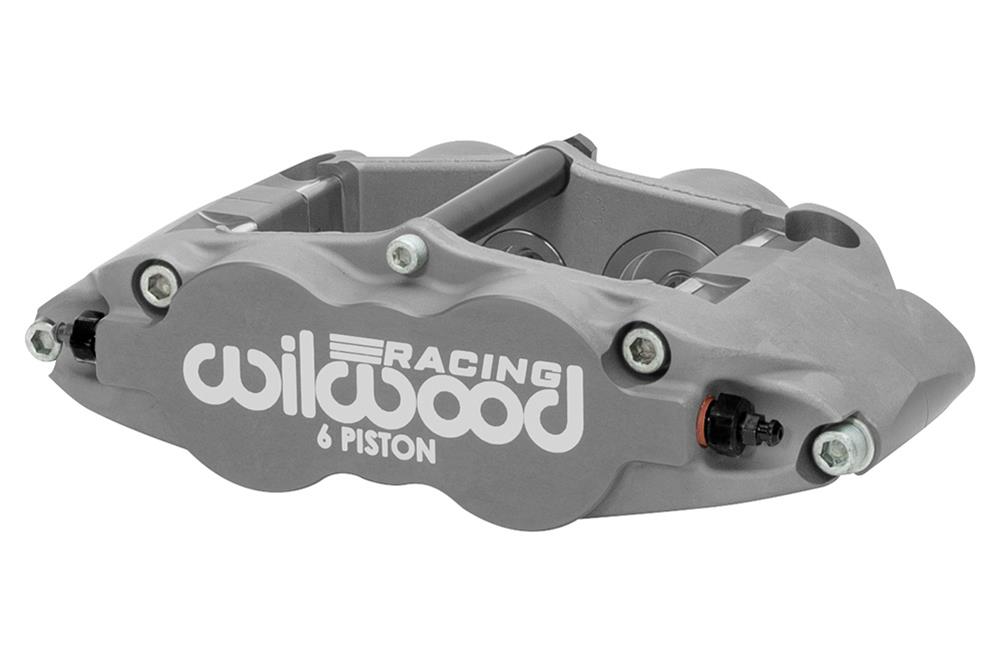

Wilwood Caliper-FNSL6R-LH-Anodized 1.62/1.12/1.12in Pistons 1.10 Disc

SKU: WIL120-16846

Brake Calipers

WIL Superlite Caliper...

Wilwood

Wilwood Caliper-FNSL6R-LH-Anodized 1.62/1.12/1.12in Pistons 1.10 Disc

SKU: WIL120-16846

Brake Calipers

WIL Superlite Caliper...

Special Order. Contact for ETA. This item is out of stock in our warehouse and partner distribution centres. In some cases, this may be due to not having live inventory feeds available for all suppliers. Please contact us before ordering if you need to meet a specific deadline.

We accept

Description

Wilwood Forged Superlite 6 radial mount calipers are the go-to calipers for all types sustained hard braking on dirt and asphalt ovals, as well as a wide range of off-road, rally, and road course applications.

The FSL6R calipers offer exceptional strength and reduced weight due to the stress-flow forging from premium grade aluminum alloy billet. Each caliper features closed end bridges with a radial transition down to the main body and piston bore housings. The elimination of machined steps and sharp shoulders in this critical area provides a measurable increase in overall body strength and resistance to deflection under load.

They have been redesigned with internal fluid ports that eliminate the external fluid crossover tubes. The transfer tube has been replaced with two additional bleed screw assemblies which allow differential bore models to have a left hand and right hand orientation, but no leading or trailing configuration is required.

FSL6R/ST calipers provide the pad wear performance advantages of differential bore pistons with the option for ultimate heat protection using Thermlock pistons in the ST models. Differential piston bores compensate for leading-edge mechanical loading and temperature variances across the pad face to reduce pad taper wear in sustained high-temperature applications.

Thermlock pistons in ST caliper models block heat transfer from the pads and reduce temperatures in the caliper, fluid, and seals by up to 25 percent over standard stainless steel pistons.

Wilwood Forged Superlite 6 radial mount calipers are available with either a Quick-Silver Nickel or Type III Ano (hard anodize) finish.

Part Type

Brake Calipers

Data: v4.2 - Upd: 2026-10-15 08:48:05

Specifications

Product Attributes - Brand: Wilwood Disc Brakes
Product Attributes - Manufacturer's Part Number: 120-16846
Product Attributes - Part Type: Brake Calipers
Product Attributes - Product Line: Wilwood Forged Superlite 6 Radial Mount Calipers
Product Attributes - UPC: 889545105803
Product Attributes - Caliper Series: Forged Superlite 6 Radial Mount
Product Attributes - Caliper Piston Quantity: Six
Product Attributes - Piston Diameter (in.): 1.620/1.120/1.120
Product Attributes - Rotor Thickness (in.): 1.100 in.
Product Attributes - Caliper Material: Aluminum
Product Attributes - Caliper Color: Clearcoat
Product Attributes - Caliper Logo: Wilwood
Product Attributes - Parking Brake Provision: No
Product Attributes - Fittings Included: No
Product Attributes - Fitting Attachment 1: Female NPT
Product Attributes - Thread Size: 1/8 in. NPT
Product Attributes - Brake Pads Included: No
Product Attributes - Brackets Included: No
Product Attributes - Remanufactured: No
Product Attributes - Quantity: Sold individually.

Reference Information

Brand Name/s	Wilwood
StreetFX SKU	wil120-16846
SFX Item ID	4410056
Supplier Item Code	4410056
Manufacturer SKU	120-16846
Manufacturer UPC	889545105803
Alternative References	Caliper-FNSL6R-LH-Anodized, 1.62/1.12/1.12in
