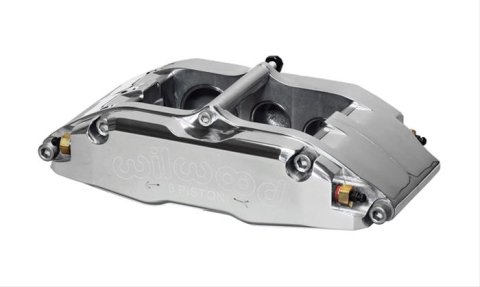

Home / Shop / Wilwood Billet Narrow Superlite 6 Calipers 120-13382-P Brake Caliper, 6, Passenger Side, 6-piston, Aluminum, Polished, Each

Wilwood Billet Narrow Superlite 6 Calipers 120-13382-P Brake Caliper, 6, Passenger Side, 6-piston, Aluminum, Polished, Each

SKU: WIL120-13382-P

Brake Calipers

Wilwood

Wilwood Billet Narrow Superlite 6 Calipers 120-13382-P Brake Caliper, 6, Passenger Side, 6-piston, Aluminum, Polished, Each

SKU: WIL120-13382-P

Brake Calipers

BACKORDER This item will be special ordered in for you. Contact us prior to purchase if you require an ETA.

We accept

Description

Wilwood Billet Narrow Superlite 6 calipers incorporate all of the benefits of the Billet Superlite 6 Series calipers, with the added benefit of a narrow profile. Each caliper is precision CNC-machined from high-strength billet into three specialized configurations that cover a broad range of competition and sports driving applications. The key to their superior performance is their extremely durable and efficient body design. It is the product of FEA computer solid modeling and stress analysis technology. Full-length stiffening ribs and a reinforced radial transition from the piston bore housings to the closed-end bridges have produced the strongest caliper bodies ever built, according to Wilwood. When compared to open-bridge calipers that use tube or stand spacers between the body halves, the SL6 calipers' closed-end bridge design is measurably stronger, with less separation or deflection under load. Additional strength and deflection resistance come from the four high-strength steel end bridge bolts. A fifth center bridge bolt provides even more overall strength and easy access to the pads, without the need to remove the caliper from the mount. A unique 6-piston differential bore configuration provides balanced pad loading for even pad wear in sustained high-heat environments. These narrow SL6 calipers feature one-piece stainless steel pistons. Stainless is used for its slow heat transfer properties and high resistance to corrosion. These Wilwood Billet Narrow Superlite 6 calipers are primarily used in OE performance "Big Brake" conversion kits and other custom applications with extreme space limitations.

Product Overview

The 2nd generation of the Narrow SL6 series has been redesigned with Wilwood's latest technology. High strength Billet bodies with internal crossover passages allow the calipers to mount in either front or rear of spindle applications with same part number. With Same 3.50" centered lug mounting of original Narrow Superlite caliper. Each caliper is precision CNC machined from high strength Billet Forging with a re-profiled outer body that enhances wheel clearance and appearance. Calipers are available in Black, Red powder coat and a show quality polished finish to compliment any application.

Product Details

Description:	CALIPER,BNSL6,1.62/1.12,1.100 ROTOR,R/H REAR MT,POLISH
Part Number:	wil120-13382-P

Part Type

Brake Calipers

Data: v4.2 - Upd: 2026-10-16 05:20:42

Specifications

Product Attributes - Brand: Wilwood Disc Brakes
Product Attributes - Manufacturer's Part Number: 120-13382-P
Product Attributes - Part Type: Brake Calipers
Product Attributes - Product Line: Wilwood Billet Narrow Superlite 6 Calipers
Product Attributes - UPC: 889545003581
Product Attributes - Caliper Series: Billet Narrow Superlite 6
Product Attributes - Caliper Piston Quantity: Six
Product Attributes - Piston Diameter (in.): 1.620/1.120
Product Attributes - Rotor Thickness (in.): 1.100 in.
Product Attributes - Caliper Material: Aluminum
Product Attributes - Caliper Color: Polished
Product Attributes - Caliper Logo: Wilwood
Product Attributes - Parking Brake Provision: No
Product Attributes - Fittings Included: No
Product Attributes - Fitting Attachment 1: Female threads
Product Attributes - Thread Size: 1/8 in. NPT
Product Attributes - Brake Pads Included: No
Product Attributes - Brackets Included: No
Product Attributes - Remanufactured: No
Product Attributes - Quantity: Sold individually.

Reference Information

Brand Name/s	Wilwood
StreetFX SKU	wil120-13382-P
SFX Item ID	4779864
Supplier Item Code	4779864
Manufacturer SKU	120-13382-P
Manufacturer UPC	889545003581
Alternative References	6-piston
