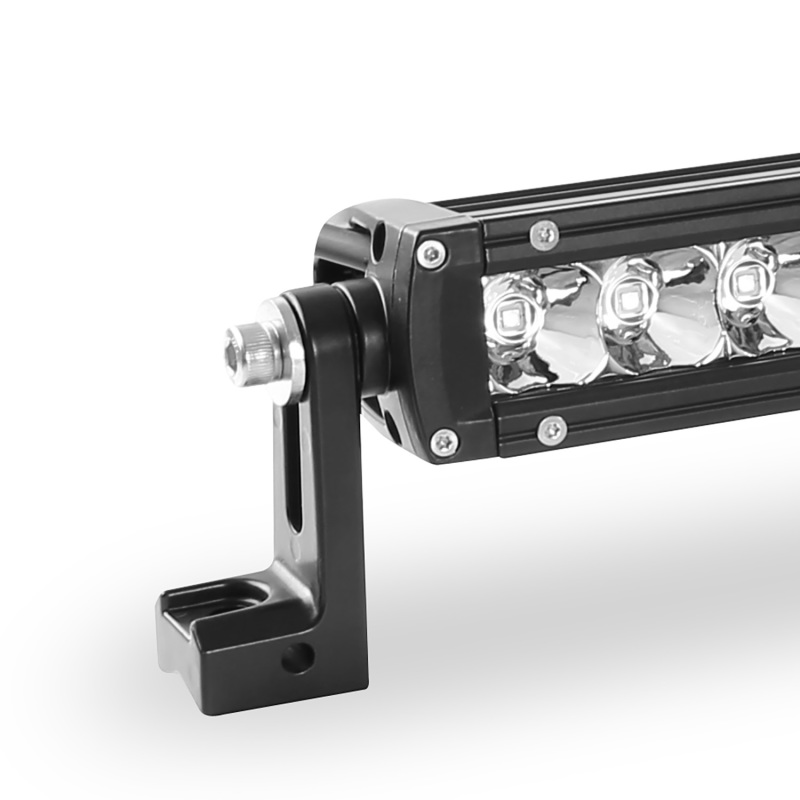

Westin Xtreme LED Light Bar Low Profile Single Row 20 inch Flood w/5W Cree - Black

SKU: WES09-12270-20F

Light Bars, Light Pods and Fog Lights

WES LED Light Bars - Xtreme...

Westin

Westin Xtreme LED Light Bar Low Profile Single Row 20 inch Flood w/5W Cree - Black

SKU: WES09-12270-20F

Light Bars, Light Pods and Fog Lights

WES LED Light Bars - Xtreme...

Special Order. Contact for ETA. This item is out of stock in our warehouse and partner distribution centres. In some cases, this may be due to not having live inventory feeds available for all suppliers. Please contact us before ordering if you need to meet a specific deadline.

We accept

Description

Westins Xtreme LED Light Bars are available in 6 10 20 30 40 and 50 lengths. All feature a high quality powder coat finish are rubber sealed and are IP rated at 68 include a GORE(R) pressure-equalizing vent and have a shock proof shatter and scratch resistant polycarbonate lens. Wiring harness with connector switch and in-line fuse hardware and side mount brackets are included.

Application Summary

Universal Fitment

Part Type

Light Bar

Data: v4.2 - Upd: 2026-10-13 17:26:31

Features

5W LED chips
6063 extruded aluminum housing with die-cast ends
Available in 6", 10", 20", 30", 40" and 50" lengths
Dust and moisture resistant lens
GORE pressure equalizing vent
Includes wiring harness with connector, switch, relay and in-line fuse and mounting hardware
Raw Lumens: 3,000 - 21,500

Specifications

Product Attributes - Brand: Westin Automotive
Product Attributes - Manufacturer's Part Number: 09-12270-20F
Product Attributes - Part Type: Light Bars, Light Pods and Fog Lights
Product Attributes - Product Line: Westin Xtreme Series LED Light Bars
Product Attributes - UPC: 707742070864
Product Attributes - Light Type: Light bar
Product Attributes - Bulb Type: LED
Product Attributes - Light Bar Type: Straight single row
Product Attributes - Optics Style: Flood
Product Attributes - Light Bar Size (in.): 20 in.
Product Attributes - Watts: 100.0 watts
Product Attributes - Amp Draw: 6.50 amps
Product Attributes - Maximum Voltage: 30 V
Product Attributes - Lumens: 9,960
Product Attributes - Beam Distance: 525.00 m
Product Attributes - Number of LEDs: 20
Product Attributes - Bulb Color: White
Product Attributes - Lens Color: Clear
Product Attributes - Housing Color: Black
Product Attributes - Housing Material: Aluminum
Product Attributes - Light Cover Included: No
Product Attributes - Hardware Included: Yes
Product Attributes - Relay Included: Yes
Product Attributes - Wiring Harness Included: Yes
Product Attributes - Quantity: Sold individually.

Reference Information

Brand Name/s	Westin
StreetFX SKU	wes09-12270-20F
SFX Item ID	4150968
Supplier Item Code	4150968
Manufacturer SKU	09-12270-20F
Manufacturer UPC	707742070864
Alternative References	WSA-09-12270-20F, w/5W
