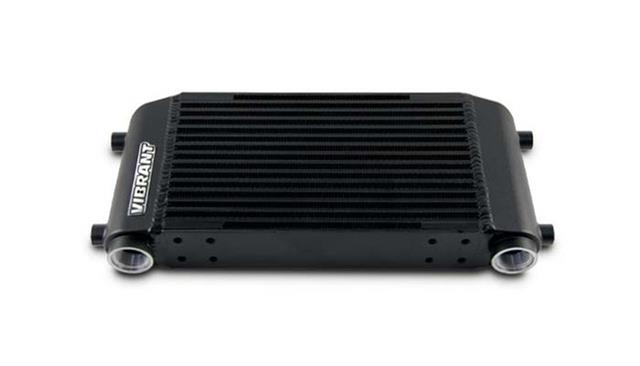

Vibrant Single Pass Oil Cooler Assembly 6in x 10in x 2in

SKU: VIB12953

Fluid Coolers

VIB Oil Coolers...

Vibrant

Vibrant Single Pass Oil Cooler Assembly 6in x 10in x 2in

SKU: VIB12953

Fluid Coolers

VIB Oil Coolers...

IN STOCK! Est Ship 3-5 days. This item is IN STOCK at one of our warehouses or distribution centres, the ETA is the approximate time required to prepare your order for dispatch.

We accept

Description

Vibrant Performance oil cooler assemblies come complete with welded end tanks and are individually leak tested. Suitable for a wide variety of applications, these assemblies provide superior engine oil cooling, saving fabricators and end users time and money as there is no need to make and weld custom end tanks.

Available in different sizes and single or dual pass configurations, Vibrant oil cooler assemblies feature heavy-duty bar and plate construction that provides high-pressure capabilities, compactness, and excellent durability. They are engineered with an offset fin design in the oil flow path to increase the surface area available for heat exchange, which results in improved heat transfer efficiency, and more effective cooling for the oil. They have also integrated M8 x 1.25 in. mounting points to give installers greater rigidity when mounting the assembly. Select the Vibrant oil cooler assembly best suited to your vehicle's needs.

Part Type

Oil Cooler Assembly 6in H x 10in W x 2in

Data: v4.2 - Upd: 2026-10-17 21:34:24

Specifications

Product Attributes - Brand: Vibrant Performance
Product Attributes - Manufacturer's Part Number: 12953
Product Attributes - Part Type: Fluid Coolers
Product Attributes - Product Line: Vibrant Performance Oil Cooler Assemblies
Product Attributes - UPC: 690092185459
Product Attributes - Fluid Cooler Type: Engine oil
Product Attributes - Overall Height (in.): 6.00 in.
Product Attributes - Overall Thickness (in.): 2.00
Product Attributes - Cooler Construction: Plate
Product Attributes - Fluid Cooler Inlet Size: -12 AN O-ring
Product Attributes - Fluid Cooler Outlet Size: -12 AN O-ring
Product Attributes - Inlet Attachment: Female O-ring
Product Attributes - Outlet Attachment: Female O-ring
Product Attributes - Cooler Material: Aluminum
Product Attributes - Fan Included: No
Product Attributes - Core Height (in.): 6.00 in.
Product Attributes - Core Width (in.): 10.00 in.
Product Attributes - Core Thickness (in.): 2.00 in.
Product Attributes - Cooler Color: Black painted
Product Attributes - Quantity: Sold individually.
Product Attributes - Notes: Fluid cooler is single pass. Cooler has m8 x 1.25mm threaded mounting points. Optional cooler fan shroud sold separately.

Reference Information

Brand Name/s	Vibrant
StreetFX SKU	vib12953
SFX Item ID	4091476
Supplier Item Code	4091476
Manufacturer SKU	12953
Manufacturer UPC	690092185459
Alternative References	VPE-12953, 6in, 10in, 2in
