UMI Performance 64-72 GM A-Body 1in Tubular Rear Sway Bar Chassis Mounted

SKU: UMI4047-300-B

UMI Sway Bars...

UMI Performance 64-72 GM A-Body 1in Tubular Rear Sway Bar Chassis Mounted

SKU: UMI4047-300-B

UMI Sway Bars...

A$1,195.83
Special Order. Contact for ETA. This item is out of stock in our warehouse and partner distribution centres. In some cases, this may be due to not having live inventory feeds available for all suppliers. Please contact us before ordering if you need to meet a specific deadline.
View cart 0
We accept
American Express
Mastercard
Visa
PayPal Checkout
Direct Deposit
Afterpay
Apple Pay
Google Pay
Zip Pay

Description

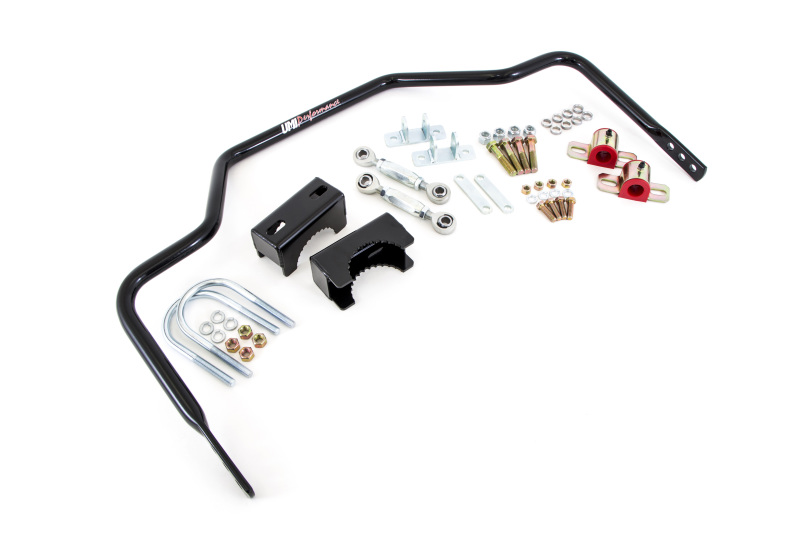

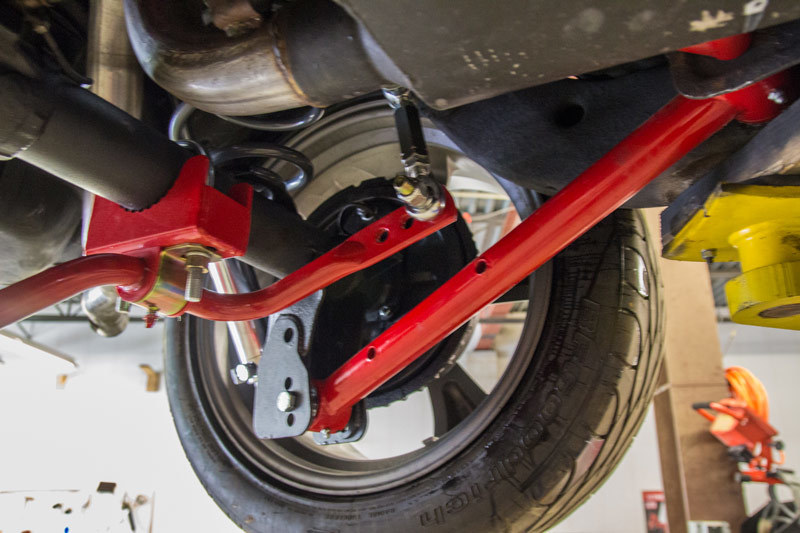

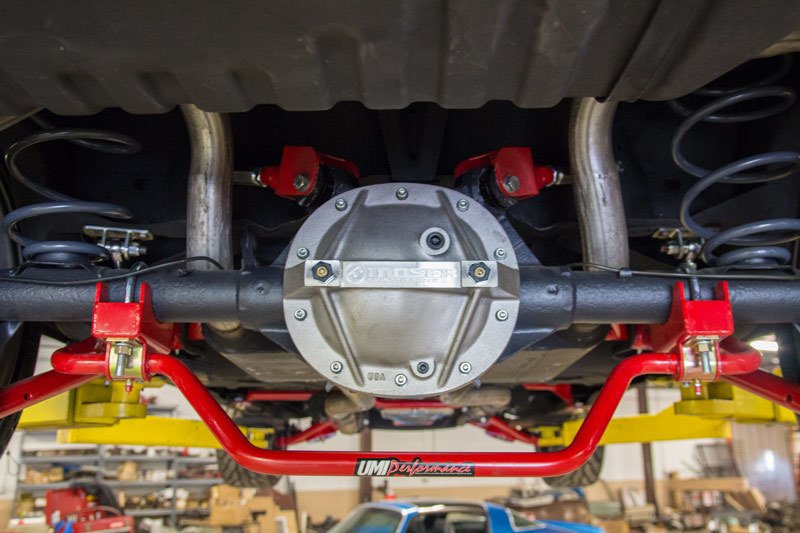

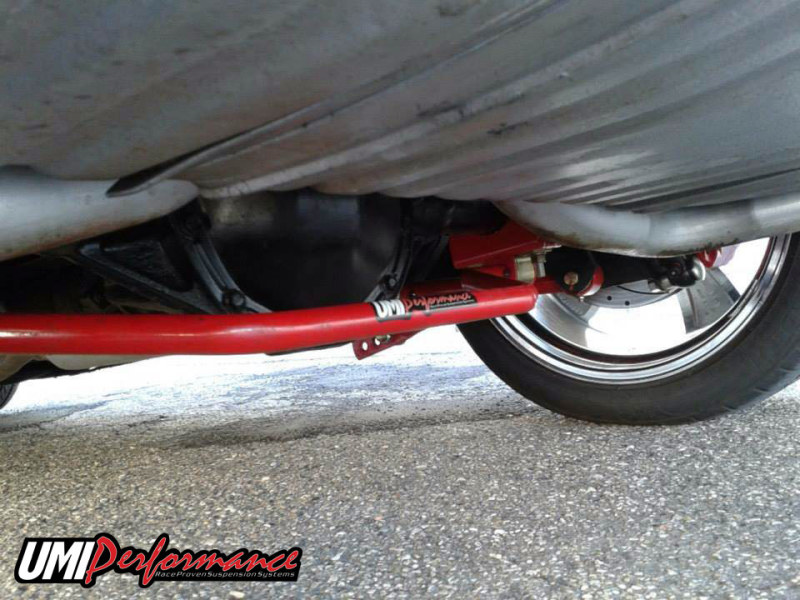

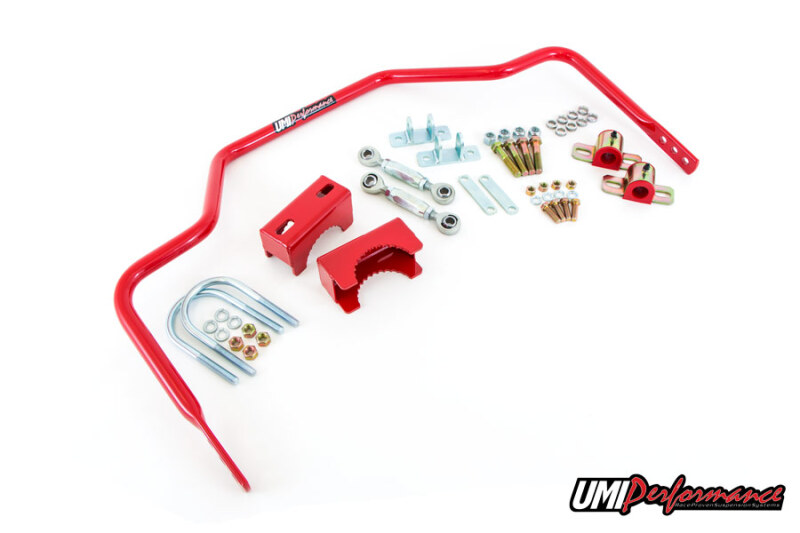

UMI's A-body Pro-Tour style bar is a true multi purpose high performance rear sway bar. The chassis and differential housing mounts reduce bind normally associated with the factory style bars. The bars are 1" diameter hollow and feature three different rates (street/auto-x, road race/strip). UMI's tried and true CNC machined clamping system allows differential housing mounting on 2.75", 3" and 3.25" diameter housings. These can be bolted on, or welded for additional security. The double shear chassis mounts are held in place by four 3/8" fasteners. Drilling through the crossmember is required and a template /instructions are included. The house made hex adjuster allows pre-loading of the bar when used for drag applications so your car leaves straight. Choose the longest hole for street, middle hole for auto-x, road race and the shortest hole for drag use.

Data: v4.2 - Upd: 2026-10-15 00:29:36

Specifications

Reference Information

Brand Name/s Umi Performance
StreetFX SKU umi4047-300-B
SFX Item ID 4156381
Supplier Item Code 4156381
Manufacturer SKU 4047-300-B
Manufacturer UPC N/A
Alternative References upi-4047-300-b, 1in
