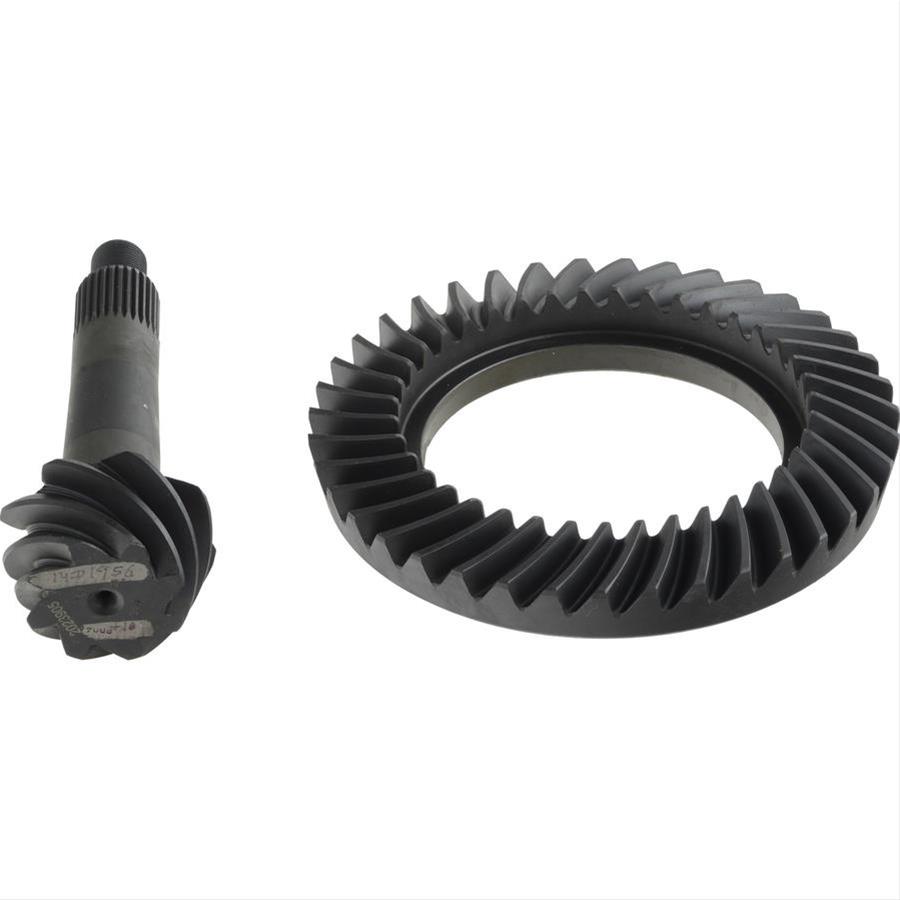

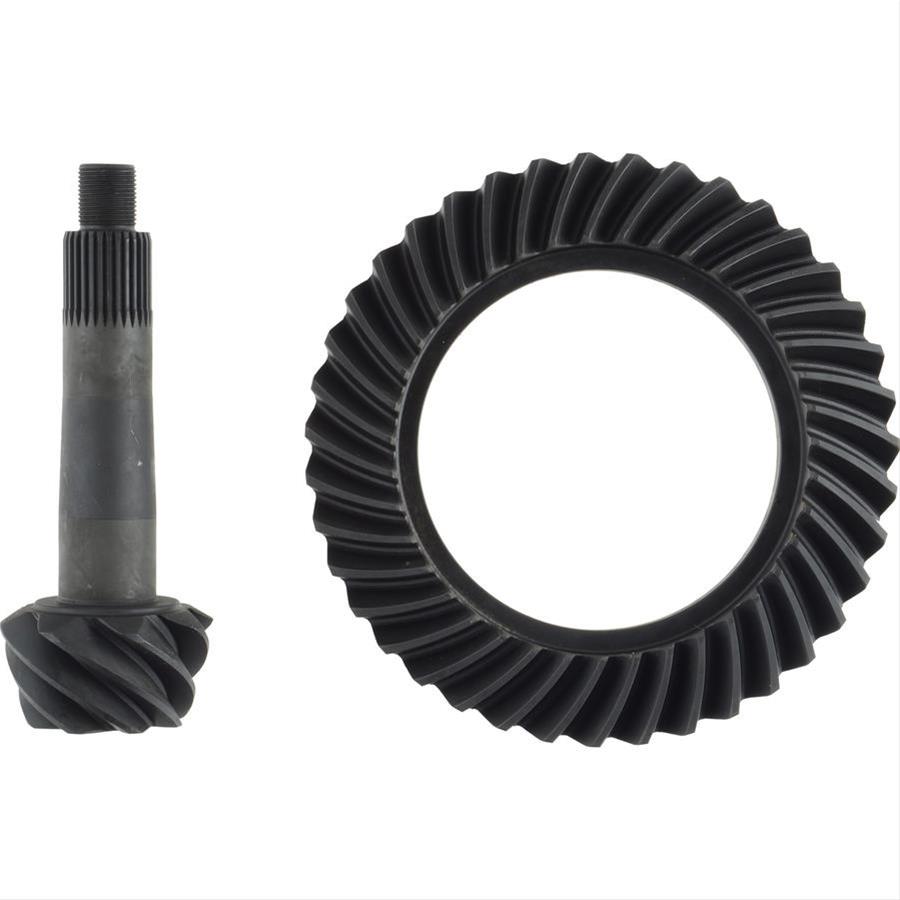

SVL Drivetrain Ring and Pinion Gear Sets 2023905 GM 8.875 in. (12-bolt) passenger car 4.88 Gears Gears, 4.88:1 Ratio, 30-spline, Standard Rotation, Passenger Car, Set

SKU: SVL2023905

Ring and Pinion Gears

SVL Drivetrain Ring and Pinion Gear Sets 2023905 GM 8.875 in. (12-bolt) passenger car 4.88 Gears Gears, 4.88:1 Ratio, 30-spline, Standard Rotation, Passenger Car, Set

SKU: SVL2023905

Ring and Pinion Gears
A$1,105.07
Special Order. Contact for ETA. This item is out of stock in our warehouse and partner distribution centres. In some cases, this may be due to not having live inventory feeds available for all suppliers. Please contact us before ordering if you need to meet a specific deadline.
View cart 0
We accept
American Express
Mastercard
Visa
PayPal Checkout
Direct Deposit
Afterpay
Apple Pay
Google Pay
Zip Pay

Description

IMPORTANT NOTICE: Note on Vehicle ConfigurationThis listing includes the term "driver" or "passenger". Please note that this may refer to a region specific variation based on vehicle configuration (LHD/RHD) or regional preferences. Much of our database relates to US sourced products where "Driver" typically refers to the left-hand side in LHD vehicles, and "passenger" to the right. In RHD vehicles, this terminology is reversed. Review product details carefully for compatibility. Contact support if you have any questions. StreetFX may not accept returns for special order products.(keyword: passenger)Note for Pistons, Rings, Rotors, Rods and engine internalsUnless otherwise specified, some brands supply brake rotors, pistons, rods and rings separately. In some cases, titles may indicate plural, or 'set' - eg the term “ring set” often refers to the rings for a single piston only. If you’re unsure about what’s included with this product, please contact our team for clarification.(keyword: ring)Images are supplied by the manufacturer and may be generic. While all efforts are made to provide accurate pictures, there may be differences in the actual product, such as colour, quantity, version, or included components. Please carefully review the description and specifications for details on inclusions or any variations. Some items may be sold individually or in sets, and images may occasionally depict additional products or quantities not included in your purchase. For assistance or clarification, please contact customer support.Reference Information Reference Data (Provide these details to our support team) Brand Name/s Svl Drivetrain Products, Svl StreetFX SKU svl2023905 SFX Item ID 6477070 Accounting SKU svl-2023905 Manufacturer SKU 2023905 Manufacturer UPC 023913244736 Alternative References 2023905, SVL-2023905


Data: v2 - Desc: v4.2 - Upd: 2026-10-15 09:37:02

Part Type

Ring and Pinion Gears

Data: v4.2 - Upd: 2026-09-30 16:38:27

Specifications

Ring and Pinion Gears, 4.88:1 Ratio, 30-spline, Standard Rotation, GM 8.875 in. Passenger Car, Set

SVL Drivetrain ring and pinion gear sets make it easy to find the right ratio for your application. Engineered and manufactured for all makes and ratios, they deliver the ideal blend of coverage, performance, and value. SVL starts their ring and pinion sets with a computer-generated gear summary.

From there, the gearing is forged from alloy steel for optimal hardness; then the gears are cut with the utmost accuracy to ensure the smoothest possible ride—and computer-controlled heat-treating results in extra wear resistance. In the final stage of the process, the ring gear is mated to the pinion through gear lapping, which provides ideal meshing of the gearing. You can count on SVL Drivetrain ring and pinion gear sets to fit and function as expected in your automotive application.

Product Attributes
BrandSVL Drivetrain Products
Manufacturer's Part Number2023905
Part TypeRing and Pinion Gears
Product LineSVL Drivetrain Ring and Pinion Gear Sets
UPC023913244736
Differential Case Design TypeGM 8.875 in. (12-bolt), passenger car
Ring and Pinion Ratio4.88:1
Cover Bolts12
Ring Gear Bolts12
Pinion Spline Count30
Carrier Series4
Ring Gear RotationStandard
Ring Gear Teeth39
Pinion Gear Teeth8
Ring Gear Diameter (in.)8.875 in.
Pinion Shaft Diameter (in.)1.625 in.
Installation Kit IncludedNo
Cover Gasket IncludedNo
Pinion Shims IncludedNo
Carrier Shims IncludedNo
Crush Sleeve IncludedNo
Pinion Seal IncludedNo
Pinion Nut IncludedNo
Ring Gear Bolts IncludedNo
Head Bearing IncludedNo
Tail Bearing IncludedNo
Carrier Bearings IncludedNo
Axle Seals IncludedNo
Axle Bearings IncludedNo
Differential Cover IncludedNo
Differential Oil IncludedNo
Friction Modifier IncludedNo
Installation DVD IncludedNo
QuantitySold as a set.

Reference Information

Brand Name/s Svl Drivetrain Products
StreetFX SKU svl2023905
SFX Item ID 6477070
Supplier Item Code 6477070
Manufacturer SKU 2023905
Manufacturer UPC 23913244736
Alternative References (12-bolt), 30-spline

Compatibility

No specific fitment data available for this part. For clarification, please contact us.

Detailed Compatibility


Application Data
MakeCHEVROLET
ModelBISCAYNE
SubmodelDELUXE
Beginning Year1972
Ending Year1972
Engine TypeV8
Engine Size6.6L/402
Engine FamilyChevy big block Mark IV
Axle LocationRear
Liter7.0
CID402
CC6588
Engine VIN CodeS
MakeCHEVROLET
ModelBISCAYNE
SubmodelGRAN SPORT
Beginning Year1972
Ending Year1972
Engine TypeV8
Engine Size6.6L/402
Engine FamilyChevy big block Mark IV
Axle LocationRear
Liter7.4
CID402
CC6588
Engine VIN CodeU
MakeCHEVROLET
ModelBISCAYNE
SubmodelGRAN SPORT
Beginning Year1972
Ending Year1972
Engine TypeV8
Engine Size7.4L/454
Engine FamilyChevy big block Mark IV
Axle LocationRear
Liter7.4
CID454
CC7439
Engine VIN CodeV

This may not be an exhaustive list of compatible vehicles. Please reach out to one of our representatives if you are unsure or do not see your vehicle here.
