Description

Centric PremiumTM rotors provide a painted hat and edge for corrosion resistance. The paint used is a robust resin-modified material that is chemically resilient withstanding 120 hours in salt chamber testing.

Product Overview

Centric Premium Rotor with advanced metallurgy that greatly reduces pad squeal. Especially effective with higher friction; European style brake pad compounds. Added Molybdenum and Chromium to resist rotor cracking

Features and Benefits

• Painted Hat and Outer Edge
• Low initial lateral run-out and disc thickness variation for smooth, vibration free stopping
• Precision Balance
• Precision balance for vibration free performance
• Optimal Surface Finish
• Optimal surface finish for consistent stopping feel from the first stop
• Advanced Metallurgy
• Advanced metallurgy for optimal heat transfer and structural strength
• OE Vane Design and Plate Thickness
• OE vane design and plate thickness for heat capacity and strength
• Low Initial Lateral Run-Out

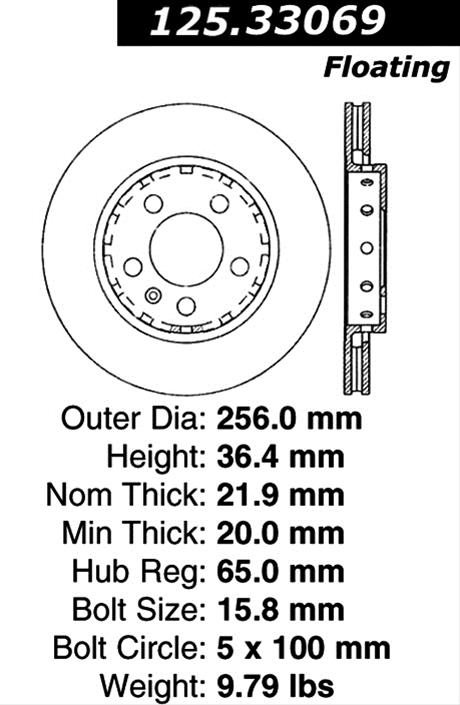

Product Details

ABS Tone Ring Included:	No
Bearings Included:	No
California Proposition 65 Site [basic]:	https://www.p65warnings.ca.gov/
California Proposition 65 Text [cntrc]:	WARNING: Cancer and Reproductive Harm
Center Hole Diameter:	2.559
Description:	Centric Premium High Carbon Alloy Brake Rotor
Disc Mounting [cntrc]:	Floating
Discard Thickness:	20
Hat Finish:	Coated
Misc Holes [cntrc]:	1
Mounting Bolt Hole Circle Diameter:	100.000
Nominal Thickness:	21.9
Notes [cntrc]:	Vented Hat
Outside Diameter:	256
Overall Height:	1.433
Part Number:	sto125.33069
Product Grade [cntrc]:	Premium
Solid Or Vented Type Rotor:	Vented
Stud/Lug Hole Diameter:	0.622
Stud/Lug Hole Quantity:	5
Surface Type:	Smooth
Vane Style [cntrc]:	Straight
Weight [cntrc] kgs:	4.450
Weight [cntrc] lbs:	9.790

Kit Options

This item is available as a full kit.
Select a kit option in the following table if you are looking for this item in a bundle form with all associated components.

Kit option/s:

Thumb	SKU	Kit Title
	sto909.33539	Centric OE Coated Rear Brake Kit (2 Wheel) (2x sto125.33069, 1x sto105.03400)
	sto906.33054	Centric OE Coated Front & Rear Brake Kit (4 Wheel) (2x sto125.33062, 2x sto125.33069, 1x sto104.06871, 1x sto105.03400)
	sto906.33055	Centric OE Coated Front & Rear Brake Kit (4 Wheel) (2x sto125.33069, 1x sto125.33093, 1x sto125.33094, 1x sto104.06820, 1x sto105.03400)

Data: v4.2 - Upd: 2026-10-15 16:14:13

Features

Specifications

Product Attributes - Brand

Centric Parts

Product Attributes - Manufacturer's Part Number

125.33069

Product Attributes - Part Type

Brake Rotors

Product Attributes - Product Line

Centric Premium High-Carbon Brake Rotors

Product Attributes - UPC

805890470007

Product Attributes - Intended for Street Use

Yes

Product Attributes - For Use with Stock Calipers

Yes

Product Attributes - Rotor Construction

Vented

Product Attributes - Rotor Style

Solid surface

Product Attributes - Rotor Outside Diameter (in.)

10.07 in.

Product Attributes - Brake Rotor Bolt Pattern (mm)

5 x 100.00mm

Product Attributes - Nominal Thickness (in.)

0.862

Product Attributes - Nominal Thickness (mm)

21.90

Product Attributes - Discard Thickness (mm)

20.00

Product Attributes - Rotor Material

Iron

Product Attributes - Rotor Finish

Black E-Coat

Product Attributes - Quantity

Sold individually.

Compatibility
