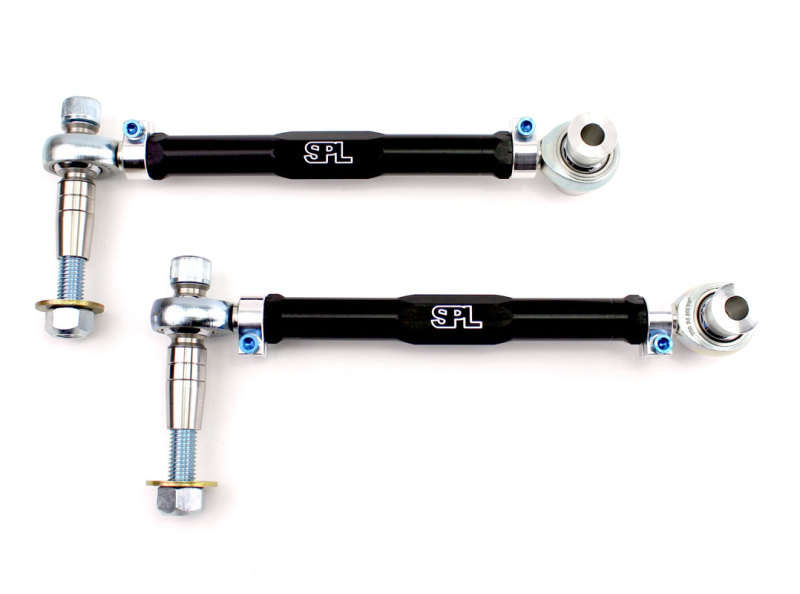

SPL Parts 06-15 Mazda Miata (NC) / 03-12 Mazda RX-8 Rear Upper Lateral (Camber) Links

SKU: SPPSPL_RUA_NC

Suspension Control Arm Link

SPP Lateral Links...

SPL Parts 06-15 Mazda Miata (NC) / 03-12 Mazda RX-8 Rear Upper Lateral (Camber) Links

SKU: SPPSPL_RUA_NC

Suspension Control Arm Link

SPP Lateral Links...

A$634.45
IN STOCK! Est Ship 3-5 days. This item is IN STOCK at one of our warehouses or distribution centres, the ETA is the approximate time required to prepare your order for dispatch.
View cart 0
We accept
American Express
Mastercard
Visa
PayPal Checkout
Direct Deposit
Afterpay
Apple Pay
Google Pay
Zip Pay

Description

NC Miata Rear Upper Arms (RUA) greatly increase the range of rear camber adjustment for high performance track/street applications and are a must for lowered cars to meet alignment requirements. The adjustment range provided by the eccentric washer on the OEM lower control arm is insufficient to get camber back into proper spec. We also provide stainless steel spacers to correct roll center on lowered cars. Black Anodized and gun drilled 2024 Aluminum alloy main links along with our 360 degree Rotating Clamp design allow for quick and precise adjustment. Blue Anodized Titanium hardware shaves even more unsprung weight from the arms, without compromising strength. FK Spherical Rod Ends eliminate the soft worn out bushings on the stock links to reduce alignment change in the rear suspension under hard cornering, acceleration and braking. They feature a Teflon liner to provide quiet operation, low friction, smooth articulation, and eliminates bushing deflection under load. The PTFE liner is chemically bonded to the inner diameter of the race. The liner offers a very high load carrying capacity and has greatly increased dynamic wear characteristics. Sold as a pair. Made in the USA.

Product Overview

Grade 12.9 hardware with distorted thread locknuts Applications: 2006 - 2015 Mazda Miata MX-5 2003 - 2012 Mazda RX-8 Need a replacement rod end? SPL Right Hand Thread Rod Ends SPL Left Hand Thread Rod Ends Installation Instructions: SPL Parts Rear Upper Arms NC Miata


Features and Benefits

  • Proudly made, engineered, and assembled in the USA.

Product Details

Adjustable:Yes
Bushing Material:Steel Spherical
Color:Black
Description:SPL Parts 06-15 Mazda Miata (NC) / 03-12 Mazda RX-8 Rear Upper Lateral (Camber) Links
Material:Hollow, billet aluminum arms with US-made, PTFE-lined FK steel sphericals, 304 stainless steel tapered spacers and bumpsteer spacers, and aluminum 360° clamps with titanium hardware
Part Number:sppSPL RUA NC

Application Summary

NC Miata Rear Upper Lateral (Camber) Links MX-5 RX-8 FE

Part Type

Suspension Control Arm Link

Data: v4.2 - Upd: 2026-10-14 16:49:06

Features

  • Proudly made, engineered, and assembled in the USA.

Specifications

Adjustable:
Yes
Bushing Material:
Steel Spherical
Color:
Black
Description:
SPL Parts 06-15 Mazda Miata (NC) / 03-12 Mazda RX-8 Rear Upper Lateral (Camber) Links
Material:
Hollow, billet aluminum arms with US-made, PTFE-lined FK steel sphericals, 304 stainless steel tapered spacers and bumpsteer spacers, and aluminum 360° clamps with titanium hardware
Part Number:
sppSPL RUA NC

Reference Information

Brand Name/s Spl Parts
StreetFX SKU sppSPL_RUA_NC
SFX Item ID 4228004
Supplier Item Code 4228004
Manufacturer SKU SPL RUA NC
Manufacturer UPC N/A
Alternative References RX-8

Compatibility

NC Miata Rear Upper Lateral (Camber) Links MX-5 RX-8 FE
